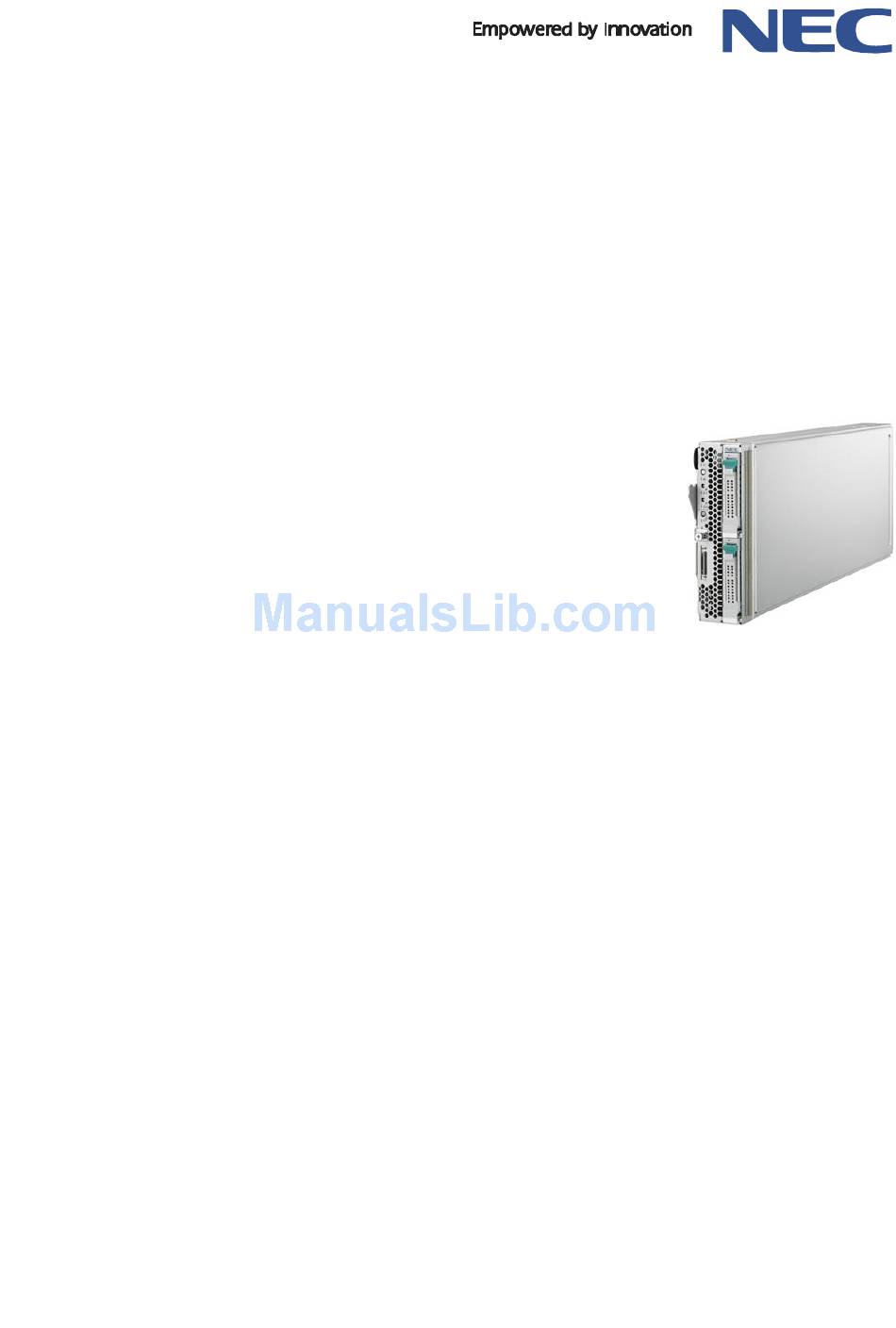

- Page 1 NEC Express5800/B120d System Configuration Guide Introduction This document contains product and configuration information that will enable you to configure your system. The guide will ensure fast and proper configuration of your NEC Express5800 server. July 17, 2013 Revision 4.0 NEC Corporation...
-
Page 2: Table Of Contents
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d Contents TECHNICAL SPECIFICATION ..................3 Key Features ............................3 Specification ............................3 EXTERNAL VIEWS ......................7 Front Views ............................7 CONFIGURATION DIAGRAM ..................7 SERVER CONFIGURATION ................... 9 Base Models ........................... 9 2nd Processor ..........................9 Memory ............................ -
Page 3: Technical Specification
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d Technical Specification Key Features High performance with the latest Intel® Xeon® processor E5-2400 product family Up to 384 GB of high speed DDR3-1600 memory Full manageability by integrated EXPRESSSCOPE Engine 3... - Page 4 For Windows Server 2012 installation, download the driver kit from the following website and install it after OS installation http://www.nec.com/en/global/prod/express/download/ For Linux support, contact our sales representative or go to the NEC website at: http://www.nec.com/global/prod/express/linux/index.html Revision 4.0 – July 17, 2013...
- Page 5 – SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d (2/2) Model B120d Part Number N8400-132F N8400-131F Processor Type Intel® Xeon® processor Intel® Xeon® processor E5-2450 E5-2470 Clock speed 2.10 GHz 2.30 GHz Number of Processors 1 to 2 Cache 20 MB Cores and Threads...
- Page 6 For Windows Server 2012 installation, download the driver kit from the following website and install it after OS installation http://www.nec.com/en/global/prod/express/download/ For Linux support, contact our sales representative or go to the NEC website at: http://www.nec.com/global/prod/express/linux/index.html Revision 4.0 – July 17, 2013...
-
Page 7: External Views
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d External Views Front Views Internal Drive Configuration Drive-less Configuration Legend Power LED Data LAN 2 Activity LED Power Button UID LED Button System Status LED UID LED Dump (NMI) Switch SUV Connector Data LAN 1 Activity LED... -
Page 8: Configuration Diagram
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d Configuration Diagram CHASSIS CHASSIS FRONT 1 DIMM Slot Type II 6 DIMM Slots Type I 6 DIMM Slots LAN Slot Legend: Mandatory Components Standard Components Expansion Slot Legend Type-I mezzanine card slot Type-II mezzanine card slot... -
Page 9: Server Configuration
SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d Server Configuration 1 Base Models Product Name / Description Part Number NEC Express5800 B120d (4C/E5-2403) N8400-135F no RAM, no Drive Cage, no Network Controller Including: One Intel Xeon processor E5-2403, EXPRESSBUILDER DVD NEC Express5800 B120d (6C/E5-2430L) -
Page 10: Memory
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d 3 Memory Memory Configuration Available slots: 6 per processor Category Product Name / Description Part Number Unbuffered DIMM 4GB DDR3-1333 UNB Memory Kit N8402-112F (UDIMM) One 4GB Unbuffered ECC DIMM, DDR3L-1333(PC3L-10600) NOTE: The x4 SDDC is not supported. -
Page 11: Maximum Available Memory
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d Maximum Available Memory See the table below for the maximum memory size that you can actually use on your system. The maximum available memory is less than the maximum physical memory supported by your system because some chipsets require PCI resource space of about 750MB. -
Page 12: Internal Drives
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d 4 Internal Drives Drive and RAID Configuration Refer to the section in accordance with your drive configuration. Available Interface None Drive-less Refer to 4.2.1 SATA Two drives Non-RAID Refer to 4.2.2 Embedded SATA SATA Refer to 4.2.3... -
Page 13: Embedded Sata Raid Controller
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d 4.2.3 Embedded SATA RAID Controller Category Product Name / Description Part Number Drive Cage SATA Drive Cage Kit N8403-057F Required Two 2.5-inch hot plug hard drive bays, one internal SATA cable Drive SATA 250GB 7.2K Hot Plug 2.5-inch SATA HDD... -
Page 14: O Expansion Card
N8403-035 Intel® 82599ES 10Gigabit Ethernet Adapter NOTE: - Connect to 10Gb Pass-Through Card or N8406-051F 10Gb Intelligent L3 Switch. - NEC Storage connection is not supported with RHEL6. Dual Port 10GBASE Adapter N8403-065F Broadcom BCM57810 Dual Port 10GBASE Adapter N8403-067F... -
Page 15: External Storage Controller
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d NIC Teaming feature When using NIC teaming, please note the following: Any of the network teaming must be processed in a single LAN controller. Teaming feature is not supported on iSCSI interfaces. -
Page 16: Other Add-In Components
The following operations can be performed with the flash memory: - Installation of Windows server with express setup - Installation of Starter Pack—the package of NEC qualified drivers and system setting tools - Installation of NEC ESMPRO Agent and Universal RAID Utility - Performance of the Test and Diagnosis Tool Revision 4.0 –... -
Page 17: References
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d References Server Management The EXPRESSSCOPE Engine 3, integrated into the server, provides superior remote control and system management features listed in the table below. Standard Hardware monitoring Temperature, voltage, power, drives, degeneration (memory, hard drive) ... -
Page 18: Os Support Matrix For Pci Cards And Embedded Controllers
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d OS Support Matrix for PCI Cards and Embedded Controllers Part number Product Name N8403-057F SATA Drive Cage Kit - Embedded SATA ... -
Page 19: Support Matrix For Adapters And Network Interconnect Devices
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d Support Matrix for Adapters and Network Interconnect Devices Network Adapter Part number Product Name N8403-061F Dual Port 1GBASE Riser Card Kit N8403-062F Dual Port 10GBASE Riser Card Kit ... -
Page 20: Supporting Pci Cards And Installable Slots
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d Supporting PCI Cards and Installable Slots Part Number Product Name Slots Slot # : Slot type: Type I Type II N8403-061F Dual Port 1GBASE Riser Card Kit N8403-062F Dual Port 10GBASE Riser Card Kit ... -
Page 21: Copyright Notice And Liability Disclaimer
All other products, brands, or trade names used in this document are trademarks or registered trademarks of their respective holders. NEC shall not be liable for technical or editorial errors or omissions contained herein. For hard drive capacity measurements, 1 GB = 1 billion bytes. Actual formatted capacity is less. -
Page 22: Revision History
– SYSTEM CONFIGURATION GUIDE NEC Express5800/B120d Revision History Revision Date Description July 17, 2013 New products added: 1.2TB 10K Hot Plug 2.5-inch SAS HDD / N8450-043 100GB Hot Plug 2.5-inch SATA SSD / N8450-705 400GB Hot Plug 2.5-inch SATA SSD / N8450-707...
