W M I - GE 15-Feb User Manual

W M
ALL OUNT
The Speakerphone can be mounted on a wall phone plate (not
included).
12 MEMORY SPEAKERPHONE
6
1
2 7
3 8
4 9
AREA CODE
5
EMERGENCY QUICK DIAL
FLASH STORE

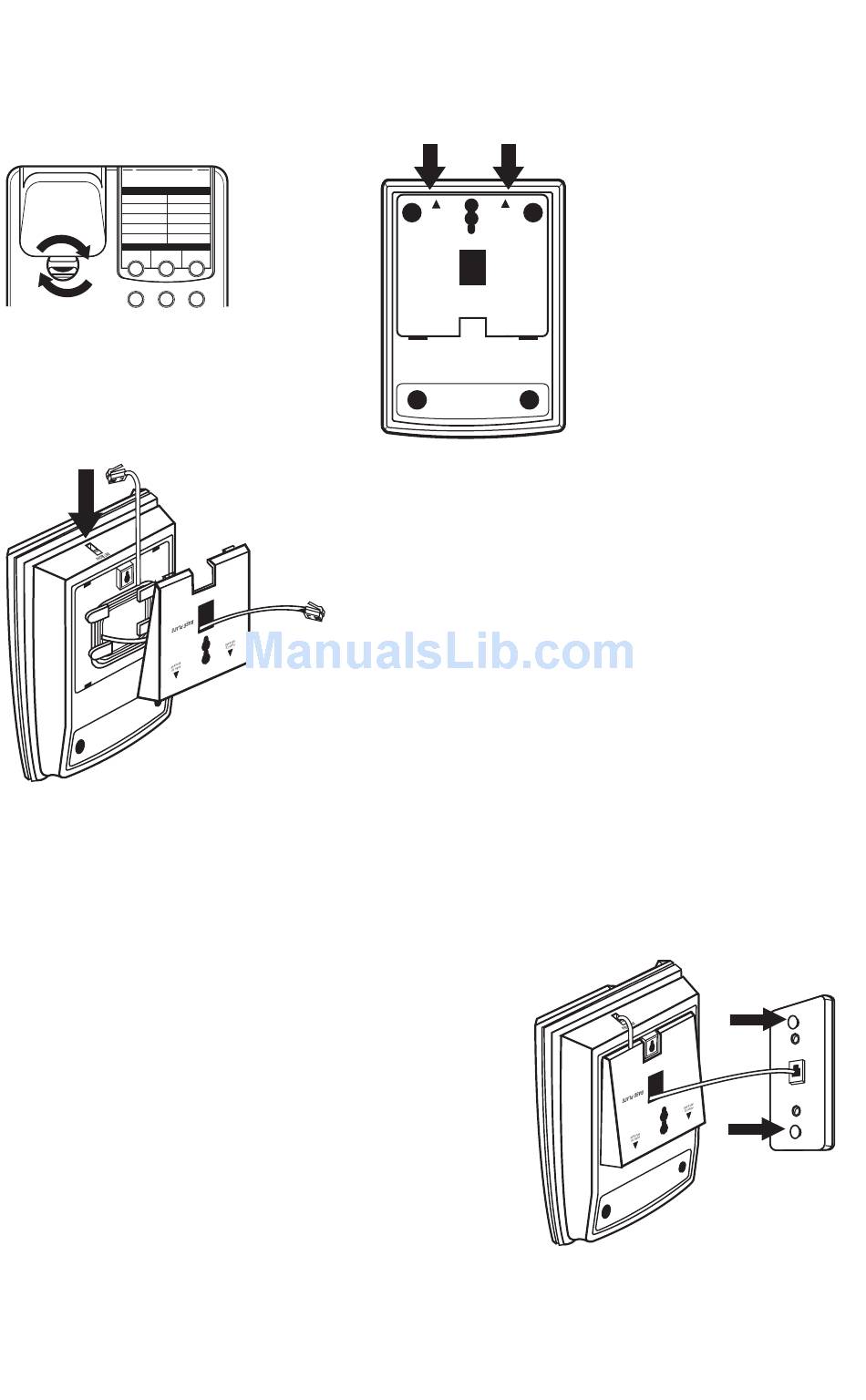

Rotate the handset hook.
Connect the phone cord to the
modular jack on the wall.
Slip the mounting holes over the wall
plate posts and slide the unit down
firmly into place.
I
NSTALLATION
PHONE NUMBER
REDIAL
PUSH TO
PUSH TO
RELEASE
RELEASE
THIS END UP FOR DESK USE
BASE PLATE
USE WALL FOR UP END THIS
Plug the phone cord into the phone
jack on the back of the unit, wrap the
extra line cord around the brackets on
the bottom of the base, and then thread
it through the bottom of
the base plate.
Reverse the direction of the Base Plate
and replace it by putting the tabs into the
slots on the top of the unit first, and
then snapping the bottom tabs into
place.
Wall mount installation continued on next page
Remove the Base
Plate from the back
by pressing down on
the snap tabs located
at the top, and then
lifting it off.
5
