- Page 1 Operating and installation instructions Ceramic hobs with induction CS 1212-1 CS 1221-1 CS 1222 en - GB To avoid the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time.
-
Page 2: Table Of Contents
CS 1212-1 ........ - Page 3 CS 1212-1 ........
-
Page 4: Guide To The Appliance

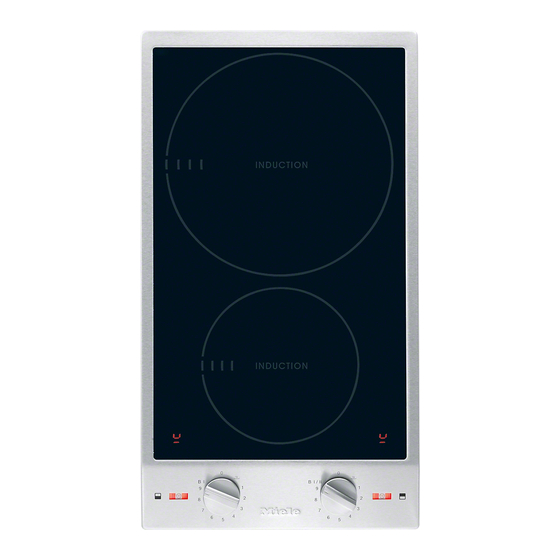

Guide to the appliance CS 1212-1 a Cooking zone with twin booster (BI/II) Cooking zone controls: b Cooking zone with single booster (Bl) f Rear c Display g Front d Cooking zone symbols e Indicators Indicators l In-operation indicator m Booster indicator... -
Page 5: Cs 1221-1
Guide to the appliance CS 1221-1 a Cooking zone with twin booster (BI/II) Indicators b Display c Indicators d Control l In-operation indicator m Booster indicator n Residual heat indicator... - Page 6 Guide to the appliance CS 1222 a Extended cooking zone with Cooking zone controls: Twinbooster (B I/II) g Front b Cooking zone with single booster (Bl) h Rear c Display d Cooking zone symbols e Indicators Indicators l In-operation indicator m Booster indicator n Residual heat indicator...
-
Page 7: Display
= Booster I = Booster II (only for cooking zones with twin boosters) = Safety lock (see "Safety features") Cooking zones Cooking zone CS 1212-1 minimum to maximum C Rating in watts for 230 V** in cm* Front 10 - 16... - Page 8 Guide to the appliance Cooking zone CS 1222 minimum to maximum C Rating in watts for 230 V** in cm* Front 10 - 16 normal: 1400 with booster: 2200 Rear 14 - 20 / normal: 1850 with Booster I: 2500 with Booster II: 3000 20 x 30...
-
Page 9: Warning And Safety Instructions
Warning and Safety instructions This appliance complies with current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before installation and before using it for the first time. They contain important notes on installation, safety, use and maintenance. - Page 10 The appliance is intended for domestic use only to cook food and keep it warm. Any other use is not supported by the manufacturer and could be dangerous. Miele cannot be held liable for damage resulting from incorrect or improper use or operation of the appliance.
- Page 11 Warning and Safety instructions Safety with children Activate the safety lock to ensure that children cannot switch on the appliance inadvertently. This appliance is not a toy! To prevent the risk of injury, do not let children play with the appliance or its controls.
- Page 12 Miele cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
- Page 13 Repairs and other work by unqualified persons could be dangerous. Miele cannot be held liable for unauthorised work. During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply.
- Page 14 Warning and Safety instructions While the appliance is under guarantee, repairs should only be undertaken by a service technician authorised by Miele. Otherwise the guarantee is invalidated. Faulty components must only be replaced by genuine Miele original spare parts. The manufacturer can only guarantee the safety of the appliance when Miele replacement parts are used.
- Page 15 Miele cannot be held liable for damage caused by incorrect installation or connection.
- Page 16 Pans that have boiled dry can cause damage to the ceramic surface for which Miele cannot be held liable. Boiling fat or oil could ignite and cause a fire. If oil or fat does catch fire, do not attempt to put out the flames with water.
- Page 17 Warning and Safety instructions Do not use the appliance as a resting place for anything else. Take particular care never to place cutlery or other metal objects on the appliance. When the appliance is switched on either deliberately or by mistake, or when there is residual heat present, there is the risk of metal objects heating up, with a danger of burning.
- Page 18 Warning and Safety instructions Do not use pots and pans on the ceramic hob with bases with pronounced edges or ridges, e.g. cast iron pans. These could scratch or scour the hob surface permanently. Never heat an empty pan unless the manufacturer of the pan expressly states that you can do so.
- Page 19 Warning and Safety instructions Do not allow either solid or liquid sugar, or pieces of plastic or aluminium foil to get onto the cooking zones when they are hot. If this should occur, switch off the appliance, and carefully scrape off all the sugar, plastic or aluminium residues from the hob whilst they are still hot, using a shielded scraper blade.
- Page 20 Warning and Safety instructions Spray canisters, aerosols and other inflammable substances should not be stored in a drawer under the hob. Cutlery inserts must be heat-resistant. Metal utensils stored in a drawer under the hob can become hot if the induction hob is used intensively for a long time.
- Page 21 Warning and Safety instructions Miele cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.
-
Page 22: Caring For The Environment
Caring for the environment Disposal of the packing Disposal of your old appliance material Electrical and electronic appliances often contain materials which, if The transport and protective packing handled or disposed of incorrectly has been selected from materials which could be potentially hazardous to are environmentally friendly for human health and to the environment. -
Page 23: Before Using For The First Time
Before using for the first time Before using for the first time Please stick the extra data plate for the appliance supplied with this When the induction hob is first documentation in the space provided in connected, and after a power cut, all of the "After sales service, data plate"... -
Page 24: Induction
Induction The induction principle If no pan or an unsuitable pan is placed on the cooking zone, the cooking zone An induction coil is located under each will switch off automatically after 3 cooking zone. When a cooking zone is minutes. -
Page 25: Noises
Induction Noises The appliance has a cooling fan to help extend the life of the electronics. When When using an induction cooking zone, the hob is being used intensively, this the following noises can occur in the will come on and you will hear a pan, depending on what it is made of whirring sound. -
Page 26: Pans
Induction Pans Make sure that you always place the Suitable pans include: pan in the middle of the cooking zone. If the pan only partially covers – stainless steel pans with a magnetic the zone, the handle could become base very hot. -
Page 27: Operation
Operation Switching on and off Residual heat indicator Each cooking zone is switched on by The residual heat indicator remains on turning the control clockwise a to the until the induction hob is cool enough to power setting required, and is switched touch. -
Page 28: Settings
Operation Settings Cooking process Settings* Keeping warm Melting butter 1 - 2 Dissolving gelatine Making milk puddings Warming small quantities of liquid Cooking rice Defrosting frozen vegetables Cooking pulses Warming liquid and semi-solid foods Making omelettes and lightly frying eggs Steaming fruit Cooking dumplings Steaming vegetables, fish... -
Page 29: Auto Heat-Up
Operation Auto heat-up Activating Auto heat-up ^ Turn the control anticlockwise as far Continued Heat-up time as it will go and hold in that position cooking setting in minutes and until A appears in the display. seconds (approx.) 0 : 15 If you hold the control for too long, L will appear in the display which 0 : 15... -
Page 30: Booster Function
Operation Booster function The extra boost of energy is only available by taking a proportion of The cooking zones are equipped with energy away from another cooking Single (l) or Twin Boosters (I/II) (see zone. For this reason, the cooking "Guide to the appliance"). - Page 31 Operation To activate Booster l To deactivate the Booster function ^ Turn the control past power setting 9 The Booster function can be cancelled to BI or BI/II, and then back to 9. early. ^ Keep turning the control past power I will appear in the display for the cooking zone and the B booster setting 9 to BI or BI/II and back to 9...
-
Page 32: Keeping Warm
Operation Keeping warm Useful tips Each cooking zone has a keeping Only use pans for keeping food warm. warm function. Cover the pan with a lid. If the keeping warm function has been You do not have to stir food while it is activated, the cooking zone will switch being kept warm. -
Page 33: Tips On Saving Energy
Tips on saving energy – Use a pan lid whenever possible to minimise heat loss. uncovered covered – Select a smaller pan when cooking small quantities. A smaller pan uses less energy than a larger pan with very little in it. –... -
Page 34: Safety Features
Safety features Safety lock Safety switch-off Keep children away from the hob for Your hob is fitted with a safety their own safety. switch-off feature in case you forget to Your appliance is equipped with a switch it off yourself. safety lock to prevent the hob and If one of the cooking zones is heated cooking zones being switched on. -
Page 35: Overheating Protection
Safety features Overheating protection – If the temperature rises after the power supply has been reduced, the All the induction coils and the cooling cooking zones will switch off. element for the electronics are fitted Other cooking zones may switch off with an overheating protection shortly afterwards. -
Page 36: Cleaning And Care
Cleaning and care Miele offer a range of branded cleaning To avoid damaging the surface or and conditioning agents for your hob. your hob, do not use: See "Optional accessories". – washing-up liquid, Under no circumstances use a – cleaning agents containing soda,... - Page 37 (see "Optional Then clean the hob with Miele ceramic accessories"). and stainless steel hob cleaner (see To help prevent resoiling, we "Optional accessories") applied with recommend a stainless steel kitchen paper or a clean cloth.
-
Page 38: Problem Solving Guide
"d" If the hob still will not switch on, contact symbol appears in the display and a qualified electrician or the Miele Ser- the cooking zone does not heat up. vice Department. The hob is in demonstration mode. - Page 39 Remove the protection"). cause of the blockage. If the fault message appears again, call the Miele ... the food in the pan hardly heats up Service Department. or does not heat up at all when the Auto heat-up function is switched on.
-
Page 40: Optional Accessories
Optional accessories Miele offer a comprehensive range of useful accessories as well as cleaning and conditioning products for your appliance. These products can be ordered online: or from Miele (see back cover for contact details) Ceramic and stainless steel hob cleaner 250 ml... -
Page 41: Safety Instructions For Installation
The hob may only be built in over a Miele oven if the worktop is at least 40 mm thick. - Page 42 Safety instructions for installation Safety distance above the appliance When two or more appliances are installed together below a cooker hood, e.g. an induction hob or wok and a gas hob, which have different safety distances given in the installation instructions, you should select the greater distance of the two.
- Page 43 The minimum distance a between the worktop cut-out and a wall or tall unit to the right or left of it is: 40 mm CS 1212 / CS 1212-1 CS 1221 / CS 1221-1 CS 1222 CS 1234 / CS 1234-1...
- Page 44 Safety instructions for installation Safety distances underneath the hob Interim shelf To ensure sufficient ventilation to the It is not necessary to fit an interim shelf hob, a minimum gap must be left underneath the hob, but one may be between the underside of the hob and fitted if you wish.
- Page 45 Safety instructions for installation Safety distance when installing the appliance near a wall with additional niche cladding A minimum safety distance must be maintained between the worktop cut-out and any niche cladding to protect it from heat damage. If the niche cladding is made from a combustible material (e. g. wood) a minimum safety distance e of 50 mm must be maintained between the cut-out and the cladding.
-
Page 46: Appliance And Building-In Dimensions
Appliance and building-in dimensions CS 1212-1 a Spring clamps b Front c Casing depth d Casing depth including mains connection box with mains connection cable, L = 2000 mm... - Page 47 Appliance and building-in dimensions CS 1222 / CS 1221-1 a Spring clamps b Front c Casing depth d Casing depth including mains connection box with mains connection cable, L = 2000 mm...
-
Page 48: Preparing The Worktop
Preparing the worktop ^ Make the worktop cut-out for one or more appliances as applicable. Remember to maintain a minimum safety distance from the back wall, as well as from any tall unit or side wall to the right or left of the appliance. -
Page 49: Installation Of Several Appliances
Installation of several appliances When installing two or more appliances next to each other a spacer bar b must be used between each one. See "Fixing the spring clamps and spacer bars". Worktop cut-out Worktop cut-out - two appliances - three appliances To calculate the cut-out width (D) required: Add up the widths of each appliance (e.g. - Page 50 Installation of several appliances a Spring clamps b Spacer bars c Gap between spacer bar and worktop d Sealing strip The illustration shows a worktop cut-out with spring clamps a and spacer bars b for 3 appliances. An additional spacer bar is required for each additional appliance. The position for securing each additional spacer bar will depend on the width of appliance B (288 mm / 380 mm / 576 mm).
-
Page 51: Fixing The Spring Clamps And Spacer Bars
Fixing the spring clamps and spacer bars Wooden worktops ^ Position the spring clamps supplied a and spacer bars b on the top edge of the cut-out in the positions marked. ^ Secure the spring clamps and spacer bars with the 3.5 x 25 mm screws supplied. - Page 52 Fixing the spring clamps and spacer bars Granite and marble worktops The screws are not required for granite or marble worktops. ^ Apply silcone to the side edges and the lower edges of the spring clamps a and spacer bars b. ^ Then fill gap e between the spacer ^ Position and secure the spring bars and the worktop with silicone...
-
Page 53: Installing The Appliance(S)
Installing the appliance(s) ^ Feed the connection cable down ^ Starting at the front, position the next through the cut-out. appliance in the worktop cut-out. ^ Starting at the front, position the ^ Connect each appliance to the mains appliance in the worktop cut-out. (see "Electrical connection"). -
Page 54: General Installation Tips
General installation tips Tiled worktop Grout lines a and the hatched area Do not use any sealant unless underneath the appliance must be expressly instructed to do so. The smooth and even. If they are not, the sealing strip under the edge of the top appliance frame will not sit flush with part of the appliance provides a the worktop and the sealing strip will... -
Page 55: Electrical Connection
H 05 V V-F be provided for all poles. (pvc insulated), available from Miele. For extra safety it is advisable to protect the appliance with a suitable residual Installation, repairs and other work current device (RCD). - Page 56 Electrical connection Important The electrical safety of this appliance can only be guaranteed when continuity is complete between the appliance and an effective earthing system, which complies with local and national regulations. It is most important that this basic safety requirement is present and tested regularly and if there is any doubt the electrical wiring in the home should be inspected by a...
-
Page 57: After Sales Service, Data Plate, Guarantee
Please note that telephone calls may be monitored and recorded to improve our service. When contacting Miele, please quote the model and serial number of your appliance which are given on the data plate. N.B. A call-out charge will be applied for service visits where the problem could have been resolved as described in these instructions. - Page 60 Alteration rights reserved/ 2911 M.-Nr. 09 055 450 / 02...
