INSTALLATION
AND
SERVICE
MUST
BE PERFORMED
BY A QUALIFIED
INSTALLER.
IMPORTANT:
SAVE FOR LOCAL
ELECTRICAL
INSPECTOR'S
USE.
READ AND
SAVE
THESE INSTRUCTIONS
FOR FUTURE
REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable
vapors and liquids in the
vicinity
of this or any other appliance.

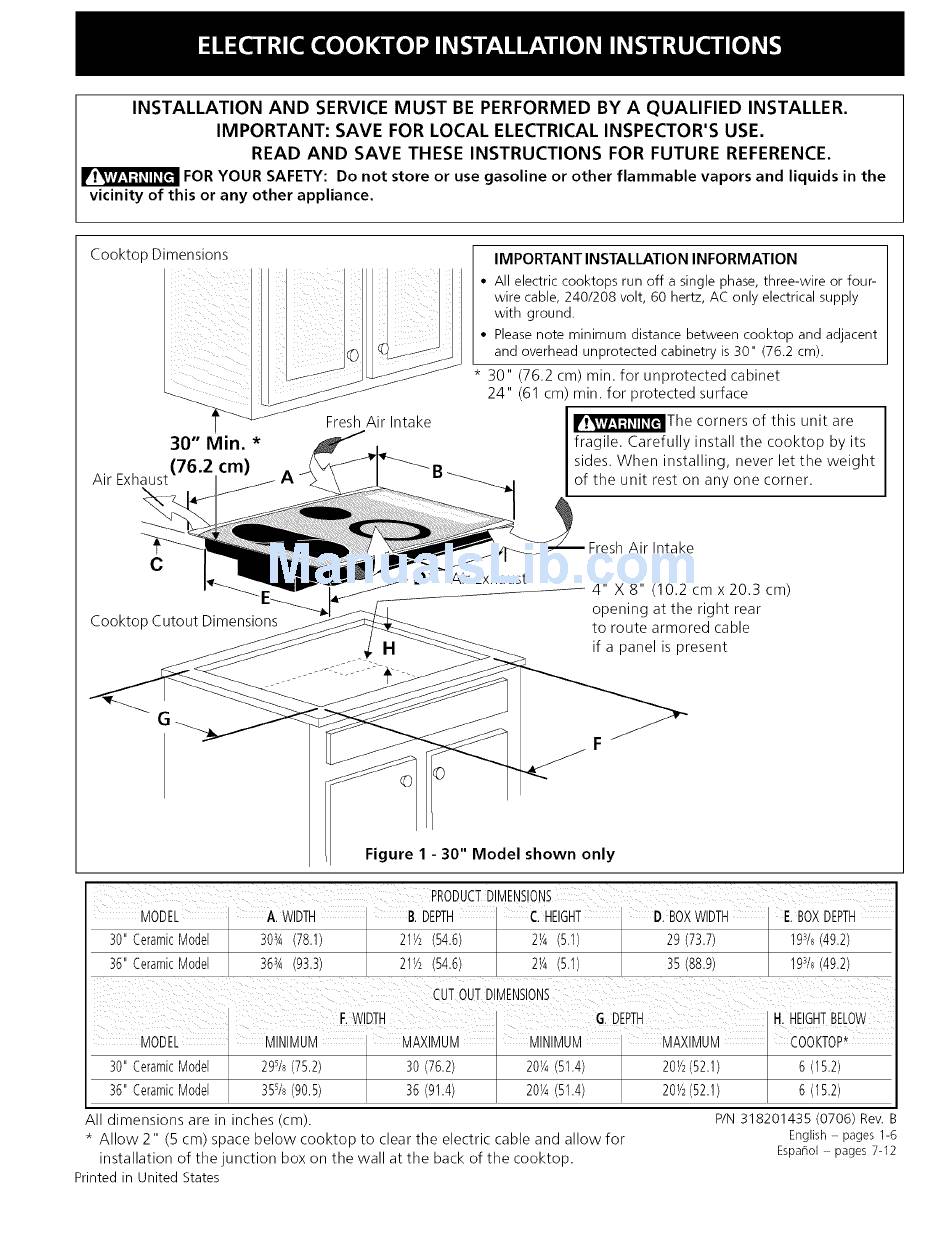

Cooktop Dimensions
30" Min. *
Air Exhaust ( 76"2 cm)
A
IMPORTANT INSTALLATION INFORMATION
• All electric cooktops run off a single phase, three-wire or four-
wire cable, 240/208 volt, 60 hertz, AC only electrical supply
with ground.
• Please note minimum distance between cooktop and adjacent
and overhead unprotected cabinetry is 30" (76.2 cm).
* 30" (76.2 cm) min. for unprotected
cabinet
24" (61 cm) min. for protected
surface
_The
corners of this unit are
fragile. Carefully install the cooktop by its
sides. When installing, never let the weight
of the unit rest on any one corner.
Cooktop Cutout Dimensions
Fresh Air Intake
--------
4" X 8" (10.2 cm x 20.3 cm)
opening at the right rear
to route armored cable
if a panel is present
Figure 1 - 30" Model shown only
MODEL
A. WIDTH
B.DEPTH
C.HEIGHT
D BOX WIDTH
E BOX DEPTH
30" Ceramic Model
303A(78.1)
211/2 (54.6)
2V4(5.1)
29 (73.7)
193/8 ( 49.2)
36" Ceramic Model
363A(93.3)
21Y2(54.6)
2Y4(5.1)
35 (88.9)
193/8 ( 49.2)
MODEL
MINIMUM
MAXIMUM
MINIMUM
MAXIMUM
COOKTOF
30" Ceramic Model
29% (75.2)
30 (76.2)
201/4 ( 51.4)
20V2 ( 52.1)
6 (15.2)
36" Ceramic Model
35% (90.5)
36 (91.4)
201/4 ( 51.4)
20V2 ( 52.1)
6 (15.2)
All dimensions are in inches (cm).
* Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for
installation of the junction box on the wall at the back of the cooktop.
Printed in United States
P/N 318201435
(0706)
Rev.
English - pages 1-6
Espa¢_ol- pages 7-12
