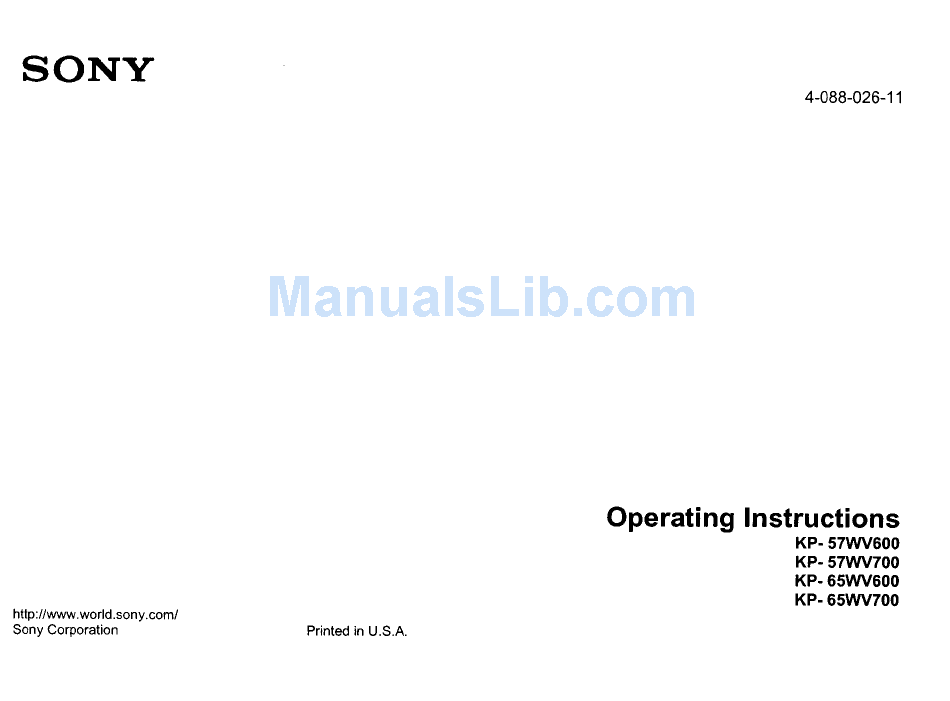

SONY 4-088-026-11 Operating Instructions KP- 57WV600 KP- 57WV700 KP- 65WV600 KP- 65WV700 http://www.world.sony.com/ Sony Corporation Printed in U.S.A.
Page 2
WARNING Note on Caption Vision This television receiver provides display of television closed To reduce the risk of fire or shock hazard, do not expose captioning in accordance with §15.119 of the FCC rules. projection TV to rain or moisture. Note on Convergence Adjustment Before you use your projection TV, make sure to adjust...
Page 3
It is recommended to use spot projection TV, below the Sony logo, on the sticker, and also on the lighting directed down from the ceiling or to cover the TV box (white label).
Page 4
Use only a cart or stand recommended __________?_" unable to insert the plug into the outlet, contact by Sony for the specific model of TV. No part of your electrician to have a suitable outlet installed. the TV set should overhang...
Page 5
Ventilation Lightning The slots and openings in the cabinet and in the back For added protection for this television receiver during a lightning or bottom are provided for necessary, ventilation. storm, or when it is left unattended and unused for long periods ensure reliable operation...
Page 6
For Safety Be careful when moving the projection TV When you place the projection TV in position, be careful not to drop it on your _ZZZ_Z_ foot or fingers. Watch your footing while installing projection Carry the projection TV in the specified manner If you carry the projection TV in a manner...
Introducing the Projection Welcome ......................Package Contents ................Features .................... Setting Up the TV Overview ..................... Carrying Your Projection TV ............... Installing the TV ..................TV Controls and Connectors ............... Front Video Controls ............... KP-57/65WV600 Front Panel ............KP-57/65WV700 Front Panel ............Rear Panel ..................
Page 9
Using the Channel Menu ................Using the Parent Menu ................Using the Setup Menu ................Other Information Overview ..................... Glossary ....................... Notes on Using Memory Stick Media ............Contacting Sony ..................Troubleshooting ..................Specifications ....................Optional Accessories ................... Index ......................
Page 10
Welcome Thank for purchasing the Sony Projection TV. This manual is to be used with the following models: KP-57WV600 KP-65WV600 KP-57WV700 KP-65WV700 Package Contents Along with your new projection TV, the package contains a remote control and two AA batteries.
Page 11
Twin View'M: Using the Multi-Image Driver (MIDX), Twin View allows you to watch two programs side by side, with the ability to zoom in one picture. You can watch pictures from two different sources (1080i, 720p, 480p, and 480i) simultaneously. (Only the left Twin View window can display...
Overview This chapter includes illustrated instructions for setting up your TV. Carrying Your Projection Installing the TV TV Controls and Connectors 13-17 Basic Connections: Connecting a Cable or Antenna 18-24 Connecting Optional Equipment VCR and Cable VCR and Cable Two VCRs for Tape Editing Satellite Receiver Satellite...
Carrying Your Projection Carrying the TV requires four or more people. The TV is equipped with casters for easy movement on a hard surface. Be sure to move your projection TV using the casters. The TV includes handles that you can use to carry the unit. Handle (one on eachside) Do not carry the TV by placing hands under the front screen...
TV Controls and Connectors To access the front video panel, push up and then release. The panel drops down automatically (KP-57/65WV700 shown). Pushup and release Front Video Controls S VIDEO VIDEO L(MONO) AUDIO VIDEO21N S VIDEO connects to the S VIDEO OUT jack on your camcorder VIDEO 2 INPUT or other...
If the LED blinks continuously, this may indicate the TV needs service (see "Contacting Sony" on page 90). TIMER LED When lit, indicates one of the timers is set. When timer is set, this LED will remain...
If the LED blinks continuously, this may indicate the TV needs service (see "Contacting Sony" on page 90). TIMER LED When lit, indicates one of the timers is set, When timer is set, this LED will remain...
Page 18
VHF/UHF antenna or cable. _[ CONTROL s Allows the TV to receive_(IN)and Send (ouT) remote contr0i signals to other sony IN/0UT infrared-controlled audio or video equipment that has the CONTROL S function. *High-bandwidth Digital Content Protection...
Basic Connections: Connecting a Cable or Antenna The way in which you will connect your TV varies, depending how your home receives a signal (cable, cable box, antenna) whether or not you plan to connect a VCR. • .,i-q I_11_/_ Cable or Antenna Only No cable box or VCR Cable and Antenna Only...
Cable or Antenna For best results, use one of the following connections if you are connecting a cable or an antenna and you: Only Do not need a cable box to unscramble channels. (If you have cable box, see pages 22-24.) Do not intend...
Cable and Antenna For best results, use this connection if you: Have a cable an antenna. Only (This is convenient if you are using a separate rooftop antenna receive additional channels that are not provided by your cable company.) Do not have a cable or VCR.
Page 22
Notes on Using This Connection Press ANT to switch back and forth between the TV's VHF/UHF and AUX Switch the TV's input between the cable and inputs. antenna Press ANT to switch to the AUX input. Receive channels using antenna, instead of the cable Set the Cable option...
Cable Box and For best results, use this connection if: Cable Only Your cable company scrambles some channels, such as premium channels (which requires to use a cable box), does scramble all channels. do not have a VCR. (If you have a VCR, see pages...
Page 24
To connect the cable box and cable Connect the cable from your cable company to the TV's VHF/UHF jack. a coaxial cable to connect the TV's TO CONVERTER jack to the cable box's input jack. (The TV's internal converter lets you switch between unscrambled...
For best results, use this connection if: Cable Only Your cable company scrambles all channels, which requires to use a cable box. You do not have a VCR. (If you have a VCR, see pages 26 and 28.) With this connection you can: the TV remote control...
Connecting Optional Equipment Use the directions in this section to connect the following optional equipment: VCR and Cable VCR and cable Editing TwO VCRs for Tape Satellite Receiver Satellite Receiver and VcR video DVD Player with component Connectors DVD Player with S VIDEO and Audio Connectors...
VCR and Cable For best results, use this connection if: Your cable company does require to use a cable box. With this connection, you can use all the dual picture features. To connect the VCR and cable Connect the CATV cable to the VCR's VHF/UHF...
Page 28
Watch cable channels Press W/viDE0 repeatedly to select the cable input (VHF/UHF in the illustration). Set up the TV remote control If you have a non-Sony VCR, you must program the remote control. "Programming the Remote Control" on pages 51-52.
VCR and Cable Forbest results, usethis connectionif: Your cable company scrambles some channels, such as premium channels (which requires you to use a cable box), but does not scramble all channels. With this connection,you can use all the dual picture features. With this connectionyou can: Use the TV remote control to change...
Page 30
Press TV/VIDE0 repeatedly to select the VCR input (VIDEO 1 in the illustration). Set up the TV remote control If you have a non-Sony VCR, you must program the remote control. to operate the cable box or "Programming the Remote Control"...
Two VCRs for Tape Connecting VCRs lets you record from one VCR to the other. Editing connecting them as shown below, view (monitor) what being recorded. To connect two VCRs for tape editing sing S VIDEO jacks? Use an A/V cable to connect the playback...
Page 32
Notes on Using This Connection W/VIDEO repeatedly View (monitor) what is being Press to select the VCR input (VIDEO 1 in the recorded illustration above). Set up the TV remote control If you have a non,_ny VCR, you must program the remote control.
Satellite Receiver To connect a satellite receiver Connect the satellite antenna cable to the satellite receiver's satellite input jack. Use an A/V cable to connect the satellite receiver's output sing S VIDEO jacks? jacks to the TV's input jacks. See page 25. Connect a CATV cable...
Page 34
Watch the sateUite receiver Press W/VIDEO repeatedly to select the satellite receiver input (VIDEO 1 in the illustration). If you have a non-Sony satellite receiver, you must program Set up the TV remote control to operate satellite receiver the remote control.
Satellite Receiver Toconnecta satellite receiverand VCR and VCR Connect the satellite antenna cable to the satellite receiver's satellite input jack. Connect the CATV cable to the VCR's VHF/UHF input jack. Use a coaxial cable to connect the VCR's VHF/UHF output jack sing S VIDEO jacks? to the TV's VHF/UHF...
Page 36
Press W!VIDEO repeatedly to select the input to which the VCR is connected (VIDEO 1 in the illustration). If you have a non'Sony VCR or satellite receiver, you must program Set up the TV remote control to operate the satellite remote control.
Player with For best results, use this connection if your DVD player Component component video (Y, PB, PR) jacks. Video Connectors To connect a DVD player with component video connectors a component video cable, or three composite video cables, connect the DVD player's Y, PB and...
Page 38
Notes on Using This Connection Watch the DVD player Press TVHIDEO repeatedly to select the DVD input (VIDEO 5 in the illustration). Set up the TV remote con_ol If you have a n0n-_ny DVD player, you must program the remote control.
DVD player Press TV/VIDEOrepeatedly to select the DVD input (VIDEO I in the illustration). Set up the TV remote control If vou have a non-Sony DVD player, you must program the remote control. to operate the DVD player See "Programming the Remote Control"...
Digital TV Set-Top To connect a digital TV set-top box with component video connectors with three separate component video cables to connect the DVD Component player's Y, PB and PR jacks to the Y, PB and PR jacks (VIDEO 5) on Video Connectors the TV.
Camcorder For easy connection of a camcorder, the TV has front A/V input jacks. If you prefer, however, you can connect the camcorder to the TV's rear A/V input jacks. _Using To connect a camcorder S VlDEOjacks? Open the front video panel, as shown...
Using the CONTROL S Feature CONTROL S allows you to control your system and other Sony equipment with one remote control. In addition to allowing you to control multiple devices with one remote control, the CONTROL feature allows you to always...
Setting Up the Channel List After you finish connecting your TV, you need to run Auto Setup to set up your channels. The Auto Setup screen appears when you turn on your TV for the first time after hooking it up. If you do not want set up the channels at this time, you can do it later by selecting Auto...
Adjusting the Convergence Automatically (Flash Focus) The projection tube image appears on the screen in three colors (red, green and blue). If they do not converge, the color is poor and the picture blurs. Before you use your TV, be sure to adjust convergence.
Adjusting the Convergence Manually The Convergence feature gives you more control over the picture's convergence than the Flash Focus feature, allowing you to fine-tune convergence. Before using the manual Convergence, you must first perform Flash Focus (as described on page 44). Press MENU to display the Menu.
Notes best results, stand about 3 to 5 feet back from the picture Adjusting when adjusting the convergence. Begin with the crosses in the center area of the screen and, once those are adjusted, move to the Convergence crosses on the edges of the screen.
Overview This chapter describes how to set up, program, and use the TV's remote control. Inserting Batteries Button Descriptions Outside Panel Inside Panel Programming the Remote Control Inserting Batteries Remove the battery cover from the remote control. Insert size AA (R6) batteries (supplied) by matching the O...
For details, page 57. WIDE MODE Press repeatedly to Step through the Wide Mode settings: Wide Zoom, N0rmal, Full, Zoom. Also available SONY the Screen menu. For details, see pages 58 and 76. klv_ MENU..Press to display the Menu.
Page 50
(if set). Press again turn Display off. GO IDE* Press to display the program guide of your satellite program provider. Requires that yOUfirst program the remote control (page 5iii if not Sony brand.
Page 51
VCR or DVD player, depending on the position of the AN slide switch. For details, see page 51. VCR and DVD buttons require that you first program the remote (page 51), if the VCR and DVD player are not Sony brand. Press to turn off all Sony brand audio/video...
Programming the Remote Control remote control is preset to operate Sony brand video equipment. Beta, Ed Beta VCRs 8 mm VCR VHS VCR DVD player If you have video equipment other than Sony brand that want control with the TV's...
Page 53
Manufacturer's Codes VCRs DVD Players _l_t:- lq411g:2d [qmI_/ Orion Sony Sony 301, 302, 303 General Panasonic 308, 309, 306, Admiral Electric (M. Ward) Pentax 305, 304 Hitachi Aiwa 3381 344 Philco 308, 309 Audio 314, 337 Philips 308, 30% 310...
TV's video inputs. Set up the TV remote control You must program the remote control operate non-Sony equipment first time you use it. See "Programming the Remote Control" on pages 51 to 52. Operating a VCR Activate...
Page 55
Operating a Cable Activate the remote control SAT/CABLEFUNCTION to operate the cable box Turn on/off SATICABLEPOWER Select a channel 0-9, ENTER Change channels CH +/- Back to previous channel JUMP Operating a DVD Player Activate the remote control Open the outside cover, as shown on page 50.
Overview This chapter describes to use the features of your Watching Using the Scrolling Index Using Wide Mode Using Twin View Using Favorite Channels Using the Freeze Function Using the Memory Stick Picture Viewer...
Watching i_l_'_iidt_,_ I_i Fora complete list of all Activate the remote control Press TV FUNCTION the functionsof the remote operate the TV control, see pages47-52. Press TV POWER Turn on/off the TV Tune directly to a channel Press 0-9 and then ENTER (or wait 3 seconds) Press CH+/-...
Using the Scrolling Index Scrolling Index lets you select programs from a scrolling index video pictures. Press INDEX. The Scrolling Index appears, with the currently selected program in the main (left) window, four scrolling video pictures in the right. Live preview window As each picture...
Using Wide Mode Wide Screen mode lets you watch 4:3 normal broadcasts in several Wide Screen modes (16:9 aspect ratio). When viewing high-definition programs broadcast in 720p/1080i, it is not possible to change between Wide Screen modes. Press WIDE MODE repeatedly to toggle through following...
Using Twin View Twin View lets you see two pictures from sources -- from antenna, VCR, DVD, etc. -- on the screen at the same time. You hear the sound from only one of the sources at a time, can choose which source's sound...
Activating To activate the picture in the left To activate the picture in the right Picture window window Move the joystick ,I.. Move the joystick Functions Available in the Active (Highlighted) Window Tune to a channel Press 0-9 and then ENTER (or wait 3 seconds) Press CH+J- Adjust...
Changing zoom feature lets you vary the relative size of the left and right Picture Size pictures. Move the joystick *, or ,_ to activate the picture that you want to resize. Move the joystick • to enlarge the picture. Move the joystick # to make the...
Using Favorite Channels Favorite Channels feature lets you select programs from a list of up to eight favorite channels that specify. Creating a List of Press MENU to display the Menu. Favorite Channels Move the joystick _, or ,_ to highlight the Channel icon press...
Using the Freeze Function FREEZEbutton allows to temporarily capture a program's picture. You can use this feature to write down information such phone numbers, recipes, etc. The Freeze feature is not available while you are using the Twin View or Scrolling Index features.
Memory Stick media by Sony brand digital Types still and video cameras. The TV's Memory Stick viewer is compatible with Memory SUcks up to and including 128MB. It is not compatible with Memory Sticks that exceed 128MB.
About DCFFile Names Most Sony brand digital still and video cameras automatically record still images using DCF compliant directory and file names, as shown in the following example: Image Directory Name IOOMSDCF __ Image File Names -_ Do not rename directories. If the namesare changed,the still images...
To insert a Memory Stick Inserting Removing Locate the Memory Stick slot (see pages 14-15) insert Memory Stick Memory Stick into the Memory Stick slot as illustrated below. When inserted properly, it should slide in with little resistance click into place.
Displaying Insert a Memory Stick that contains the images you want to view. Memory Stick For details, see page Menu Press the MEMORY STICKbutton on the remote control. The Memory Stick Menu appears. To select an option, move the joystick t or •...
Using Memory The Memory Stick Index lets you view images that are on the Stick Index Memory Stick in an index of thumbnail images. There is no audio signal available while viewing images on Memory Stick. Insert a Memory Stick that contains the images...
Using Memory The Memory Stick Slideshow lets you watch a slideshow of the Stick Slideshow images that are on the Memory Stick. Insert a Memory Stick that contains the images want to view. For details, see page Press MEMORYSTICKbutton on the remote control.
Using the Rotate The Rotate Picture Screen lets you rotate an image from an index Picture Screen thumbnails. You cannot rotate images if the LOCK switch on the Memory Stick is on. To rotate the images, first set the LOCK switch to off. In the Memory Stick...
Overview Menu gives access to the following features: Allows you to make adjustments to your picture settings. It also allows you to customize the Picture Mode based on the type of program you are viewing, select Advanced Video options, and more. Offers enhanced audio options...
Using the Video Menu To select the Video Menu Press MENU. Move the joystick _, or ,_ to highlight the Video icon and press Move the joystick to highlight an option. Press Q to select an option. ,,,_,_, ]i= _l,=,_.__._r_._==_,t_l_l,,- Move the joystick t 4.
Page 74
ClearEdge VM Sharpens picture definition to give every object a sharp, clean Velocity edge. Select from High, Medium, Low, Off. Modulation rivanced select Pr0giam to Choose-a-m0ng the DRC Mode and DRC Palette To changequickly from one Video options while viewing NTSC sources.
Using the Audio Menu To select the Audio Menu Press MENU. Move the joystick _, or ,_ to highlight the Audio icon press Move the joystick to highlight an option. Press C_) to select an option. Move the joystick t } _, ,b to change settings.
Page 76
Speaker Select to turn on the TV speakers. Select to turn off the TV speakers and listen to the TV's sound only through your external audio system speakers. Audio Out This option can be set only When the Speaker option is set to Off.
Using the Screen Menu To select the Screen Menu Press MENU. Move the joystick (, or ,_ to move to the Screen icon press Move the joystick • or _. to move to an option. Press select an option. Move the joystick ,I, ,_ 4.
Page 78
If 4:3 Default is set to 4:3 Default Wide Zoom Select to enlarge the 4:3 size picture, while Select the default the upper and lower parts of the picture anything but Off, the Wide Mode condensed to fit the wide screen.
Using the Channel Menu To select the Channel Menu MENU. Press Move the joystick _- or ,_ to highlight the Channel icon press (_). Move the joystick to highlight an option. Press to select an option. Move the joystick • } _, ,_ to change settings.
Page 80
Channel Allows you to customize the channel fist that appears []Channels that you set to Skip/Add when you use the CH+/- buttons. be skipped can be accessed Move the joystick _ or 4 to scroll through only with the 0-9 buttons. channels until you find the channel you want...
Using the Parent Menu The Parent Menu allows you to set up the TV to block programs according to their content rating levels. To select the Parent Menu Press MENU. Move the joystick _, or ,_ to highlight the Parent icon press Use the 0-9 buttons...
Page 82
US Models: For US models, the Custom Rating Menu includes the following options. (For Canadian models, see page 82.) Selecting Custom Rating Options All children and General Audience. Movie Rating Parental Guidance suggested. PG-I 3 Parental Guidance for children under The Content-Based Ratings are linked to the level of the Restricted...
Page 83
Canadian Models: For Canadian models, the Custom Rating Menu includes Selecting Custom following options. (For US models, see page 81.) Rating Options All children. English Rating Children 8 years and older. General programming. P_ental Guidance. viewers i4 and Older..Aduit progr_mingl French Rating...
Using the Setup Menu To select the Setup Menu Press MENU. Move the joystick ,*, or ,_ to highlight the Setup icon and press Move the joystick to highlight an option. Press to select m,_m,r_l.ul[]l_a_._._.A_j. an option. []3o move from within one Move the joystick 4' •...
Page 85
Video Label Allows you to identify equipment you connected the TV, such as a VCR, DVD, etc. For example, if you have a DVD player connected to the VIDEO 5 jack, you can select the label DVD for the VIDEO 5 input.
Page 86
Current Time Clock/Timers (continued) Press C) to select Current Time. Move the joystick 4"and t_ to set the current time (day, hour, and minute). Press (or move joystick *) to confirm each setting and move to the next setting. Move the joystick 4.
Overview This chapter includes the following topics: Glossary Notes on Using Memory Stick Media Contacting Sony Troubleshooting Specifications Optional Accessories Index...
Glossary A signaling method that usescontinuous changes in the amplitude or frequency of an analog signal electronic transmission to convey information. Refersto the ratio between the width and height of the screen. ThisTV has a 16:9 aspect ratio (widescreen) aspect ratio, as opposed to a 4:3 aspect ratio. 4:3 aspect ratio 16:9 aspect ratio Component video is sent through three cables:two color shade(chrominance)signals and one...
Notes on Using Memory Stick Media Memory Stick When using Memory Stick media, follow these precautions: Precautions To avoid permanent damage to still image data, do not turn off the TV or remove Memory Stick media from the insertion slot while data is being read (as indicated...
Contacting Sony If, after reading these operating instructions, you have additional questions related to the use of your Sony television, please call our Customer Information Services Center at 1-800-222-SONY (7669) (US residents only) or (416) 499-SONY (7669) (Canadian residents only).
Page 92
There may be more than one code for the equipment that you are attempting to operate. There is a possibility that some non-Sony equipment cannot be operated your Sony TV remote.You may need to use the equipment's original remote control.
Page 93
If your TV does not turn on, and a red light keeps flashing, your TV may No picture need service. Call your local Sony Service Center. (screen not lit), no sound Make sure the power cord is plugged Press the POWER button on the front of the TV.
Page 94
Audio Good picture, Press MUTING so that Muting disappears from the screen (see page 48). no sound Make sure the Speaker option is set to On in the Audio Menu (see page 75). cannot gain enough volume Increase the volume of the cable box using the cable box's remote control.
Page 95
General Turn on the TV. While holding down the RESETbutton on the remote to reset TV to control, press the POWER button on the TV. (The TV will turn itself off, then factory settings back on again.) Release the RESETbutton. Press the RESETbutton on the remote control...
Audio 71, 74 features Channel 71, 78 Fixed audio setting Parent 71, 80 Flash Focus Setup FREEZE button 50, 63 Video 71, 72, 76 Freeze, using Mono, setting Full mode, setting Movie mode MUTING button 48, 56 GUIDE button Neutral, Color Temperature Detailer...
Page 100
S VIDEO jack, described 13, 17 Uniform Brightness Screen SAT/CABLE FUNCTION button SAT/CABLE POWER button satellite receiver, using with TV remote control Variable audio setting Scrolling Index, using using with TV remote control SELECT button with cable box, connecting with cable, connecting setting up channels with satellite...
