Owner's Manual

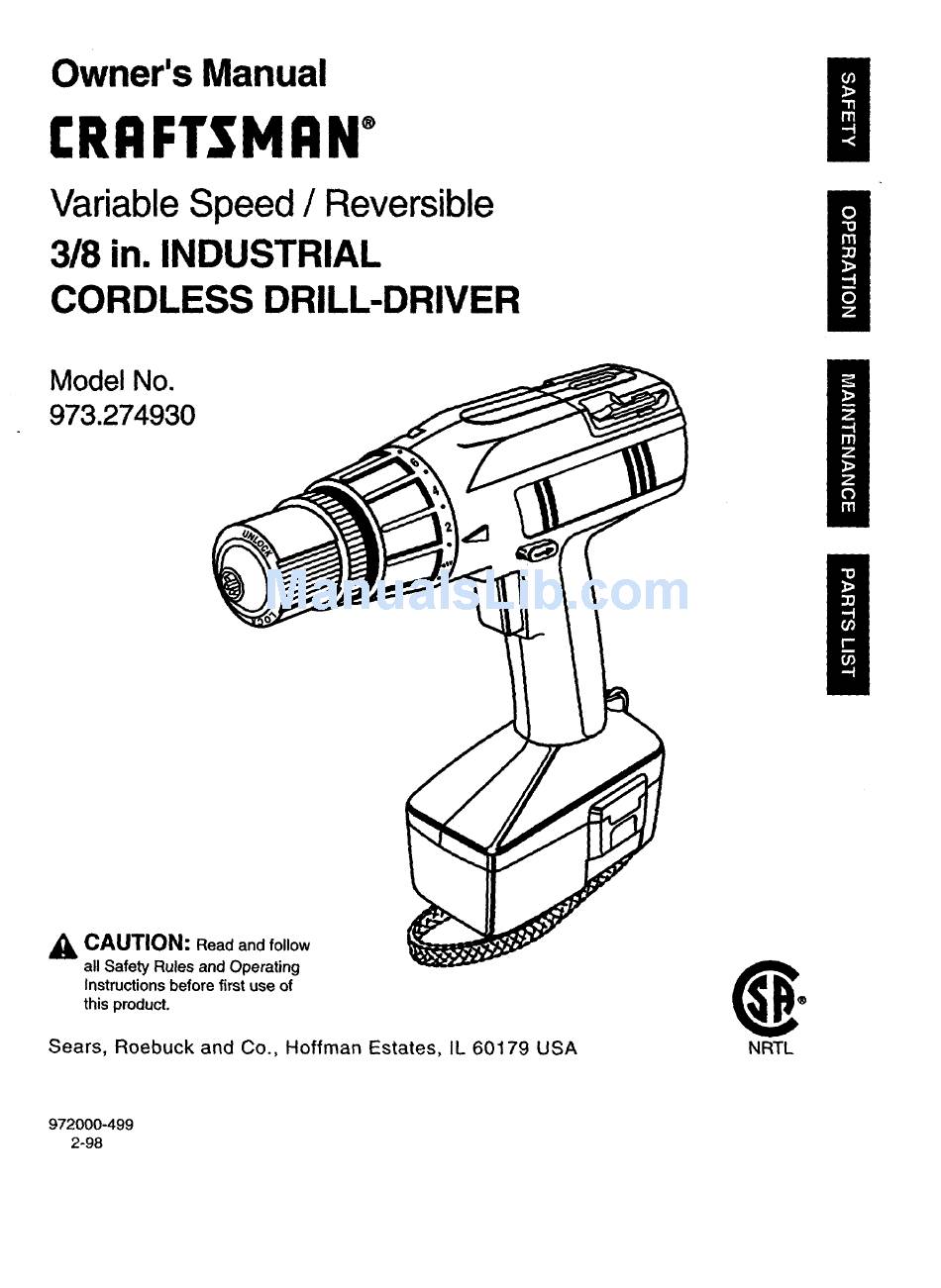

I:RRFTSMRN o
Variable Speed / Reversible
3/8 in. INDUSTRIAL
CORDLESS
DRILL-DRIVER
Model No.
973.274930
CAUTION:
Read and follow
all Safety Rules and Operating
Instructions before first use of
this product.
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179
USA
NRTL
972000-499
2-98

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 973.274930

Summary of Contents for Craftsman 973.274930

  • Page 1 Owner's Manual I:RRFTSMRN o Variable Speed / Reversible 3/8 in. INDUSTRIAL CORDLESS DRILL-DRIVER Model No. 973.274930 CAUTION: Read and follow all Safety Rules and Operating Instructions before first use of this product. NRTL Sears, Roebuck and Co., Hoffman Estates, IL 60179 972000-499 2-98...

  • Page 2: Specifications

    Exploded View and Repair Parts List ......................• Parts Ordering / Service ..........................FULL ONE YEAR WARRANTY ON CRAFTSMAN INDUSTRIAL CORDLESS DRILL-DRIVER If this {:RAFTSMAN Industrial Cordless Drill-Driver fails due to a defect in material or workmanship within one year from the date of purchase, Sears will repair it, free of charge.
  • Page 3 The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.
  • Page 4 WHEN SERVICING USE ONLY IDENTICAL CRAFTSMAN REPLACEMENT PARTS. DO NOT USE TOOL IF SWITCH DOES NOT TURN IT ON AND OFF. Have defective switches...
  • Page 5 RULES FOR SAFE OPERATION (Continued) An extension cord should not be used unless • Do not operate charger if it has received a absolutely necessary. Use of improper sharp blow, been dropped, or otherwise extension cord could result in a risk of fire and damaged in any way;...
  • Page 6 The following recommended accessories are currently available at Sears Retail Stores. • 6-Pc. Extra Length Magnite Power Bit Set • 30-Pc. Power Screwdriver/Nutddver Set and Case • 17-Pc. Power Screwdriver/Nutdriver Set and Case • High Speed Bits (For Wood or Metal) ..3/4 inch Max. •...

  • Page 7: Led Function

    If battery pack is deeply discharged, red light ARNING: Always wear safety goggles or should become steady after voltage has increased, safety glasses with side shields when operating normally within 30 minutes. tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible If after one hour red light is still flashing, this serious injury.
  • Page 8 TO INSTALL BATTERY PACK SWITCH See Figure 2. • Lock switch trigger on your drill by placing the direction of rotation selector in center position. To tum your drill ON, depress the switch trigger. To turn it OFF, release the switch trigger. See Figure 2.
  • Page 9 REVERSIBLE KEYLESS CHUCK See Figure 6. See Figure 4. Your new drillhas a keyless chuck. As the name implies, This tool has the feature of being reversible. The you can hand tighten or release drill bits in the chuck direction of rotation is controlled by a selector located jaws.
  • Page 10 INSTALLING BITS REMOVING BITS See Figure 7. See Figure 7. • Lock the switch trigger by placing the direction of • Lock the switch trigger by placing the direction of rotation selector in center position. See Figure 2. rotation selector in center position. See Figure 2. •...
  • Page 11 DRILLING BIT STORAGE See Figure 10. See Figure 12. When not in use, bits provided with your drill can be placed in the storage area located on the top of your drill as shown in figure 10. ,_k WARNING: Always wear safety goggles or safety glasses with side shields when operating tools.
  • Page 12 CHUCK REMOVAL Insert allen wrench in chuck and tighten chuck jaws securely. Tap sharply with a mallet in a See Figures 13, 14, and 15. counterclockwise direction. This will loosen chuck The chuck must be removed in order to use some' on the spindle.
  • Page 13 Do not abuse power tools. Abusive practices can ARNING: When servicing, use only identical Craftsman replacement parts. Use of any other damage tool as well as workpiece. part may create a hazard or cause product Only the parts shown on parts list, page fifteen, are damage.

  • Page 14: For Recycling

    Topreserve natural r esources, BATTERY PACK REMOVAL please recycle or dispose of expired battery PREPARATION FOR RECYCLING pack properly. WARNING: Upon removal, cover the battery This product contains nickel-cadmium pack's terminals with heavy duty adhesive tape. battery. Must be disposed of properly. Do not attempt to destroy or disassemble battery Local, state, or federal laws may pack or remove any of its components.

  • Page 15: Ordering Instructions

    CRAFTSMAN INDUSTRIAL 318 INCH CORDLESS DRILL-DRIVER MODEL NO. 973.274930 The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your 318 in. CORDLESS DRILL-DRIVER or when ordering repair parts.
  • Page 16 Forthe repair or replacementpartsyouneed delivereddirectlyto yourhome Call7 am - 7 pm, 7 daysa week 1-800-366-PART (1-800-366 7278) Forrepairservice Call24 hours a day,7 daysa week 1.800-4-REPAIR (1-800-473-7247) Forthelocation ofa Sears PartsandRepair Center inyourarea Call24 hours a day,7 daysa week 1-800-488-1222 mmmmmmm mmmmmm The modelnumberof thistool will be foundona serial plate attachedto the motorhousing.Whenrequestingserviceor...
