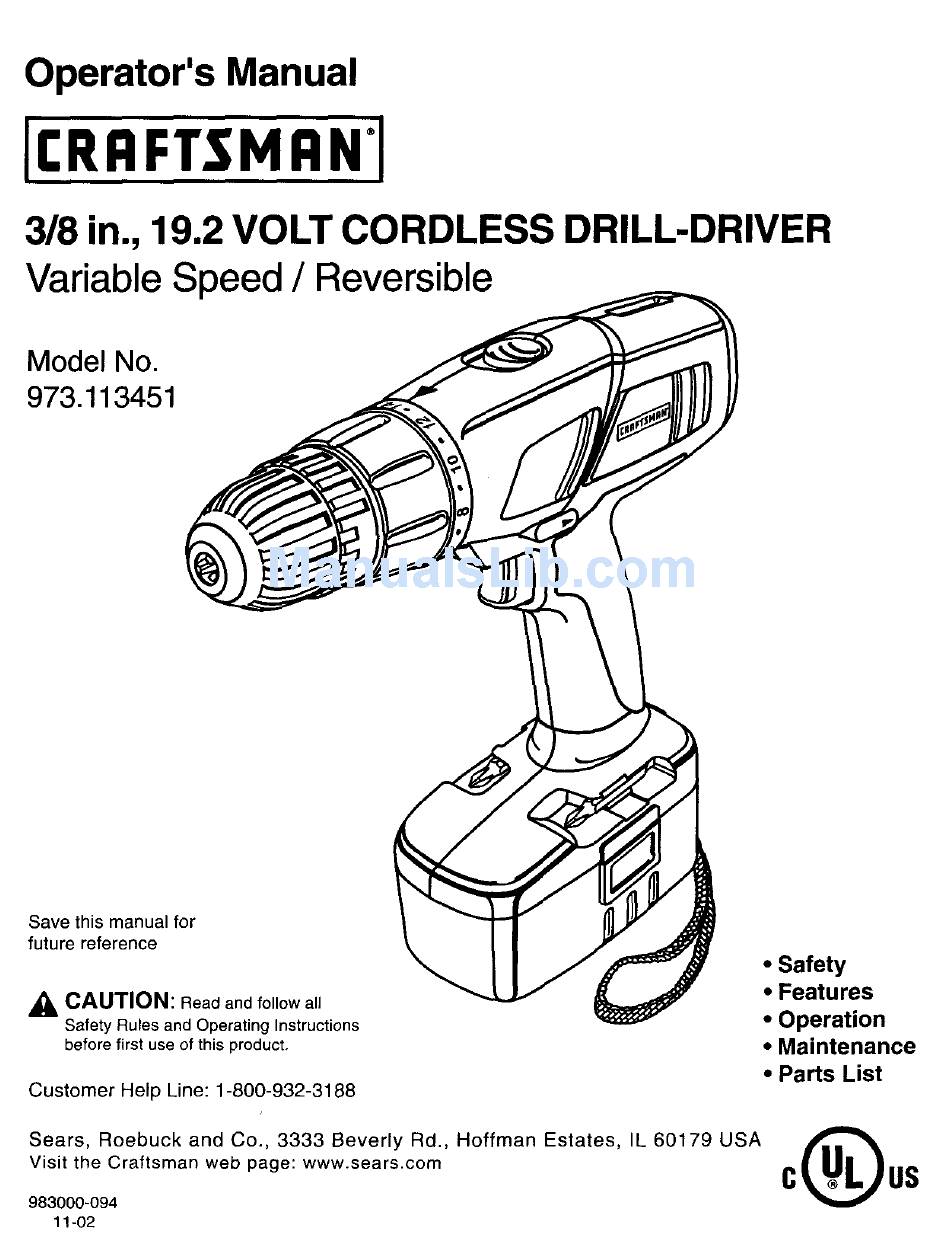

Operator's Manual
II:RRFTSMRN'I
318 in., 19.2 VOLT CORDLESS DRILL-DRIVER
Variable Speed / Reversible
Model No.
973.113451
Save this manual for
future reference
_, CAUTION:
Read and follow all
Safety Rules and Operating Instructions
before first use of this product,
Customer
Help Line: 1-800-932-3168
Sears,
Roebuck
and Co., 3333
Beverly
Rd., Hoffman
Estates,
IL 60179
USA
visit the Craftsman
web page: www.sears.com
983000-094
11-02
• Safety
• Features
• Operation
• Maintenance
• Parts List
Advertisement
Related Manuals for Craftsman 973.113451
Summary of Contents for Craftsman 973.113451
- Page 1 • Operation Safety Rules and Operating Instructions • Maintenance before first use of this product, • Parts List Customer Help Line: 1-800-932-3168 Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 visit the Craftsman web page: www.sears.com 983000-094 11-02...
- Page 2 • Parts Ordering / Service ............................... FULL ONE YEAR WARRANTY ON CRAFTSMAN 3/8 In. CORDLESS DRILL-DRIVER If this rRRFTSMRH 3/8 in. Cordless Drill-Driver fails to give complete satisfaction within one year from the date of pur- chase, RETURN IT TO THE NEAREST SEARS STORE OR SEARS SERVICE CENTER IN THE UNITED STATES, and Sears will repair it, free of charge.
- Page 3 Your drill-driver has many features for making your drilling CAUTION: Carefully read through this entire operations more pleasant and enjoyable. Safety, operator's manual before using your new drill-driver. performance and dependability have been given top Pay close attention to the General Safety Rules, priority in the design of this drill-driver making it easy to Specific Safety Rules and Symbols, Wamings and maintain and operate.
- Page 4 Tool Use and Care • Use clamps or other practical way to secure and • Maintain tools with care. Keep cutUng tools sharp support the workpiece to a stable platform. Holding and clean. Properly maintained tools, with sharp the work by hand or against your body is unstable and cutting edges are less likely to bind and are easier to control.
- Page 5 _1= WARNING: Never use a battery that has been • Do not operate charger with a damaged cord or dropped or received a sharp blow. A damaged battery plug. If damaged, have replaced immediately by a qualified serviceman. Following this rule will reduce the is subject to explosion.
- Page 6 Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
- Page 7 973.113451 DRILL-DRIVER CHARGER Item No. 9 11041 (1425301) Chuck 3/8 in. Keyless DC Motor 19.2 Volt Motor Rating 120 V, 60 Hz, AC only 7.2 - 24 Volt Charging Voltage Gear Train Two Speed No Load Speed 0-400 RPM (Low) 1 Hour Charge Rate 0-1400 RPM (High)
- Page 8 TWO-SPEED LEVEL GEARTRAIN(HI-LO) TORQUE KEYLESS ADJUSTMENT CHUCK RING LEVEL REARVIEW DIRECTION OF ROTATIONSELECTOR (FORWARD/REVERSE) SWITCH TRIGGER STORAGE SCREWDRIVER BITS BATTERYPACK SHOWNINTOOL BATTERYPACK SHOWNINCHARGER WRISTSTRAP CHARGER RED LED ONINDICATES GREENLED ONAFTERFASTCHARGING CYCLE,INDICATESFULLYCHARGEDBATFERY PACKANDIN TRICKLECHARGE MODE, YELLOWANDGREENLEDSON INDICATES DEEPLY DISCHARGED OR DEFECTIVE BATTERYPACK. Fig.
- Page 9 LED FUNCTIONS OF CHARGER WARNING: Do not allow familiarity with your drill- LED WILL BE ON TO INDICATE STATUS driver to make you careless. Remember that a careless fraction of a second is sufficient to inflict CHARGER AND BA'n'ERY PACK: severe injury.
- Page 10 TO INSTALL BATTERY PACK SWITCH See Figure 2. • Lock switch trigger on your drill by placing the direction of rotation selector in center position. See Figure 5. To turn your drill ON, depress the switch trigger. To turn it OFF, release the switch trigger.
- Page 11 SWITCH LOCK KEYLESS CHUCK See Figure5. See Figure 6. The switch trigger can be locked in the OFF position. This Your drill has a keyless chuck. As the name implies, you can feature can be used to prevent the possibility of accidental hand tighten or release drill bits in the chuck jaws.
- Page 12 INSTALLING BITS REMOVING BITS See Figure 7. See Figure 7. • Lock the switch trigger by placing the direction of • Lock the switch trigger by placing the direction of rotation selector in center position. See F/#ure 5. rotation selector in center position. See Fi#ure 5. •...
- Page 13 BIT STORAGE DRILLING See Figure I0. =Gee Figure 12. When not in use, bits provided with your drill can be LEVEL placed in the storage area located on the bottom of your drill as shown in Figure tO. SCREWDRIVER STORAGEAREA Fig.
- Page 14 CHUCK REMOVAL • Insert hex key in chuck and tighten chuck jaws se- curely. Tap sharply with a mallet in a counterclockwise Gee F/_Tures13, 14, and 15. direction. This will loosen chuck on the spindle. It can The chuck must be removed in order to use some now be unscrewed by hand.
- Page 15 WARNING: When servicing, use only identical damage tool as well as workpiece. Craftsman replacement parts. Use of any other part may create a hazard or cause product damage. Only the parts shown on parts list, page 17, are intended to be repaired or replaced by the customer. All other parts Avoid using solvents when cleaning plastic pads.
-
Page 17: Parts List
CRAFTSMAN 318 in., 19.2 VOLT CORDLESS DRILL-DRIVER - MODEL NO. 973.113451 in all correspondence regarding your 3/8 in., 19.2 VOLT CORDLESS DRILL-DRIVER or when ordering he model number will be found on a plate attached to the motor housing. Always mention the model number ] repair parts. - Page 18 Your Home For repair-in your home-of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances and items like garage door openers and water heaters.
