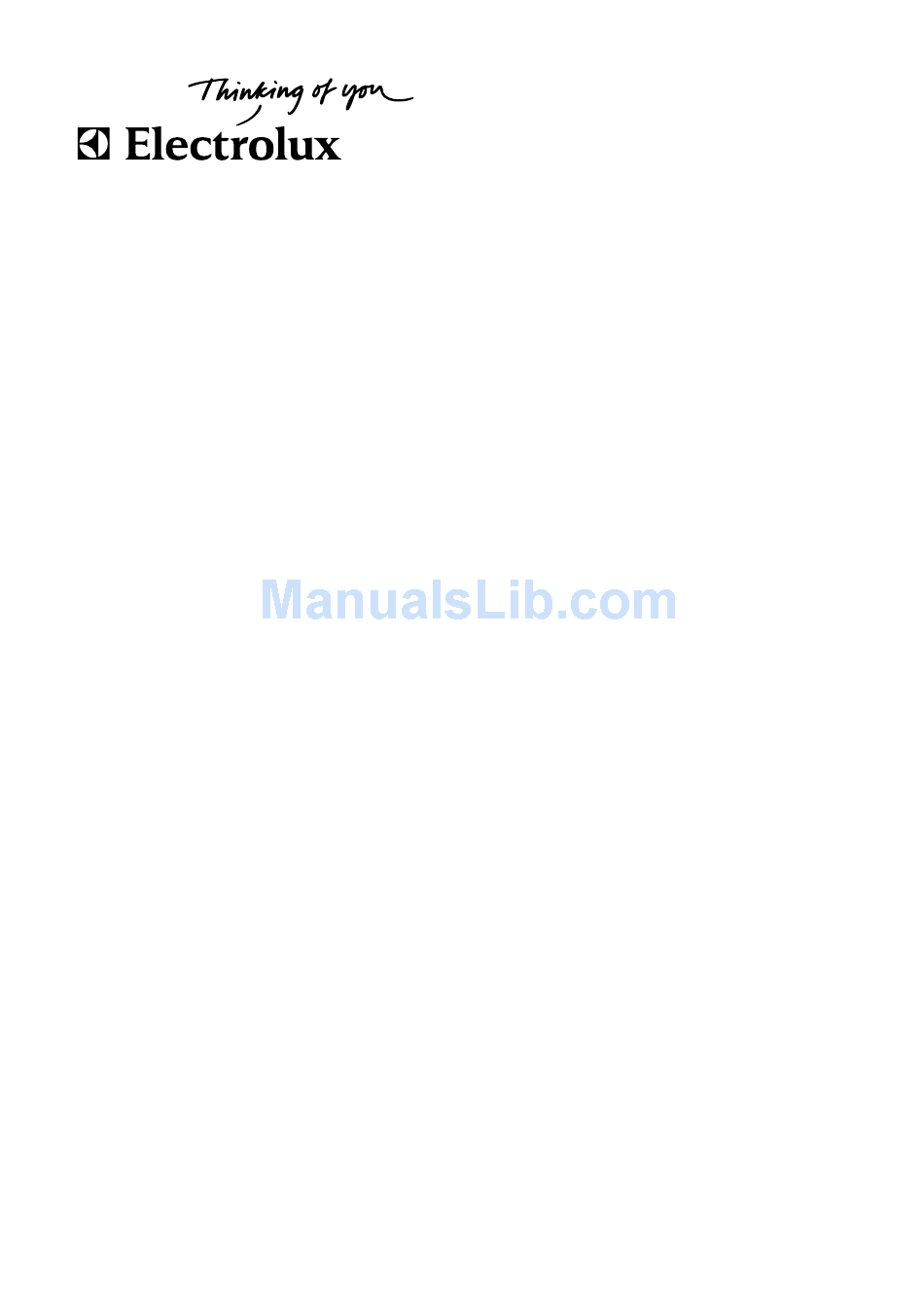

  • Page 1 user manual Dishwasher ESF 64010...
  • Page 2 We were thinking of you when we made this product...
  • Page 3 Electrolux electrolux 3 Welcome to the world of Electrolux Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable.

  • Page 4: Table Of Contents

    4 electrolux contents Contents Safety information Product description Control panel First use Daily use Washing programmes Care and cleaning Something not working Technical data Hints for test institutes Installation Environment concerns Guarantee/Customer Service The following symbols are used in this manual: Important information concerning your personal safety and information on how to avoid damaging the appliance.

  • Page 5: Safety Information

    5 Safety information After use, isolate the appliance from the power supply and turn off the water supply. In the interest of your safety and to This product should be serviced ensure the correct use, before only by an authorised service...
  • Page 6 6 electrolux safety information Installation Check your dishwasher for any transport damage. Never connect a damaged machine. If your dishwasher is damaged contact your supplier. All packaging must be removed before use. Any electrical and plumbing work required to install this appliance must be carried out by a qualified and competent person.

  • Page 7: Product Description

    7 Product description Upper basket Water hardness dial Salt container Detergent dispenser Rinse aid dispenser Rating plate Filters Lower spray arm Upper spray arm Worktop...

  • Page 8: Control Panel

    Control panel On/Off button Programme selection buttons Delay start button Indicator lights...
  • Page 9 9 Indicator lights Wash Illuminates when the washing and rinsing phases are running. Illuminates when the drying phase is running. End of programme Illuminates when a washing programme has ended. It also has added functions of visual...
  • Page 10 10 electrolux control panel Setting mode Always remember that when: setting the water softener, the appliance MUST be in setting mode: Press On/Off button, ALL programme button lights are illuminated = appliance in setting mode. Press On/Off button, ONLY a...

  • Page 11: First Use

    11 First use Before using your dishwasher for the Set the water softener first time: The dishwasher is equipped with a Ensure that the electrical and water softener designed to remove water connections comply with the minerals and salts from the water...
  • Page 12 12 electrolux first use The water softener must be set in 3. Press button 1, the lights of both ways: manually, using the water buttons 2 and 3 turn off while the hardness dial and electronically, using light of the button 1 goes on...
  • Page 13 13 Filling with dishwasher salt 4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket. 5. Replace the cap tightly turning it Only use salt specifically designed for clockwise until it stops with a click.

  • Page 14: Filling With Rinse Aid

    14 electrolux first use Filling with rinse aid According to the finish and drying results obtained, adjust the dose of Rinse aid ensures thorough rinsing, rinse aid by means of the 6 position and spot and streak free drying. selector (position 1 minimum dosage, Rinse aid is automatically added position 6 maximum dosage).

  • Page 15: Daily Use

    15 Daily use Check if it’s necessary to refill with - Lay small objects in the cutlery dishwasher salt or rinse aid basket. Load cutlery and dishes into the Plastic items and pans with teflon dishwasher. have a tendency to retain water Fill with dishwasher detergent .
  • Page 16 16 electrolux daily use For washing in the dishwasher the following cutlery and dishes are not suitable: - Cutlery with wooden, horn, china or mother-of- pearls handles. - Plastic items that are not heat resistant. - Older cutlery with glued parts that are not temperature resistant.
  • Page 17 17 Open the door and slide out the The two rows of prongs on the lower baskets to load the dishes. basket can be easily lowered to allow you to load pots, pans and bowls. The lower basket...
  • Page 18 18 electrolux daily use The cutlery basket If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards. Long bladed knives stored in an Mix spoons with other cutlery to upright position are a potential prevent them from sticking together.
  • Page 19 19 The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner Before closing the door, ensure that plates of up to 24 cm in diameter), the spray arms can rotate freely. salad bowls, cups and glasses.
  • Page 20 20 electrolux daily use Adjusting the height of the upper basket If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position. Maximum height of the dishes in: the upper...
  • Page 21 21 Use of detergent 20 = approximately 20 g of detergent 30 = approximately 30 g of detergent Only use detergents specifically 3. All programmes with prewash designed for use in dishwashers. need an additional detergent dose (5/10 g) that must be placed in the Please observe the manufacturer’s...
  • Page 22 22 electrolux daily use Use of combi detergent tablets These products are detergents with a combined cleaning, rinsing and salt If you decide to turn back to the functions. They can also contain other use of the standard detergent different agents depending on which system we advise that you: kind of tablets you choose («3 in 1»,...
  • Page 23 23 Select and start a washing 5. Once the delay start has elapsed programme the programme will start automatically. Select the washing programme and The selection of the washing delay start with the door slightly programme and delay start can opened.
  • Page 24 24 electrolux daily use End of the washing programme The dishwasher will automatically stop. Interrupt or cancel a washing The end of programme indicator programme in progress ONLY if it’s light will illuminate. absolutely necessary. Attention! Hot steam may escape The indicator light of the when the door is opened.

  • Page 25: Washing Programmes

    25 Washing programmes Programme Degree of Type of load Programme description soil Prewash Main wash up to 70°C Crockery, 2 intermediate rinses cutlery, pots Heavy soil Final rinse and pans Intensive Drying Prewash Main wash up to 65°C...

  • Page 26: Care And Cleaning

    26 electrolux care and cleaning Care and cleaning Cleaning the filters 4. Take hold of the coarse filter (A) by the handle with the hole and The filters must be checked and remove from the microfilter (B). cleaned from time to time. Dirty filters will degrade the washing result.
  • Page 27 27 Prolonged periods of non- operation If you are not using the machine for Under no circumstances may the any period of time you are advised to: dishwasher be used without filters. Incorrect repositioning and fitting of 1.

  • Page 28: Something Not Working

    28 electrolux something not working Something not working The dishwasher will not start or stops during operation. Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the indications described in the chart, without calling out an engineer.
  • Page 29 29 Fault code Malfunction Possible cause Solution The programme The dishwasher’s Close the door does not start door has not been properly closed The main plug is Insert the main not plugged in plug The fuse has...
  • Page 30 30 electrolux something not working The wash results are not satisfactory The dishes are not clean The wrong washing programme has been selected. The dishes are arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded.

  • Page 31: Technical Data

    31 Technical data Dimensions Width 60 cm Height 85 cm Depth 61 cm Electrical connection Information on the electrical connection is given Voltage - Overall power - on the rating plate on the inner edge of the Fuse dishwasher’s door...
  • Page 32 32 electrolux technical data Consumption values Programme Programme Energy Water duration consumption consumption (in minutes) (in kWh) (in litres) Intensive 85 - 95 1,7 - 1,9 23 - 25 Normal 95 - 105 1,3 - 1,5 19 - 21 Quick...

  • Page 33: Hints For Test Institutes

    33 Hints for test institutes Testing in accordance with EN 60704 Test in accordance with EN 50242 must be carried out with appliance must be carried out when the salt fully loaded and using the test container and rinse aid dispenser programme (see "Consumption...

  • Page 34: Installation

    34 electrolux installation Installation Proceed as follows: Remove the machine’s worktop by unscrewing the two rear retaining Any electrical and/or plumbing screws, pull the worktop from the work required to install this back of the machine and slide out appliance should be carried out by the front slots, lifting the worktop.
  • Page 35 35 Water supply connections This dishwasher may be fed with either hot (max. 60°) or cold water. This appliance has been fitted with Nevertheless we advise you a cold safety features which will prevent the water supply. water used in the appliance from...
  • Page 36 36 electrolux installation Water outlet hose connection The end of the drain hose can be connected in the following ways: Our appliances are supplied with a security device to protect against the 1. To the sink outlet spigot, securing return of dirty water back into the it to the underside of the work machine.
  • Page 37 37 Electrical connection Safety standards require the appliance to be earthed. The manufacturer accepts no liability for failure to observe the above safety precautions. Prior to using the appliance for the first time, ensure that the rated voltage and type of supply on the...

  • Page 38: Environment Concerns

    38 electrolux environment concerns Environment concerns Packaging material Old appliance The packaging materials are The symbol on the product or on environmentally friendly and can be its packaging indicates that this recycled. The plastic components are product may not be treated as identified by markings, e.g.

  • Page 39: Guarantee/Customer Service

    39 Guarantee/Customer Service Belgium 3. So as to avoid more severe damage, the defect must be DECLARATION OF GUARANTEE brought to our attention TERMS. immediately. Our appliances are produced with the 4. Applying the guarantee is subject greatest of care.
  • Page 40 40 electrolux guarantee/customer service 9. Defects that result from repairs or 15. Except in the event where liability measures carried out by people is legally imposed, this declaration who are not qualified or expert or of guarantee terms excludes any...
  • Page 41 Luxembourg European guarantee Grand-Duché de Luxembourg This appliance is guaranteed by ELECTROLUX HOME PRODUCTS Electrolux, in each of the countries Rue de Bitbourg. 7 listed in the following page, for the L-1273 Luxembourg-Hamm period specified in the appliance Consumer services guarantee or otherwise by law.
  • Page 42 42 electrolux guarantee/customer service www.electrolux.com Lietuva +370 5 27 80 609 Verki˜ 29, LT-09108 Vilnius Türkiye +90 21 22 93 10 25 Tarlabafl› caddesi no : 35 Taksim Istanbul –ÓÒÒˡ +7 495 9377837 129090 ÃÓÒÍ‚‡, ŒÎËÏÔËÈÒÍËÈ ÔÓÒÔÂÍÚ, 16 ¡÷ ÑŒÎËÏÔËÍî...
  • Page 44 156998 62/0-00-21082006...
