Chapter 3
A. Begin with
the Server all
the way in
F. Drape
cables
through
the fingers
of the
Cable
Guide
E. Tie wrap cables into the inner
and outer sections of the Arm

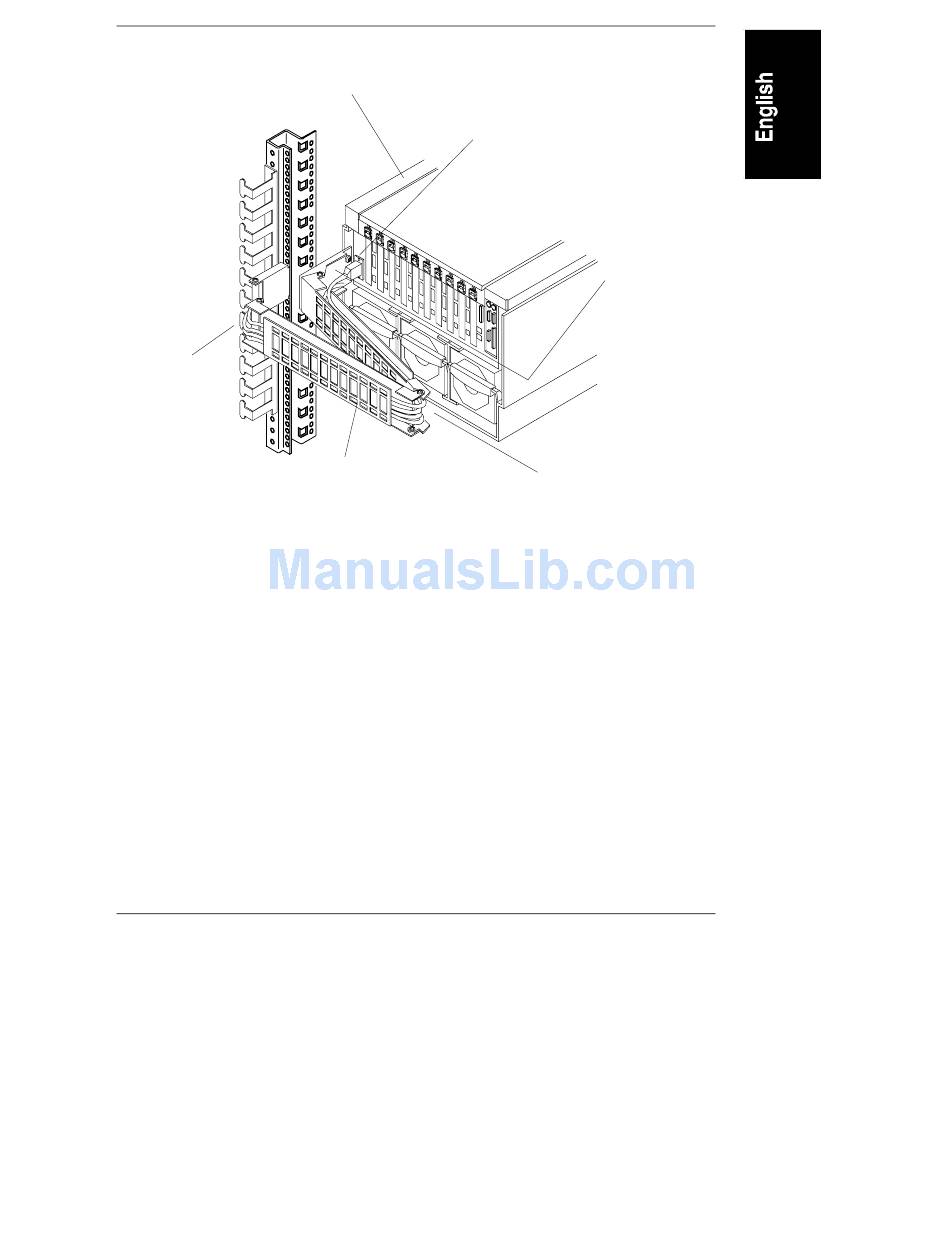

Figure 3-9. Routing Cables through the Arm
2. Arrange cables through the slot on the inner section of the Arm. Secure
cables in the cable arm using the hook-and-loop cables supplied with the
NetServer.
3. With the cable arm still in the unextended position, place cables in the
outer section of the arm and secure them with cable ties. Drape the cables
through the fingers of the Cable Guide but do not secure them yet.
4. Prepare to extend the NetServer from the front of the rack by removing the
front bezel and extending the anti-tip foot.
Procedure for Connecting and Routing Cables to the LXr 8500
B. Plug power and data
cables into the back of
the Server
C. Gather
cables at left
and tie to
Cable
Management
Arm flange
D. Arrange cables
through the inner
section of the arm,
around the elbow,
and through the
outer section
