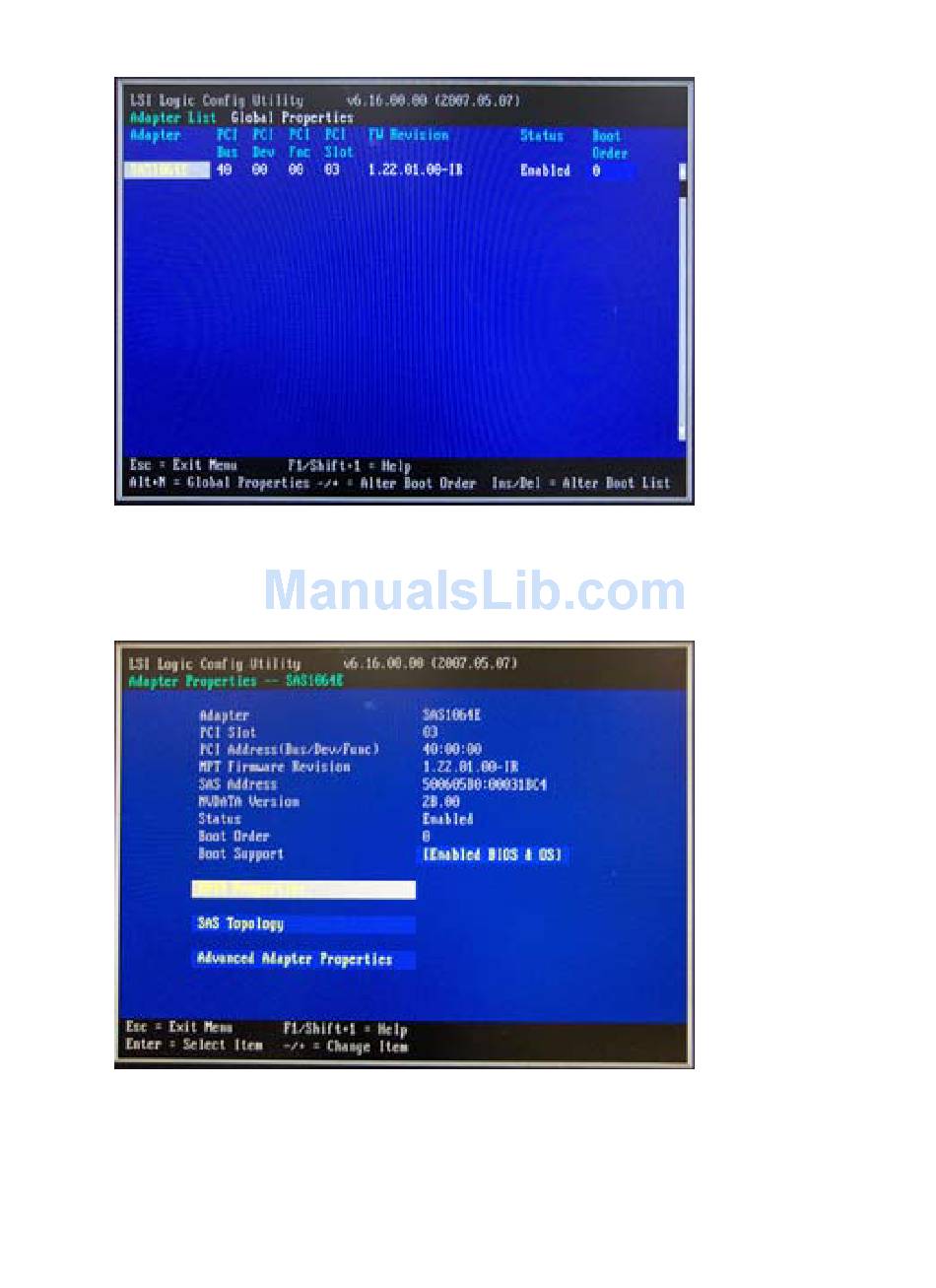

Figure 2 LSI Logic MPT Setup Utility – Adapter selection
Step 3: Press enter to select and configure the highlighted adapter from the list. The next screen will
display properties of the selected adapter. Information on the attached drives, any RAID arrays present,
and more advanced adapter properties is available.
Figure 3 LSI Logic MPT Setup Utility – Adapter properties
Step 4: To create, manage or delete a SAS RAID array, highlight RAID Properties and press enter. If
an array is presently configured on the controller, the "View Existing Array" will be present.
ENWW LSI 3041E and Integrated LSI 1064/1068 Setup 5
