Removing the Side I/O Cover

To remove the side I/O cover, pull out on the center of the cover (1) and rotate the cover off (2).

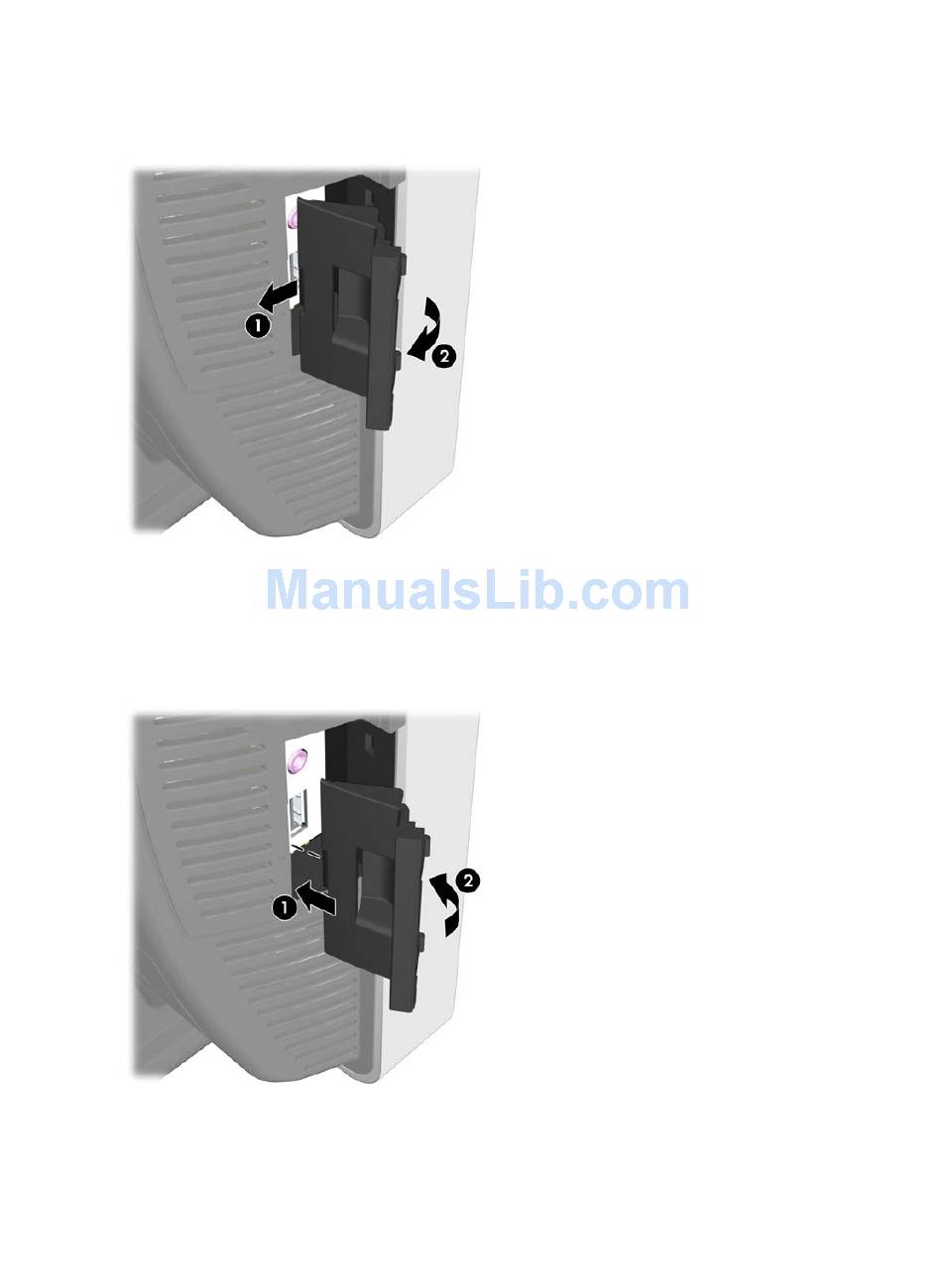

Figure 2-3 Removing the Side I/O Cover

Replacing the Side I/O Cover

To replace the side I/O cover, slide the hook on the side I/O cover into the slot on the larger drive cover
(1) and rotate the cover on so that it snaps in place (2).
Figure 2-4 Replacing the Side I/O Cover
