Removing the Bottom I/O Cover

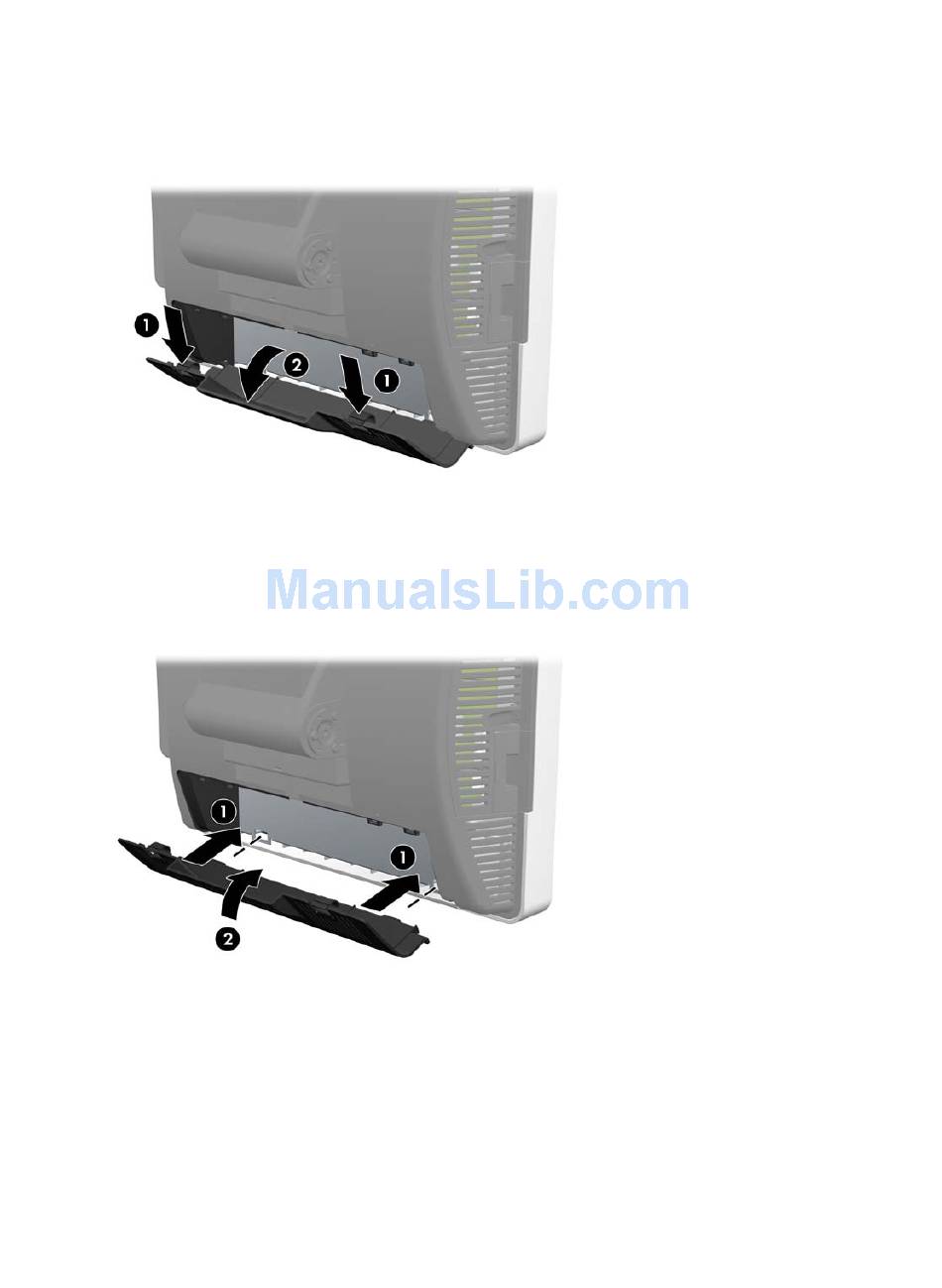

To remove the bottom I/O cover, press downward on the two tabs at the top of the cover (1) and rotate
the cover off (2).
Figure 2-1

Replacing the Bottom I/O Cover

To replace the bottom I/O cover, insert the bottom of the cover (1) and rotate the top of the cover on so
that it snaps in place (2).
Figure 2-2
