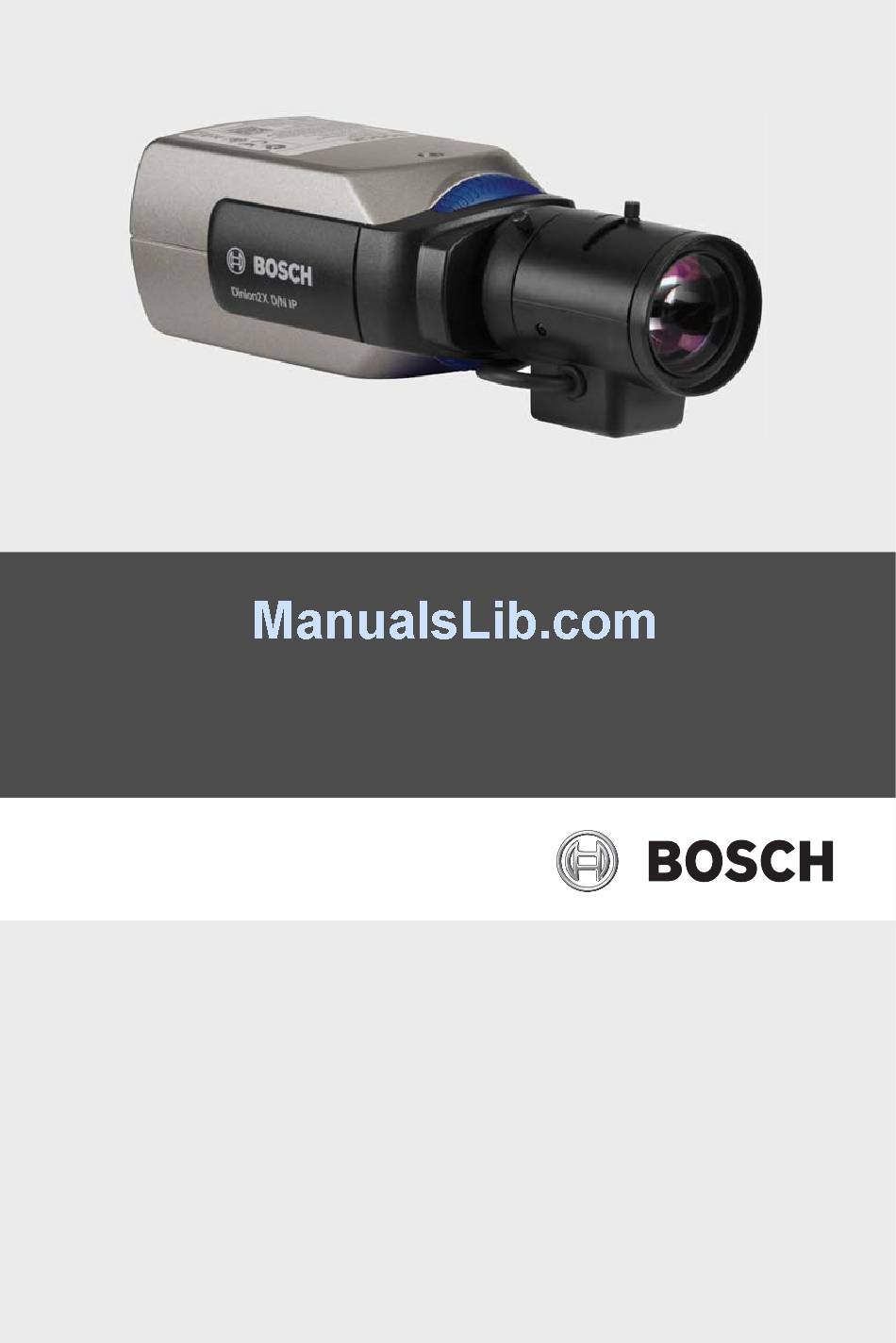

Dinion2X IP Camera
NBN-498
en
Installation and Operation Manual

Advertisement

Table of Contents
loading

Related Manuals for Bosch NBN-498-11P

Summary of Contents for Bosch NBN-498-11P

  • Page 1 Dinion2X IP Camera NBN-498 Installation and Operation Manual...

  • Page 3: Table Of Contents

    Tamper detection and motion detectors 3.1.9 Video encoding 3.1.10 Multicast 3.1.11 Power-over-Ethernet 3.1.12 Encryption 3.1.13 Receiver 3.1.14 Recording 3.1.15 Snapshots 3.1.16 Backup 3.1.17 Configuration Operation with external systems Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 4 Install menu 6.2.1 Pre-defined modes 6.2.2 Lens Wizard submenu 6.2.3 Network submenu 6.2.4 Defaults submenu Day/Night switching Browser connection System requirements Establishing the connection 7.2.1 Password protection in camera AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 5: Dinion2X Ip Camera Table Of Contents | En

    9.2.1 Identification 9.2.2 Password 9.2.3 Date/Time 9.2.4 Display Stamping Web Interface 9.3.1 Appearance 9.3.2 LIVEPAGE Functions 9.3.3 Logging Encoder 9.4.1 Privacy Masks 9.4.2 Encoder Profile 9.4.3 Encoder Streams Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 6 Alarm Task Editor Interfaces 9.9.1 Alarm input 9.9.2 Relay 9.9.3 COM1 9.10 Network 9.10.1 Network 9.10.2 Advanced 9.10.3 Multicasting 9.10.4 JPEG Posting 9.10.5 Encryption 9.11 Service 9.11.1 Maintenance 9.11.2 Licenses AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 7: Dinion2X Ip Camera Table Of Contents | En

    Customer service Maintenance 12.1 Testing the network connection 12.2 Communication with Terminal Program 12.3 Repairs 12.3.1 Transfer and disposal Technical Data 13.1 Specifications 13.1.1 Dimensions 13.1.2 Accessories Glossary Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 8: Safety

    If not avoided, this could result in minor or moderate bodily injury. CAUTION! Low risk: Indicates a potentially hazardous situation. If not avoided, this could result in property damage or risk of damage to the unit. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 9: Important Safety Instructions

    Install in accordance with the manufacturer's instructions in accordance with applicable local codes. Use only attachments/accessories specified by the manufacturer. Equipment change or modification could void the user's guarantee or authorization agreement. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 10: Connection In Applications

    The Low Voltage power supply unit must comply with EN/UL 60950. The power supply must be a SELV-LPS unit or a SELV - Class 2 unit (Safety Extra Low Voltage - Limited Power Source). AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 11: Fcc & Ices Compliance

    Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 12 Cette brochure est disponible auprès du U.S. Government Printing Office, Washington, DC 20402, États-Unis, sous la référence n° 004-000-00345-4. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 13: Ul Certification

    CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT. Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that...

  • Page 14: Bosch Notices

    Bosch notices Video loss Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.

  • Page 15: Copyrights

    Digital Equipment Corporation not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. This software is based in part on the work of the Independent JPEG Group. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 16: Introduction

    Power-over-Ethernet (PoE) – Remote control of all built-in functions via TCP/IP – Data interface RS485/RS422/RS232 for control of pan or tilt heads or motorized zoom lenses (PTZ control) AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 17 – Fast, convenient configuration using the integrated Web server and a browser – Firmware update through flash memory – Convenient upload and download of configuration data Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 18: System Information

    AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 19: Tri-Streaming

    In suitably configured networks, the multicast function enables simultaneous, real time transmission to multiple receivers. The prerequisite for this is that the UDP and IGMP V2 protocols are implemented on the network. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 20: Power-Over-Ethernet

    The browser application has an icon for saving the video images provided by the unit as a file on your computer's hard drive. Clicking this icon stores the video sequences and they can be replayed with the Player from Bosch Security Systems included with the package. 3.1.17...
  • Page 21 Dinion2X IP Camera System Information | en possible. Configuration settings can be stored as files on a computer and copied from one camera to another. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 22: Operation With External Systems

    | System Information Dinion2X IP Camera Operation with external systems The camera can be used with a variety of Bosch software and hardware systems: – Bosch Video Management System – VIDOS video management software – DiBos 900 Series digital video recorder –...
  • Page 23 The Divar 700 Series of digital video recorders can view and record images from the camera via a network connection. The Divar 700 Series controls the camera so that the correct settings are used. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 24: Planning

    Adobe Acrobat Reader – Quick install instructions – Safety instructions If equipment has been damaged during shipment, repack it in the original packaging and notify the shipping agent or supplier. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 25: System Requirements

    VIDOS, Bosch VMS, or DIBOS 900 Series – H.264 compatible hardware decoder from Bosch Security Systems (such as VIP XD) as a receiver and a connected video monitor – Divar 700 Series Digital Video Recorder The minimum PC requirements are: –...

  • Page 26: Install Players

    Dinion2X IP Camera Install players Play back saved-video sequences using the Player from Bosch Security Systems. This can be found on the DVD-ROM supplied. to play back saved sequences using the Player, suitable ActiveX software must be installed on the computer.

  • Page 27: Installation

    It can be disabled in the Settings/Camera Settings/ Install options menu. By default, power is supplied to the camera via the Ethernet cable, compliant with the Power-over-Ethernet standard. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 28: Power Connector

    Note: For a DC supply the polarity is important. Incorrect polarity does not damage the camera but it will not switch on. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 29: Alarm And Relay Connector

    A zero potential make-contact or switch can be used as the actuator (use a bounce-free contact system). Use the alarm relay output for switching external devices such as lamps or sirens. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 30: Audio Connectors

    16 Ohm minimum; 3 Vpp maximum output voltage. Wiring: Shielded audio connection cable is advised. Observe maximum cable lengths for audio line input and output levels. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 31: Video Service Monitor Connector

    Open the side panel on the camera and press the center button for longer than 2 seconds. This stops the IP video stream and enables the video analog output. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 32: Data Connector

    RS232 is supported by this data connection. Note: To ensure surge and electrostatic protection, keep the cable length between the camera and external device to less than 3 meters. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 33: Lens Mounting

    If a short circuit is detected on the lens connector, the message LENS SHORT CIRCUIT is shown. The lens circuit is automatically disabled to avoid internal damage. Remove the lens connector and check the pin connections. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 34: Mounting The Camera

    Do not expose them, or point the camera/lens, to direct sunlight. Do not obstruct the free flow of air around the camera. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 35: Using The Camera Install Menu

    To adjust back focus: Slide open the door panel at the side of the camera. Unlock the back focus locking button. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 36: Lens Adjustment

    Manual-iris lens Unlock the back focus locking button. Adjust the lens to the maximum lens opening. Turn the back focus adjustment as required. Lock the back focus locking button. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 37: Video-Iris Lens

    10 seconds to restore the factory defaults. This is useful to restore the default IP address or to restore a previous version of the firmware if uploading a new version fails. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 38: Camera Set-Up

    Exit item. (This turns the IP video stream back on.) Some menus automatically close after about two minutes; other menus have to be closed manually. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 39: Install Menu

    Low noise Enhancements are set to reduce picture noise. Useful for conditional refresh DVR and IP storage systems because reducing noise reduces the amount of storage required. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 40: Lens Wizard Submenu

    Set LVL Only for video-iris lenses. Adjust the level control on the lens to center the level detector indicator (see below). EXIT Returns to Install menu. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 41: Network Submenu

    Restores all settings of the six modes to their default (factory) values. Select YES then press the Menu/Select button to restore all values. When completed the message RESTORED! is shown. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 42: Day/Night Switching

    There are four different methods of controlling the IR filter: – via an alarm input, – automatically, based on the observed light levels, or – as part of the programmable mode profile. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 43: Browser Connection

    Note: The camera can also be connected to DIBOS 900 Series, VIDOS, Bosch Video Management System, and Divar 700 Series Digital Video Recorder, as well as third party video management systems.

  • Page 44: Establishing The Connection

    If the connection is not established, the maximum number of possible connections may already have been reached. Depending on the device and network configuration, up to 25 web browsers, or 50 VIDOS or Bosch VMS connections are supported. 7.2.1 Password protection in camera A camera offers the option of limiting access across various authorization levels.

  • Page 45: Connecting To A Hardware Decoder

    Make sure the devices are configured for the network environment and that the correct IP address for the remote location is set on the Alarm connections configuration page. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 46: Connection Established

    Refer to Section 10 Operation via the browser, page 114 for more information. 7.5.3 SETTINGS Click SETTINGS in the application title bar to configure the camera and the application interface. A new page containing AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 47 Section 9 Advanced Mode, page 53 for more information on advanced settings. Note: It is recommended that only expert users or system administrators use the Advanced Mode. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 48: Basic Mode

    Note: When entering names do not use any special characters, for example &. Special characters are not supported by the internal recording management system. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 49: Device Access

    Define and change a separate password for each level while logged in as service or if the device is not protected by a password. Enter the password for the selected level. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 50: Date/Time

    RFC 868 protocol. Note: It is important to ensure that the date/time is correct for recording. An incorrect date/time setting could prevent correct recording. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 51: Network

    On to activate the automatic acceptance of DHCP-assigned IP addresses. Note: Certain applications (for example, Bosch Video Management System) use the IP address for the unique assignment of the device. If using these applications, the DHCP server must...

  • Page 52: Encoder Profile

    This page provides general information on the hardware and firmware system, including version numbers. No items can be changed on this page but they can be copied for information purposes when troubleshooting. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 53: Advanced Mode

    Clicking Set saves only the settings in the current window. Changes in any other windows are ignored. Click SETTINGS in the applications title bar to close the window without saving the changes made. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 54 Note: When entering names do not use any special characters, for example &. Special characters are not supported by the internal recording management system. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 55: General

    – user is the middle authorization level. This user can operate the device, play back recordings, and also control a camera but cannot change the configuration. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 56: Date/Time

    Enter the current date. Since the device time is controlled by the internal clock, it is not necessary to enter the day of the week – it is added automatically. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 57 If there are empty lines at the bottom of the table, for example after deletions, add new data by marking the row and selecting values from the list boxes. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 58: Display Stamping

    If the Custom option is selected, enter values in the X and Y position fields. Display milliseconds If necessary, display milliseconds for Time stamping. This information can be useful for recorded video images; however, AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 59 Select On for the transmitted video images to be watermarked. After activation, all images are marked with a green W. A red W indicates that the sequence (live or saved) has been manipulated. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 60: Web Interface

    The image can be stored on a local computer, a local network, or at an Internet address. JPEG interval Specify the interval at which the individual images should be generated for the M-JPEG image on the Livepage. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 61: Livepage Functions

    Motion+ mode, the sensor areas for motion detection are marked. Show event log The event messages are displayed with the date and time in a field next to the video image. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 62: Logging

    File for system log Enter the path for saving the system log here. If necessary, click Browse to find a suitable folder. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 63: Encoder

    High resolution (4CIF/D1) with lower data rate – Low bandwidth High resolution (4CIF/D1) for low bandwidth connections – High resolution (4CIF/D1) for DSL connections at 500 kbps maximum Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 64 Maximum data rate field. Maximum data rate This maximum data rate is not exceeded under any circumstances. Depending on the video quality settings for the AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 65 The basic setting Auto automatically adjusts to the optimum combination of movement and image definition (focus). Alternatively, use the slider to set a value between 9 and 51. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 66 A value of 51 results in a very high refresh rate and lower image quality. Default Click Default to return the profile to the factory default values. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 67: Encoder Streams

    Click Preview << to close the preview displays. Note: Deactivate the display of the video images if the performance of the computer is adversely affected by the decoding of the data stream. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 68: Audio

    The audio data requires an additional bandwidth of approximately 80 kbps for each connection. If you do not want any audio data to be transmitted, select Off. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 69: Camera

    Provide extra enhancement, such as AGC and SensUp to make usable pictures in low-light conditions. Smart BLC Settings optimized to capture details in high contrast and extremely bright-dark conditions. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 70: Alc

    Adjust the balance between peak and average video control (-15 to 0 to +15). At -15 the camera controls the average video level, at +15 the camera controls the peak video level. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 71: Shutter/Agc

    Sensitivity up Selects the factor by which the sensitivity of the camera is increased (OFF, 2x, 3x, etc. to a maximum of 10x). Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 72: Day/Night

    Color - the camera always produces a color signal regardless of light levels. Switch level Set the video Switch level at which the camera in Auto mode switches to monochrome operation (-15 to 0 to +15). AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 73: Enhance

    XF Dynamic: extra internal processing is enabled for low- light applications (traffic, etc.). – 2X Dynamic: 2X Dynamic adds dual sensor exposure to the XF Dynamic features. In harsh lighting conditions pixels Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 74: Color

    – ATW: Auto tracking white balance allows the camera to continually adjust for optimal color reproduction. – AWB hold: Puts ATW on hold and saves the color settings. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 75: Installer Options

    Line lock to lock to the power supply frequency; – Internal for free running camera operation. Ticker bar Switches a ticker bar on the live image on or off. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 76 A confirmation screen appears. Allow 5 seconds for the camera to optimize the picture after a mode reset. Note: The default IP address is restored. Connect to the camera again using this address. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 77: Recording

    A Video Recording Manager (VRM) can control all recording when accessing an iSCSI system. The VRM is an external program for configuring recording tasks for video servers. For further information, contact your local customer service at Bosch Security Systems. 9.7.1 Storage Management Device manager...
  • Page 78 Rec. 1 stores stream 1, Rec. 2 stores stream 2. Check the boxes for the Overwrite older recordings option to specify which older recordings can be AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 79 Click a storage medium in the Managed storage media list to select it. Click Remove below the list. The storage medium is deactivated and removed from the list. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 80: Recording Profiles

    – Pre-alarm: recording takes place in the pre-alarm time, during the alarm and during the post-alarm time only. – Off: no automatic recording takes place. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 81: Retention Time

    4CIF for complete frame rate and high image quality. Enter the required retention time in hours or days for each recording. Recording 1 corresponds to Stream 1, Recording 2 corresponds to Stream 2. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 82: Recording Scheduler

    Click the date to be deleted. Click OK. The selection is removed from the table and the window is closed. Repeat for any other dates to be deleted. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 83: Recording Status

    The graphic indicates the recording activity. An animated graphic is seen when recording is taking place. 9.7.5 Recording Status Details of the recording status are displayed here for information. These settings cannot be changed. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 84: Alarm

    Only ten passwords can be defined here. Define a general password if more than ten connections are required, for example, when connections are initiated by a controlling AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 85 Dinion2X IP Camera Advanced Mode | en system such as VIDOS or Bosch Video Management System. The camera connects to all remote stations protected by the same general password. To define a general password: Select 10 in the Number of destination IP address list box.
  • Page 86 Select On to automatically re-established a connection to one of the previously specified IP addresses after each reboot, connection breakdown, or network failure. Audio Select On to transmit the audio stream with an alarm connection. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 87: Video Content Analyses (Vca)

    This can lead to impairment of the VCA system. Observe the processor load and optimize the encoder settings or the VCA settings if necessary, or turn off VCA completely. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 88: Vca Configuration- Profiles

    Analysis type Select the required analysis algorithm. By default, only Motion+ is available — this offers a motion detector and essential recognition of tampering. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 89 Note: Additional analysis algorithms with comprehensive functions, such as IVMD and IVA, are available from Bosch Security Systems. Motion detector Motion detection is available for the Motion+ analysis type. For the detector to function, the following conditions must be met: –...
  • Page 90 Detect tampering of cameras and video cables by means of various options. Run a series of tests at different times of the day and night to ensure that the video sensor is operating as intended. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 91 Activate this function if tampering associated with exposure to extreme light (for instance, shining a flashlight directly on the objective) should trigger an alarm. The average brightness of the scene provides a basis for recognition. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 92 If the selected area is too homogenous, so that concealing and moving the structure would not trigger an alarm, then an alarm is triggered immediately to indicate the inadequate reference image. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 93 Right-click any fields to deactivate. Click OK to save the configuration. Click the close button (X) in the window title bar to close the window without saving the changes. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 94: Vca Configuration - Scheduled

    Assign the individual holidays to the VCA profiles, as described above. Deleting Holidays Delete defined holidays at any time: Click Delete. A new window opens. Click the date to delete. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 95 Dinion2X IP Camera Advanced Mode | en Click OK. The item is deleted from the table and the window closes. The process must be repeated for deleting additional days. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 96: Vca Configuration - Event Triggered

    A delay period may be useful in avoiding false alarms or frequent triggering. During the delay period, the Silent MOTION+ configuration is always enabled. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 97: Audio Alarm

    Name The name makes it easier to identify the alarm in extensive video monitoring systems, for example with the VIDOS and Bosch Video Management System programs. Enter a unique and clear name here. Signal Ranges Exclude particular signal ranges in order to avoid false alarms.

  • Page 98: Alarm E-Mail

    Obtain information on operating your cellphone from your cellphone provider. Attach JPEG from camera Check the box to specify that JPEG images are sent from the camera. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 99 This makes it easier to identify the origin of the e-mail. Test e-mail Click Send Now to test the e-mail function. An alarm e-mail is immediately created and sent. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 100: Alarm Task Editor

    If the transfer was successful, the message Script successfully parsed. is displayed over the text field. If it was not successful, an error message is displayed with further information. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 101: Interfaces

    Select Open for the relay to operate as an N.O. contact, or select Closed if the relay is to operate as an N.C. contact. Select Select External device or Motion+/IVA to trigger the relay. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 102: Com1

    Stop bits Select the number of stop bits per character. Parity check Select the type of parity check. Interface mode Select the desired protocol for the serial interface. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 103: Network

    If a DHCP server is employed in the network for the dynamic assignment of IP addresses, activate acceptance of IP addresses automatically assigned to the device. Certain applications (VIDOS, Bosch Video Management System, Archive Player, Configuration Manager) use the IP address for the unique assignment of the device. If using these...
  • Page 104 The camera uses the TLS 1.0 protocol. Ensure that the browser has been configured to support this protocol. Also ensure that Java application support is activated (in the Java Plug-in Control Panel of the Windows Control Panel). AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 105 The potential value depends on the network structure. A higher value is only useful if the iSCSI system is located in the same subnet as the camera. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 106 To transfer the IP address of the device, click the Register button. Status The status of the DynDNS function is displayed here for information purposes; these settings cannot be changed. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 107: Advanced

    Enter the user name that the Radius server uses for the camera in the Identity field. Enter the Password that the Radius server expects from the camera. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 108: Multicasting

    Multicast Address Enter a valid multicast address to be operated in multicast mode (duplication of the data stream in the network). With the AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 109: Jpeg Posting

    Date/time suffix: The date and time are automatically added to the file name. When setting this parameter, ensure that the date and time of the device are always set Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 110: Encryption

    Enter an exact path to post the images on the FTP server. 9.10.5 Encryption If an encryption license is installed, this submenu gives access to the encryption parameters. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 111: Service

    The latest firmware can be obtained from your customer service center or from the Bosch Security Systems download area. To update the firmware: First, store the firmware file on your hard disk.
  • Page 112 Enter the full path of the file to upload or click Browse to locate the file. Click Upload to start the file transfer. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 113: Licenses

    Keep this information at hand when seeking technical support. Select the text on this page with a mouse and copy it so that it can be pasted into an e-mail if required. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 114: Operation Via The Browser

    When accessing the camera with a browser, the processor load and network information is available in the upper right of the window next to the Bosch logo. Move the mouse cursor over the icons to display numerical values. This information can help with problem solving or when fine tuning the device.

  • Page 115: Image Selection

    10.1.6 Saving snapshots Individual images from the video sequence that is currently being shown on the Livepage can be saved in JPEG format on the computer's hard drive. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 116: Recording Video Sequences

    Click the recording icon again to stop recording. Play back saved video sequences using the Player from Bosch Security Systems. 10.1.8 Running recording program The hard drive icon below the camera images on the Livepage changes during an automatic recording.

  • Page 117: Recordings Page

    If required, drag the green arrow to the point in time at which the playback should begin. – Red bars indicate the points in time where alarms were triggered. Drag the green arrow to navigate to these points quickly. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 118 To do this, place the mouse cursor in the timeline below the timescale and turn the scroll wheel. Playback is automatically stopped (paused) during scrolling. Trick mode requires significantly higher memory capacity and computing power. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 119: Troubleshooting

    Does the camera transmit all the data required? – Does the camera respond as desired to alarm events? – Is it possible to control peripheral devices, if necessary? Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 120: Resolving Problems

    Check the data within the LAN. transmission with ping. The maximum number of Wait until there is a free connections has been connection and call the reached. transmitter again. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 121 The interface parameters Make sure that the do not match those of the settings of all units other unit connected. involved are compatible. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 122: Customer Service

    11.3 Customer service If a fault cannot be resolved, please contact your supplier or system integrator, or go directly to Bosch Security Systems Customer Service. The version numbers of the internal processors can be viewed on a special page. Please note this information before contacting Customer Service.

  • Page 123: Maintenance

    Disconnect the camera from the Ethernet network before working with the terminal program. Connect the serial interface of the camera using any available serial interface on the computer. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 124 IP address. Enter the desired IP address and press Enter. The terminal program displays the new IP address. Use the displayed commands for any additional settings you require. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 125: Repairs

    Defective or superfluous devices and parts should be disposed of professionally or taken to your local collection point for hazardous materials. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 126: Technical Data

    Automatic continuous, Off Automatic noise filtering On/Off selectable Sharpness Sharpness enhancement level selectable Peak White Invert Suppresses highlights in scenes Privacy Masking Four independent areas, fully programmable; gray AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 127 5.5 Vpp maximum, impedance 9 kOhm typical Audio output (Line 3 Vpp maximum, impedance 10 kOhm typical out) Audio standard G.711 300 Hz to 3.4 kHz at 8 kHz sampling rate Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 128 542 g (1.195 lb) Operating -20 °C to +50 °C (-4 °F to +122 °F) temperature Operating -20 °C to +45 °C (-4 °F to +113 °F) temperature (IVA) AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...

  • Page 129: Dimensions

    Technical Data | en 129 13.1.1 Dimensions (4.646) (3.346) (1.339) 1/4"-20 UNC Dinion2X D/N IP 1/4"-20 UNC (1.889) (4.803) (2.598) mm (in) Figure 13.1 Side and front dimensions Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...

  • Page 130: Accessories

    220 VAC, 50 Hz, 24 VAC, 20 VA Out UPA-2450-50 Power Supply – 220 VAC, 50 Hz, 24 VAC, 50 VA Out Contact your Bosch representative for the latest available accessories. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual...

  • Page 131: Glossary

    IP address and other configuration parameters to computers on a network (Internet or LAN). Domain Name Service: A service that stores domain names and translates them into Internet Protocol (IP) addresses. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 132 Identification: a machine readable character string. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 133 It is controlled by a network operating system and uses a transfer protocol. Logical Unit Number: logical drive in iSCSI storage systems. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 134 Optical Fiber: now used predominantly as the transmission medium for line-borne telecommunication processes (glass fiber cable). Parameters Values used for configuration. QCIF Quarter CIF: video format with 176 × 144/120 pixels (see CIF). AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 135 Subnet maskSee Net mask. Transfer Control Protocol Telnet Login protocol with which users can access a remote computer (Host) on the Internet or local area network (LAN) connections. Bosch Security Systems Installation and Operation Manual AR18-10-B006 | v1.1 | 2010.06...
  • Page 136 Unshielded Twisted Pair: A variant of twisted pair cabling, UTP cable is not surrounded by any shielding. Wide Area Network: A long distance link used to extend or connect remotely located local area networks. AR18-10-B006 | v1.1 | 2010.06 Installation and Operation Manual Bosch Security Systems...
  • Page 138 Bosch Security Systems www.boschsecurity.com © Bosch Security Systems, 2010...

This manual is also suitable for:

Dinion2x nbn-498Nbn-498

Table of Contents
