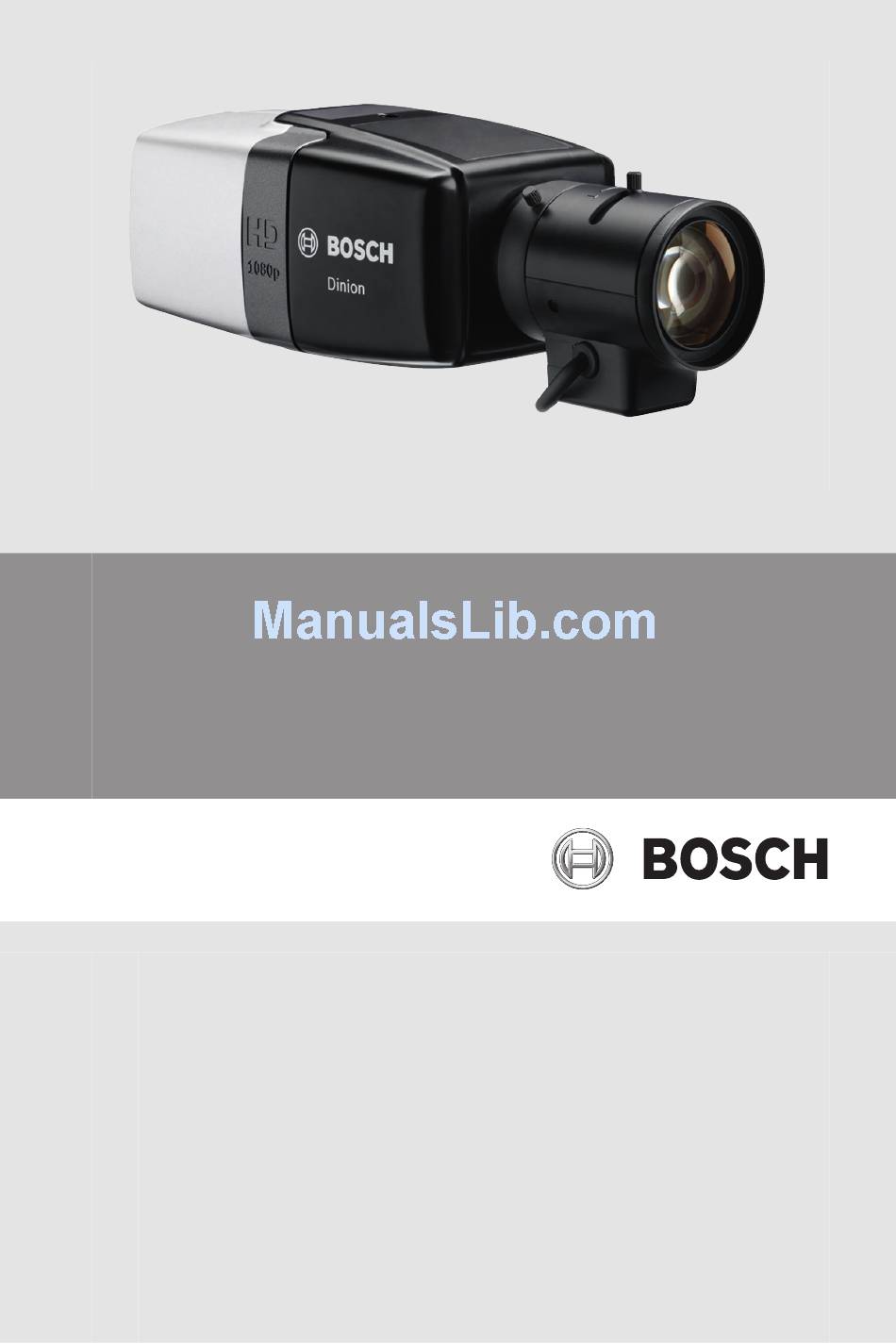

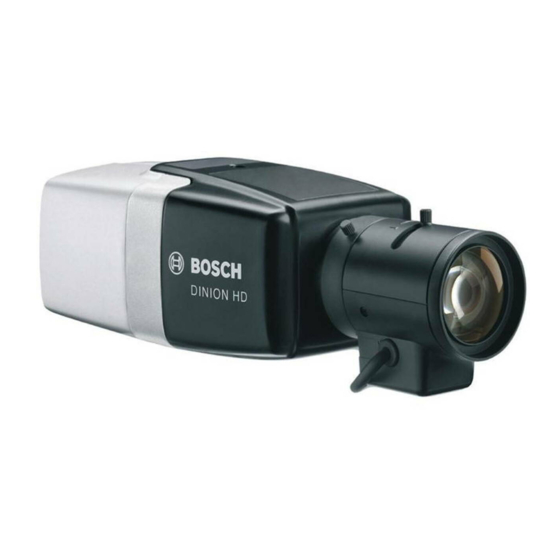

- Page 1 DINION IP 7000 HD NBN-71022 / NBN-71027 / NBN-71013 Installation manual...
-
Page 3: Table Of Contents
Video service monitor connector Data connector Configuration Setting the field of view 7.1.1 Using the MENU button 7.1.2 Using the install wizard Day/Night switching Camera configuration Browser connection 7.4.1 Establishing the connection Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... - Page 4 Resolving problems Testing the network connection Customer service Terminal program Maintenance Cleaning Reset Repair Decommissioning 10.1 Transfer 10.2 Disposal Technical data 11.1 Specifications (NBN-71022) 11.2 Specifications (NBN-71027) 11.3 Specifications (NBN-71013) 11.4 Standard specifications 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems...
-
Page 5: Safety
60950. The power supply must be a SELV-LPS unit or a SELV - Class 2 unit (Safety Extra Low Voltage - Limited Power Source). Caution! This device must be connected to earth (ground). Safety (power) ground is indicated by the symbol. Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... -
Page 6: Important Safety Instructions
Use only attachments/accessories specified by the manufacturer. 10. Connect the earth terminal of the camera to the system earth of the installation to ensure correct safety and EMC/RFI protection. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... -
Page 7: Connection In Applications
12 VDC or 24 VAC power supply. If auxiliary power (12 VDC or 24 VAC) and PoE is applied simultaneously, the camera selects PoE and shuts off the auxiliary input. Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... -
Page 8: Fcc And Ices Compliance
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... -
Page 9: Notices
Notice! Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of losing information, we recommend multiple, redundant recording systems, and a procedure to back up all analog and digital information. -
Page 10: Short Information
All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. More information For more information please contact the nearest Bosch Security Systems location or visit www.boschsecurity.com Copyrights This manual is the intellectual property of Bosch Security Systems and is protected by copyright. -
Page 11: System Overview
The cameras work seamlessly with a wide range of security software and recording solutions from Bosch and other industry providers. The cameras are easy to install and ready to use, and are eminently suitable for integration into large video surveillance systems. -
Page 12: Using The Camera
The camera recording and storage functions include local alarm recording and recording to iSCSI-based systems. The camera can also use the Bosch Video Recording Manager (VRM) to control recording and storage. Integration with the many Bosch recording solutions is seamless. -
Page 13: Planning
Microsoft Internet Explorer web browser version 9.0 or later (32-bit) -or- – Computer with network access and reception software, for example Bosch Video Client and Bosch Video Management System Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... -
Page 14: Installation
Lenses weighing more than 0.5 kg (1.1lbs) must be separately supported. The camera accepts CS or C‑mount lenses. SR lenses or DC-iris lenses are recommended for best performance. The camera can optimize image performance for SR lenses. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... -
Page 15: Mounting The Camera
Do not expose the image sensors to direct sunlight. Do not obstruct the free flow of air around the camera. The camera can be mounted either from the top or from the bottom (1/4" 20 UNC thread). 1/4”-20 UNC Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... -
Page 16: Local Storage
MENU INSTALL 12VDC 24VAC CVBS Unscrew the card slot cover. Slide the memory card into the slot until it locks in place. Screw the cover into place to seal the slot. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... -
Page 17: Connection
Power-over-Ethernet can be connected at the same time as a 12 VDC or 24 VAC power supply. If auxiliary power (12 VDC or 24 VAC) and PoE is applied simultaneously, the camera selects PoE and shuts off the auxiliary input. Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... -
Page 18: Auxiliary Power Connector
EMC/RFI protection. – Loosen the screws of the supplied 2-pole connector and insert the wires, before tightening the screws again. – Insert the 2-pole connector into the camera power socket. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... -
Page 19: Alarm Connector
Use the alarm input to connect external alarm devices such as door contacts or sensors: – TTL logic, +5 V nominal, +40 VDC max, DC coupled with 50 kOhm pull-up to +3.3 V. Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... -
Page 20: Audio Connectors
Audio output: Line output level (not suitable for direct speaker connection); impedance 1.5 kOhm minimum; 0.85 Vrms maximum output voltage. Wiring: Shielded audio connection cable is advised. Observe maximum cable lengths for audio line input and output levels. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... -
Page 21: Video Service Monitor Connector
(NBN-MCSMB-03M) to connect directly to the CVBS connector of a monitor. – For a permanent analog output, use the optional 0.3 m cable (NBN-MCSMB-30M) to connect to a high quality coax cable. Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... -
Page 22: Data Connector
RS485, RS422, and RS232 is supported by this data connection. Note: To ensure surge and electrostatic protection, keep the cable length between the camera and external device to less than 3 meters. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... -
Page 23: Configuration
(for example, at night). When there is a choice in the wizard, the options are selected by either a short press or a longer press of the MENU button. Select EXIT to close the wizard. Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... -
Page 24: Using The Install Wizard
Manually adjust the focal length lever on the lens to obtain the required field of view. Focus Focal length Manually adjust the focus lever on the lens to obtain the sharpest image possible. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... -
Page 25: Day/Night Switching
The configuration options using the menu system of the camera itself are limited to setting up the field of view and the analog output. Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... -
Page 26: Browser Connection
Identity and Password. Only after these have been configured can communication with the unit via the network occur. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... -
Page 27: Troubleshooting
Faulty cable Check all cables, connections. plugs, contacts and connections. Incorrect encoder Select the H.264 MP stream property set SD option on the for connection to Encoder Streams hardware decoder. configuration page. Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... - Page 28 Faulty cable Check all cables, connections. plugs, contacts and connections. Incorrect Check audio configuration. parameters on the Audio configuration and LIVEPAGE Functions pages. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems...
- Page 29 The unit is not Power failure during Have the unit operational after programming by checked by Customer a firmware firmware file. Service and replace if upload. necessary. Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674...
- Page 30 Active proxy server in Create a rule in the contains empty network. local computer's fields. proxy settings to exclude local IP addresses. The POWER LED Firmware upload Repeat firmware flashes red. failed. upload. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems...
-
Page 31: Testing The Network Connection
Check the IP address, subnet mask, and gateway address. Customer service If a fault cannot be resolved, please contact your supplier or system integrator, or go directly to Bosch Security Systems Customer Service. The version numbers of the internal firmware can be viewed on a service page. -
Page 32: Terminal Program
Enter one command at a time. When you have entered a value, such as the IP address, check the characters you have entered before pressing Enter to transfer the values to the camera. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... - Page 33 Additional Parameters You can use the terminal program to check other basic parameters and modify them where necessary. Use the on- screen commands in the various submenus to do this. Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674...
-
Page 34: Maintenance
Repair Notice! Never open the casing of the unit The unit does not contain any user-serviceable parts. Refer all repairs to suitable qualified specialists. 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... -
Page 35: Decommissioning
The camera should only be passed on together with this installation guide. 10.2 Disposal Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and electrical appliances, which have reached the end of their working life, must be collected and disposed of separately from household waste material. -
Page 36: Technical Data
Video performance Sensitivity – (3200K, reflectivity 89%, F1.2, 30IRE) – Color 0.22 lx (0.022 fc) – Mono 0.05 lx (0.005 fc) Dynamic range 76 dB Wide Dynamic Range (92 dB with iAE) 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... - Page 37 Displayed: 854 x 480 – 432p SD 768 x 432 – 288p SD 512 x 288 – 240p SD Encoding: 352 x 240; Displayed: 432 x 240 – 144p SD 256 x 144 Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674...
- Page 38 Fixed (1/30 [1/25] to 1/15000) selectable Default shutter Backlight Off, Auto compensation Contrast On/off enhancement Sharpness Sharpness enhancement level selectable Privacy Masking Four independent areas, fully programmable Video Motion Motion+ or IVA option Analysis 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems...
-
Page 39: Specifications (Nbn-71027)
Sensitivity – (3200K, reflectivity 89%, F1.2, 30IRE) – Color 0.25 lx (0.025 fc) – Mono 0.08 lx (0.008 fc) Dynamic range 90 dB High Dynamic Range (HDR) 106 dB HDR (with iAE) Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... - Page 40 Displayed: 854 x 480 – 432p SD 768 x 432 – 288p SD 512 x 288 – 240p SD Encoding: 352 x 240; Displayed: 432 x 240 – 144p SD 256 x 144 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems...
- Page 41 Noise reduction Intelligent Dynamic Noise Reduction (iDNR) with separate temporal and spatial adjustments Sharpness Sharpness enhancement level selectable Privacy Masking Four independent areas, fully programmable Video Motion Intelligent Video Analysis (IVA) Analysis Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674...
-
Page 42: Specifications (Nbn-71013)
Sensitivity – (3200K, reflectivity 89%, 1/60 sec shutter time, F1.2, 30IRE) – Color 0.017 lx (0.0017 fc) – Mono 0.0057 lx (0.00057 fc) Dynamic range 84 dB WDR 100 dB WDR (with iAE) 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems... - Page 43 Displayed: 854 x 480 – 432p SD 768 x 432 – 288p SD 512 x 288 – 240p SD Encoding: 352 x 240; Displayed: 432 x 240 – 144p SD 256 x 144 Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674...
- Page 44 Noise reduction Intelligent Dynamic Noise Reduction (iDNR) with separate temporal and spatial adjustments Sharpness Sharpness enhancement level selectable Privacy Masking Four independent areas, fully programmable Video Motion Intelligent Video Analysis (IVA) Analysis 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems...
-
Page 45: Standard Specifications
+5 VDC to +40 VDC voltage (+3.3 VDC with DC-coupled 22 kOhm pull-up resistor) Relay 1 output – connector Clamp – voltage 30 VAC or +40 VDC Maximum 0.5 A continuous, 10VA Data port RS‑232/422/485 Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674... - Page 46 Ethernet 10/100 Base-T, auto-sensing, half/full duplex Ethernet connector RJ45 Connectivity ONVIF Profile S, Auto-MDIX Software Unit Configuration Via web browser or Configuration Manager Firmware update Remotely programmable Software viewer Bosch Video Client 2014.04 | v1.0 | AM18-Q0674 Bosch Security Systems...
- Page 47 -20°C to +55°C (-4°F to 131°F) Temperature Operating -20°C to +50°C (-4°F to 122°F) Temperature (IVA) Storage -30°C to +70°C (-22°F to +158°F) Temperature Operating Humidity 20% to 93% RH Storage Humidity up to 98% RH Bosch Security Systems 2014.04 | v1.0 | AM18-Q0674...
- Page 48 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven The Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2014...
