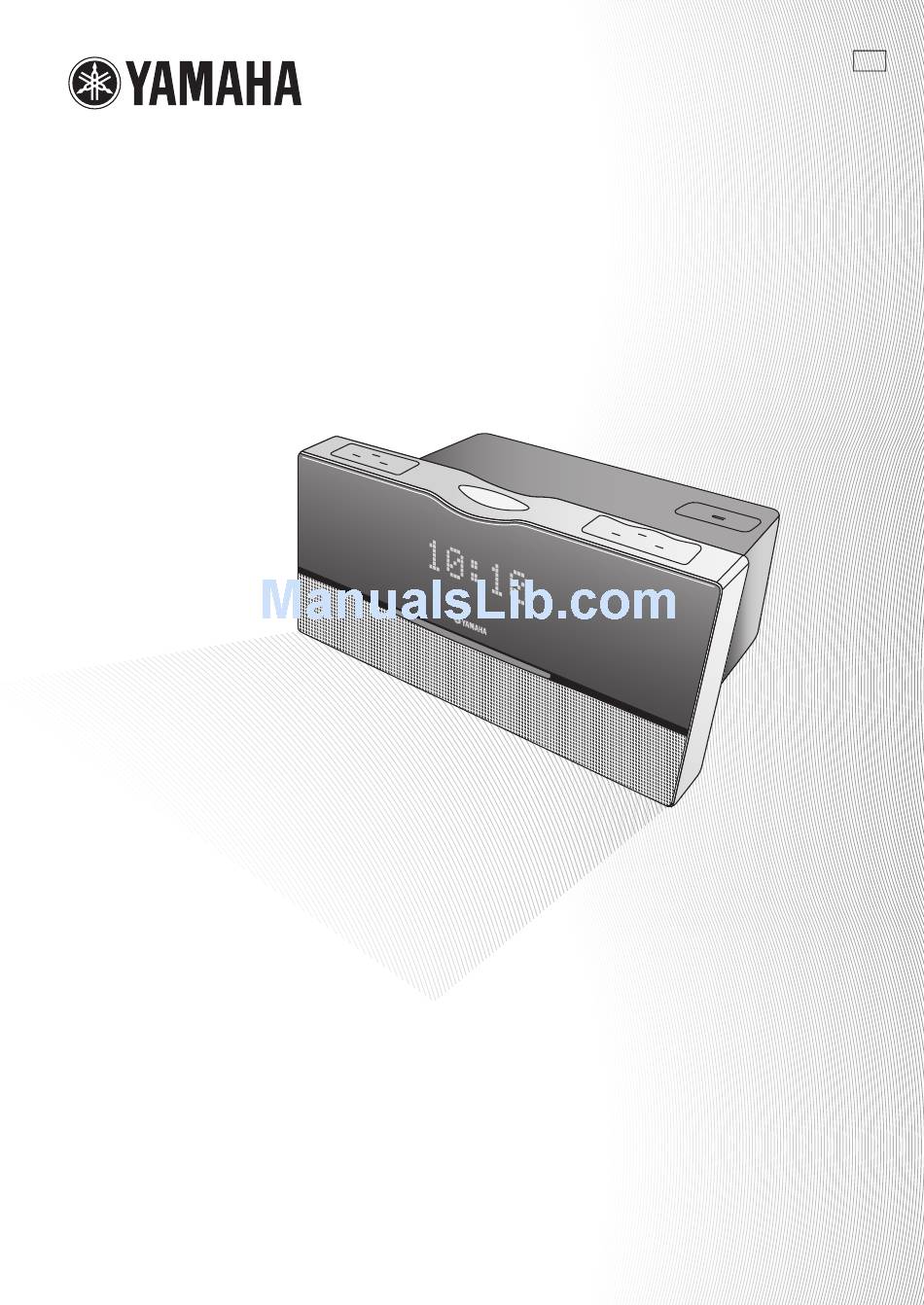

- Page 1 TSX-100 DESKTOP AUDIO SYSTEM SYSTEME AUDIO DESKTOP OWNER’S MANUAL MODE D’EMPLOI BEDIENUNGSANLEITUNG BRUKSANVISNING MANUALE DI ISTRUZIONI MANUAL DE INSTRUCCIONES GEBRUIKSAANWIJZING ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ...
- Page 2 Vorgängen kann zu Gefährdung durch gefährliche Strahlung führen. OBSERVERA Användning av reglage eller justeringar eller utförande av åtgärder på annat sätt än så som beskrivs häri kan resultera i farlig strålning. ATTENZIONE L’uso di controlli, regolazioni, operazioni o procedure non specificati in questo manuale possono risultare in esposizione a radiazioni pericolose.
- Page 3 VAROITUS Muiden kuin tässä esitettyjen toimintojen säädön tai asetusten If the socket outlets in the home are not suitable for the plug muutto saattaa altistaa vaaralliselle säteilylle tai muille supplied with this appliance, it should be cut off and an vaarallisille toiminnoille.
- Page 4 Install this unit in a well ventilated, cool, dry, clean place cable from the outlet, then leave this unit alone. with at least 10 cm on the top, 10 cm on the left and right, 19 When using this unit for a long time, this unit may...
-
Page 5: Table Of Contents
12 Switching the playback information display ... 14 Repeat and random playback........15 Playing back external sources........15 Listening to FM and AM radio stations ..... 16 Connecting antennas..........16 Tuning radio stations ..........16 Presetting radio stations automatically (Auto preset)............ -
Page 6: Features
• Simple but functional remote control • Timer and clock function About this manual • In this manual, operations that can be performed with either this unit or its remote control are explained using the remote control. • The symbol “... -
Page 7: Controls And Functions
P. 11) PRESET u, d Selects the preset stations. ( P. 17) 4/1 ¡/¢ Skips to the beginning of the current or next ALARM track. Press and hold the key to search backward/ Sets the alarm function. ( P. 20) forward. -
Page 8: Remote Control
TUNER, the source switches between FM and AM. ( P. 16) Press CD to listen to a disc inserted into the disc slot. P. 11) Remove the transparent sheet before using the remote control. - Page 9 Use the remote control within 6 m (20 feet) of this unit and point it toward the remote control sensor. Notes • Do not put obstacles between the sensor of this unit and the remote control. Doing so, you cannot operate this unit by the remote control. Within 6 m •...
-
Page 10: Preparation Before Using This Unit
“ECO OFF”, and then leave for several seconds. To turn off the clock, select “ECO ON”. • The memory back-up circuit prevents the stored data from being lost even if this unit is in the standby mode. However, the stored data will be lost if the power cable is disconnected... -
Page 11: Adjusting The Clock
Adjust date and time. PRESET Date 12 Oct Fri TUNE ENTER Selects year/date/hour/minute. Increases or decreases the date or time. Time 1:23 Note Time appears in 12-hour notation (AM/PM) depending on the model. For example, “04:00PM”. PRESET Confirm. TUNE ENTER... -
Page 12: Basic Operation
PORTABLE PRESET MUTE Turns off the sound. On the top panel Using the headphones INPUT/SNOOZE Press repeatedly. To PHONES TUNER PHONES PORTABLE FM ANT 75 UNBAL. Even when you connect your headphones, the alarm sound is output through the speaker. -
Page 13: Adjusting Sounds
ENTER CLASSIC For classical music For various music STRAIGHT Adjusting bass/treble balance TONE BASS Press repeatedly. Select “BASS” (low frequency range) or “TREBLE” (high frequency range). PRESET TUNE ENTER BASS Adjust the level (–10 to +10 dB). PRESET TUNE ENTER... -
Page 14: Useful Operations For The Display
Alarm 1 setting ( P. 20) Alarm 2 setting ( P. 20) Sleep timer setting ( P. 21) Countdown timer (only when activated) ( P. 21) Dimming the display Adjusts the brightness automatically AUTO CONTROL according to the ambient brightness. -
Page 15: Listening To Cds, Mp3/Wma Files, And External Sources
• You can switch the playback information display ( P. 14). • You can also play back MP3/WMA files recorded on a disc. Refer to “Listening to MP3/WMA files stored on your USB device” ( P. 12). To pause playback... -
Page 16: Listening To Mp3/Wma Files Stored On Your Usb Device
• Do not connect devices other than USB mass storage class devices (such as USB chargers or USB hubs), PCs, card readers, external HDD, etc. • Yamaha will not be held responsible for any damage to or data loss on the USB device occurring while the device is connected to this unit. - Page 17 • Some files may not work properly depending on the USB device specification. • Copyright-protected files cannot be played back. • This unit can play back files of 4 GB in size or less. Only when MP3/WMA disc playback PRESET...
-
Page 18: Switching The Playback Information Display
Total time of the disc Live at KCE TTL 54:41 Back to the default display Remaining time of the disc Scrolling display shows the song title, artist name, and album name of the selected item in sequence. TTL -12:28 Back to the default display... -
Page 19: Repeat And Random Playback
Listening to CDs, MP3/WMA files, and external sources Repeat and random playback Playing back external sources Random playback Note Turn down the volume of this unit and your portable audio device RANDOM before connection. Press repeatedly Connect your portable audio device. -
Page 20: Listening To Fm And Am Radio Stations
• You can also tune radio stations manually by pressing TUNE repeatedly. TUNER • To increase the quality of the FM sound under the weak radio wave, press and hold RANDOM on the remote control to FM ANT 75 UNBAL. -
Page 21: Presetting Radio Stations Automatically (Auto Preset)
• You can delete all the preset stations by pressing and holding for 3 seconds or longer. • You can preset up to 30 FM stations and 20 AM stations. • You can delete a preset station by pressing • You can delete all the preset stations by pressing and holding... -
Page 22: Selecting Preset Radio Stations (Preset Tuning)
TUNE ENTER MODE-PTY SEEK 30 108.00MHz SEARCH > On the top panel ALARM PRESET MUTE PRESET Select a program type ( P. 19). TUNE ENTER NEWS PTY SEEK-START Initiate scan. To cancel program type seek, press PTY SEEK START again. -
Page 23: Radio Text
FOLK M Folk Music Note DOCUMENT Documentary If the signal transmission of the Radio Data System station is too weak, this unit may not be able to receive Radio Data System TEST Alarm Test information completely. In particular, RT (Radio Text) -
Page 24: Using The Timer Functions
You can also use the numeric buttons to enter date and time. PRESET TUNE ENTER Once you have set the alarm, you can turn on/off the alarm using ALARM ON/OFF. Using the snooze function To stop the alarm On the top panel... - Page 25 TIMER 01 min Set the countdown time (1 to 60 minutes). PRESET 01:23 02min 59sec TUNE ENTER Countdown starts. To cancel the countdown timer, press TIMER twice to select “OFF”. To stop the alarm On the top panel TIMER INPUT/SNOOZE...
-
Page 26: Troubleshooting
Troubleshooting In case of a problem with this unit, check the following list first. If you cannot solve your problem with the suggested solutions or if your problem is not listed below, turn off and unplug this unit, and consult the nearest authorized Yamaha dealer or service center. -
Page 27: Mp3/Wma File Playback
Problem Cause Solution MP3/WMA file in the USB The USB device is not recognized. Set this unit to the standby mode, and turn it P. 6) device is not played. on again Disconnect the device while this unit is in the standby mode. -
Page 28: Remote Control
• If the batteries run out, immediately remove them from the remote control to prevent an explosion or acid leak. • If a battery starts leaking, dispose of it immediately. Be careful not to let the leaking battery acid touch your skin or clothing. -
Page 29: Notes On Discs
• Do not use a pencil or pointed marker to write on the disc. • Do not put a tape, seal, glue, or other attachments on a disc. • Do not use a protective cover to prevent scratches. • Do not use a disc that has a printable surface using a commercially available label printer. -
Page 30: Glossary
U.S.A. and Canada models........530 to 1710 kHz Other models ............522 to 1629 kHz *This output is the value measured at a distance of about 200 mm (7.9 in) from the objective lens surface on the Optical Pick-up Block. - Page 31 (http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident). The product is guaranteed to be free from defects in workmanship or materials for a period of two years from the date of the original purchase. Yamaha undertakes, subject to the conditions listed below, to have the faulty product or any part(s) repaired, or replaced at Yamaha’s discretion, without any charge for parts or labour.
- Page 32 YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA...
