SERVICE
A N U A L
MODELS
SX2IU
5X22U
5X23U
CHASSIS
HS-259

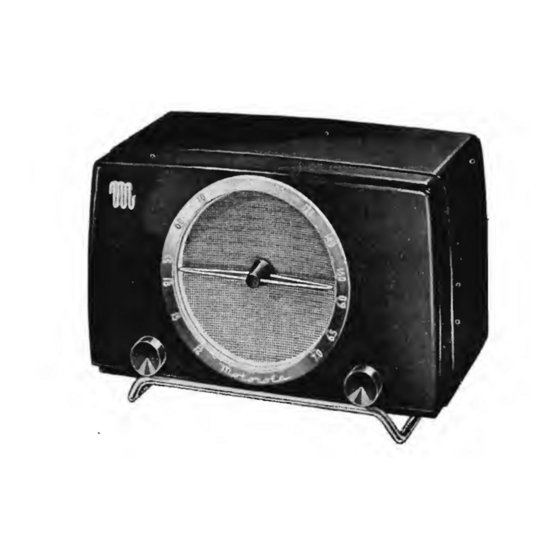

GENERAL INFORMATION
TYPE - A
combination
standard
broadcast and shortwave
table model receiver.
RECEIVER MODELS
Model
Color
5X21U
Walnut-Mahogany
5X22U
Ivory
5X23 U
Ebony
TUBE COMPLEMENT -
1ZBES - Converter
12BA6 - IF Amplifier
12AT6 - Detector, AVC & 1st Audio Amp
50C5
- Power Amplifier
35W4
- Rectifier
POWER SUPPLY - 117V
AC/DC
35 watts
TUNING RANGE - Standard Broadcast - 535 to 1620 Kc
Shortwave - 5. 85 Me to 1 8. 1 Me
IF - 455 Kc
NSTALLATION § OPERATING INSTRUCTIONS
ANTENNAS
For
shortwave
reception, it is necessary to connect a
length of wire (at least 10 feet long) to the screw terminal
located on the radio rear panel.
A commercial shortwave
antenna is recommended for best results.
No outside antenna
is normally required for standard
broadcast
station
reception.
A loop antenna for receiving
broadcast stations is built into the radio. If the radio is lo¬
cated at a considerable distance from broadcast stations, it
may
be
necessary
to secure
additional signal pick-up by
using an external antenna. The shortwave antenna wire may
byused for additional pick-up of standard broadcast stations;
leave the wire connected to the shortwave terminal screw
and wind two turns of the wire in the slots located at the top
of the radio rear panel.
CAUTION:
Do not connect antenna or chassis to water
pipe, radiator or other ground.
C O N T RO LS
POWER SWITCH & VOLUME CONTROL. The power switch
and volume control are combined and operated with the left-
hand knob.
If the radio does not operate from a DC power
line
after
being
turned on for a few minutes, reverse the
power cord plug in the power outlet.
When operating from
AC power lines,
reception can sometimes be improved by
reversing the power cord in the power outlet.
BANDSWITCH.
The small (inner) right-hand knob selects
standard
broadcast
or
shortwave
reception, as
desired.
Rotate this knob to the left for standard broadcast or to the
right for shortwave reception.
TUNING. The large (outer) right-hand knob is used for tun¬
ing both standard broadcast and shortwave stations.
POINTER
DRIVE CORD"
PULLEY_
DRIVE CORD
GANG FULLY CLOSED
FIGURE 1.
STRING DRIVE DETAIL
4545
AUGUSTA
BOULEVARD
CHICAGO
ILLINOIS
part NO.
54P601243
Price 10 Cents
PRINTED IN U. S. A.
