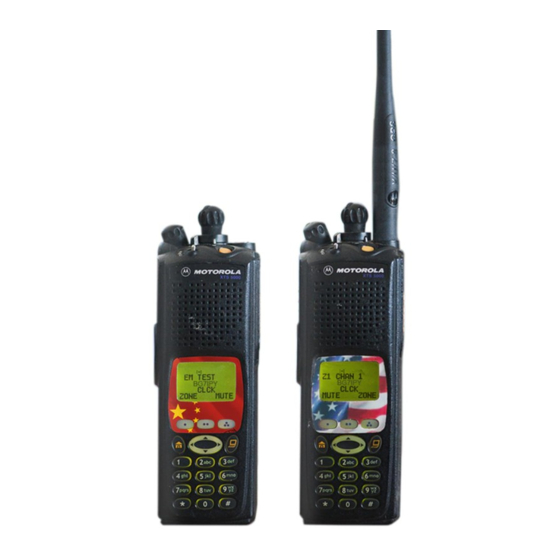

Applicant: Motorola Inc.
Function of RF Semiconductors & Other Active Devices
Ref.
Application
Des.
D101
Tx forward power detector
Y200
Reference oscillator 1.5 PPM
Q502
VCO for second LO
Q430
Receiver LNA
D701
Antenna switch
D702
Antenna switch
D601
Antenna switch
D602
Antenna switch
Q211
VCO, 450-488 MHz
Q215
VCO, 376-414MHz
U4
Memory
U250
VCO buffer amp
U102
TX driver amplifier
U470
RX down converter mixer
U105
A to D converter for built-in-test
U203
TX modulator D to A converter
Q107
TX power amplifier
U104
Transmitter ALC
U103
Temperature sensor
U202
Frequency synthesizer
U500
Receiver back-end IC
U201
Reference oscillator buffer amplifier.
FL200
TX modulation low pass filter
COMMENTS: The Motorola designators are special code numbers for active devices used in
Motorola radios. These devices are either identical or derived from the device family listed under
Source, by the manufacturer or are proprietary to Motorola. Service people do not have access to
any cross-references or given any information on proprietary devices and are prevented from
making unauthorized substitution.
Confidentiality Requested
Description
On Semiconductor MBD330DWT1 dual
Schottky diode
TEW TTS12V2 16.8 MHZ temperature
compensated VCXO
Philips BFQ67W RF transistor
Philips BFS 520 RF transistor
Microsemi UPP9401 PIN diode
Microsemi UPP9401 PIN diode
Microsemi UPP9401 PIN diode
Microsemi UPP9401 PIN diode
NEC NE68519 NPN Transistor
NEC NE68519 NPN Transistor
Xicor X25160 Serial EEPROM 16K
Motorola VCO BUFFER IC
Motorola VHF/UHF/800 MHZ LDMOS driver
amplifier
Infineon PMB2335 RF MIXER
Texas Instruments TLV1544I QUAD 10 BIT
A/D converter IC
Analog Devices AD5320BRT 12 BIT DAC
Motorola MODULE 800 MHZ RING
Motorola IC PWR CTRL IN MOS20
National Instruments LM50C temperature
sensor
Atmel AT25016 FracN IC
Analog Devices AD9874 IF digitizing
subsystem ABACUS III-LP
National Instruments CLC450 analog OP-amp
Maxim MAX7414 switched capacitor filter
FCC ID: AZ489FT4861
EXHIBIT 10-1
