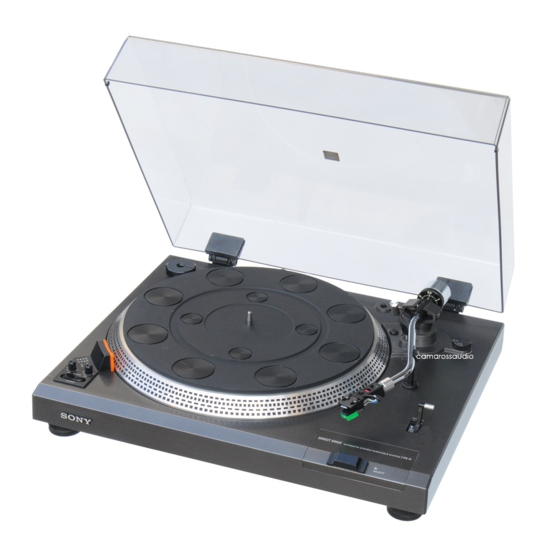

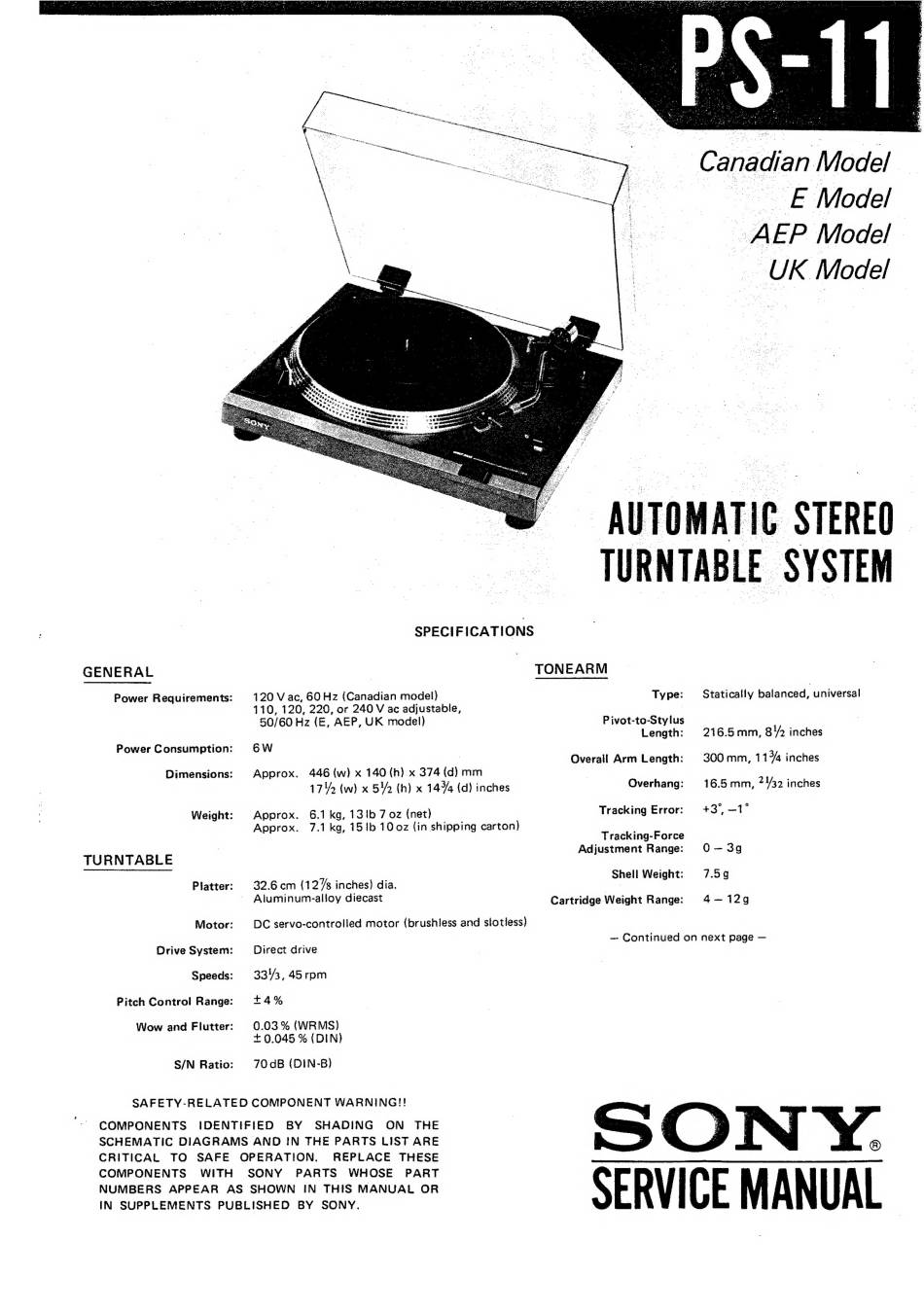

Sony PS-11 Service Manual

- Canadian Model
C STEREO
"TURNTABLE 'SYSTEM
SPECIFICATIONS
120 V ac, 60 Hz (Canadian model)
110, 120, 220, or 240 V ac adjustable,
50/60 Hz (E, AEP, UK model)
Pivot-to-Stylus
Statically balanced, universal
216.5 mm, 84/2 inches
300 mm, 11° inches
16.5 mm, 7/32 inches
+3° —
0-—-3g
7.59
4—129g
— Continued on next page —
Length:
Power Consumption: 6W
Overall Arm Length:
Dimensions: Approx. 446 (w) x 140 (h) x 374 (d)mm
17/5 (w) x 5 (h) x 14% (d) inches
Overhang:
Weight:
Approx.
6.1 kg, 13!b 7 oz (net)
Tracking Error:
Approx. 7.1 kg, 15 lb 10 oz (in shipping carton)
Tracking-Force
Adjustment Range:
TURNTABLE
s
Shell Weight:
Platter:
32.6cm (12% inches) dia.
7
Aiuminum-alloy diecast
Cartridge Weight Range:
Motor: DC servo-controlled motor (brushless and stotless)
Drive System: Direct drive
Speeds: 3345, 45rpm
Pitch Control Range: +4%
0.03 % (WRMS)
+ 0.045 % (DIN)
Wow and Flutter:
S/N Ratio: 70dB (DIN-B)
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING ON THE
SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE
CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
SERVICE MANUAL
