Sony CDP-C5F Service Manual

*unmennntneisesn sare metanenanennann
DISC
RA EROANE 20 OARS Srna

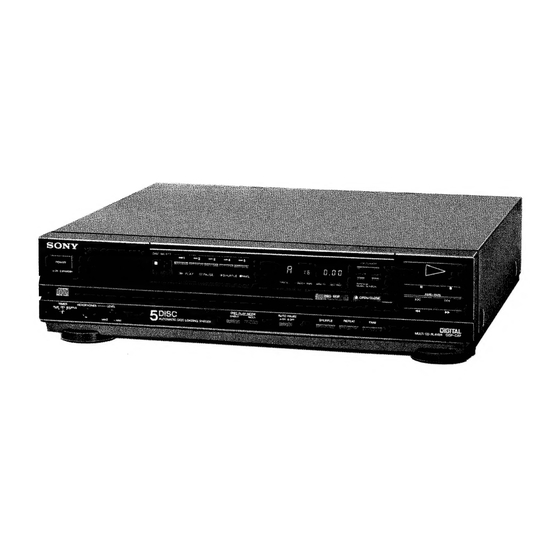

Photo:
CDP-C5F
SPECIFICATIONS
REMOTE COMMANDER RM-D5
Remote control system
COMPACT DISC PLAYER CDP-C5F
System Compact disc digital audio system
Laser Semiconductor laser (4 = 780 nm)
Emission duration: continuous
Laser output Max. 0.4 mw*
* This output is the value measured at a distance of
about 1.6 mm from the objective lens surface on the
Optical Pick-up Block.
Frequency response
2 Hz - 20 kHz (+0.5 dB)
Signal to noise ratio
More than 95 dB
Dynamic range More than 93 dB
Harmonic distortion
Less than 0.005% (1 kHz)
Channel separation
More than 90 dB (1 kHz) ;
Below measurable limit
LINE OUT (phono jacks)
Output level 2 V (at 50 kilohms)
_ Load impedance over 10 kilohms
HEADPHONES (stereo phone jack)
Output level 0 ~ 28 mW (variable) (at 32 ohms)
Output impedance 220 ohms
Wow and flutter
Outputs
General
Power requirements
US, Canadian: 120 V AC, 60 Hz
AEP model: 220 V AC (240 V AC, adjustable by
authorized Sony personnel), 50/60 Hz
E model: 120/220/240 V AC, switchable,
50/60 Hz
120 V AC, 60 Hz
Power consumption
10W
AC outlet (USA model only) | 100 W max. unswitched
Dimensions Approx. 430 x 106 x 415 mm (w/h/d)
(17 x 44/4 x 167/s inches)
not including projecting parts and controls
Weight Approx. 7.5 kg (16 Ibs 9 02), net
RA OBSROCE
Refer to the additional documents,
CDP-C5F:
US Model
Canadian Model
AEP Model
E Model
CDP-C5S:
US Model
CDP-C57:
US Model
Infrared control
Power requirements
3 V DC with two size AA (R6) batteries
Dimensions 43 x 20 x 175 mm (wihid)
(13/4 x 7/s x 67/e inches)
Weight 145 g (5 02)
including batteries
Note
This appliance conforms with EEC Directives 76/889 and 82/499
regarding interference suppression.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MARQUE A SUR LES DIAGRAMMES SCHE-
MATIQUES ET LA LISTE DES PIECES SONT CRITIQUES
POUR LA SECURITE DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAR
SONY.
