Sony CDP-C435 Service Manual

CDP-0435/0535

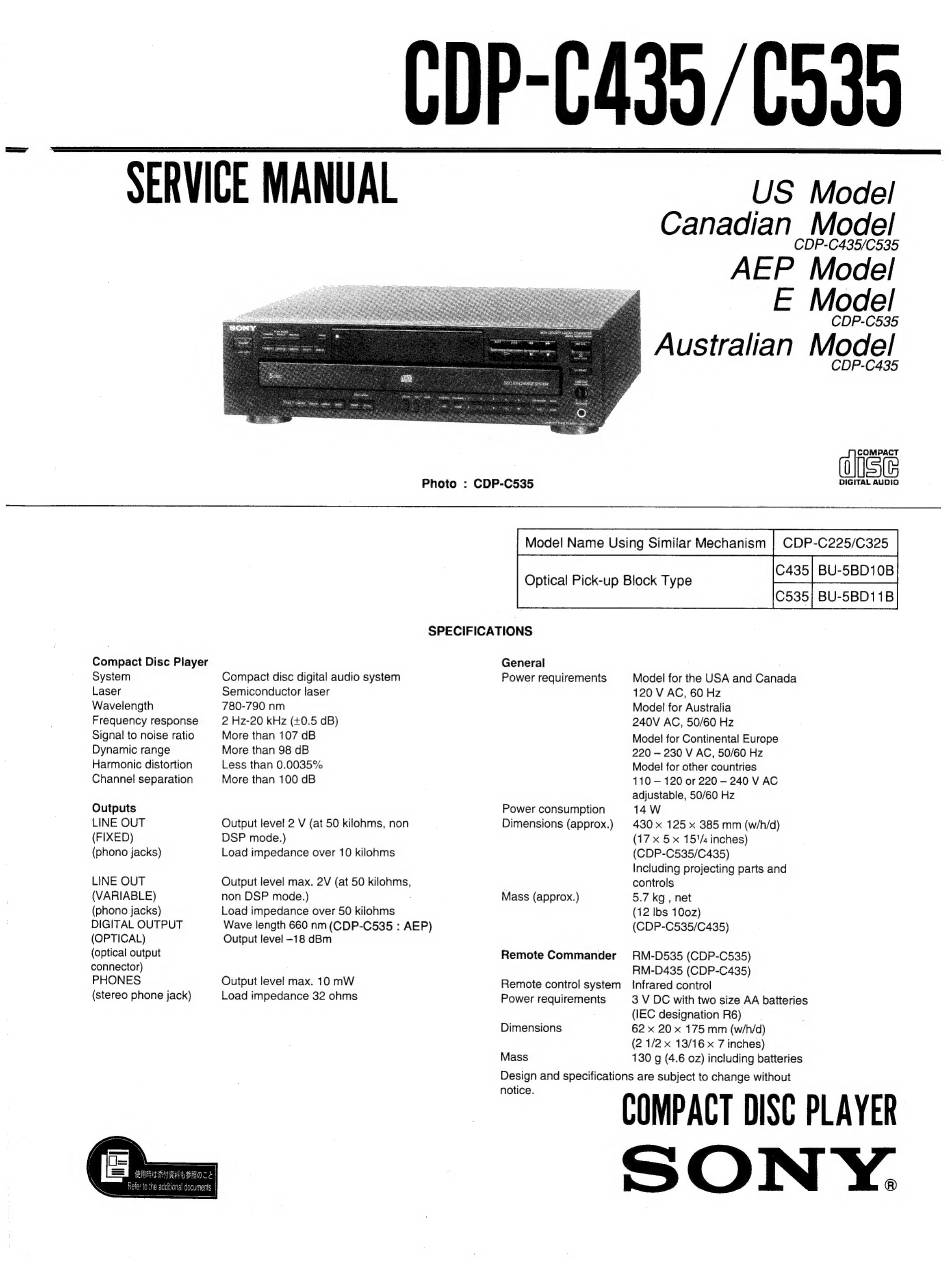

SERVICE MANUAL

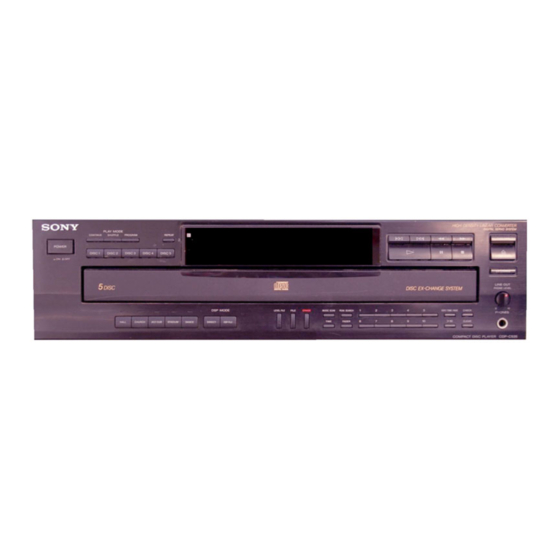

Photo : CDP-C535
US Model
Canadian Model
CDP-C435/C535
AEP Model
E Model
CDP-C535
Australian Model
CDP-C435
COMPACT
DIGITAL AUDIO
Model Name Using Similar Mechanism | CDP-C225/C325
BU-5BD10B
C535] BU-5BD11B
Optical Pick-up Block Type
SPECIFICATIONS
Compact Disc Player General
System Compact disc digital audio system Power requirements Model for the USA and Canada
Laser Semiconductor laser 120 V AC, 60 Hz
Wavelength 780-790 nm Model for Australia
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Outputs
LINE OUT
(FIXED)
(phono jacks)
LINE OUT
(VARIABLE)
(phono jacks)
DIGITAL OUTPUT
(OPTICAL)
(optical output
connector)
PHONES
(stereo phone jack)
2 Hz-20 kHz (+0.5 dB)
More than 107 dB
More than 98 dB
Less than 0.0035%
More than 100 dB
Output level 2 V (at 50 kilohms, non
DSP mode.)
Load impedance over 10 kilohms
Output level max. 2V (at 50 kilohms,
non DSP mode.)
Load impedance over 50 kilohms
Wave length 660 nm (CDP-C535 : AEP)
Output level -18 dBm
Output level max. 10 mW
Load impedance 32 ohms
240V AC, 50/60 Hz
Model for Continental Europe
220 — 230 V AC, 50/60 Hz
Model for other countries
110 — 120 or 220 — 240 V AC
adjustable, 50/60 Hz
Power consumption 14W
Dimensions (approx.) 430 x 125 x 385 mm (w/h/d)
(17 x 5x 151/4 inches)
(CDP-C535/C435)
Including projecting parts and
controls
5.7 kg , net
(12 Ibs 100z)
(CDP-C535/C435)
Mass (approx.)
Remote Commander RM-D535 (CDP-C535)
RM-D435 (CDP-C435)
Remote control system Infrared control
Power requirements 3 V DC with two size AA batteries
(IEC designation R6)
62 x 20 x 175 mm (w/h/d)
(2 1/2 x 13/16 x 7 inches)
Mass 130 g (4.6 0z) including batteries
Design and specifications are subject to change without
_ COMPACT DISC PLAYER
SON Y.
Dimensions
