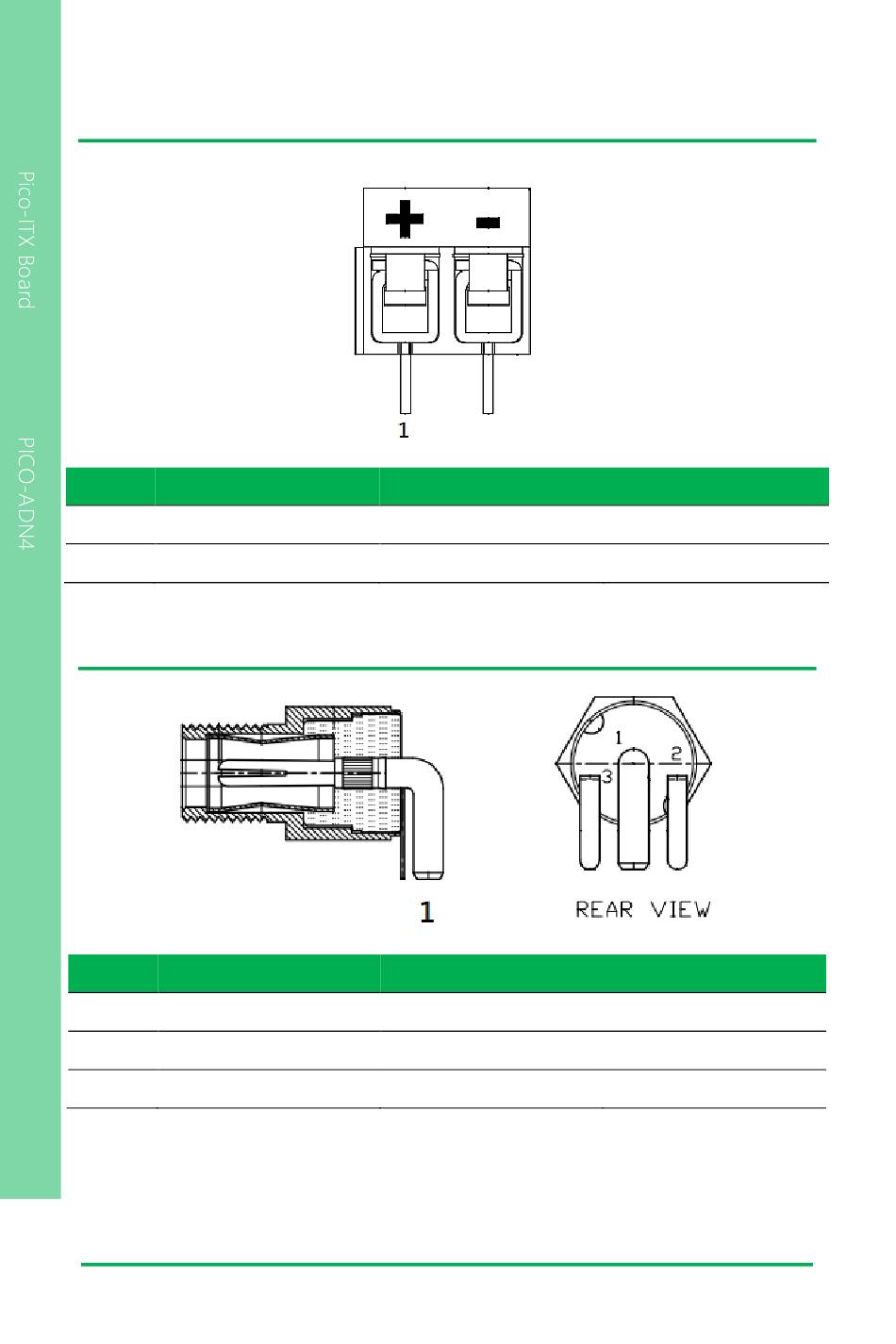

2.4.18
Power Input +12V (CN23)
Pin
Pin Name
1
+V_IN
2
GND
2.4.19
DC Jack Power Input [Reserved] (CN24)
Pin
Pin Name
1
+V_IN
2
GND
3
GND
Chapter 2 – Hardware Information
Signal Type
PWR
GND
`
Signal Type
PWR
GND
GND
Signal Level
+12V
Signal Level
+12V
29
