Sony PS-LX520 Service Manual

SPECIFICATIONS
Turntable
Platter 30 cm (12 in.), aluminum-alloy diecast
Motor BSL (brushless and stotless) motor
Drive system
Control system
Speed
Wow and flutter
Signal-to
Automatic system
Speed deviation
Tonearm
Type

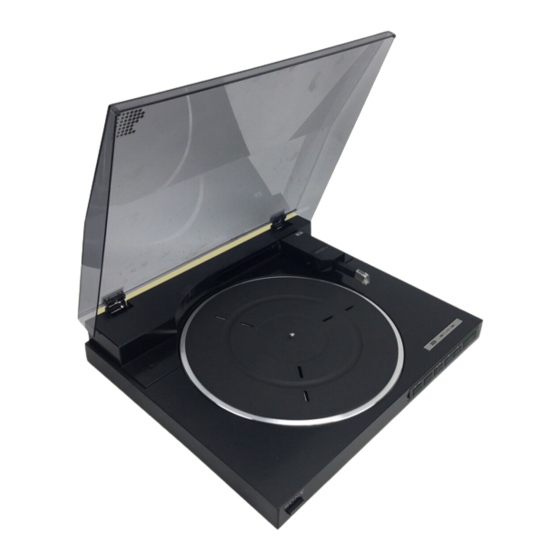

SILVER MODEL SHOWN
Direct drive
Quartz lock servo control system
33/3 rom, 45 rpm
0.03% (WRMS)*, 0.035% (WRMS)
+0.045% (DIN)
'noise ratio 75 dB (DIN-B)
Lead-in, return, reject, repeat, arm
up/down, record size selection
Within + 0.003%
Linear tracking tonearm
Pivot-to-stylus length 75 mm (3 in.)
Tracking
Usable cartridge
General
Power requirements
error +0.1°
plug-in type, 6g
120 V ac, 60 Hz (US, Canadian model)
220 V ac, 50/60 Hz (AEP model)
110 — 220 V, 120 — 240 V ac, 50/60 Hz
(E model)
Power consumption 10W
Dimensions
MICROFILM
Approx. 430 x 95 x 365 mm (wih/d)
(167/e x 33/4 x 143/a in.)
including projecting parts and controls
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS AND !N THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR !N SUPPLEMENTS PUBLISHED BY SONY.
US Model
Canadian Model
AEP Model
E Model
With the dust cover opened.
415 mm (16%/e in.)
+———. 365 mm (143/, in.) >
— Continued on page 2 —
