This instruction manual explains how to use
lenses. Precautions common to all lenses such
as notes on use are found in the separate
"Precautions before using". Be sure to read both
documents before using your lens.
This lens is designed for Sony a camera system
E-mount cameras. You cannot use it on A-mount
cameras.
The FE 600mm F4 GM OSS is compatible with the
range of a 35mm format image sensor.
A camera equipped with a 35mm format image
sensor can be set to shoot at APS-C size.
For details on how to set your camera, refer to its
instruction manual.
For further information on compatibility, visit the
web site of Sony in your area, or consult your dealer
of Sony or local authorized service facility of Sony.
For Customers in the U.S.A.
For question regarding your product or for the Sony
Service Center nearest you,
call 1-800-222-SONY (7669).
Supplier's Declaration of Conformity
Trade Name : SONY
Model : SEL600F40GM
Responsible Party : Sony Electronics Inc.
Address : 16535 Via Esprillo, San Diego, CA 92127
U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received , including interference that may cause
undesired operation.
Notes on use
• Do not leave the lens exposed to the sun or a bright
light source. Internal malfunction of the camera body
and lens, smoke, or a fire may result due to the effect
of light focusing. If circumstances necessitate leaving
the lens in sunlight, be sure to attach the lens caps.
• When shooting against the sun, keep the sun
completely out of the angle of view. Otherwise, solar
rays may be · c oncentrated at a focal point inside
the camera, causing smoke or a fire. Keeping the
sun slightly out of the angle of view may also cause
smoke or a fire.
• When carrying a camera with the lens attached, firmly
grasp the body of the lens, such as the tripod collar.
• This lens is not water-proof, although designed with
dust-proofness and splash-proofness in mind. If using
in the rain etc., keep water drops away from the lens.
• When storing or carrying this lens, prevent it from
dropping. During shooting, use a sturdy tripod with it.
Precautions on using a flash
• You cannot use a built-in camera flash with this lens.
Vignetting
• When using the lens, the corners of the screen
become darker than the center. To reduce this
phenomena (called vignetting), close the aperture by
1 to 2 stops.
m

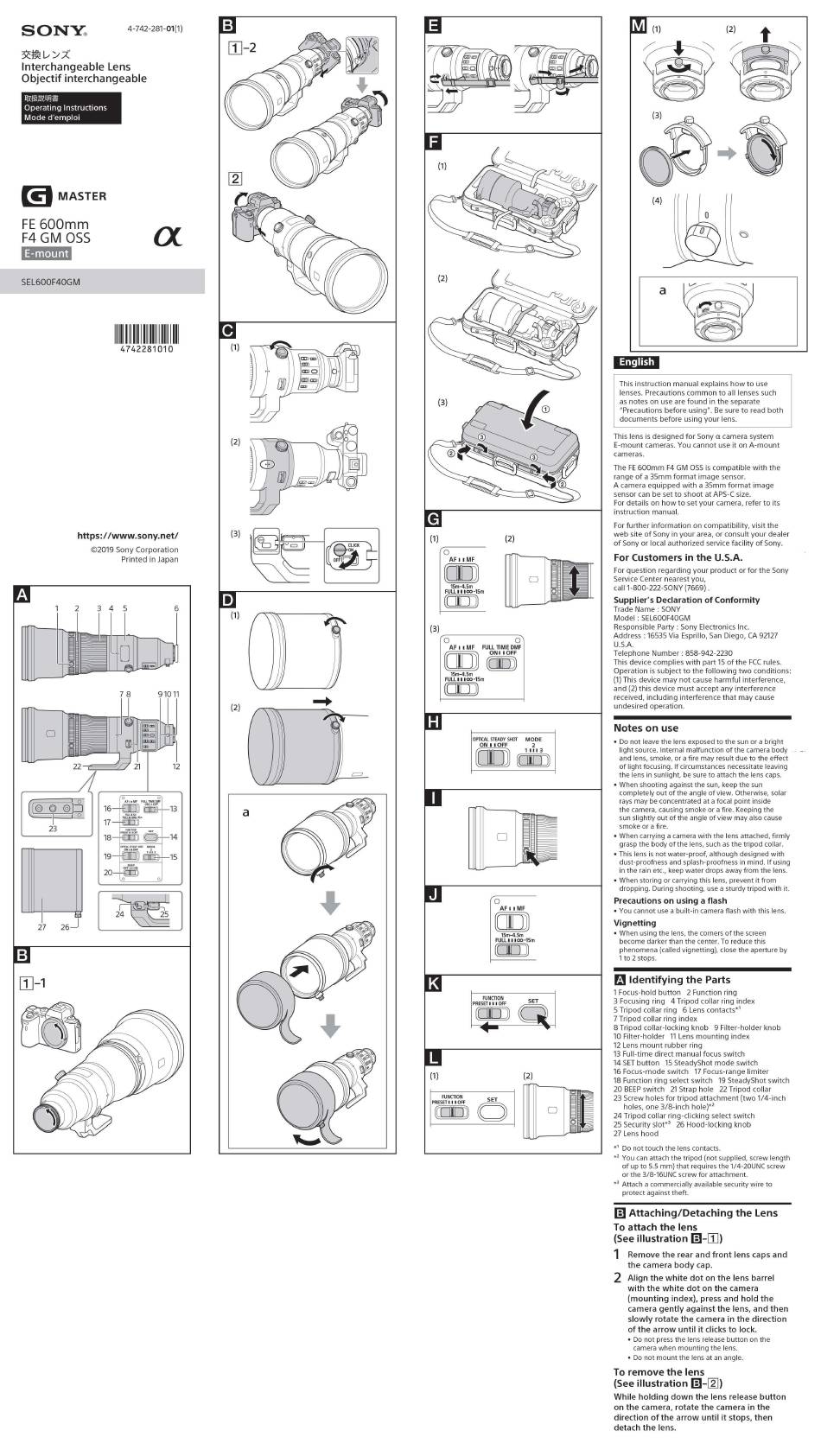

Identifying the Parts
1 Focus-hold button 2 Function ring
3 Focusing ring 4 Tripod collar ring index
5 Tripod collar ring 6 Lens contacts*'
7 Tripod collar ring index
8 Tripod collar-locking knob 9 Filter-holder knob
10 Filter-holder 11 Lens mounting index
12 Lens mount rubber ring
13 Full-time direct manual focus switch
14 SET button 15 SteadyShot mode switch
16 Focus-mode switch 17 Focus-range limiter
18 Function ring select switch 19 SteadyShot switch
20 BEEP switch 21 Strap hole 22 Tripod collar
23 Screw holes for tripod attachment (two 1/4-inch
holes, one 3/8-inch hole)*
2
24 Tripod collar ring-clicking select switch
25 Security slot*
3
26 Hood-locking knob
27 Lens hood
*
1
Do not touch the lens contacts.
* 2 You can attach the tripod (not supplied, screw length
of up to 5.5 mm) that requires the 1/4-20UNC screw
or the 3/8-16UNC screw for attachment.
* 3 Attach a commercially available security wire to
protect against theft.
rn
Attaching/Detaching the Lens
To attach the lens
(See illustration
m-[I])
1
2
Remove the rear and front lens caps and
the camera body cap.
Align the white dot on the lens barrel
with the white dot on the camera
(mounting index), press and hold the
camera gently against the lens, and then
slowly rotate the camera in the direction
of the arrow until it clicks to lock.
• Do not press the lens release button on the
camera when mounting the lens.
• Do not mount the lens at an angle.
To remove the lens
(See illustration
m-[2])
While holding down the lens release button
on the camera, rotate the camera in the
direction of the arrow until it stops, then
detach the lens.
