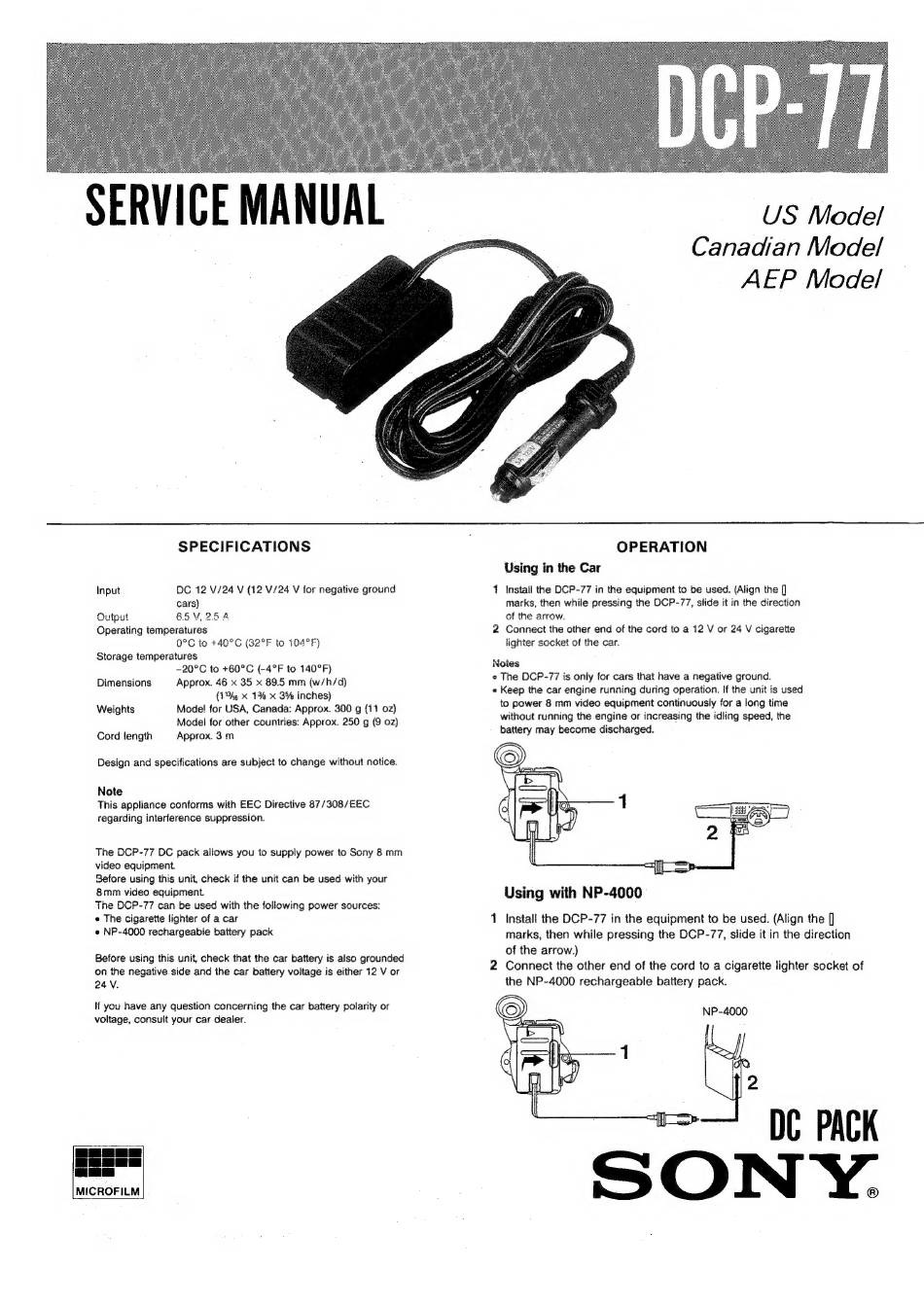

Sony DCP-77 Service Manual

SERVICE MANUAL
SPECIFICATIONS
Input DC 12 V/24 V (12 V/24 V for negative ground
cars)
Output 65 V, 254
Operating temperatures
0°C to +40°C (32°F to 104°F}
Storage temperatures
-20°C to +60°C (-4°F to 140°F)
Dimensions Approx. 46 x 35 x 89.5 mm (w/h/d)
(1% x 1% x 3% inches)
Weights Mode! for USA, Canada: Approx. 300 g (11 0z)
Model for other countries: Approx. 250 g (9 0z)
Cord length Approx. 3 m
Design and specifications are subject to change without notice.
Note
This appliance conforms with EEC Directive 87/308/EEC
regarding interference suppression.

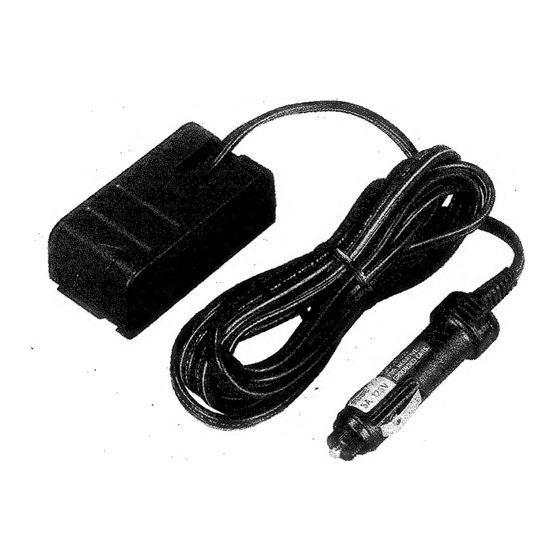

The DCP-77 DC pack allows you to suppiy power to Sony 8 mm
video equipment
Sefore using this unit, check if the unit can be used with your
8mm video equipment
The DCP-77 can be used with the following power sources:
« The cigarette lighter of a car
» NP-4000 rechargeable battery pack
Before using this unit, check that the car battery is also grounded
on the negative. side and the car battery voltage is either 12 V or
24V.
If you have any question concerning the car battery polarity or
voltage, consult your car dealer.
MICROFILM
US Model
Canadian Mode!
AEP Model
OPERATION
Using in the Car
1 Install the DCP-77 in the equipment to be used. (Align the J
marks, then while pressing the DCP-77, slide it in the direction
of the arrow.
2 Connect the other end of the cord to a 12 V or 24 V cigarette
lighter socket of the car.
Notes
e The DCP-77 is only for cars that have a negative ground.
e Keep the car engine running during operation. if the unit is used
to power 8 mm video equipment continuously for a long time
without running the engine or increasing the idling speed, the
battery may become discharged.
Using with NP-4000
1 Install the DCP-77 in the equipment to be used. (Align the |]
marks, then while pressing the DCP-77, slide it in the direction
of the arrow.)
2 Connect the other end of the cord to a cigarette lighter socket of
the NP-4000 rechargeable battery pack.
NP-4000
DC PACK
SONY.
