Summary of Contents for Kenwood KNF60HX18

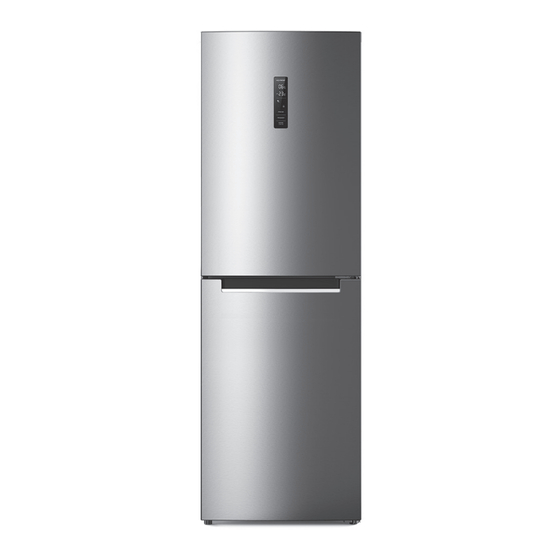

- Page 1 60cm Total Frost Free Fridge Freezer KNF60HX18 installation / instructions manual...
-
Page 3: Table Of Contents
Contents safety warnings ........................4 unpacking ..........................6 installation ........................... 7 location ..........................7 levelling the unit ....................... 7 free space requirements ....................7 reversing the door swing ....................8 cleaning before use ......................11 before using your unit .....................11 product overview ......................12 main unit ........................ -
Page 4: Safety Warnings
safety warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 5 • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment.
-
Page 6: Unpacking
Thank you for purchasing your new Kenwood Fridge Freezer. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers. -
Page 7: Installation
installation installation location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 10°C and 43°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. -
Page 8: Reversing The Door Swing
installation reversing the door swing tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner • Ensure the unit is unplugged and empty. • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. - Page 9 installation 4. Remove the middle hinge. Lift the lower door and place it on a padded surface to prevent from being scratched. 5. Lay down the unit. Remove both levelling feet, levelling feet fix board and bottom hinge. Swap the position of the levelling feet fix board with the bottom hinge.
- Page 10 installation 8. Stand the unit. Remove the middle hinge hole covers and swap their position with the middle hinge. Reverse the middle hinge. 9. Place the bottom hole of the lower door onto the bottom hinge pin. Insert the middle hinge pin into the upper hole of the lower door.
-
Page 11: Cleaning Before Use
installation 12. Pull out the decorative cover from the top cover and carefully insert into the grooves on opposite side. 13. Replace top cover and screw in tightly. cleaning before use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. -
Page 12: Product Overview
product overview main unit LED Light Fridge Glass Fridge Door Shelf Shelf Small Salad Bin Cover Shelf Small Salad Bin Large Salad Bin Cover Shelf Large Salad Bin Freezer Drawer Freezer Glass Shelf Bottle Rack Egg Tray Ice Tray (You can place the plastic bottle rack on any fridge glass shelf.) -
Page 13: Operation
operation switching on your unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by an electronic control panel. Before changing any settings, ensure the is disabled. 2. Press Fridge button repeatedly to set temperature for the fridge compartment (2 to 8°C) and press Freezer button repeatedly to set temperature for the freezer compartment (-16 to -22°C). -
Page 14: Super Freeze Mode
super freeze mode • Press MODE button repeatedly until indicator begins flashing on the display. After 5 seconds the indicator will stop flashing but remain on. Temperature in the freezer compartment will be quickly lowered. • The Super Freeze Mode will automatically switch off after 26 hours. Alternatively, to switch off manually, press MODE button to exit. -
Page 15: Defrosting Frozen Food
• You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as “Preforming”. Pour the liquid into a polythene bag which is inside a square sided container. -
Page 16: Maintenance
maintenance changing the internal LED light The internal light is an LED panel that cannot be changed by the user. Please contact a qualified service agent. care when handling / moving your unit Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface. -
Page 17: Specifications
Brand Kenwood Model KNF60HX18 Household Appliance Category Energy Efficiency Class Energy consumption 317 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. - Page 20 DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK Manufactured for DSG Retail Limited under Licence from Fisher & Paykel Appliances Italy SpA. DSG Retail Limited is responsible for after sales service. IB-KNF60HX18-180124V1...
