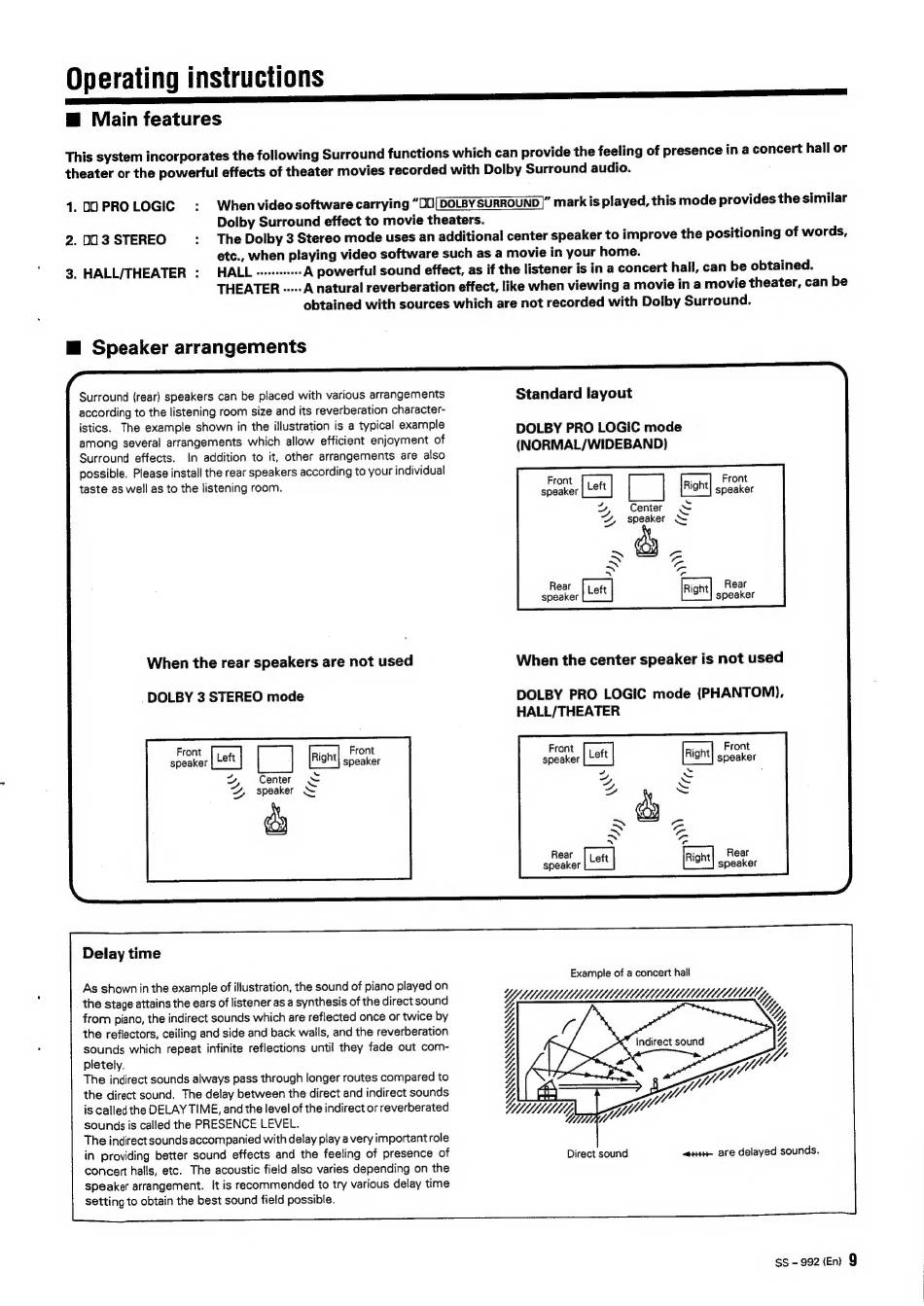

Kenwood SS-992 Instruction Manual page 9

Operating instructions
@ Main features
m@ Speaker arrangements
When the rear speakers are not used
DOLBY 3 STEREO mode
Front . Front
hers, [Lett [| Right| eaker
% Center
x speaker S
&y
Delay time
As shown in the example of illustration, the sound of piano played on
the stage attains the ears of listener as a synthesis of the direct sound
from piano, the indirect sounds which are reflected once or twice by
the reflectors, ceiling and side and back walls, and the reverberation
sounds which repeat infinite reflections until they fade out com-
pletely.
The indirect sounds always pass through longer routes compared to
the direct sound. The delay between the direct and indirect sounds
is called the DELAY TIME, and the level of the indirect or reverberated
sounds is called the PRESENCE LEVEL.
The indirect sounds accompanied with delay play a very important role
in providing better sound effects and the feeling of presence of
concert halls, etc. The acoustic field also varies depending on the
speaker arrangement. It is recommended to try various delay time
setting to obtain the best sound field possible.
Standard layout
DOLBY PRO LOGIC mode
(NORMAL/WIDEBAND)
Front : Front
speaker oz speaker
~
Center ~~
g
wy DY, S
x speaker ~
>
>» :
Rear Left | Rear
speaker Left Right speaker
DOLBY PRO LOGIC mode (PHANTOM),
HALL/THEATER
Front ; Front
speaker Right} speaker
.
Zz Z
z
a
>»
NN
>
a
speaker [Lett | Right speaker
Example of a concert hall
YL OTTER
SS
PQQ aan
XS
S$ - 992 (En) 9
