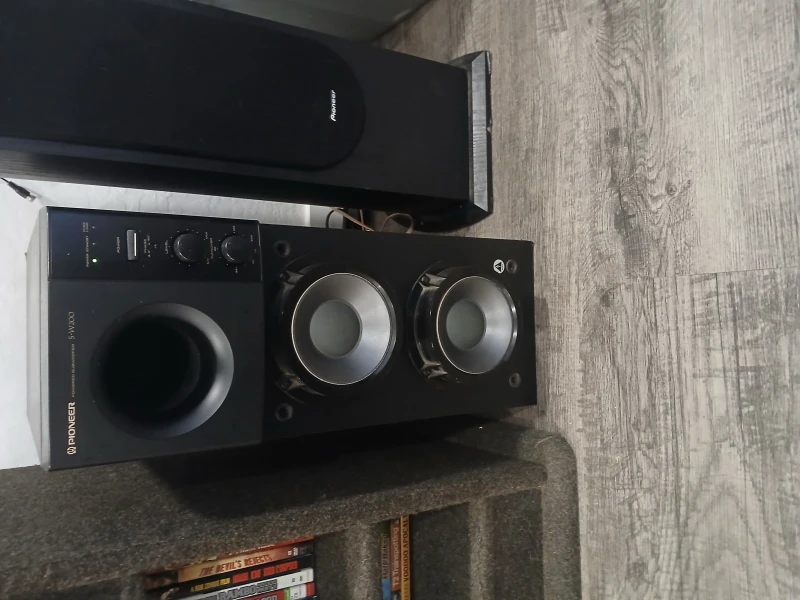

Pioneer S-W200 Service Manual

Service
Manual
POWERD SUBWOOFER
S-
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
KUC
SL
ORDER NO.
RRV 1613
| _Kuc | OAC 120
rsd {| O-_| AC110 - 115/120 - 127/220 - 230V/240V
Pe WSLe > =] AC110 - 115V/120 - 127V/220 - 230V/240V
CONTENTS
1. SAFETY INFORMATION ..............:ccessccceceeesseseeeereeeteereees 2
2: DISASSEMBLY sscsicssicssccsecdecchestheebientiecceecteatsdtaticoevetaeasists 3
3. PACKING, EXPLODED VIES AND PARTS LIST.............. 4
4. SCHEMATIC AND PCB CONNECTION DIAGRAMS ...... 7
5. PCB PARTS LIST -csccccccscci ccc ccveveveiecasccusscsscessececessearcassenans 11
6. BLOCK DIAGRAM .............-:::escseceeseseteceeeeserseneenenessenenenes 13
Ts ADJUSTMENTS oissteiciecsccssepestetists tineeciccnteecsteedetetelendseesue 14
8. IC INFORMATION ...............:::::::scceeseesceceteetersreesesessseaeees 15
9. PANEL: FACILITIES 0 ccssc.scccccee. 2s secpeciecns sep eot cnteatevingeeeiseiiee 16
10. SPECIFICATIONS. sicssisccceccccesesnicisaceves cecncocceestaveeescesctenee 17
PIONEER ELECTRONIC
CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. P.0.Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923
