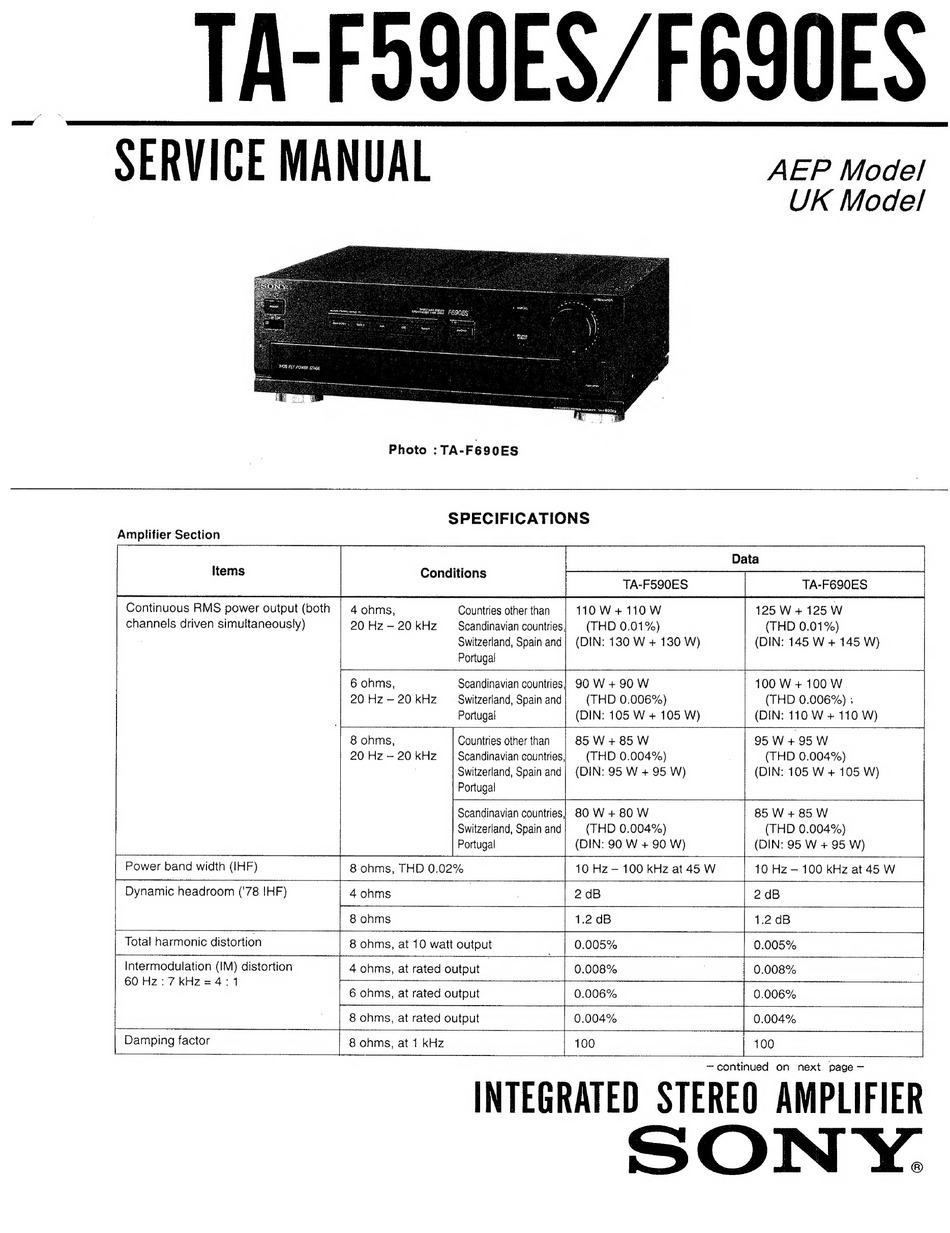

Sony TA-F590ES Service Manual

TA-FoSOES/F6S0ES
SERVICE MANUAL —
Amplifier Section
Items
Continuous RMS power output (both
channels driven simultaneously)
Photo : TA-F690ES
AEP Model!
UK Model
SPECIFICATIONS
Data
Conditions
TA-F590ES TA-F690ES
4 ohms, Countries other than 110 W +110 W 125W +125W
20 Hz-—20kHz = Scandinavian countries} (THD 0.01%) (THD 0.01%)
Switzerland, Spain and} (DIN: 130 W + 130 W) (DIN: 145 W + 145 W)
Portugal
6 ohms, Scandinavian countries} 90 W + 90 W 100 W +100 W
20 Hz-20kHz — Switzerland, Spain and (THD 0.006%) (THD 0.006%) ;
Portugal (DIN: 105 W + 105 W) (DIN: 110 W + 110 W)
8 ohms, Countries other than | 85 W +85 W 95 W + 95 W
Scandinavian countries} (THD 0.004%) (THD 0.004%) 20 Hz ~ 20 kHz
Switzerland, Spain and
Portugal
(DIN: 95 W + 95 W)
(DIN: 105 W + 105 W)
Scandinavian countries} 80 W + 80 W 85 W + 85 W
Switzerland, Spain and (THD 0.004%) (THD 0.004%)
Portugal (DIN: 90 W + 90 W) (DIN: 95 W + 95 W)
Power band width (IHF) 8 ohms, THD 0.02% 10 Hz — 100 kHz at 45 W 10 Hz — 100 kHz at 45 W
Dynamic headroom ('78 !HF)
eae .
| 2 dB
2 dB
8 ohms 1.2 dB 1.2 dB
Total harmonic distortion 8 ohms, at 10 watt output 0.005% 0.005%
Intermodulation (IM) distortion 4 ohms, at rated output | 0.008% 0.008%
60 Hz: 7 kHz=4: 1
6 ohms, at rated output 0.006%
| 8 ohms, at rated output 0.004%
| Damping factor 8 ohms, at 1 kHz 100 | 100 |
{___. 1
— continued on next page —
INTEGRATED STEREO AMPLIFIER
SONY.
