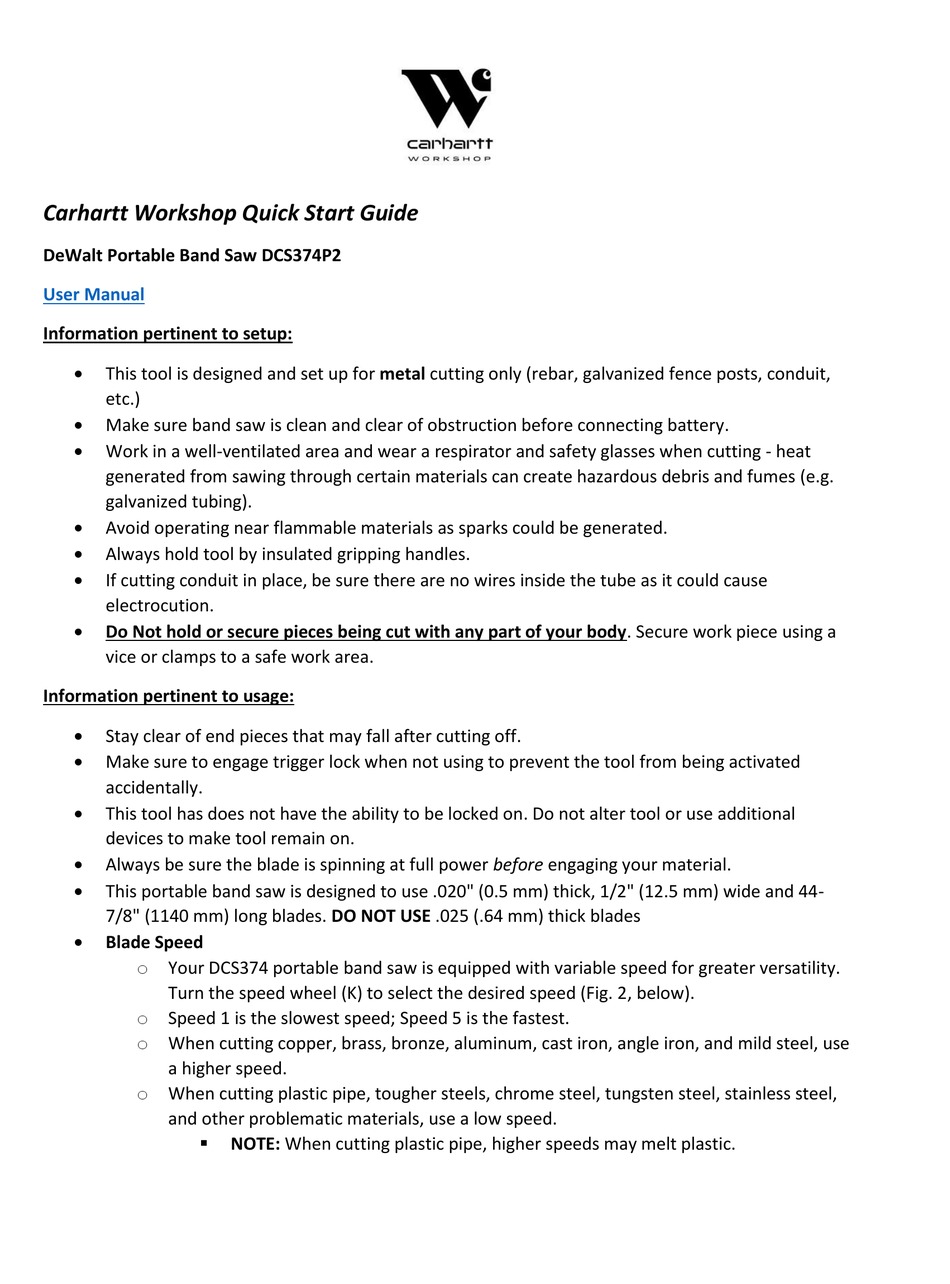

Carhartt Workshop Quick Start Guide

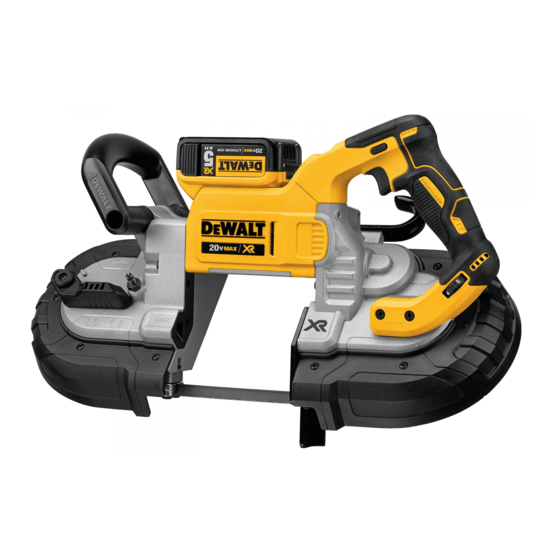

DeWalt Portable Band Saw DCS374P2
User Manual
Information pertinent to setup:

This tool is designed and set up for metal cutting only (rebar, galvanized fence posts, conduit,
etc.)

Make sure band saw is clean and clear of obstruction before connecting battery.

Work in a well-ventilated area and wear a respirator and safety glasses when cutting - heat
generated from sawing through certain materials can create hazardous debris and fumes (e.g.
galvanized tubing).

Avoid operating near flammable materials as sparks could be generated.

Always hold tool by insulated gripping handles.

If cutting conduit in place, be sure there are no wires inside the tube as it could cause
electrocution.

Do Not hold or secure pieces being cut with any part of your body. Secure work piece using a
vice or clamps to a safe work area.
Information pertinent to usage:

Stay clear of end pieces that may fall after cutting off.

Make sure to engage trigger lock when not using to prevent the tool from being activated
accidentally.

This tool has does not have the ability to be locked on. Do not alter tool or use additional
devices to make tool remain on.

Always be sure the blade is spinning at full power before engaging your material.

This portable band saw is designed to use .020" (0.5 mm) thick, 1/2" (12.5 mm) wide and 44-
7/8" (1140 mm) long blades. DO NOT USE .025 (.64 mm) thick blades

Blade Speed
o Your DCS374 portable band saw is equipped with variable speed for greater versatility.
Turn the speed wheel (K) to select the desired speed (Fig. 2, below).
o Speed 1 is the slowest speed; Speed 5 is the fastest.
o When cutting copper, brass, bronze, aluminum, cast iron, angle iron, and mild steel, use
a higher speed.
o When cutting plastic pipe, tougher steels, chrome steel, tungsten steel, stainless steel,
and other problematic materials, use a low speed.

NOTE: When cutting plastic pipe, higher speeds may melt plastic.
