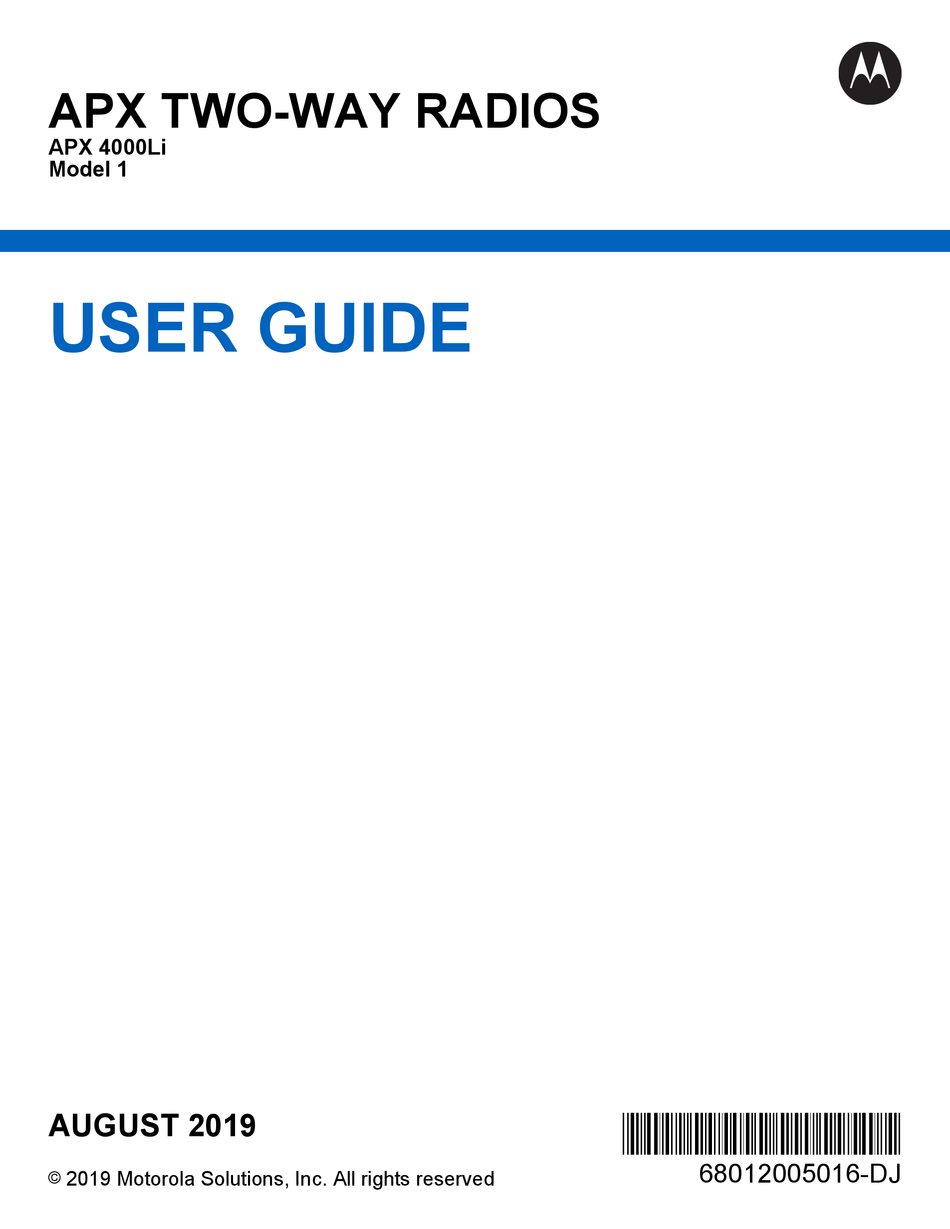

APX TWO-WAY RADIOS
APX 4000Li
Model 1
USER GUIDE
AUGUST 2019
*68012005016*
68012005016-DJ
©
2019 Motorola Solutions, Inc. All rights reserved

Advertisement

Table of Contents
loading

Related Manuals for Motorola APX 4000Li 1

Summary of Contents for Motorola APX 4000Li 1

  • Page 1 APX TWO-WAY RADIOS APX 4000Li Model 1 USER GUIDE AUGUST 2019 *68012005016* 68012005016-DJ © 2019 Motorola Solutions, Inc. All rights reserved...

  • Page 2: Table Of Contents

    68012005016-DJ Contents Contents Declaration of Conformity..................7 Important Safety Information..................8 Notice to Users (FCC and Industry Canada).............9 Software Version.......................10 Computer Software Copyrights................11 Documentation Copyrights..................12 Disclaimer........................13 Read Me First......................14 Notations Used in This Manual....................14 Radio Maintenance........................14 Radio Care........................14 Cleaning Your Radio....................
  • Page 3 68012005016-DJ Contents Radio Controls......................25 Radio Parts and Controls......................25 Programmable Features......................26 Assignable Radio Functions..................... 26 Assignable Settings or Utility Functions................27 Accessing the Preprogrammed Functions...................27 Menu Select Buttons......................28 Multi-Function Knob (MFK)....................28 Push-To-Talk (PTT) Button......................29 Status Indicators....................... 30 Status Icons..........................30 LED Indicator..........................
  • Page 4 68012005016-DJ Contents 2.1.1.2 Making a Selective Call................43 2.1.2 Making a Priority Dispatch Calls................44 2.1.3 Dynamic Regrouping (Trunking Only)..............44 2.1.3.1 Requesting a Reprogram (Trunking Only)..........44 2.1.3.2 Classification of Regrouped Radios............45 2.2 Scan Lists..........................45 2.2.1 Intelligent Priority Scan.................... 45 2.2.2 Viewing a Scan List....................45 2.2.3 Viewing and Changing the Priority Status..............46 2.3 Scan............................46...
  • Page 5 68012005016-DJ Contents 2.9 Trunking System Controls..................... 56 2.9.1 Operating in Failsoft System..................56 2.9.2 Out-of-Range Radio....................56 2.9.3 Site Trunking Feature....................56 2.9.4 Locking and Unlocking a Site...................56 2.9.5 Site Display and Search Button................57 2.9.5.1 Viewing the Current Site................57 2.9.5.2 Changing the Current Site................57 2.10 Over-the-Air Programming (POP 25, ASTRO 25, and ASTRO Conventional) ....57 2.10.1 Responding to the Notification of Upgrade............
  • Page 6 4.4 Technical Parameters for Interfacing External Data Sources..........70 Chapter 5: Glossary....................71 Chapter 6: Limited Warranty..................76 6.1 MOTOROLA SOLUTIONS COMMUNICATION PRODUCTS..........76 6.2 I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:........... 76 6.3 II. GENERAL PROVISIONS:....................77 6.4 III. STATE LAW RIGHTS:......................77 6.5 IV.

  • Page 7: Declaration Of Conformity

    This declaration is applicable to your radio only if your radio is labeled with the following FCC logo. Per FCC CFR 47 Part 2 Section 2.1077(a) Responsible Party Name: Motorola Solutions, Inc. Address: 1303 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A. Phone Number: 1-800-927-2744 Hereby declares that APX 4000Li conforms to FCC Part 15, subpart B, section 15.107(a), 15.107(d),...

  • Page 8: Important Safety Information

    Before using the radio, read the RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with applicable standards and Regulations. For a list of Motorola Solutions-approved antennas, batteries, and other accessories, visit the following website: http://www.motorolasolutions.com Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.

  • Page 9: Notice To Users (Fcc And Industry Canada)

    • This device must accept any interference received, including interference that may cause undesired operation. • Changes or modifications made to this device, not expressly approved by Motorola Solutions, could void the authority of the user to operate this equipment.

  • Page 10: Software Version

    68012005016-DJ Software Version Software Version All the features described in the following sections are supported by the software version R20.01.00 or later. Check with your dealer or system administrator for more details of all the supported features.

  • Page 11: Computer Software Copyrights

    The Motorola Solutions products described in this manual may include copyrighted Motorola Solutions computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola Solutions certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program.

  • Page 12: Documentation Copyrights

    No duplication or distribution of this document or any portion thereof shall take place without the express written permission of Motorola Solutions. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Motorola Solutions.

  • Page 13: Disclaimer

    The information in this document is carefully examined, and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies. Furthermore, Motorola Solutions reserves the right to make changes to any products herein to improve readability, function, or design. Motorola Solutions does not assume any liability arising out of the applications or use of any product or circuit described herein;...

  • Page 14: Read Me First

    68012005016-DJ Read Me First Read Me First This User Guide covers the basic operation of the radio. However, your dealer or system administrator may have customized your radio for your specific needs. Check with your dealer or system administrator for more information. If you attempt to use features which are mutually exclusive, one or more of the following occurs: •...

  • Page 15: Cleaning Your Radio

    68012005016-DJ Read Me First CAUTION: • Your radio casing has a vent port that allows for pressure equalization in the radio. Never poke this vent with any objects, such as needles, tweezers, or screwdrivers. • Do not submerge the radio as this results in damage to the radio. •...

  • Page 16: Radio Service And Repair

    Radio Service and Repair Proper repair and maintenance procedures ensures efficient operation and long life for this product. A Motorola Solutions maintenance agreement will provide expert service to keep this and all other communication equipment in perfect operating condition. A nationwide service organization is provided by Motorola Solutions to support maintenance services.

  • Page 17: Battery Recycling And Disposal

    10% or less (at 10%, the gauge begins blinking) Battery Recycling and Disposal In the U.S. and Canada, Motorola Solutions participates in the nationwide Call2Recycle program for battery collection and recycling. Many retailers and dealers participate in this program. For the location of the drop-off facility closest to you, go to http://www.call2recycle.org/...

  • Page 18: Securenet

    P25 Digital Vehicular Repeater System (DVRS) Motorola Solutions offers an MSI Certified APX compatible, third Party, P25 Digital Vehicular Repeater System (DVRS) that provides low-cost portable radio coverage in areas where only mobile radio coverage is available and portable radio coverage is either intermittent or non-existent.
  • Page 19 68012005016-DJ Read Me First • Which buttons have been programmed to access other features? • What optional accessories may suit your needs? NOTICE: Specifications may vary for different radio models. Check with your dealer or system administrator for more information.

  • Page 20: Preparing Your Radio For Use

    NOTICE: When charging a battery attached to a radio, turn the radio off to ensure a full charge. Procedure: To charge the battery, place the battery (with or without the radio) in a Motorola Solutions- approved charger. The LED on the charger indicates the charging progress; see the Charger User Guide.

  • Page 21: Attaching The Antenna

    68012005016-DJ Preparing Your Radio for Use 2 To remove the battery, turn the radio off. Lift the latch which is at the bottom of the radio, then slide the battery out from the radio. Attaching the Antenna Prerequisites: Ensure the radio is turned off before attaching the antenna. Procedure: 1 Set the antenna in the receptacle.

  • Page 22: Removing And Attaching The Accessory Connector Cover

    68012005016-DJ Preparing Your Radio for Use 3 To remove the antenna, turn the antenna counterclockwise. NOTICE: When removing the antenna, ensure that the radio is turned off. Removing and Attaching the Accessory Connector Cover When and where to use: The accessory connector is on the antenna side of the radio. It is used to connect accessories to the radio.

  • Page 23: Turning On The Radio

    68012005016-DJ Preparing Your Radio for Use 2 To remove the clip, use a flatbladed object to press the belt clip tab away from the radio. Then, slide the clip upward and away from the radio. Turning On the Radio Procedure: 1 Press the Multi-Function Knob until the radio display lights on, then release the knob.

  • Page 24: Adjusting The Volume

    68012005016-DJ Preparing Your Radio for Use • If the power-up test is unsuccessful, you see Error XX/YY (XX/YY is an alphanumeric code). NOTICE: If the radio fails to power-up after repeating a few times, record the Error XX/YY code and contact your dealer. Codeplug Alias feature is enabled through Customer Programming Software (CPS) configuration to display the codeplug alias as a temporary text during power on.

  • Page 25: Radio Controls

    68012005016-DJ Radio Controls Radio Controls This chapter explains the buttons and functions to control the radio. Radio Parts and Controls Multi-Function Knob (MFK) Top Lightbar Microphone Top Side (Select) Button Push-to-Talk (PTT) Button Side Button 1 Side Button 2 These radio controls/buttons are programmable.

  • Page 26: Programmable Features

    68012005016-DJ Radio Controls Menu Select Buttons Main Display Speaker Top (Orange) Button Antenna Accessory Connector Battery Latch (at the bottom) Battery Microphone Programmable Features Any reference in this manual to controls that are preprogrammed means that a qualified radio technician must use the radio programming software to assign a feature to a control. Your dealer can program the programmable buttons as shortcuts to radio functions or preset channels/ groups depending on the duration of a button press.

  • Page 27: Assignable Settings Or Utility Functions

    68012005016-DJ Radio Controls Repeater Access Button (RAB) (Conventional Only) Allows you to manually send a repeater access codeword. Reprogram Request (Trunking Only) Notifies the dispatcher that a new dynamic regrouping assignment is needed. Request-To-Talk (Conventional Only) Notifies the dispatcher that you want to send a voice call. Scan Toggles scan on or off.

  • Page 28: Menu Select Buttons

    68012005016-DJ Radio Controls Softkeys Menu Select Buttons Menu Select Buttons NOTICE: Check with your dealer or system administrator for the list of features activated in your radio. Use the Menu Select button to access the menu entry of your radio feature. Your radio may be preprogrammed differently from the following example, but the steps for selecting a channel may appear as shown below: Press the Menu Select button directly below Chan .

  • Page 29: Push-To-Talk (Ptt) Button

    68012005016-DJ Radio Controls Push-To-Talk (PTT) Button The PTT button on the side of the radio serves two basic purposes: • While a call is in progress, the PTT button allows the radio to transmit to other radios in the call. Press and hold down PTT button to talk.

  • Page 30: Status Indicators

    68012005016-DJ Status Indicators Status Indicators This section explains the status indicators of the radio. Status Icons The 160 x 90 pixel front liquid crystal display (LCD) of your radio shows radio status, text entries, and menu entries. The top two display rows contain color icons that indicate radio operating conditions. Receiving Radio is receiving a call or data.

  • Page 31: Led Indicator

    68012005016-DJ Status Indicators Scan Radio is scanning a scan list. Priority Channel Scan Blinking dot Radio detects activity on channel designated as Priority-One. Steady dot Radio detects activity on channel designated as Priority-Two. Vote Scan Enabled The vote scan feature is enabled. Secure Operation Secure operation.
  • Page 32 68012005016-DJ Status Indicators Solid red Radio is transmitting. Blinking red Radio is transmitting at low battery condition. Double blinking red Radio is in Emergency Mode. Rapidly blinking red Radio has failed the self test upon powering up or encountered a fatal error. Solid yellow (Conventional Only) Channel is busy.

  • Page 33: Top Lightbar Indicator

    68012005016-DJ Status Indicators Top Lightbar Indicator The Top Lightbar indicates the secondary function of MFK and also the status of Intelligent Lighting. The lightbar blinks green when the MFK is using the secondary feature. See Multi-Function Knob (MFK) on page 28 to understand the functionality of MFK.

  • Page 34: Alert Tones

    68012005016-DJ Status Indicators Alert Tones Your radio uses alert tones to inform you of the condition of your radio. The following table lists these tones and when they occur. You Hear Tone Name Heard Short, Low- Radio Self Test Fail When radio fails its power-up self test.

  • Page 35: Phone Call Displays And Alerts

    68012005016-DJ Status Indicators You Hear Tone Name Heard Received Individual When Call Alert or Private Call is received. Call Site Trunking When a SmartZone trunking system fails. Short, High- Low-Battery Chirp When battery is below preset threshold value. Pitched Tone (Chirp) Two High- GPS Fails...

  • Page 36: Hazloc Battery Type Detection

    68012005016-DJ Status Indicators For hard key zeroize, key loading, and scan list programming, the backlight follows the home channel backlight color. HAZLOC Battery Type Detection This feature alerts the user when there is a HAZLOC certification mismatch between the radio and the battery.

  • Page 37: Chapter 1: General Radio Operation

    68012005016-DJ General Radio Operation Chapter 1 General Radio Operation This chapter explains the general radio operations of your radio. Selecting a Zone Prerequisites: Your radio must be preprogrammed for you to use this feature. When and where to use: A zone is a group of channels. Do one of the following to select a radio channel.

  • Page 38: Mode Select Feature

    68012005016-DJ Chapter 1: General Radio Operation Mode Select Feature Mode Select allows a long press to save the current zone and channel of your radio to a programmable button, or a softkey; then once programmed, the short-press of that button or softkey changes the transmission to the saved zone and channel.

  • Page 39: Receiving And Responding To A Talkgroup Call

    68012005016-DJ Chapter 1: General Radio Operation • In trunking mode, there is no LED indication when the radio receives a transmission. • If the radio is receiving a secure transmission, the LED blinks yellow. 1.4.1 Receiving and Responding to a Talkgroup Call Prerequisites: To receive a call from a group of users, your radio must be configured as part of that talkgroup.

  • Page 40: Receiving And Responding To A Telephone Call (Trunking Only)

    68012005016-DJ Chapter 1: General Radio Operation 1.4.3 Receiving and Responding to a Telephone Call (Trunking Only) When and where to use: This feature allows you to receive calls similar to standard phone calls from a landline phone. NOTICE: With the inactivity timer enabled (optional), if there is no response to the call after the timer expires, your radio exits the call with Menu Inactive Exit tone.

  • Page 41: Switching Between Repeater Or Direct Operation Button

    68012005016-DJ Chapter 1: General Radio Operation Procedure: 1 Press the preprogrammed Quick Access (One-Touch) Private Call button to dial the preprogrammed ID and initiate the Enhanced Private Call. The display shows the preprogrammed ID and a ringing tone sounds. 2 Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from your mouth. When you are connected, the display shows the ID of the target radio and the ringing tone stops.

  • Page 42: Monitoring Conventional Mode

    68012005016-DJ Chapter 1: General Radio Operation b. Adjust the Volume Control Knob if necessary. c. Press and hold the PTT button to transmit. The LED lights up solid red. d. Release the PTT button to receive (listen). The Carrier Squelch indicator appears on the display when you monitor a channel using the preprogrammed Monitor button.

  • Page 43: Chapter 2: Advanced Features

    68012005016-DJ Advanced Features Chapter 2 Advanced Features This chapter explains the operations of the features available in your radio. Advanced Call Features This chapter explains the operations of the call features available in your radio. 2.1.1 Selective Call (ASTRO Conventional Only) 2.1.1.1 Receiving a Selective Call When and where to use: When you receive a Selective Call, the radio indicates one of the followings:...

  • Page 44: Making A Priority Dispatch Calls

    68012005016-DJ Chapter 2: Advanced Features 2.1.2 Making a Priority Dispatch Calls If a talkgroup is congested, the Priority Dispatch feature allows you to call the dispatcher on a different talkgroup. This talkgroup is called the Priority Talkgroup. Each trunking talkgroup can have its own assigned Priority Talkgroup.Priority Dispatch is not available during Emergency operations.

  • Page 45: Classification Of Regrouped Radios

    68012005016-DJ Chapter 2: Advanced Features If the dispatcher does not acknowledge the reprogram request within six seconds, you hear a low- pitched alert tone and the display shows No acknowledge. Try again or press to cancel and return to the Home screen. 2.1.3.2 Classification of Regrouped Radios The dispatcher can classify regrouped radios into Select Enabled or Select Disabled categories.

  • Page 46: Viewing And Changing The Priority Status

    68012005016-DJ Chapter 2: Advanced Features 2.2.3 Viewing and Changing the Priority Status Procedure: Perform one of the following actions: • Press the Menu Select button directly below Sel one or more times to change the priority status of the current displayed channel. •...

  • Page 47: Deleting A Nuisance Channel

    68012005016-DJ Chapter 2: Advanced Features This change remains in effect until scan is turned off. Scan then reverts to the default setting. Procedure: • Making a Dynamic Priority Change using the preprogrammed Dynamic Priority button: a. When the radio locks onto the channel designated as the new Priority-Two channel, press the preprogrammed Dynamic Priority button.

  • Page 48: Receiving A Call Alert Page

    68012005016-DJ Chapter 2: Advanced Features 2.4.1 Receiving a Call Alert Page When and where to use: When you receive a Call Alert page, you hear four repeating alert tones and the LED blinks green. The call received icons blinks and the display shows Page received. Procedure: Press any button to clear the Call Alert page.

  • Page 49: Exiting Emergency

    68012005016-DJ Chapter 2: Advanced Features 2.5.1 Exiting Emergency The dispatch console that supports this feature can be programmed to clear the emergency state of the radio. Check with your dealer or system administrator for more information on dispatch console supporting this feature. Procedure: To exit emergency, press and hold the preprogrammed Emergency button for about a second.

  • Page 50: Sending An Emergency Call (Trunking Only)

    68012005016-DJ Chapter 2: Advanced Features • The display shows Emergency and the current zone or channel. You hear a short medium- pitched tone and the LED blinks red momentarily. • The radio sounds a short low-pitched tone to indicate that the selected channel does not support emergency and rejects to launch emergency mode.

  • Page 51: Sending An Emergency Alarm With Emergency Call

    68012005016-DJ Chapter 2: Advanced Features • A tone sounds to indicate the selected channel does not support emergency and rejects to launch emergency mode. 2 Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from your mouth. 3 The microphone remains active for the hot mic time specified in the radio's codeplug programming.

  • Page 52: Sending A Silent Emergency Alarm

    68012005016-DJ Chapter 2: Advanced Features The radio exits Emergency Alarm and enters the Emergency Call state when one of the following scenarios occur: • You receive the dispatcher acknowledgment. The display shows Ack received. • You receive no acknowledgment. The display shows No acknowledge. If unsuccessful, a tone sounds to indicate the selected channel does not support emergency and rejects to launch emergency mode.

  • Page 53: Automatic Registration Service (Ars)

    68012005016-DJ Chapter 2: Advanced Features Automatic Registration Service (ARS) This feature provides an automated data application registration for the radio. When you turn on the radio, the device automatically registers with the server. Data applications within the fixed network determine the presence of a device on the system and send data to the device. The ARS for the radio consists of two modes: •...

  • Page 54: Managing Encryption

    68012005016-DJ Chapter 2: Advanced Features • The radio does not transmit until you set the Secure/ Clear switch to the secure position. • You can request to configure the radio to ignore the clear voice or insecured transmission when the radio is in secured transmission. Check with your agent for details. •...

  • Page 55: Erasing Encryption Keys

    68012005016-DJ Chapter 2: Advanced Features 2.7.3.3 Erasing Encryption Keys Procedure: • Erasing the single key in radios with the single-key option and erasing all keys in radios with the multikey option by using the preprogrammed Top Side (Select) button and Top (Orange) button: a.

  • Page 56: Trunking System Controls

    68012005016-DJ Chapter 2: Advanced Features Trunking System Controls This chapters explains the trunking system control features in your radio. 2.9.1 Operating in Failsoft System When and where to use: The failsoft system ensures continuous radio communication during a trunked system failure. If a trunking system fails completely, the radio goes into failsoft operation and automatically switches to its failsoft channel.

  • Page 57: Site Display And Search Button

    68012005016-DJ Chapter 2: Advanced Features • To lock the site, press the Menu Select button directly below Lock. The display shows Site locked. • To unlock the site, press the Menu Select button directly below Unlk. The display shows Site unlocked. The radio saves the new site lock state and returns to the Home screen.

  • Page 58: Responding To The Notification Of Upgrade

    68012005016-DJ Chapter 2: Advanced Features 2.10.1 Responding to the Notification of Upgrade Procedure: 1 The display shows Upgrade? and two short, medium- pitched tones sound every 30 seconds until the user makes a choice of either accepting, delaying, or rejecting the request. 2 Perform one of the following actions: •...

  • Page 59: Site Selectable Alerts (Astro 25)

    68012005016-DJ Chapter 2: Advanced Features 2.12 Site Selectable Alerts (ASTRO 25) A Site Selectable Alert (SSA) is an Intelligent Lighting indicator together with audio alert sent to radios at a site or a few sites to notify the users when there is a special situation that they need to be aware Your radio supports up to 250 site aliases.

  • Page 60: Enabling And Disabling The Radio Alias

    68012005016-DJ Chapter 2: Advanced Features 2.13.2 Enabling and Disabling the Radio Alias When and where to use: This feature allows you to display or hide the radio alias (name). Procedure: Press the Menu Select button directly below MyID. The display shows momentary Radio ID off, and the radio alias disappears from the Home screen or the display shows momentary Radio ID on, and the radio alias appears on the Home screen.

  • Page 61: Turning Voice Mute On Or Off

    68012005016-DJ Chapter 2: Advanced Features 2.13.6 Turning Voice Mute On or Off When and where to use: You can enable and disable voice transmission, if needed. Procedure: • Turning Voice Mute off or on using the preprogrammed Voice Mute button: a.

  • Page 62: Digital Options

    68012005016-DJ Chapter 2: Advanced Features Option Result Tone Private Line or Digital Private-Line The radio responds only to your messages. 2.13.8.2 Digital Options One or more of the following options may be preprogrammed in your radio. Check with your dealer or system administrator for more information.

  • Page 63: Smart Ptt (Conventional Only)

    68012005016-DJ Chapter 2: Advanced Features 2.13.11 Smart PTT (Conventional Only) Smart PTT is a per-personality, programmable feature used to keep radio users from talking over other radio conversations. When Smart PTT is enabled in your radio, you cannot transmit on an active channel.

  • Page 64: Enabling Transmit Inhibition

    68012005016-DJ Chapter 2: Advanced Features NOTICE: Acknowledgment of any messages required from the radio is not transmitted if the Transmit Inhibition is enabled. 2.13.13.1 Enabling Transmit Inhibition Procedure: 1 Press the Transmit Inhibit programmable button. NOTICE: If the user has disabled TX Inhibit using the menu and then moves the switch to the position where TX Inhibit is enabled, the new value overwrites the menu value.
  • Page 65 68012005016-DJ Chapter 2: Advanced Features a. Short press the preprogrammed Record Playback button to playback the saved calls. b. Short press the preprogrammed Record Playback button again to skip to the next saved call. If there is only a single saved call, the playback skips to the end of the call. Radio auto playback the most recent incoming call followed by saved calls in chronological order.

  • Page 66: Chapter 3: Accessories

    68012005016-DJ Chapter 3: Accessories Chapter 3 Accessories Not all accessories are FCC certified to operate with all radio models and/or bandsplits. Refer to the radio price pages for a list of FCC certified accessories or contact your sales representative for accessory compatibility.

  • Page 67: Chapter 4: Maritime Radio Use In The Vhf Frequency Range

    68012005016-DJ Maritime Radio Use in the VHF Frequency Range Chapter 4 Maritime Radio Use in the VHF Frequency Range Special Channel Assignments 4.1.1 Emergency Channel If you are in imminent and grave danger at sea and require emergency assistance, use VHF Channel 16 to send a distress call to nearby vessels and the United States Coast Guard.

  • Page 68: Operating Frequency Requirements

    68012005016-DJ Chapter 4: Maritime Radio Use in the VHF Frequency Range Operating Frequency Requirements A radio designated for shipboard use must comply with Federal Communications Commission Rule Part 80 as follows: • on ships subject to Part II of Title III of the Communications Act, the radio must be capable of operating on the 156.800 MHz frequency.
  • Page 69 68012005016-DJ Chapter 4: Maritime Radio Use in the VHF Frequency Range 157.100 161.700 157.150 161.750 157.200 161.800 157.250 161.850 157.300 161.900 157.350 161.950 157.400 162.000 156.025 160.625 156.075 160.675 156.125 160.725 156.175 160.775 156.225 160.825 156.275 160.875 156.325 160.925 67** 156.375 156.375 156.425...

  • Page 70: Declaration Of Compliance For The Use Of Distress And Safety Frequencies

    68012005016-DJ Chapter 4: Maritime Radio Use in the VHF Frequency Range NOTICE: * Simplex channels 3, 21, 23, 61, 64, 81, 82, and 83 cannot be lawfully used by the general public in US waters. ** Low power (1 W) only. *** Guard band.

  • Page 71: Chapter 5: Glossary

    ASTRO 25 Motorola Solutions standard for wireless digital trunked communications. ASTRO conventional Motorola Solutions standard for wireless analog or digital conventional communications. Autoscan A feature that allows the radio to automatically scan the members of a scan list. Call Alert Privately paging an individual by sending an audible tone.
  • Page 72 68012005016-DJ Chapter 5: Glossary In a trunking system, one of the channels that is used to provide a continuous, two-way/data- communications path between the central controller and all radios on the system. Conventional Typically refers to radio-to-radio communications, sometimes through a repeater. Frequencies are shared with other users without the aid of a central controller to assign communications channels.
  • Page 73 Light Emitting Diode (LED) An electronic device that lights up when electricity is passed through it. Motorola Solutions Digital Communications. Menu Entry A software-activated feature shown at the bottom of the display. Selection of a feature is controlled by the programming of the buttons on the side of the radio.
  • Page 74 68012005016-DJ Chapter 5: Glossary Preprogrammed A software feature that has been activated by a qualified radio technician. Private (Conversation) Call A feature that lets you have a private conversation with another radio user in the group. Private Line (PL) A sub-audible tone that is transmitted such that only receivers decoding the tone receives it. Programmable A radio control that can have a radio feature assigned to it.
  • Page 75 68012005016-DJ Chapter 5: Glossary Trunking The automatic sharing of communications paths between a large number of users. Allows users to share a smaller number of frequencies because a repeater or communications path is assigned to a talkgroup for the duration of a conversation. Trunking Priority Monitor scan list A scan list that includes talkgroups that are all from the same trunking system.

  • Page 76: Chapter 6: Limited Warranty

    Product Accessories One (1) Year MOTOROLA SOLUTIONS, at its option, will at no charge either repair the Product (with new or reconditioned parts), replace it (with a new or reconditioned Product), or refund the purchase price of the Product during the warranty period provided it is returned in accordance with the terms of this warranty.

  • Page 77: Ii. General Provisions

    Repairs will be made only at the designated MOTOROLA SOLUTIONS repair depot. Local services are not included. MOTOROLA SOLUTIONS will pay for outbound shipping via MOTOROLA SOLUTIONS'S normal shipping methods.

  • Page 78: Vi. Patent And Software Provisions

    1 that MOTOROLA SOLUTIONS will be notified promptly in writing by such purchaser of any notice of such claim,...

  • Page 79: Vii. Governing Law

    This Warranty is governed by the laws of the State of Illinois, U.S.A. VIII. For Australia Only This warranty is given by Motorola Solutions Australia Pty Limited (ABN 16 004 742 312) of Tally Ho Business Park, 10 Wesley Court. Burwood East, Victoria.
