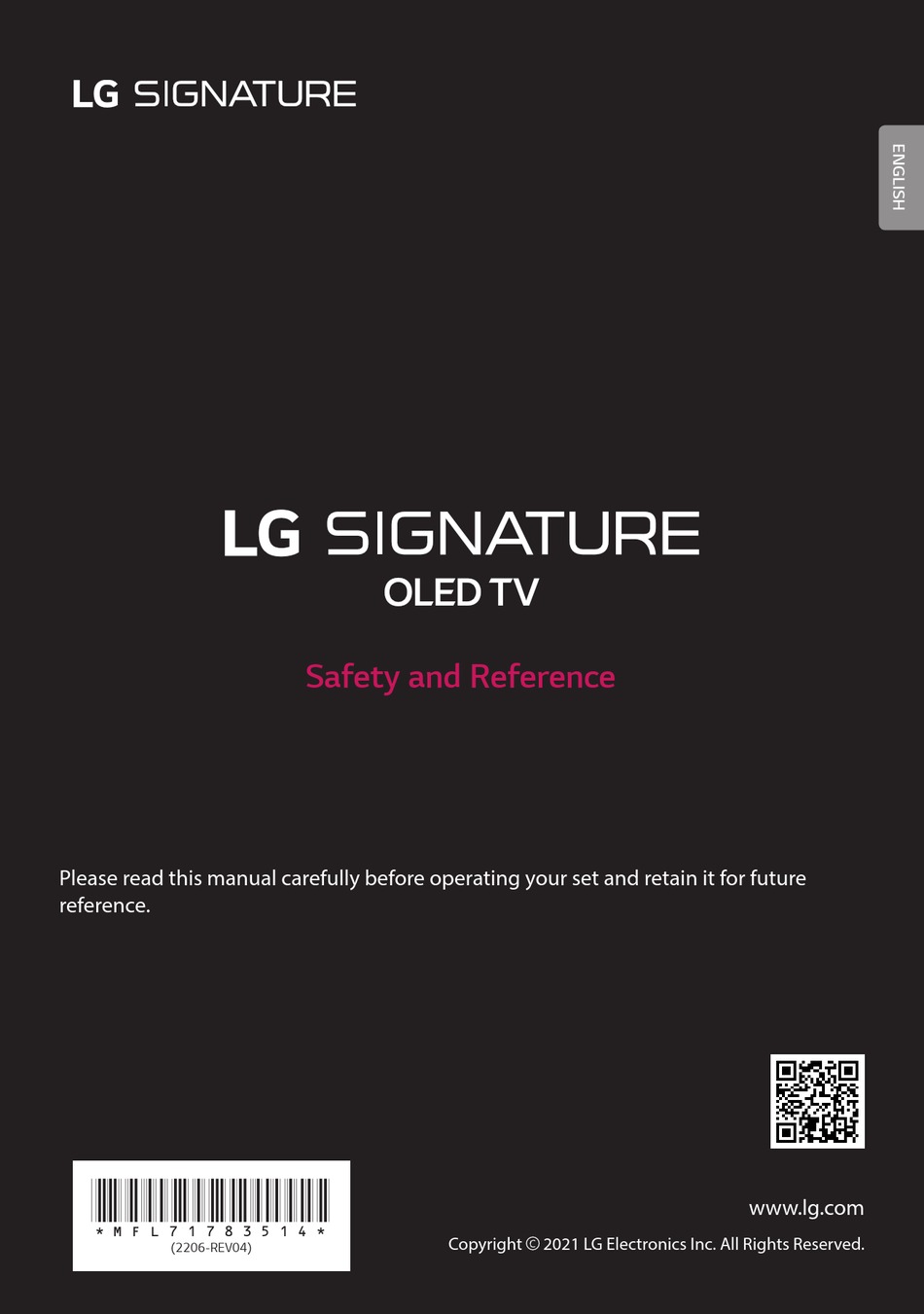

- Page 1 Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. *MFL71783514* www.lg.com Copyright 2021 LG Electronics Inc. All Rights Reserved. (2206-REV04)
-
Page 2: Before Reading This Manual
Title Warning! Safety Instructions Connections Preparing Troubleshooting - Lifting and moving the TV Specifications - Installation - Antenna/Cable - Open Source Software Notice Information - Satellite dish - Licenses Starting TV Precautions for Protecting the OLED TV - Turning on the TV Screen - Registering Magic Remote Control... - Page 3 Warning! Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 4 • Use only an authorized attachments / accessories approved storm. You may be electrocuted. by LG Electronics. Otherwise, this may result in fire, electric • Make sure the power cord is connected securely to the TV and shock, malfunction, or product damage.
- Page 5 • Batteries - Store the accessories (battery, etc.) in a safe location out of the reach of children. - Do not short circuit, disassemble, or allow the batteries to overheat. Do not dispose of batteries in a fire. Batteries should not be exposed to excessive heat. - Caution : Risk of fire or explosion if the battery is replaced by an incorrect type.
-
Page 6: Lifting And Moving The Tv
Preparing Lifting and moving the TV Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. • It is recommended to move the TV in the box or packing material that the TV originally came in. •... -
Page 7: Installation
Installation • It is recommended to install the product on the floor. 10 cm ≦ 2 cm ≦ • Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.) •... -
Page 8: Satellite Dish
Antenna/Cable Connect the TV to a wall antenna socket with an RF cable (75 Ω). • Use a signal splitter to use more than 2 TVs. • If the image quality is poor, install a signal amplifier properly to improve the image quality. •... -
Page 9: Turning On The Tv
Starting TV Turning on the TV You can simply operate the TV functions, using the button. Using button Power On (Press) Power Off (Press and hold) 1) All running apps will close, and any recording in progress will stop. (Depending on Volume Control country) Programmes Control... -
Page 10: Adjusting The Menu
Adjusting the menu When the TV is turned on, press the button one time. You can adjust the Menu items using the button. Turns the power off. Accesses the settings menu. Clears on-screen displays and returns to TV viewing. Changes the input source. •... -
Page 11: Registering Magic Remote Control
NFC is technology that uses Near Field Communication, allowing you to conveniently send and receive information without separate settings. By bringing a smart device near the NFC-enabled remote control, you can install the LG ThinQ app and connect the device to the TV. -
Page 12: Using Remote Control
Using Remote Control Using Magic Remote Control (Depending on model) The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. Microphone Power Turns the TV on or off. STB Power You can turn your set-top box on or off by adding the set-top box to the Number buttons Enters numbers. - Page 13 Microphone Back Returns to the previous level. Wheel (OK) Press the centre of button to select a menu. You can change programmes by Back Clears on-screen displays and using button. returns to last input viewing. - Do not move the wheel on the remote Q.
- Page 14 Connections Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. • The product label is attached under the external device connection terminal cover. •...
-
Page 15: External Devices
IR Blaster Control the set-top box (cable/satellite/IP/OTT), Blu-ray/DVD player, soundbar, game consoles, etc., using the IR Blaster. • Connect the IR Blaster cable to the TV’s IR Blaster port. Note • Place both ends (one or two) of the IR Blaster in front of the external device as shown in the picture below. •... -
Page 16: Troubleshooting
Troubleshooting • Check the remote control sensor on the product and try again. Cannot control the TV with the remote • Check if there is any obstacle between the product and the remote control. control. • Check if the batteries are still working and properly installed ( to , to ). -
Page 17: Specifications
Shelf Life Time : 7 Years LG is committed to providing all spare parts of this device during the shelf life time. • Certain 8K input/decoding standards may not be supported. An additional device may be necessary to support certain 8K standards. Upscaled... - Page 18 Wireless module(LGSBWAX12)Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac/ax) Frequency range Output Power (Max.) 2,400 to 2,483.5 MHz 17 dBm 5,150 to 5,725 MHz 15 dBm 5,725 to 5,850 MHz 13 dBm Bluetooth Frequency range Output Power (Max.) 2,400 to 2,483.5 MHz 9 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
-
Page 19: Open Source Software Notice Information
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com . - Page 20 Precautions for Protecting the OLED TV Screen Unlike regular LED/LCDs, OLED TVs produce images that emit light for each pixel, achieving a perfect black colour and delivering clear images without blurring. Due to the nature of the organic materials used to achieve high-resolution image quality, OLED displays generally experience image retention on the screen, which can be a persistent phenomenon.
- Page 21 Recommendations for Minimising Image Retention → [Picture] → [Select Mode] and set the mode When watching the TV for a long time, press the button on the remote control, go to to [Eco] / [APS] (Depending on country), go to [Advanced Settings] → [Brightness] and set [OLED Pixel Brightness] to a lower level. In addition, →...
- Page 22 Regulatory WARNING! (STABILITY HAZARD) A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: - ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set. - ALWAYS use furniture that can safely support the television set.
- Page 23 (Only Jordan) WEEE 0197 Disposal of your appliance The symbol indicating separate collection for electrical and electronic equipment consists of the crossed-out wheeled bin. 0197 ...
- Page 24 Record 080 100 54 54 in Morocco them below in case you ever need service. 19960 in Egypt 021 36 54 54 in Algeria Other countries, Please contact our Model local dealer or log into http://www.lg.com Serial No.
