3-990-784-14 (1)

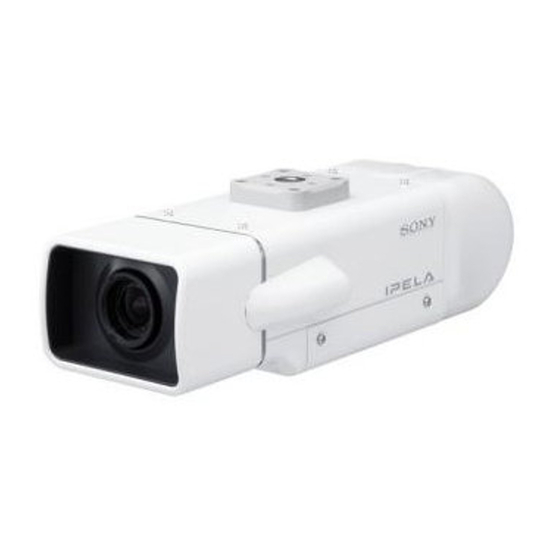

Network Camera

User's Guide
Software Version 2.2
SNC-CS50N/CS50P
© 2005 Sony Corporation

Advertisement

Table of Contents
loading

Related Manuals for Sony IPELA SNC-CS50N

Summary of Contents for Sony IPELA SNC-CS50N

  • Page 1: Network Camera

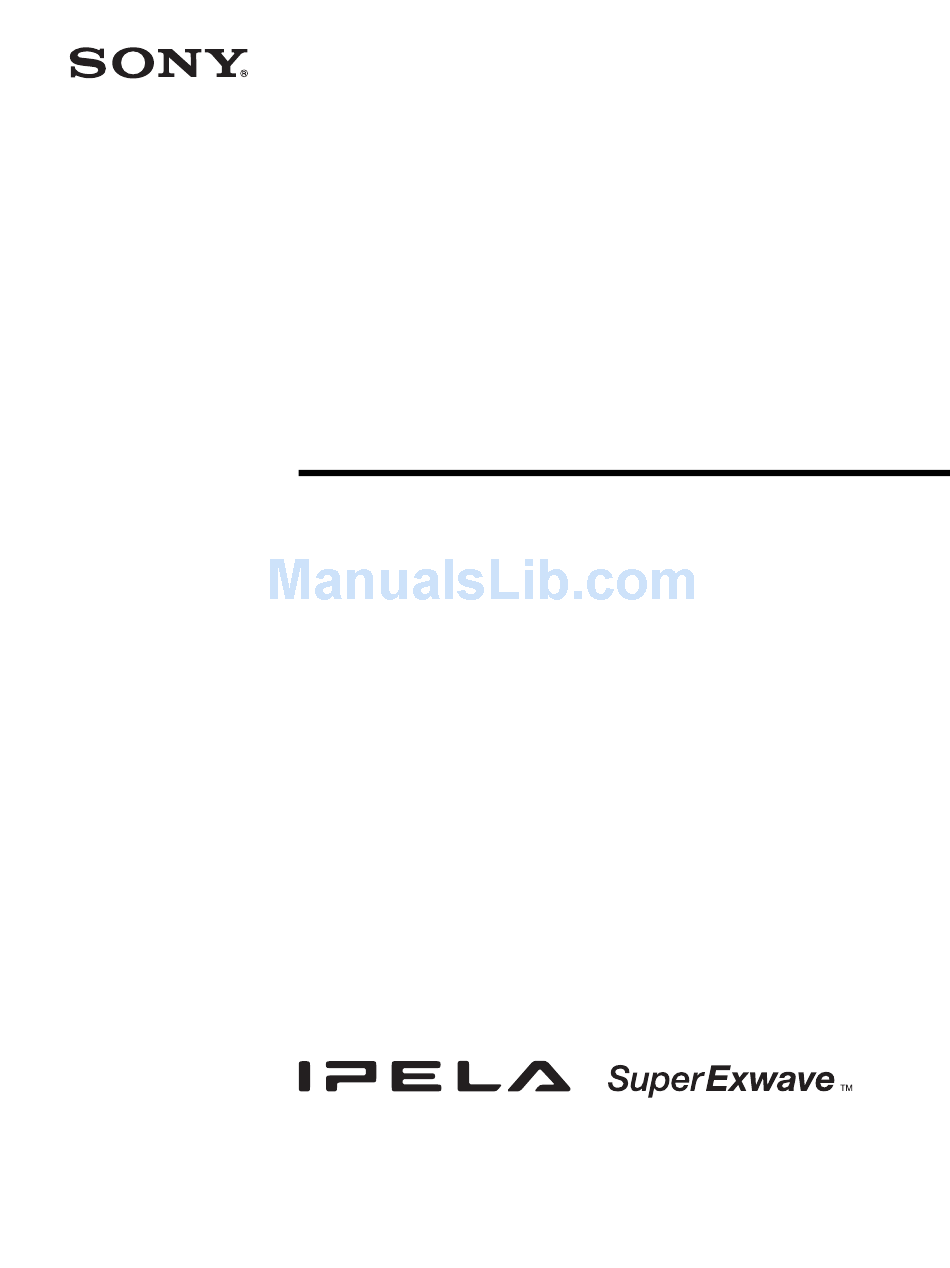

    3-990-784-14 (1) Network Camera User’s Guide Software Version 2.2 SNC-CS50N/CS50P © 2005 Sony Corporation...

  • Page 2: Table Of Contents

    Table of Contents Overview Features ... 4 Precautions ... 5 How to Use This User’s Guide ... 6 System Requirements ... 6 Preparation Connecting to a Computer or a Network ... 7 Connecting the Camera to a Computer ... 7 Connecting the Camera to a Local Network ...
  • Page 3 Downloading Images from the Camera — FTP server Menu ... 62 Setting the Alarm Output — Alarm output Menu ... 63 Alarm out 1, 2 Tab ... 63 Outputting Audio Linked to Alarm Detection — Voice alert Menu ... 64 Voice alert 1, 2, 3 Tab ...

  • Page 4: Overview

    • Date/time can be superimposed on the image. Features NOTICE TO USERS © 2005 Sony Corporation. All rights reserved. This manual or the software described herein, in whole or in part, may not be reproduced, translated or reduced to any machine readable form without prior written approval from Sony Corporation.

  • Page 5: Precautions

    THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER. • If you lose data by using this unit, SONY accepts no responsibility for restoration of the data. Operating or storage location Do not shoot an extremely bright object (an illumination, the sun, etc.).

  • Page 6: How To Use This User's Guide

    How to Use This User’s Guide This User’s Guide explains how to operate the SNC- CS50N/CS50P Network Camera from a computer. The User’s Guide is written to be read on the computer display. As this section gives tips on using the User’s Guide, read it before you operate the camera.

  • Page 7: Preparation

    Preparation The Preparation section explains what the administrator has to prepare for monitoring images after installation and connection of the camera. Connecting to a Computer or a Network To connect to the computer, use a commercially available network cable (cross cable). To connect to the network, use a commercially available network cable (straight cable).

  • Page 8: Assigning The Ip Address To The Camera

    Assigning the IP Address to the Camera To connect the camera to a network, you need to assign a new IP address to the camera when you install it for the first time. You can assign an IP address in two ways: •...
  • Page 9 Click on the camera in the list to which you want to assign a new IP address. The network settings for the selected camera are displayed. Set the IP address. To obtain the IP address automatically from a DHCP server: Select Obtain an IP address automatically.

  • Page 10: When Using Windows Xp Service Pack 2

    If “Setting OK” is displayed, the IP address is correctly assigned. To access the camera directly, double-click the camera name in the list. The factory setting of the camera network is as follows. IP address: 192.168.0.100 Subnet mask: 255.0.0.0 Wireless LAN setting Type: Adhoc SSID: snc-cs50 Channel: 11 ch...
  • Page 11 The software installation starts. Installing ActiveX Control During installation of ActiveX Control, the information bar or “Security Warning” may appear. In this case, operate as follows: If message “Information Bar” appears, click OK. If the information bar appears, click on the bar and select Install ActiveX Control….

  • Page 12: When Using Windows Vista

    Then the IP Setup Program is added to the Programs and Services list. Click OK. When the above procedure is completed, the cameras connected in the local network are displayed in the IP Setup Program. When using Windows Vista Installing software A warning message regarding the active contents may appear when you install software such as IP Setup Program from CD-ROM.
  • Page 13 If message “Internet Explorer – Security Warning” appears, click Run. If message “User Account Control – An unidentified program wants access to your computer” appear, click Allow. The software installation starts. Starting the software When you start software such as IP Setup Program, message “User Account Control –...

  • Page 14: Accessing The Camera Using The Web Browser

    The cameras will be displayed in the list. If you want to keep Windows Firewall On, continue with the following steps. Select the “Exceptions” tab. Select Add Program…. If the Add Program dialog appears, select IP Setup Program and click OK. Then the IP Setup Program is added to the Program or port list.
  • Page 15 When the main viewer of the camera is displayed for the first time When you click Enter, “Security Warning” is displayed. When you click Yes, ActiveX control is installed and the main viewer is displayed. Notes • If Automatic configuration is enabled in the Local Area Network (LAN) Settings of Internet Explorer, the image may not be displayed.

  • Page 16: Basic Configuration By The Administrator

    Basic Configuration by the Administrator You can monitor the camera image by logging in with the initial conditions set for this network camera. You can also set various functions according to the installing position, network conditions or purpose of the camera. We recommend you configure the following items before monitoring images from the camera.

  • Page 17: Operating The Camera

    Operating the Camera The Operating the Camera section explains how to monitor the image from the camera using your Web browser. Use Internet Explorer as the Web browser. The functions of the camera should be set by the Administrator. For the setting of the camera, see “Administrating the Camera”...

  • Page 18: Logging In To Homepage - Welcome Page

    Logging in to Homepage — Welcome Page Logging in as a user Start the Web browser on your computer and type the IP address of the camera you want to monitor. The welcome page is displayed. Select the viewer. The usable codecs and viewers are displayed depending on the Mode setting in the Video Codec Tab in the Camera menu (page 36).

  • Page 19: Displaying The Administrator Menu Directly

    With the ActiveX viewer (MPEG4/H.264) With the Java applet viewer Control the camera from the main viewer. Note If the welcome page does not start correctly, the security level of the Internet Explorer may be set to higher than Medium. See “To display the welcome page and the main viewer correctly”...

  • Page 20: Configuration Of Main Viewer

    Java has been installed successfully and Java (Sun) is enabled. For the verified Java version, contact your authorized Sony dealer. To check the Java version Select Tools from the menu bar of Internet Explorer, then select Internet Options and click the Advanced mode tab.

  • Page 21: Main Menu

    Main menu Setting Click to display the Administrator menu. (page 27) You can operate this function only when logging in as the administrator. Home Displays the welcome page. Camera control section Frame rate (Displayed only when the camera image is in JPEG.) Selects the frame rate to transmit images.

  • Page 22: Monitor Image

    Monitor Image The image shot by the camera is shown here. The date and time is displayed at the top of the window. Controlling the Monitor Image Controlling the Monitor Image You can monitor the camera image on the monitor window of the main viewer.

  • Page 23: Zooming In The Monitor Image

    camera settings (image size and image quality settings). Select the view size. Click View size list box to select the view size from Auto, 640 × 480, 320 × 240, or 160 × 120. Auto is determined by the image size specified in the Camera menu (page 33).

  • Page 24: Saving The Captured Image

    To close the capture window, click Cancel or Close. Saving the captured image With the ActiveX viewer Capture the monitor image. Click Save. The Save As dialog appears. Select JPEG Files or Windows Bitmap Files as Save as type. Type the File name and specify Save in, then click Save.

  • Page 25: Controlling Alarm Output 1, 2

    To use this function, you need to make Image memory active and set the details in the Trigger menu of the Administrator menu (page 65). Display the image on the monitor window. Select Image memory from the trigger drop-down list. Click The still image of the moment you click is captured, and the image file is recorded.

  • Page 26: Switching Tcp/Udp Transmission Mode

    Switching TCP/UDP Transmission Mode You can select TCP or UDP as the communication port for the video/audio data. This function can be used when Mode (video codec mode) (page 36) is set to MPEG4 or H.264 and the ActiveX viewer is used. Notes •...

  • Page 27: Administrating The Camera

    Administrating the Camera The Administrating the Camera section explains how to set the functions of the camera by the Administrator. For the monitoring of the camera image, see “Operating the Camera” on page 17. This section explains the basic operations and each option of the Administrator menu.

  • Page 28: Configuration Of Administrator Menu

    Click this button to invalidate the set values and return to the previous settings. General notes on menus • After changing a setting on a menu, wait at least 10 seconds before turning off the power of the camera. If the power is turned off immediately, the changed setting may not be stored correctly.

  • Page 29: Configuring The System - System Menu

    Object detection Displays the Object detection menu for the object detection function built into the camera. (“Setting the Object Detection Function — Object detection Menu” on page 69) Serial Displays the Serial menu for communications with external equipment through the external serial terminal. (“Transmitting with External Equipment Using the External Serial Terminal —...

  • Page 30: Date & Time Tab

    Custom Homepage Installer included in the supplied CD-ROM. To learn how to use of the Custom Homepage Installer, see page 87. For the verified cards, contact your authorized Sony dealer. To display your individual homepage, perform the following operation: Select Custom.

  • Page 31: Initialize Tab

    NTP server name Type the host name or IP address of the NTP server, using up to 64 characters. Interval Select an interval between 1 and 24 hours at which you want to adjust the camera’s time referring to the NTP server’s time.

  • Page 32: System Log Tab

    switch on the camera. For details, see the supplied Installation Manual. Backup setting data Saves the setting data of the camera in a file. Click Save, and follow the instructions on the Web browser to specify the folder and save the setting data of the camera.

  • Page 33: Setting The Camera Image And Audio - Camera Menu

    Setting the Camera Image and Audio — Camera Menu When you click in the Administrator menu, the Camera menu appears. Use this menu to set the functions of the camera. The Camera menu consists of five tabs: Common, Picture, Day/Night, Video codec and Streaming. Common Tab Image mode Selects the mode of the image output from the camera.

  • Page 34: Picture Tab

    OK/Cancel See “Buttons common to every menu” on page 27. Picture Tab You can set the color condition, exposure, etc. of the camera. White balance Select the white balance mode. ATW: Makes the subject lighter and automatically adjusts to re-create the original color. (approximately 2200 K to 10000 K) ATW-PRO: Automatically adjusts the color to be closest to the image you are viewing.

  • Page 35: Day/Night Tab

    This function is useful when you temporarily change the settings for the image or reset them to the previous settings. Save: Click to save the present settings of the Picture tab. Load: Click to load the saved settings. To use them, click OK.

  • Page 36: Image Size

    Mode Select the operation mode of the camera. Single codec: Select one video codec from among JPEG, MPEG4 and H.264. The camera supports the selected video codec. Dual codec: The camera supports both JPEG and MPEG4 video codecs simultaneously. When you select this option, select the priority codec JPEG or MPEG4.

  • Page 37: Streaming Tab

    Adaptive rate control (for MPEG4 and H.264 only) This function adjusts the frame rate and the bit rate automatically so that the camera plays back a smooth image to suit the connected computer environment. If On is selected, the MPEG4 or H.264 image rate is automatically adjusted.

  • Page 38: Configuring The Network - Network Menu

    Multicast streaming Set whether the camera uses multicast streaming for MPEG4/H.264 video data and audio data or not. It reduces the transmission load on the camera by making the computer of the same segment network receive the same transmitting data. Select On to allow and Off not to allow multicast sending.

  • Page 39: Wireless Tab - Setting Of Wireless Connection

    Before setting, read the operation manual and installation manual supplied with the wireless card together with this guide. Verified wireless cards • Optional Sony Wireless Card SNCA-CFW1 and SNCA-CFW5 • A commercially available CompactFlash type II- PCMCIA adapter * SNCA-CFW5 is not available in some countries and areas.

  • Page 40: Mac Address

    MAC address Displays the MAC address of the wireless card inserted to the PC card slot. If a wireless card is not inserted, “00:00:00:00:00:00” is displayed. IP address Configure the IP address for a wireless network. Obtain an IP address automatically (DHCP): Select this option when a DHCP server is installed on the network to allow IP address assignment.
  • Page 41 Notes • The setting of the HTTP port number is common to the setting in the Network tab. • With Ad hoc mode, you cannot select Use WEP key automatically generated of WEP, or WPA or WPA2 on Security. • When you set Security to WPA or WPA2 and change Infrastructure mode to Ad hoc mode, Security setting is automatically changed to None.

  • Page 42: Dynamic Ip Address Notification Tab - Notifying The Ip Address

    WPA and WPA2 use TKIP and AES encryption systems. This unit supports TKIP for WPA, and AES for WPA2. Authentication Select the authentication method. PSK: Select for PSK authentication. When this option is selected, Passphrase setting is required. EAP: Select for EAP authentication. When this option is selected, enabling the 802.1X function is required.

  • Page 43: Http Notification

    sends e-mails performs authentication using the POP user account. User name, Password Type the user name and password of the user who owns the mail account using up to 64 characters. This setting is necessary when the SMTP server that sends e-mails performs authentication.

  • Page 44: Using The 802.1X Authentication Function - 802.1X Menu

    Using the 802.1X Authentication Function — 802.1X Menu When you click in the Administrator menu, the 802.1X menu appears. Use this menu to configure the wired or wireless port- based authentication in compliance with the 802.1X standard. The 802.1X menu consists of three tabs: Common, Client certificate and CA certificate.

  • Page 45: Client Certificate Tab

    Note To use the 802.1X authentication function for wireless networks, set up Security in the Wireless tab of the Network menu. For details, see “Security” on page 41. Wired interface To activate the 802.1X authentication function, select Wired interface status Shows the authentication status of the 802.1X authentication function for wired ports.

  • Page 46: Private Key Password

    Then click Submit, and the selected file will be imported to the camera. Note The import process becomes invalid if the selected file is not a client certificate or the imported client certificate is not allowed. To display the information of the client certificate When the client certificate has been saved in the camera correctly, its information appears on Status, Issuer DN,...

  • Page 47: Ca Certificate Tab

    When Country name is not selected: 220 characters or less OK/Cancel See “Buttons common to every menu” on page 27. CA certificate Tab You can import a trusted CA certificate (server certificate or route certificate) to the camera. Up to four certificates from trusted CAs can be imported to the camera.
  • Page 48 Creating a security group for Active Directory Open Active Directory Users and Computers from Administrative Tools of Windows menu. Select Users of the domain with which you want to perform 802.1X connection. Select New from the context menu, then select Group and configure the group for 802.1X connection.
  • Page 49 The CA’s URL is normally as follows: The “Microsoft Certificate Services” page opens. Note If the Microsoft Certificate Service page does not appear using the URL above, check the following: – Is the service of Web site enabled on Internet Information Service (IIS)? –...
  • Page 50 Select the installed certificate and click Export... The “Certificate Export Wizard” opens. Click Next and select as follows. Do you want to export the private key with the certificate?: Select Yes, export the private key. Select the format you want to use: Select Personal Information Exchange –...

  • Page 51: Setting The User - User Menu

    Setting the User — User Menu When you click in the Administrator menu, the User menu appears. Use this menu to set the user names and passwords of Administrator and up to 9 kinds of users (User 1 to User 9), and the access right of each user.

  • Page 52: Setting The Security - Security Menu

    Setting the Security — Security Menu When you click in the Administrator menu, the Security menu appears. Use this menu to limit the computers that can access the camera. Security function To activate the security function, select On. Default policy Select the basic policy of the limit from Allow and Deny for the computers specified in the Network address/ Subnet 1 to Network address/Subnet 10 menus below.

  • Page 53: Sending An Image Via E-Mail - E-Mail (Smtp) Menu

    Sending an Image via E- mail — e-Mail (SMTP) Menu When you click in the Administrator menu, the e-Mail (SMTP) menu appears. Using e-Mail (SMTP) function, you can send an e-mail with attached image file that has been shot linked with an external sensor input or with the built-in object detection function.

  • Page 54: Alarm Sending Tab - Setting The E-Mail Sending Mode When Detecting The Alarm

    Alarm sending Tab — Setting the e- mail sending mode when detecting the alarm Set to send an e-mail linked with alarm detection by the external sensor input or by the built-in object detection function. Alarm sending Select On to set sending an e-mail linked with alarm detection.

  • Page 55: Periodical Sending Tab - Setting The Periodical E-Mail Sending Mode

    Periodical sending Tab — Setting the periodical e-mail sending mode You can set to send e-mails periodically. Periodical sending Select On when you want to use periodical e-mail sending. Image file name Type the file name of the image attached to the e-mail using up to 10 alphanumeric characters, - (hyphen) and _ (under score).

  • Page 56: Sending Images To Ftp Server

    Sending Images to FTP Server — FTP client Menu When you click in the Administrator menu, the FTP client menu appears. Use this menu to set up for capturing and sending still images to an FTP server. Using FTP client function, you can send an image and audio file that has been shot and recorded linked with the external sensor input or with the built-in object detection function to an FTP server.

  • Page 57: Periodical Sending Tab - Setting The Periodical Ftp Client Activity

    alphanumeric characters, - (hyphen) and _ (underscore) for naming. Suffix Select a suffix to be added to the file name. Date & time: The date & time suffix is added to the image file name. The date/time suffix consists of lower two-digits of the year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits) and second (2 digits), and consecutive number (2 digits), thus...

  • Page 58: Recording Images In Memory

    — FTP server Menu” on page 62.) The Image memory menu consists of three tabs: Common, Alarm recording and Periodical recording. For the verified cards, contact your authorized Sony dealer. Notes • The image and audio files recorded in the built-in...

  • Page 59: Common Tab - Setting The Image Memory Function

    Common Tab — Setting the image memory function Image memory To use the image memory function, select On. Selected root directory Select a memory in which you want to save an image. The current memory space is displayed on the right. Built-in memory: Built-in memory of this camera ATA memory card: ATA memory card inserted into the PC card slot of the camera.

  • Page 60: Alarm Recording Tab - Setting The Image Memory Function When Detecting The Alarm

    Alarm recording Tab — Setting the Image memory function when detecting the alarm You can set to record the image and audio file to the memory linked with the external sensor input or with the built-in object detection function. Alarm recording Select On to record the image and audio file in the built- in memory or ATA memory card, linked with alarm detection.

  • Page 61: Periodical Recording Tab - Setting The Periodical Recording Mode

    Periodical recording Tab — Setting the periodical recording mode You can set to record the image file (JPEG file) in the built-in memory or ATA memory card periodically. Periodical recording Select On when you want to use periodical recording. Image file name Type the file name of the image to be recorded to the memory using up to 10 alphanumeric characters, - (hyphen) and _ (under score).

  • Page 62: Downloading Images From The Camera

    About the extension of a file A file to be recorded/sent using the image memory function or the FTP client function has one of the following three extensions depending on the video mode setting and the recording/sending settings of the camera. .m4f: A file of this type is created when Use alarm buffer is selected in the Alarm recording or Alarm sending tab and MPEG4 is selected on Codec in the...

  • Page 63: Setting The Alarm Output

    Setting the Alarm Output — Alarm output Menu When you click in the Administrator menu, the Alarm output menu appears. You can perform setting in this menu to control the alarm output of the I/O port on the rear of the camera linked to the alarm detection, the timer and the Day/ Night function.

  • Page 64: Voice Alert Menu

    Outputting Audio Linked to Alarm Detection Voice alert Menu Click in the Administrator menu to display the Voice alert menu. Use this menu to set the voice alert function to output audio from the line output jack of the camera when an alarm is detected by the sensor input or object detection function.

  • Page 65: Setting The Operations From The Viewer - Trigger Menu

    Setting the Operations from the Viewer — Trigger Menu Click in the Administrator menu to display the Trigger menu. In this menu, you will select the activities that can be performed when is clicked on the main viewer. e-Mail (SMTP) Checking this box allows you to select e-Mail from the trigger drop-down list in the main viewer.

  • Page 66: Alarm Output

    ATA memory card (not supplied). For the verified cards, contact your authorized Sony dealer. When you click Image memory, the Trigger-Image memory menu is displayed.

  • Page 67: Setting The Schedule - Schedule Menu

    Setting the Schedule — Schedule Menu When you click in the Administrator menu, the Schedule menu appears. The Schedule menu consists of six tabs. This is the same menu as the Schedule menu that is displayed when you click Schedule to set the Effective period in the following menus.

  • Page 68: Setting The Alarm Buffer - Alarm Buffer Menu

    Setting the Alarm Buffer — Alarm buffer Menu When you click in the Administrator menu, the Alarm buffer menu appears. You can set the Pre-alarm image and audio (the image and audio before the alarm detection) and the Post - alarm image and audio.

  • Page 69: Setting The Object Detection Function

    Setting the Object Detection Function — Object detection Menu When you click in the Administrator menu, the Object detection menu appears. Using this menu, you can set the conditions for activating the built-in “Moving object detection” and the “Unattended object detection” functions. Moving object detection detects moving objects in the camera image and outputs an alarm.

  • Page 70: Common Tab

    After the detection time, the location where the car was parked is detected as an unattended object. Notes • You can view an MPEG4 image only in the main viewer during the setting of the object detection when Dual codec is selected in the Video codec tab. •...

  • Page 71: Object Size

    Monitor display Set the active/inactive window while monitoring an image. The outside of the active window and the inside of the inactive window are regarded as inactive areas and shown with a mesh screen. Inactive window Active window Notes • The image displayed on the monitor display has low resolution.
  • Page 72 Note If an active window and inactive window overlap, the overlapped portion will be regarded as an inactive area. When the two windows overlap, the inactive window is displayed over the active window on the monitor screen. If the active window is hidden by an inactive window and its position or size cannot be changed, temporarily change the active window to an inactive window and change the position and...
  • Page 73 When you check the check box, the corresponding window (active or inactive window) appears on the monitor display. You can change the position and size of the window. Active: To use the window as an active window in which unattended object detection is performed. Inactive: To use the window as an inactive window in which any unattended object is ignored.

  • Page 74: Unattended Object Setting Tab

    Place an object in the window and confirm that unattended object detection works correctly. The object regarded as an unattended object is marked with a green frame. Note It may take a long time until an unattended object is detected, depending on the image being shot. Click OK.

  • Page 75: Transmitting With External Equipment Using The External Serial Terminal

    Transmitting with External Equipment Using the External Serial Terminal — Serial Menu When you click in the Administrator menu, the Serial menu is displayed. Using this menu, you can input data into the camera from the computer via a network and output them to the external serial interface to control a peripheral device.

  • Page 76: Using The Supplied Ip Setup Program

    Others This section explains how to use the application software and commands, including the supplied CD- ROM. Using the Supplied IP Setup Program Explains the functions except those of the Network tab in the IP Setup Program. To install the IP Setup Program, to assign an IP address and to set the network, see “Assigning the IP Address to the Camera”...

  • Page 77: Date Time Tab

    Date time Tab You can set the date and time on the camera. Click the Date time tab to display the date/time setting window. Click to select the camera that you want to set the date and time for. You can select multiple cameras and set the date and time simultaneously.

  • Page 78: Using The Snc Audio Upload Tool - Transmitting Audio To Camera

    Using the SNC audio upload tool — Transmitting Audio to Camera The supplied SNC audio upload tool allows you to transmit sound from the computer to the camera. This section explains the setup and operations of the SNC audio upload tool. The SNC audio upload tool supports the following audio data to be transmitted.

  • Page 79: Using The Snc Audio Upload Tool

    Target camera(s) (Camera list) When the SNC audio upload tool starts, it automatically detects Sony network cameras connected to the local network and displays them in the camera list. Up to 256 cameras can be displayed in the list.
  • Page 80 address when the IP address is obtained with a DHCP server. Model: Displays the model name of the network camera. Serial: Displays the serial number of the network camera. User: Displays the specified user ID and password. The password is shown with turned letters. Select all Click to select all the cameras in the camera list.

  • Page 81: Voice Alert Tab

    N (start) / x (stop) Click N (start) to start audio transmission. The transmission speed is displayed in the Bitrate box during transmission. You can adjust the microphone volume and enable/disable the muting, if necessary. To stop the audio transmission, click x (stop). Notes •...
  • Page 82 Recording/playback progress bar You can check recording or playback progress with this bar. During recording, the right end of the bar represents 30 seconds and the remaining recording time is displayed below the bar. During playback, the maximum time of the bar depends on the recorded time.

  • Page 83: Using The Snc Video Player - Playing Video/Audio File Recorded With Camera

    Click (upload) to transmit the audio file to the camera. Saving the recorded audio file to the computer Click (recording) in the Voice alert tab to start recording. Click (stop) to stop recording. Recording will stop automatically in 30 seconds. Click (save).

  • Page 84: Using The Snc Video Player

    Using the SNC video player Start the SNC video player. Click the (browse) icon. The Select File dialog opens. Select the file you want to play. Information boxes on the selected file are displayed on the left side of the window as follows: Each click on the (information) icon switches between “display”...

  • Page 85: Using The Snc Privacy Masking Tool - Masking A Camera Image

    Using the SNC privacy masking tool — Masking a Camera Image The supplied SNC privacy masking tool allows you to mask parts of the camera image to be transmitted. Installing the SNC privacy masking tool Insert the CD-ROM in your CD-ROM drive. A cover page appears automatically in your Web browser.

  • Page 86: Setting A Privacy Mask

    Main tab Set the privacy mask. Note If the video codec of the camera is set to H.264, the Main tab window is not displayed even if you click in the Main tab. In this case, select JPEG or MPEG4 in Mode of the Camera menu (page 36) and operate again.

  • Page 87: Using The Custom Homepage Installer

    Using the Custom Homepage Installer The supplied Custom Homepage Installer allows you to store the homepage that you have created in the camera and watch it. Notes on creating the homepage When you are creating the homepage, note the following points.
  • Page 88 Read the agreement carefully, select Agree if you accept it, then click Next. Type the IP address of the camera to be uploaded in the IP address box. Specify the HTTP port No. of the camera. Initial HTTP port No. is set to 80. When you use a proxy server, set the following: For the proxy server of your environments, consult your network administrator.

  • Page 89: Assigning The Ip Address To The Camera Using Arp Commands

    The following page will appear after a while. After displaying this page, the camera will be adjusted and rebooted automatically in two minutes. Click Finish to exit the program. Assigning the IP Address to the Camera Using ARP Commands This section explains how to assign an IP address to the camera using ARP (Address Resolution Protocol) commands without using the supplied IP Setup Program.

  • Page 90: Using The Snmp

    Using the SNMP This unit supports SNMP (Simple Network Management Protocol). You can read MIB-2 objects using software such as SNMP manager software. This unit also supports the coldStart trap which occurs when the power is turned on or the unit restarts, and the Authentication failure trap which informs of an illegal access using SNMP.

  • Page 91: Pin Assignment Of I/O Port

    <string> position. The maximum length of <string> is 255 characters. enaAuthTraps=<value> Set the case value of “mib-2.snmp.snmp EnableAuthenTraps.0” in the <string> position. Type “1” (enable) or “2” (disable) in the <value> position. community=<ID>,r, <communityName>,<IpAddressString> Set the community attributes. <ID> describes the setting identification number (1 to 8), <communityName>...

  • Page 92: Wiring Diagram For Sensor Input

    Wiring diagram for sensor input Mechanical switch/open collector output device Camera Outside Inside 2.35 kohms Mechanical switch 1 or 3 pin (Sensor In 2 or 4 pin (GND) Open collector output device Wiring diagram for alarm output Camera Inside 5 or 7 pin (Alarm output +) Magnet relay Circuit...

  • Page 93: Detaching The Lens

    Detaching the Lens Disconnect the lens cable from the auto iris lens connector. Turn the lens counterclockwise to detach it from the camera. Attaching the Lens Align the lens with the lens mount of the camera, and turn it clockwise until it is secured. Insert the plug of the lens cable into the auto iris lens connector.

  • Page 94: Glossary

    Glossary ActiveX control A component program object that can be used with web pages or other application programs. The technology for creating ActiveX control is part of software developed by Microsoft. Abbreviation for Advanced Encryption Standard. This is the next-generation of encryption standard adopted by the U.S.

  • Page 95: Pop Server

    H.264 One of the image compression formats. The standard written by the JVT (Joint Video Team) , joint organization for standardization composed of ISO and ITU-T. H.264 is capable of transmitting video data at a higher compression rate than that of MPEG4. IP address Abbreviation for Internet Protocol Address.
  • Page 96 SNMP A protocol for monitoring and managing network devices. Abbreviation for Secure Sockets Layer. This is a protocol developed by Netscape Communications Corporation to be used for communications of encrypted data on the Internet. Subnet mask 32-bit stream used to distinguish the subnet address from the IP address.

  • Page 97: Outputting Audio Linked To Alarm Detection

    Index Numerics 802.11g ... 96 802.1X...41 abandoned object detection... 69 Access log ... 32 Active ... 71 Active Directory... 48 ActiveX control...11 ActiveX viewer ... 19 Adaptive rate control... 37 Adjust... 30 Administrator ... 17 Administrator e-mail address ...43 Administrator menu ... 19 AES ...
  • Page 98 format of date and time ...30 Frame rate... 21 frame rate ... 21 FTP ... 24 FTP client ... 28 FTP client function...56 FTP client Menu...56 FTP server ... 28 FTP server function...62 FTP server Menu...62 FTP server name...56 gain ...34 Gain ...34 Glossary...94 H.264 ...
  • Page 99 removed object detection ... 69 Repeat ... 64 reset ... 33 Reset camera menu ... 33 Restart ... 73 Restore setting... 32 Re-type password... 51 Saturation ... 34 saturation... 34 saves the setting data... 32 Schedule... 28 schedule ... 28 Schedule Menu ...
  • Page 100 Sony Corporation...
