Sharp CD-BK133W Operation Manual

Hide thumbs Also See for CD-BK133W:
Table of Contents

Advertisement

Quick Links

Download this manual
MINI COMPONENT SYSTEM
MINI-CHAÎNE
SISTEMA MINI
MODEL
MODÈLE
MODELO
CD-BK133W
OPERATION MANUAL
MODE D'EMPLOI
MANUAL DE MANEJO

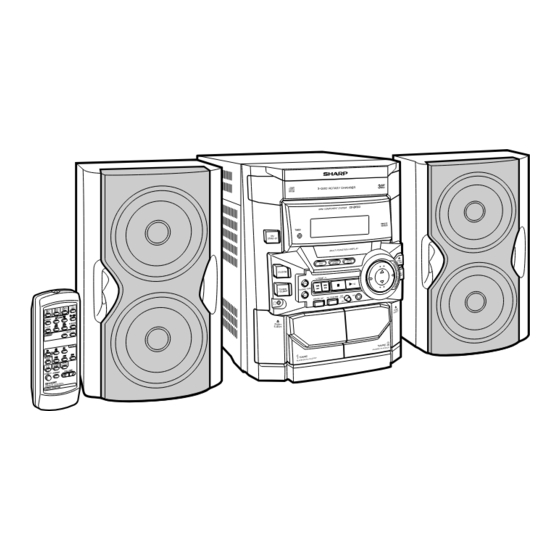

CD-BK133W Mini Component System consisting of CD-BK133W (main unit) and CP-
BK133 (speaker system).
Mini-chaîne CD-BK133W composée de CD-BK133W (appareil principal) et de CP-BK133
(enceintes acoustiques).
Sistema mini CD-BK133W que consta de CD-BK133W (aparato principal) y CP-BK133
(sistema de altavoces).
CD-BK133W
CD-BK133W
ENGLISH
Please refer to pages E-1 to E-25.
FRANÇAIS
Se reporter aux pages F-1 à F-25.
Consulte las páginas S-1 a S-25.
ESPAÑOL
SHARP CORPORATION
CP-BK133

Advertisement

Table of Contents
loading

Related Manuals for Sharp CD-BK133W

Summary of Contents for Sharp CD-BK133W

  • Page 1 CD-BK133W Mini Component System consisting of CD-BK133W (main unit) and CP- BK133 (speaker system). Mini-chaîne CD-BK133W composée de CD-BK133W (appareil principal) et de CP-BK133 (enceintes acoustiques). MINI COMPONENT SYSTEM Sistema mini CD-BK133W que consta de CD-BK133W (aparato principal) y CP-BK133 (sistema de altavoces).
  • Page 2 ENGLISH CD-BK133W Introduction Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product. Special notes Warning: CAUTION z When the ON/STAND-BY button is set at STAND-BY position, mains voltage is still z This product is classified as a CLASS 1 LASER product.

  • Page 3: Table Of Contents

    Accessories Contents CD-BK133W Please confirm that the following accessories are included. Page " General Information Precautions ............3 Controls and indicators .

  • Page 4: Precautions

    SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is Correct specified.

  • Page 5: Controls And Indicators

    Controls and indicators CD-BK133W " Display 1 2 3 4 6 7 8 1. Disc Number Indicators 2. Timer Indicator 3. Tape 2 Record Indicator 4. Sleep Indicator 5. Extra Bass Indicator 6. CD or Tuner Memory Indicator 7. FM Stereo Mode Indicator 8.
  • Page 6 Controls and indicators (continued) CD-BK133W " Rear panel Reference page 1. AC Power Input Socket ........7, 8 2.
  • Page 7 CD-BK133W " Remote control Reference page 1. Remote Control Transmitter ....... . . 9 2.

  • Page 8: System Connections

    System connections CD-BK133W " Aerial connection Supplied FM aerial: Connect the FM aerial wire to the FM 75 OHMS terminal and position the FM aerial wire in the direction where the strongest signal can be re- AM loop aerial ceived.
  • Page 9 CD-BK133W " Speaker connection " Connecting the AC power lead Connect the black wire to the minus (-) terminal, and the red wire to the plus (+) ter- After making all connections, connect the AC power lead to the unit minal.

  • Page 10: Remote Control

    Remote control System connections (continued) CD-BK133W " Battery installation " Setting the FM/AM span selector 1 Remove the battery cover. 2 Insert the supplied batteries according to the direction indicated in the battery compartment. When inserting or removing the batteries, push them towards the battery termi- nals.

  • Page 11: Aa" Size Battery

    General control CD-BK133W " Extra bass (X-BASS)/Pre-programmed equalizer (Main unit operation) You can select the extra bass and pre-programmed equaliser modes with the same button on the main unit. Changing the mode: When the EQUALIZER/X-BASS/DEMO button is pressed, the current mode setting will be displayed.

  • Page 12: Setting The Clock

    Setting the clock CD-BK133W Press the TUNING/TIME ( or ) button to adjust the hour and then press the MEMORY/SET button. ! Press the TUNING/TIME ( ) button once to advance the time by 1 hour. Hold it down to advance continuously.

  • Page 13: Listening To A Cd (Cds)

    Listening to a CD (CDs) CD-BK133W Press the ON/STAND-BY button to turn the power on. Press the CD button. Press the OPEN/CLOSE button to open the disc tray. Place the CD(s) on the disc tray, label side up. When loading a third disc, press the DISC SKIP button to turn the disc tray, then place the CD in the open position.
  • Page 14 Listening to a CD (CDs) (continued) CD-BK133W " To locate the beginning of a track Press the ) button to start playback. To move to the beginning of the next track: Press the button for less than 0.5 seconds during playback.

  • Page 15: Repeat Or Random Play

    Repeat or random play CD-BK133W " Repeat play " Starting playback with a desired track All tracks on up to 3 discs, or a programmed sequence can be continuously repeated. You can play a disc starting with the desired track.

  • Page 16: Programmed Play

    Programmed play CD-BK133W You can choose up to 32 selections for playback in the order you like. Press the button to select the desired track. Selected track number Press the MEMORY/SET (MEMORY) button to save the track number. Playback order When the track is memorised, "MEMORY"...

  • Page 17: Listening To The Radio

    Listening to the radio CD-BK133W Press the ON/STAND-BY button to turn the power on. Press the TUNER (BAND) button repeatedly to select the desired frequency band (FM or AM). Press the TUNING/TIME ( ) button to tune in to the desired station.

  • Page 18: Listening To The Memorised Station

    Listening to the memorised station CD-BK133W " Memorising a station " To recall a memorised station You can store 40 AM and FM stations in memory and recall them at the push of a but- Press the PRESET ( or ) button for less than 0.5 seconds to select...

  • Page 19: Listening To A Cassette Tape (Tape 1 Or Tape 2)

    Listening to a cassette tape (TAPE 1 or TAPE 2) CD-BK133W Before playback: Playback is possible in TAPE 1 compartment as well as in TAPE 2. ! For playback, use normal or low-noise tapes for the best sound. Press the ON/STAND-BY button to turn the power on.

  • Page 20: Playing Karaoke

    Playing karaoke CD-BK133W Set the MIC LEVEL control to MIN to protect the speakers from shock noise and to avoid disturbing noises. Connect the microphone to the MIC socket. ! Use a microphone with a 6.3 mm (1/4") plug, an impedance of 600 ohms.

  • Page 21: Recording To A Cassette Tape

    ! When recording important selections, make a preliminary test to ensure that the desired material is properly recorded. " Recording from a CD (CDs) ! SHARP is not liable for damage or loss of your recording arising from malfunction of this unit. You can record 3 CDs continuously.
  • Page 22 Recording to a cassette tape (continued) CD-BK133W ! Recording from the radio ! Dubbing from tape to tape You can record from TAPE 1 to TAPE 2. Tune in to the desired station. (See page 16.) For recording, use only normal tapes. Do not use metal or CrO tapes.

  • Page 23: Timer And Sleep Operation

    Timer and sleep operation CD-BK133W ! Timer playback or timer recording Timer playback: The unit turns on and plays the desired source (CD, tuner, tape) at the preset time. Before setting timer: Timer recording: Press the CLOCK button to check that the clock is on time.
  • Page 24 Timer and sleep operation (continued) CD-BK133W ! Sleep operation Press the TUNING/TIME ( or ) button to specify the hour to start, then press the MEMORY/SET button. Play back the desired sound source. Press the TIMER/SLEEP button repeatedly until "SLEEP" is dis- played.

  • Page 25: Troubleshooting

    Troubleshooting Maintenance CD-BK133W ! If trouble occurs ! Cleaning the tape-handling parts When this product is subjected to strong external interference (mechanical shock, " Dirty heads, capstans or pinch rollers can cause poor sound and tape jams. Clean excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is these parts with a cotton swab moistened with commercial head/pinch roller operated incorrectly, it may malfunction.

  • Page 26: Specifications

    Specifications CD-BK133W ! Tuner As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. Frequency range FM: 88 - 108 MHz There may be some deviations from these values in individual units.
