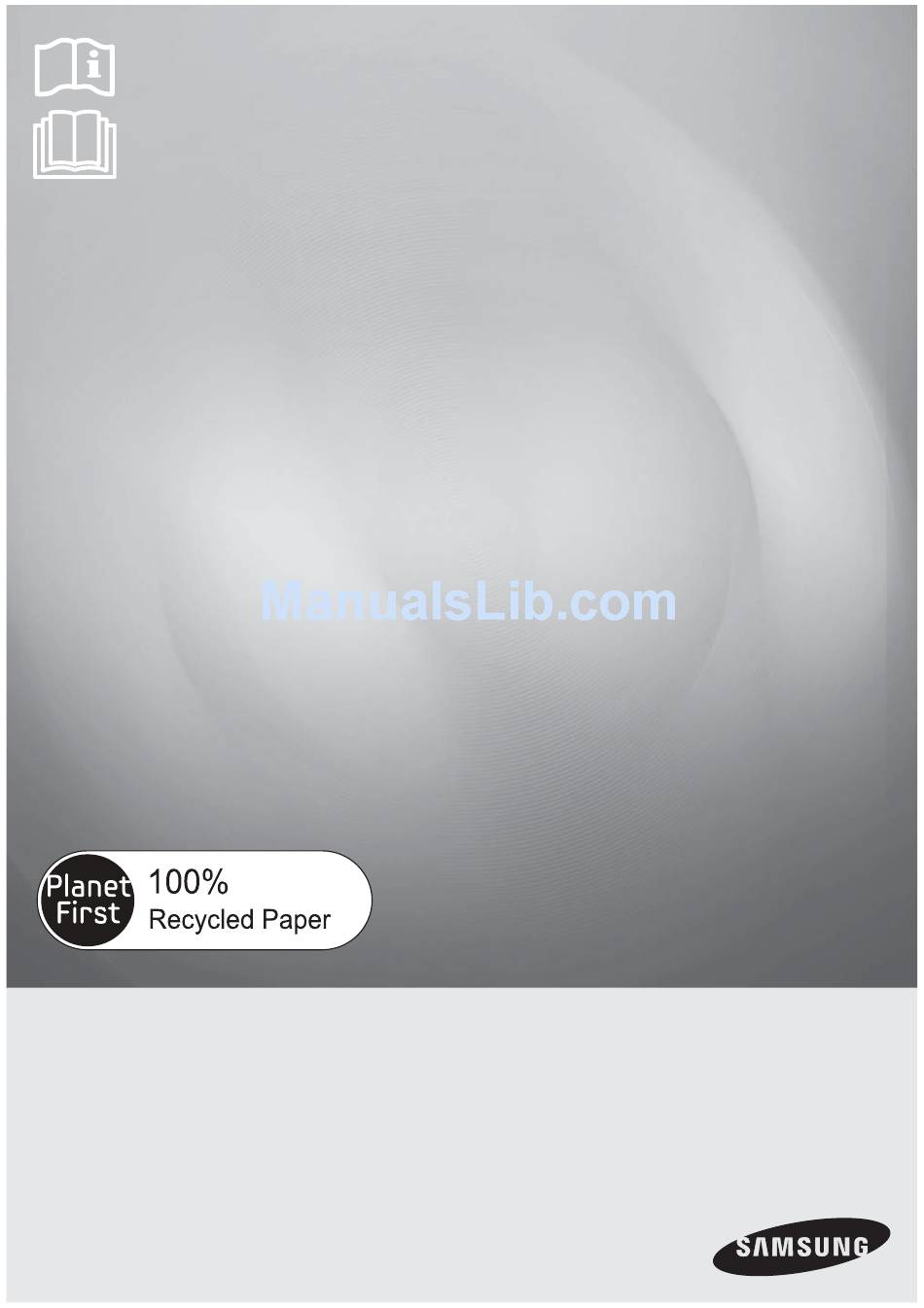

Gas and Electric Dryer user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service or accessory please register your product at or parts, contact www.samsung.com/register...
42 minutes! Giving you time for more important things in life. 6. Energy Saving Samsung dryers are super energy efficient. You can dry up to 3.01 pounds of laundry with 1kWh. Also, both the large capacity and Fuzzy Logic Control save energy by automatically drying your clothes the most efficient way.
Congratulations on your new Samsung Dryer. This manual contains valuable information on the installation, use, and care of your appliance. Please take the time to read this manual to take full advantage of your dryer’s many benefits and features.
Page 4
13.The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel. 14.Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
Any material that has been in contact with a cleaning solvent or flammable liquids or solids should not be placed in the dryer until all traces of these flammable liquids or solids and their fumes have been removed.
Install and use in accordance with the manufacturer’s instructions. Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking oil. Even after being washed, these items may contain significant amounts of these oils.
Load the dryer properly Getting started Control Panel Tumbler Stainless Steel Tumbler Dryer Exterior Dryer Exhaust System Special laundry tips Check these points if your dryer… Information codes APPENDIX Fabric care chart Protecting the environment Declaration of conformity Specifications Cycle chart...
TOOLS NEEDED FOR INSTALLATION Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup, adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer, you are responsible.
• Never install a screen over the exhaust outlet. • To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house or porch. • If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly down towards the exhaust hood to reduce condensation and lint buildup.
Instructions are included with the kit. It’s important to make sure the room has enough fresh air. The dryer must be located where there is no air-flow obstruction.
MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS: Sides – 1 in / 25 mm Rear – 5 in / 127 mm If the washer and dryer are installed together, the closet front must have at least a 72 in² (465 cm²) unobstructed air opening. 1 in.
Page 12
Closet or Door Required Dimensions for Installation With Stacking Kit 6 in. * (15.2 cm) 78 in. (198.1 cm) 1 in. (2.5 cm) 12_ installing your dryer 341.1 in. 5 in. 27 in. (12.7 cm) (86.5 cm) (68.6 cm) 3 in.
Safety, Title 24, HUD (Part 280), 1975} for the United States) or CSA Standards Z240 (for Canada). When installing a dryer in a mobile home, provisions for anchoring the dryer to the floor must be made. Locate an area that has adequate fresh air.
STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA). Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP (liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet installed by a qualified electrician.
When local codes allow, the dryer electrical supply may be connected by means of a new power supply cord kit, marked for use with a dryer, that is U.L. listed and rated at a minimum of120/240 volts, 30-ampere with three No. 10 copper wire conductors terminated with closed loop terminals, open-end spade lugs with turned up ends, or with tinned leads.
CONNECTING THE INLET HOSE Method1 The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old hoses. 1. If space permits, attach the brass female end of the “Y” connector to the cold water faucet.
1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side- by-side, to allow access to gas, electrical, and exhaust connections. Lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it will lay across both cushion-tops.
Page 19
Tip for tight installations: install a section of exhaust system to your dryer before putting it in place. Use duct tape to secure this section to your dryer, but do not cover ventilation slots at the back of the unit in the dryer cabinet.
Page 20
4. Neutral wire (white or center wire) 5. 3/4” (1.9 cm) UL-listed strain relief If converting from a 4-wire electrical system to a 3-wire, the ground strap must be reconnected to the terminal block support to ground the dryer frame to the neutral WARNING conductor.
9. (GAS MODELS ONLY- DV350AG*) The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5 minutes.
DRYER EXHAUST TIPS Plastic or non-metal flexible duct presents a potential fire hazard. WARNING 1. Make sure your dryer is installed properly so it exhausts air easily. 2. Use a 4” diameter rigid metal duct. Tape all joints, including at the dryer.
9. Reinsert the screw (Step 4) on the Frame Front 10. Place the door on the other side and reattach it to the dryer. 11. Reattach the holder lever. 12. Reattach the screws in the remaing holes. installing your dryer _23...
Press, Towels, Bedding PLUS, Delicates, Wool and Sanitize cycles are Sensor Dry cycles. Sensor Dry automatically senses the moisture in the load and shuts the dryer off when the selected dryness level (very dry to damp dry) is reached. Normal – Use this cycle to dry loads such as cotton, underwear, and linen.
Page 25
Display illuminate. When the cycle is complete, “END” appears in the display panel until the dryer door is opened, the Power, Close or Start button is pressed or about 5 minutes have passed. If your dryer is paused during a cycle, the indicator lights will blink until the Start/ Pause button is pressed.
Page 26
Press to pause and restart programs. selection button Press once to turn your dryer on, press again to turn it off. If your dryer is left on for more than 10 minutes without any buttons being touched, the power Power button automatically turns off.
If you want to set or release the Drum Light, press both the Dry Level and Temp. buttons simultaneously. It can be set while your dryer is not only running but also when it is stopped. If you do not turn the Drum Light off within 5 minutes of turning it on, it is automatically turned off.
2. Position drying rack in tumbler, placing the front lip of the drying rack on the top of the lint filter. 3. Place the rear legs in the two recessed areas of the dryer’s back wall then push down the middle of the drying rack to fix.
• Add one or more similar items to your dryer when only one or two articles of clothing need drying. This improves the tumbling action and drying efficiency.
Protect the surface from sharp objects as they may scratch or damage the finish. Do not place any heavy or sharp objects or a detergent box on the dryer. Keep them on the purchased pedestal or in a separate storage box.
Add a couple of dry towels to help the tumbling action and to fluff the item. DO NOT dry kapok or foam pillows in dryer. Use the Time Dry cycle and the Low or Extra Low temperature settings depending on the care label instructions.
Be sure the dryer is leveled properly as outlined in the installation instructions. • It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum and exhaust system. • Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level.
Page 33
Sprayed water is not visible • during Steam-Care Dryer load is too small. Add more items or a few towels and restart the cycle. Dryer load is too large. Remove some items and restart the dryer. Make sure the lint filter is cleaned before every load. With some loads that produce high amounts of lint, it may be necessary to clean the filter during the cycle.
INFORMATION CODES Information codes may be displayed to help you better understand what is occurring with your Dryer. ERROR DISPLAY Clogged Lint Screen Vent is restricted Invalid heating Temp in running the dryer Running the dryer with door open...
appendix FABRIC CARE CHART The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems.
DIMENSIONS A. Height B. Width WEIGHT HEATER RATING POWER NO HEAT CONSUMPTION HEATING 36_ appendix FRONT LOADING DRYER Inches (cm) C. Depth with 39” (99.1) door open 90° 27” (68.6) D. Depth 126.1lb (57.2kg) 5300 W (Elec.) 22000 BTU/hr (Gas) Inches (cm) 49.6’’...
CYCLE CHART Default (Initial temp. at 21-30 °C) Cycle Temp control High Normal (Medium) High Heavy Duty (No change) Medium Perm Press (No change) High Towels (Medium) Sensor Dry High Bedding Plus (No change) Extra Low Delicates (No change) Wool (No change) High Sanitize...
Page 38
Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous United States.
Page 39
SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Page 40
QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com Code No. DC68-03021A-02_EN...
Page 41
Secadora a gas y eléctrica Manual del usuario Este manual está impreso en papel 100% reciclado. imagina las posibilidades Gracias por adquirir este producto Samsung. Para que podamos brindarle un servicio más registre su producto en completo, www.samsung.com/register 1-800-SAMSUNG (726-7864)
Page 42
(normal), heavy duty (servicio pesado) y towels (toallas), o deje que el control Fuzzy Logic mida el grado de humedad y determine automáticamente el tiempo de secado. La precisión en el secado nunca fue más sencilla que con Samsung. 5. Ahorro de tiempo Los ciclos están diseñados pensando en usted.
Felicitaciones por la compra de la nueva secadora Samsung. Este manual contiene información importante acerca de la instalación, el uso y el cuidado del electrodoméstico. Lea detenidamente estas instrucciones a fin de aprovechar al máximo los múltiples beneficios y funciones de la secadora.
Page 44
instrucciones de seguridad ADVERTENCIA: Para reducir el riesgo de incendio, descargas eléctricas o lesiones físicas cuando use este electrodoméstico, siga las instrucciones de seguridad básicas que figuran ADVERTENCIA a continuación: 1. Lea todas las instrucciones antes de usar este electrodoméstico. 2.
Page 45
QUÉ HACER SI PERCIBE OLOR A GAS: • No intente encender ningún electrodoméstico. • No encienda este electrodoméstico. • No toque ningún interruptor eléctrico. • No utilice ningún teléfono de su edificio. • Haga que todos los ocupantes se retiren de la habitación, edificio o área. •...
Page 46
No se siente encima de la secadora. Debido a las constantes mejoras a los productos, Samsung se reserva el derecho de modificar las especificaciones sin previo aviso. Para conocer detalles completos, consulte las instrucciones de instalación incluidas con su producto antes de seleccionar los gabinetes, hacer aberturas o comenzar la instalación.
Page 47
contenido INSTALACIÓN DE LA SECADORA MANUAL DE INSTRUCCIONES, SUGERENCIAS CUIDADO Y LIMPIEZA SUGERENCIAS PARA PRENDAS GUÍA DE SOLUCIÓN DE PROBLEMAS Herramientas necesarias para la instalación Consulte Exterior de la secadora Requisitos para el tendido de conductos Importante para el instalador Consideraciones acerca de la ubicación Instalación del electrodoméstico en un gabinete o en un hueco...
Page 48
instalación de la secadora HERRAMIENTAS NECESARIAS PARA LA INSTALACIÓN Contrate a un profesional para instalar la secadora adecuadamente. En caso de que sea necesaria una visita del servicio técnico como consecuencia de una mala configuración, ajuste y conexión, se considerará responsabilidad del instalador.
REQUISITOS PARA EL TENDIDO DE CONDUCTOS • Utilice un conducto de acero galvanizado rígido o de aluminio rígido, de 4 pulgadas (10,2 cm) de diámetro. • No utilice un conducto de menor tamaño. • Los conductos de más de 4 pulgadas (10,2 cm) de diámetro pueden ocasionar una mayor acumulación de pelusa.
instalación de la secadora Si la nueva secadora se instala dentro de un sistema de drenaje existente, debe asegurarse de que: • el sistema de drenaje cumpla con todos los códigos locales, estaduales y nacionales; • no se utilice un conducto flexible de plástico; •...
Page 51
INSTALACIÓN DEL ELECTRODOMÉSTICO EN UN GABINETE O EN UN HUECO DEJE UN ESPACIO LIBRE MÍNIMO CUANDO INSTALE EL ELECTRODOMÉSTICO EN UN GABINETE O EN UN HUECO: Laterales: 1 pulg. (25 mm.) Parte posterior: 5 pulg. (127 mm.) Si la lavadora y la secadora se instalan una junto a la otra, el frente del gabinete debe contar por lo menos con una abertura de aire sin obstrucciones de 72 pulg²...
Page 52
instalación de la secadora Con pedestal o kit de apilamiento opcionales Dimensiones requeridas de la instalación con pedestal 51,7 pulg. (131,4 cm) para poder abrir la puer 48 in.² * (310 cm²) 24 in.² * (155 cm²) Gabinete o puerta Dimensiones requeridas de la instalación con kit de apilamiento 6 in.
Page 53
Ubique un área en la que circule suficiente aire fresco. Se requiere un espacio mínimo de 72 pulg² (465 cm²) sin obstrucciones. Llame al 1-800-SAMSUNG(726-7864) para obtener más información acerca de la compra del kit de anclaje al piso como accesorio.
instalación de la secadora REQUISITOS EN CUANTO AL GAS Utilice únicamente gas natural o gas LP (gas licuado de propano). LA INSTALACIÓN DEBE REALIZARSE EN CONFORMIDAD CON LOS CÓDIGOS LOCALES, O EN AUSENCIA DE ELLOS, CON EL CÓDIGO NACIONAL PARA GAS Y COMBUSTIBLES ANSI/ Z223.1, LA REVISIÓN MÁS RECIENTE (PARA LOS ESTADOS UNIDOS), O CON LOS CÓDIGOS DE INSTALACIÓN CAN/CGA-B149 (PARA CANADÁ).
REQUISITOS ELÉCTRICOS El diagrama del cableado se encuentra en la parte posterior de la secadora. • La conexión inadecuada del conductor de conexión a tierra del equipo puede generar una descarga eléctrica. ADVERTENCIA Consulte a un electricista o técnico calificado si le surgen dudas acerca de si la conexión a tierra de su secadora es correcta.
Page 56
instalación de la secadora CONEXIONES ELÉCTRICAS Antes de poner al electrodoméstico en funcionamiento o realizar pruebas, siga las instrucciones de conexión a tierra de la sección Conexión a tierra. Se recomienda que se destine un circuito derivado individual (o separado) sólo para la secadora. NO UTILICE UN CABLE PROLONGADOR.
Page 57
CONEXIÓN DE LA MANGUERA DE ENTRADA Método 1 La secadora debe conectarse a la llave de agua fría mediante las nuevas mangueras de entrada. No utilice mangueras viejas. 1. Si el espacio lo permite, conecte el extremo hembra de bronce del conector en forma de “Y” a la llave de agua fría. 2.
REEMPLAZO DE LAS PIEZAS Y LOS ACCESORIOS Si es preciso reemplazar piezas o accesorios de la secadora, comuníquese con el distribuidor al que le compró la secadora o con el centro de atención al cliente de SAMSUNG al 1-800-SAMSUNG(726-7864). INSTALACIÓN Reúna las herramientas y piezas necesarias antes de comenzar la instalación.
Page 59
4. Consulte la sección Drenaje antes de instalar el sistema de drenaje. Instale la red de conductos desde la secadora hasta la tapa de drenaje. El extremo con reborde de las secciones del conducto deben apuntar hacia afuera de la secadora. NO utilice tornillos con recubrimiento de metal cuando realice el montaje de los conductos.
Page 60
instalación de la secadora 6. Consulte la sección Requisitos en cuanto al gas. Retire la cubierta protectora de la rosca para tubos. Aplique compuesto de unión de tuberías o 1 1/2 vueltas aproximadamente de cinta de teflón en todas las conexiones roscadas. El compuesto de unión de tuberías utilizado debe ser resistente a la acción del gas licuado de petróleo.
Page 61
Conexiones de sistemas de 4 CABLES 1. Retire el tornillo central del bloque de terminales. 2. Conecte el cable a tierra (verde o sin cubierta) del cable de alimentación al tornillo conductor a tierra externo. 3. Conecte el cable neutro (cable blanco o central) del cable de alimentación y el cable a tierra del electrodoméstico (verde con franjas amarillas) debajo del tornillo central del bloque de terminales.
instalación de la secadora SUGERENCIAS ACERCA DEL DRENAJE DE LA SECADORA Un conducto flexible de plástico o de un material que no sea el metal presenta un potencial riesgo de incendio. ADVERTENCIA 1. Asegúrese de que su secadora esté instalada correctamente para que extraiga el aire fácilmente.
Page 63
INVERSIÓN DE LA PUERTA 1. Desconecte el cable de alimentación. 2. Retire los dos tornillos de la bisagra de la puerta. 3. Levante la puerta y retírela. 4. Retire un tornillo del frente delantero. 5. Retire los dos tornillos del lado opuesto de la bisagra de la puerta.
Page 64
manual de instrucciones, sugerencias DESCRIPCIÓN GENERAL DEL PANEL DE CONTROL Eseleccionar un ciclo, gire el disco Selector de ciclos hasta llegar al ciclo deseado. La luz del indicador junto al nombre del ciclo se iluminará. Los ciclos Normal (Normal), Heavy Duty (Servicio pesado), Perm Press (Plancha permanente), Towels (Toallas), Bedding PLUS (Ropa de cama), Delicates (Prendas delicadas), Wool (Lana) y Sanitize (Desinfección) son ciclos de Sensor Dry (Secado con sensor).
Page 65
Quick Dry (Secado rápido): ofrece un ciclo de secado en 30 minutos. Air Fluff (Secado a temperatura ambiente): ciclo seca la carga con aire a temperatura ambiente. Refresh (Refrescar): este ciclo es el más adecuado para alisar arrugas y reducir los olores de las cargas de una a cuatro prendas secas. En este ciclo se rocía una pequeña cantidad de agua en el tambor de la secadora después de varios minutos de secado con calor.
Page 66
manual de instrucciones, sugerencias Para seleccionar el nivel de secado en los ciclos Normal (Normal), Heavy Duty (Servicio pesado), u otros ciclos de Sensor Dry (Secado con sensor), presione el botón Dry Level (Nivel de secado). Se iluminará una luz en el indicador junto al nivel de secado deseado.
SEGURO PARA NIÑOS Una función para evitar que los niños jueguen con la secadora. Configuración/Liberación Si desea configurar o liberar esta función, presione simultáneamente los botones Time (Tiempo) y Signal (Señal) durante 3 segundos. Cómo configurarla: 1. Puede configurarse mientras su secadora está en funcionamiento. 2.
manual de instrucciones, sugerencias RACK DRY (SECADO EN ESTANTE) Instalación del estante de secado 1. Abra la puerta de la secadora. 2. Coloque el estante de secado en el tambor, con el borde superior del estante de secado encima del filtro para pelusas. 3.
LIMPIE EL FILTRO PARA PELUSAS • Después de cada carga. • Para reducir el tiempo de secado. • Para hacer uso de la energía con mayor eficacia. No haga funcionar la secadora sin el filtro para pelusas colocado. CARGUE LA SECADORA DE MANERA ADECUADA •...
cuidado y limpieza PANEL DE CONTROL Limpie con un paño suave y húmedo. No utilice sustancias abrasivas. No rocíe el panel directamente con limpiadores en aerosol. El acabado del panel de control puede dañarse a causa de algunos productos removedores de suciedad y manchas de tratamiento previo al lavado.
sugerencias para prendas especiales SUGERENCIAS PARA PRENDAS ESPECIALES Siga las instrucciones del fabricante o de la etiqueta de indicaciones para secar prendas especiales. Si no se dispone de etiquetas con indicaciones, use la siguiente información como guía. Cubrecamas y edredones •...
guía de solución de problemas CONTROLE ESTOS PUNTOS SI SU SECADORA… PROBLEMA No funciona. No calienta. No seca. Hace ruido. No seca de manera uniforme. 32_ guía de solución de problemas SOLUCIÓN • Asegúrese de que la puerta esté cerrada con traba. •...
Page 73
PROBLEMA SOLUCIÓN Tiene olor. • • Se apaga antes de que la • carga esté seca • Pelusa en las prendas • • • • Prendas arrugadas después • del ciclo Wrinkle-Care • (Antiarrugas) Quedan olores en la • ropa después de Refresh (Refrescar).
Page 74
Problema con el control electrónico (Falla de sobrevoltaje) Problema con el control electrónico (Falla de comunicación) Para los códigos que no figuran más arriba, llame al 1-800-SAMSUNG(726-7864). 34_ guía de solución de problemas SIGNIFICADO Limpie el fi ltro o el conducto de ventilación.
apéndice TABLA DE INDICACIONES SOBRE LA TELA Los siguientes símbolos ofrecen indicaciones acerca de las prendas. La etiqueta de indicaciones de la prenda incluye símbolos para lavado, blanqueado, secado y planchado, o limpieza a seco cuando sea necesaria. El uso de símbolos garantiza la consistencia entre los fabricantes textiles de artículos nacionales e importados.
Page 76
apéndice PROTECCIÓN DEL MEDIO AMBIENTE Este electrodoméstico se fabrica con materiales reciclables. Si decide desechar este electrodoméstico, siga la normativa local relacionada con la eliminación de desechos. Corte el cable de alimentación para que el electrodoméstico no pueda conectarse a una fuente de alimentación. Quite la puerta para que los animales y los niños pequeños no puedan quedar atrapados dentro del electrodoméstico.
TABLA DE CICLOS Ciclo Control de temp. High (Medium) (Alta Normal Potencia High (No change) extra (Alta (Sin cambios)) Plancha Medium (No change) permanente (Media (Sin cambios)) High (Medium) (Alta Toallas Ropa de High (No change) cama (Alta (Sin cambios)) Secado con Extra Low (No sensor...
Page 78
La presente garantía limitada comienza en la fecha original de compra y es válida únicamente para productos comprados y usados en los Estados Unidos. Para recibir el servicio técnico de la garantía, el comprador debe comunicarse con SAMSUNG con el fin de que se determine el problema y los procedimientos del servicio.
Page 79
EXCEPTO LO ESTABLECIDO EN EL PRESENTE, NO EXISTEN GARANTÍAS SOBRE ESTE PRODUCTO, YA SEAN EXPRESAS O TÁCITAS, Y SAMSUNG DESCONOCE TODAS LAS GARANTÍAS QUE INCLUYEN, AUNQUE NO EN CARÁCTER TAXATIVO, CUALQUIER GARANTÍA TÁCITA DE QUE EL PRODUCTO SE ENCUENTRA EN CONDICIONES APTAS PARA LA VENTA, DE DEFRAUDACIÓN DE DERECHOS O DE QUE EL PRODUCTO SE ADECUA A LOS FINES ESPECÍFICOS PARA LOS CUALES SE ADQUIERE.
Page 80
¿TIENE PREGUNTAS O COMENTARIOS? País LLAME AL O VISÍTENOS EN LÍNEA EN U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com N.º de código: DC68-03021A-02_MES...
