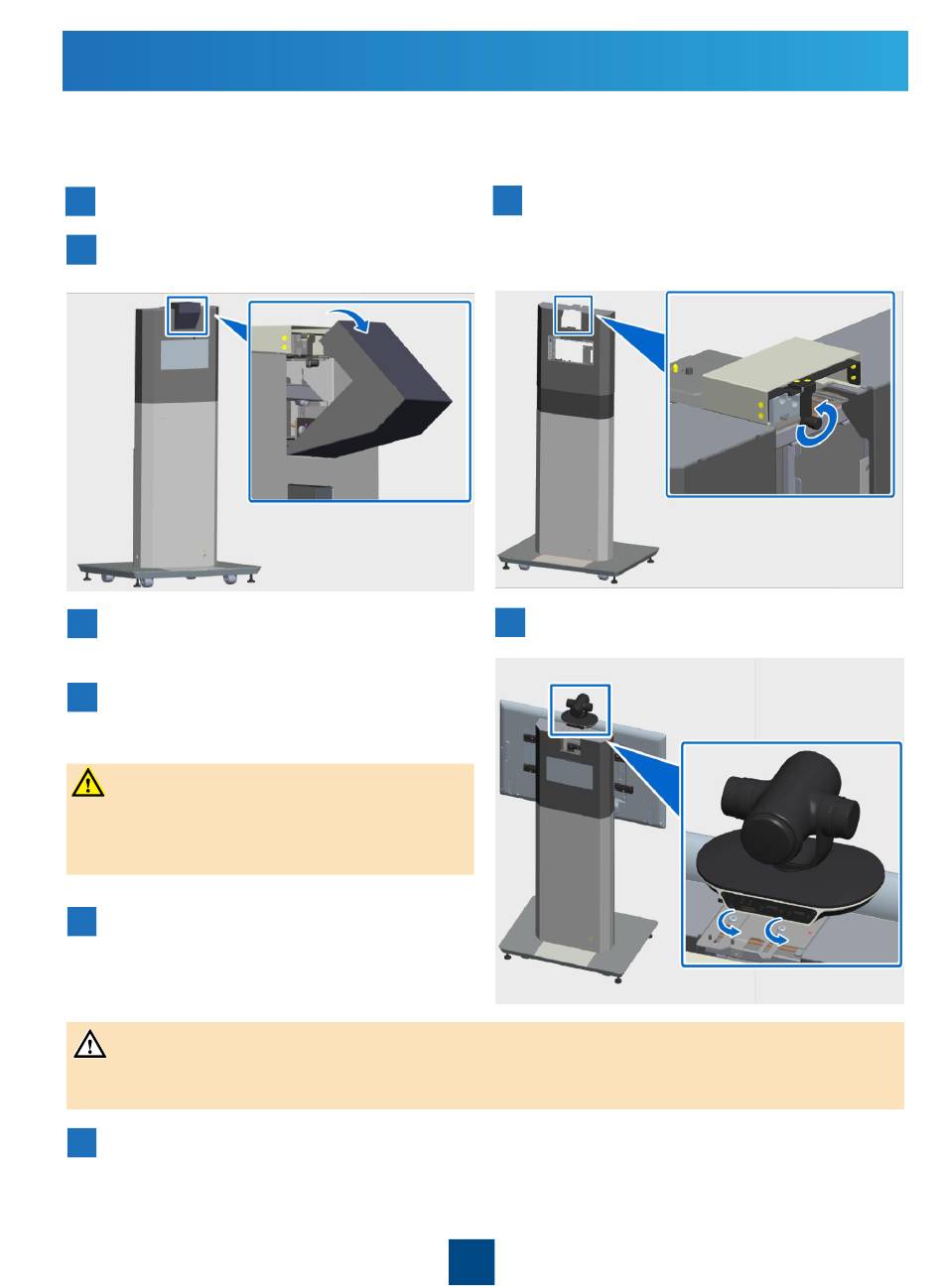

Appendix A Elevating the Rack

The RP rack can be elevated by about 150 mm.
If the display and TE30/VPC600/VPT300 have been installed onto the rack, uninstall them and
elevate the rack.
1 Press the RP power button to turn it OFF.
3
Remove the rear cable cover.
Disconnect all cables of the
4
TE30/VPC600/VPT300.
To remove the display, first disconnect all
6
attached cables.
DANGER
The display requires at least two people to lift
or move it. Exercise caution when lifting or
moving it.
Lift up the display, with one hand
7
supporting the bottom and the other
hand holding the top of the display.
CAUTION
To prevent screen scratching and damage, clear the installation site and ensure that no obstacles or
sharp objects are around the display.
8 Dismount the display from the rack and place it onto the soft cushion on the floor.
To remove the TE30/VPC600/VPT300,
2
first remove the crimping cover.
5 Remove the camera spacer.
Use a Phillips screwdriver to
remove the two screws.
