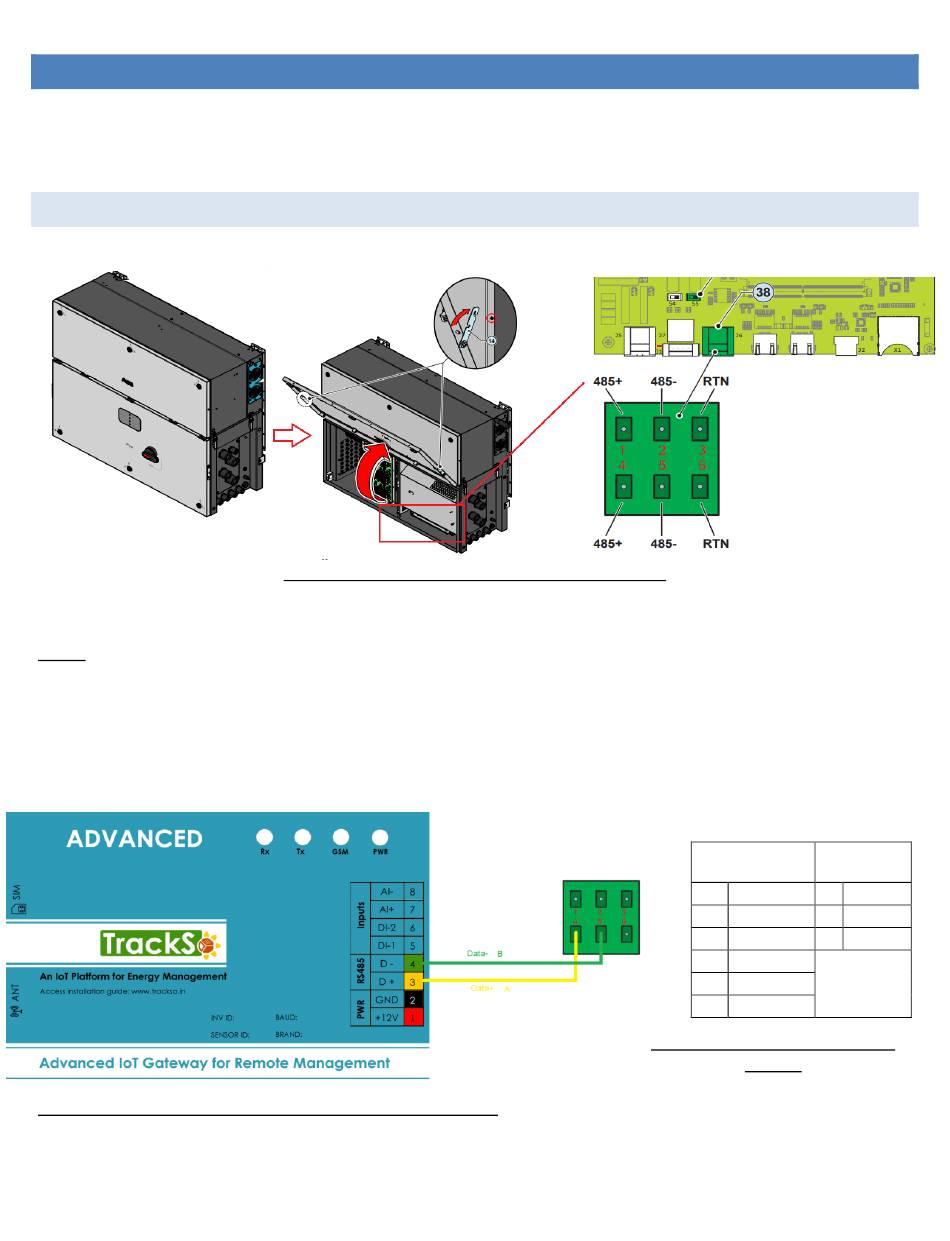

Tighten the gland. Make sure that the gland seals around the cable and that the cable does not move when pulled. ABB Pin No. TrackSo Pin & Assignment 485+ Data + 485 - Data - 485+ Used for Daisy Chain 485- Connection Table AT1 – ABB connections with TrackSo Figure A2- Connection of ABB Communication port with TrackSo...
Page 2
Access Point created by the inverter system: the name of the wireless network created by the system that the connection should be established with, will be ABB-XX-XX-XX-XX-XX-XX where “X” is a hex digit of the MAC address (MAC address can be found on the “Communication Identification label”...
SETTING THE INVERTER ID ,BAUD RATE & PROTOCOL Enter Network Section and Select RS485 and set Baud Rate, Node Address and Protocol Please Note 1) If you connect multiple inverters via RS485, set the same baud rate on each inverter. 2) The inverter ID is used to identify the inverter in a RS485 connection a.

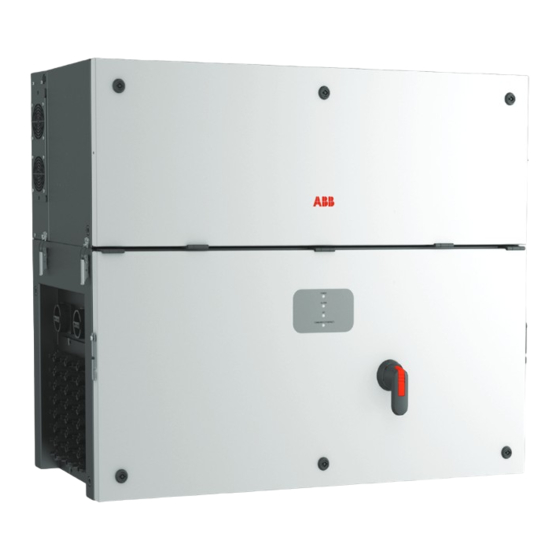

Each inverter is shipped with the RS485 address pre-set to two (2) and with the resistance terminal setting Switch in the OFF position The above details are mentioned in the Installation & Operation Manual for ABB PVS-100/120-TL...
Page 5
TRACKSO WORKING 1. Insure correct connections as detailed in the installation guide. 2. Insert the SIM card. 3. Switch on the power to the TrackSo device. (Minimum 12V/1A input is required) 4. Power LED (Red) of TrackSo IoT gateway glows and stays ON. NOTE: TrackSo IoT Gateway will only be able to send data if the GPRS network is available at the installed location.
Page 6
5. To check the exact network status send the following message to mobile number of the device SMS Command= *2222#<Stat.gsm> IMEI IMEI No. of the data logger (Device Key) Network SIGN Signal Strength out of 31 GPRS CONT- connected , NC- not connected Connected to TrackSo Server or not CONT- connected, NC- not connected no.
Page 7
9. If the state remains Not receiveing for more than 10 minutes, click on your email ID at the top right of the screen and click on ‘Event Ingestion Logs’ in the dropdown. 10. Check if there is some log generated at the time of installation of the TrackSo IoT Gateway device. a.
