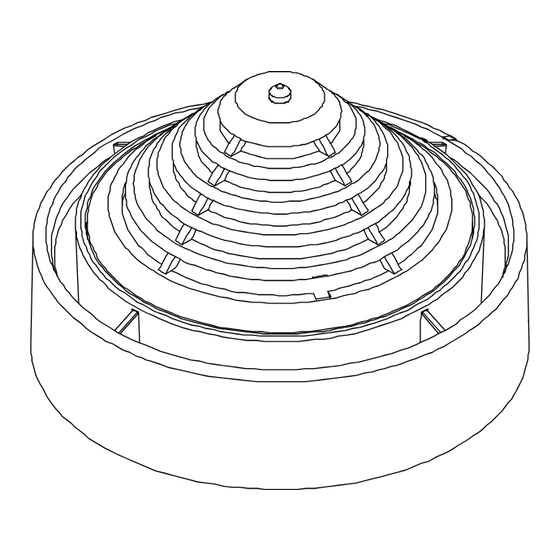

INSTALLATION NOTE MSS 300 WH-EC
Fixing notes
The sounder base is designed for surface mounting and is provided for rear and surface cable
entry. The sounder insert has to be removed before fixing the mounting base. To release the
sounder insert, fixing clamps have to be pushed in direction of the arrows (Fig.2). For rear cable
entry, conduit box mounting, feed the cable through the openings. For surface cable feed, please
break out the prepared cable entries. Install the mounting base with two screws
on a flat dry surface. Therefore, only the prepared fixing bores may be used (see Fig. 2)!
Technical Data
Dimensions:
IP-Rating (as per EN 60529):
Environmental category:
Operating temperature:
Storage temperature:
Housing material:

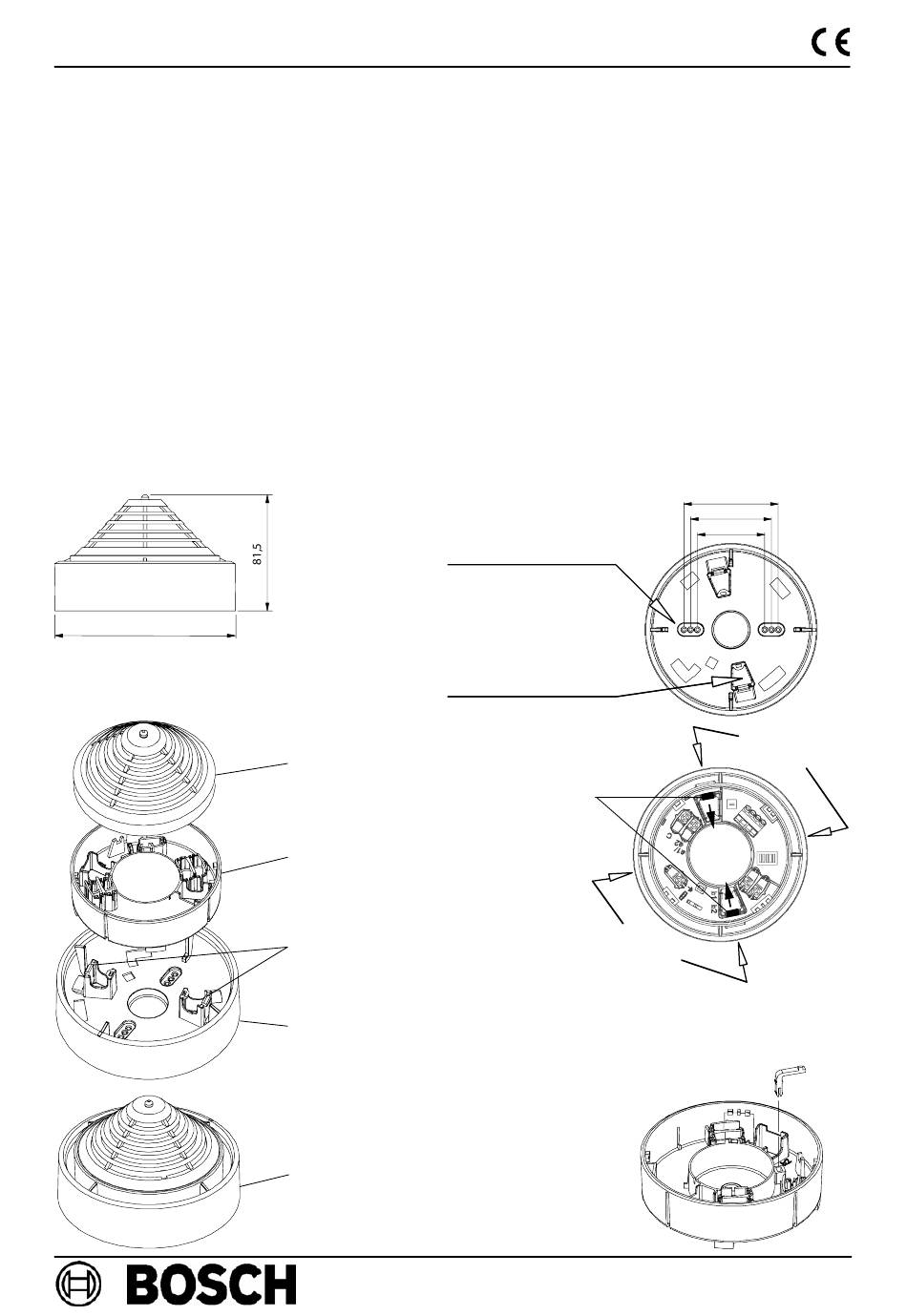

Figure 1: Dimensions
128
Figure 3: Mounting order
see Figure 1 and Figure 2
IP30
Type A
-10°C . . . +55°C
-25°C . . . +85°C
ABS plastics
Detector
Sounder insert
Fixing springs
Mounting base
Detector with sounder
base (complete fitted)
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Terminals: In and Out, for wires 0,28 - 2,5mm
Operating voltage:
Current consumption: 3mA up to 20mA, ± 2mA
(in alarm and depending on the selected tone)
Bosch order number:
CPD-Number:
EN54-3
Figure 2: Installation details
Use only these borings for
fixing the mounting base!
Cable entries for
under plaster cable feed
Sounder insert
fixing clamps
Prepared cable
entries
9V-15V DC / 15V-28V DC
4.998.120.501
0786-CPD-20185
70
60
50
Prepared cable
entries
to
release
sounder
insert
Figure 4: Detector locking spring
4998121239
A5.en / 2020.02
