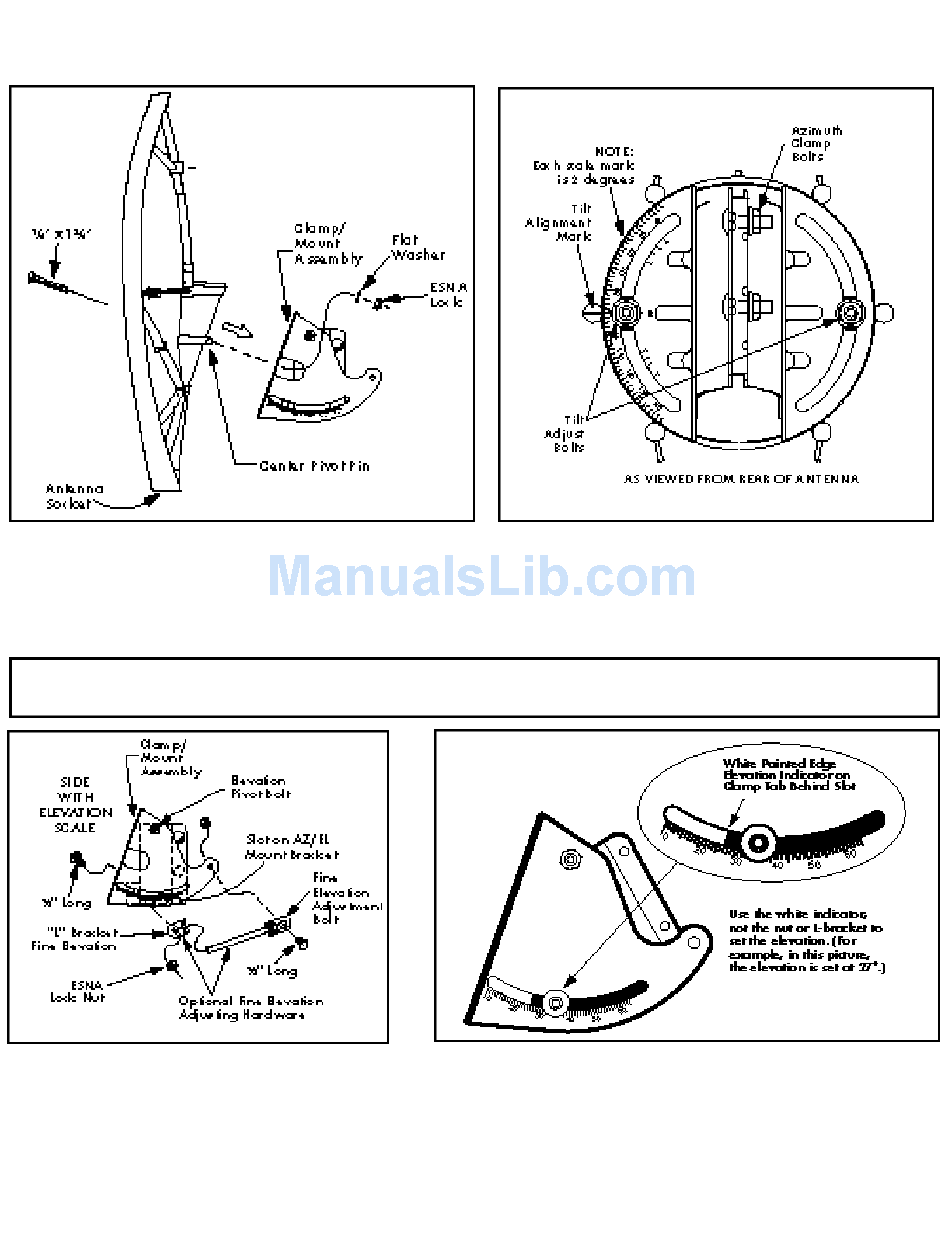

8. Attach the antenna to the tilt slots on the clamp/mount assembly with two 1-3/4" long carriage bolts, flat washers
and ESNA locknuts, making certain the center pin on the antenna is in the mating hole in mount tab before tight-
ening. See Figure 5.
9. Make the PERMANENT TILT adjustment . Remember, this is the value listed for your site location which was determ i n e d
f rom your satellite receiver menu screen. (Do not use numbers from any other sources.) Be sure both bolts in the slots
a re 1/3 turn loosened from tight during adjustment. After adjustment, securely tighten after the desired tilt scale number
is aligned with the molded indicator line on the antenna. See Figure 5A..
IMPORTANT! DO NOT MAKE ANY FURTHER ADJUSTMENTS TO THIS TILT SETTING.
FIGURE 6
10. For models with fine tune adjustment, make the initial elevation adjustment from the value listed for your site loca-
tion which was determined from your satellite receiver menu screen. Be sure both bolts in the slots are 1/3 turn loosened
from tight. Adjust the elevation until the white painted clamp tab edge indicator aligns with the desired elevation
value on scale. See Figures 6 and 6A..
11. If fine elevation adjustment hardware is not included with your dish model, then adjust elevation as per Figure
6A. Tighten elevation bolts on both sides.
FIGURE 5
-10-
FIGURE 5A
FIGURE 6A
