BODY / FRAME
ROCKER PANELS, CONSOLE AND FLOOR
XP

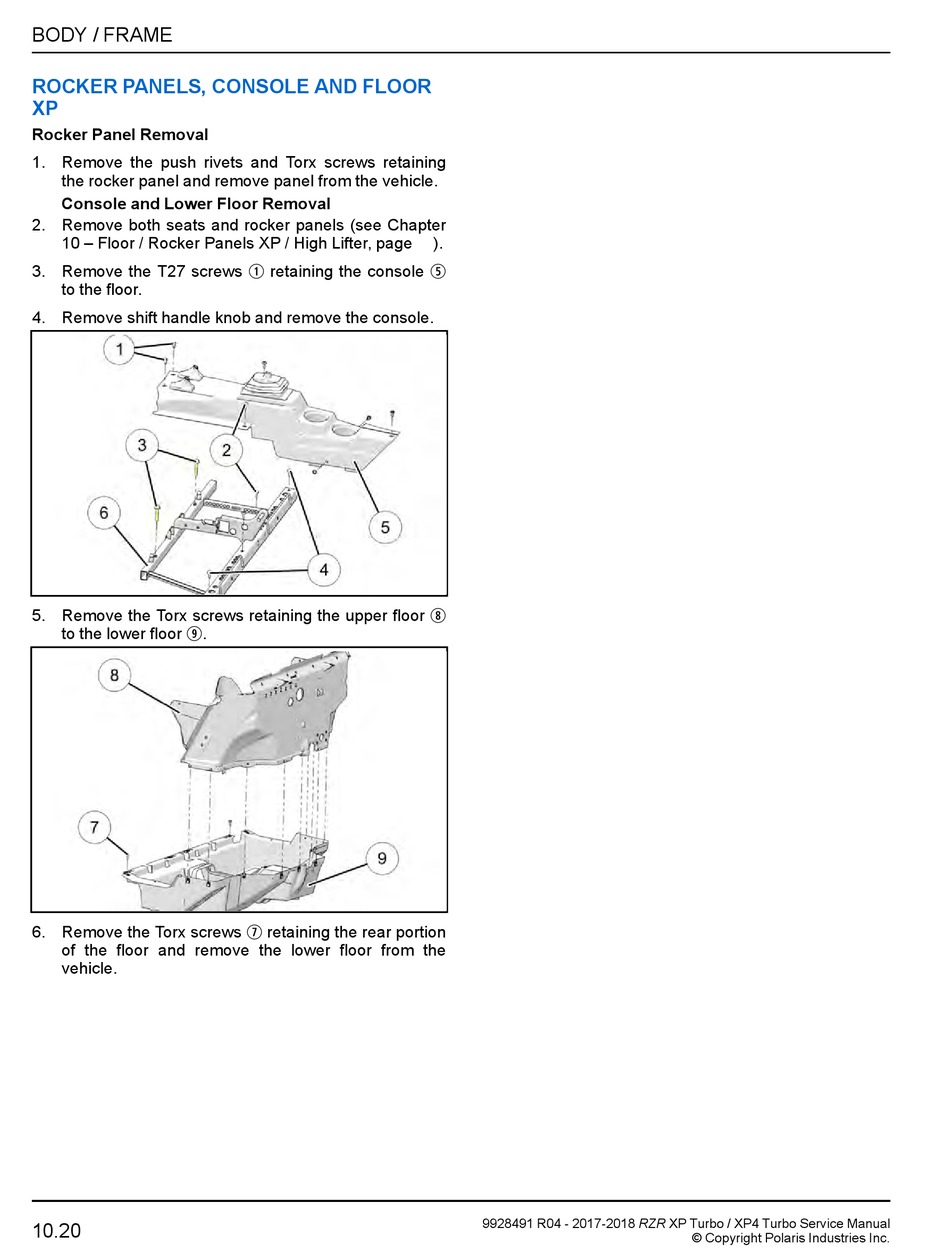

Rocker Panel Removal
1. Remove the push rivets and Torx screws retaining
the rocker panel and remove panel from the vehicle.
Console and Lower Floor Removal
2. Remove both seats and rocker panels (see Chapter
10 – Floor / Rocker Panels XP / High Lifter, page
3. Remove the T27 screws
to the floor.
4. Remove shift handle knob and remove the console.
5. Remove the Torx screws retaining the upper floor
o
to the lower floor .
6. Remove the Torx screws
of the floor and remove the lower floor from the
vehicle.
10.20
q
retaining the console
u
retaining the rear portion
).
t
i
