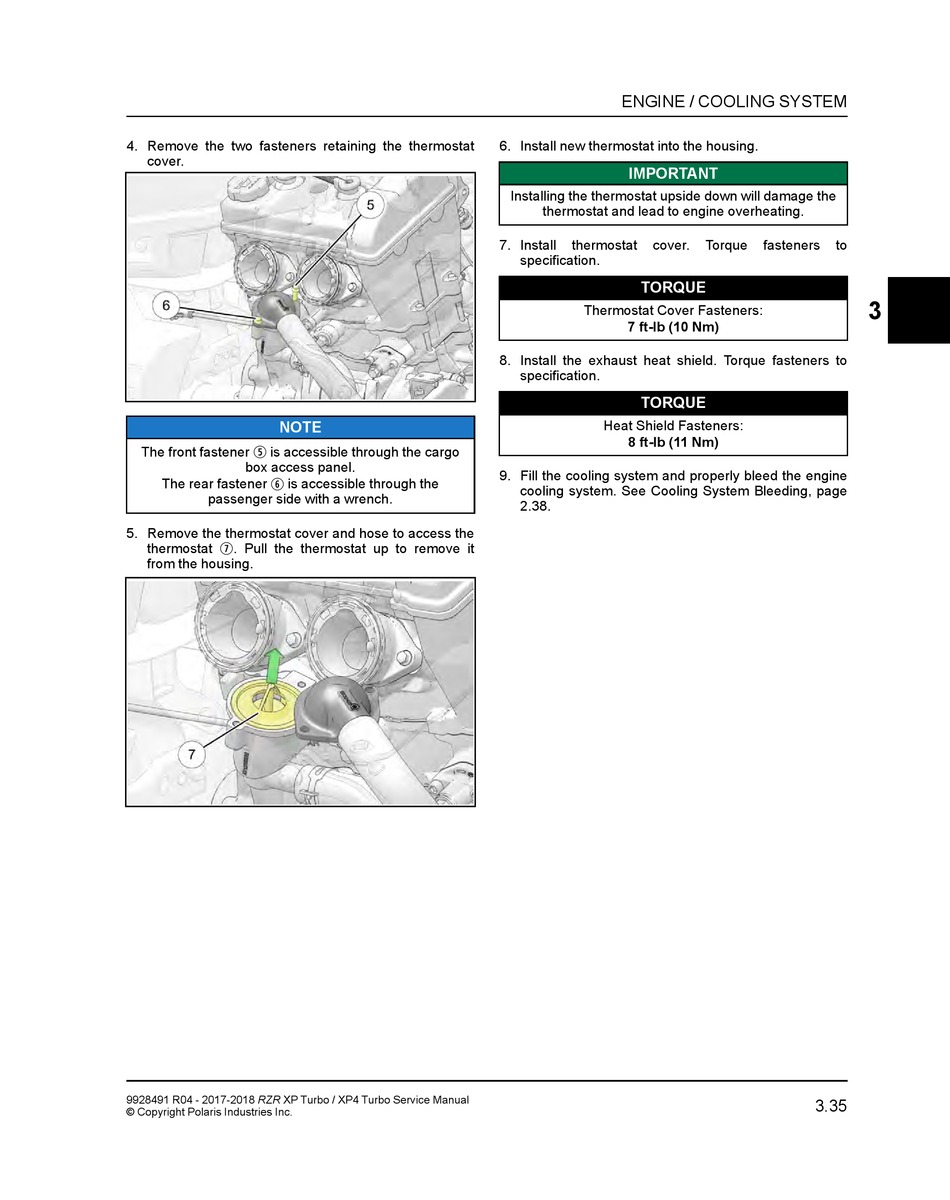

Polaris RZR XP Turbo Service Manual page 127

4. Remove the two fasteners retaining the thermostat
cover.
NOTE
t
The front fastener is accessible through the cargo
box access panel.
y
The rear fastener is accessible through the
passenger side with a wrench.
5. Remove the thermostat cover and hose to access the
u
thermostat . Pull the thermostat up to remove it
from the housing.
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
ENGINE / COOLING SYSTEM
6. Install new thermostat into the housing.
IMPORTANT
Installing the thermostat upside down will damage the
thermostat and lead to engine overheating.
7. Install thermostat cover.
specification.
TORQUE
Thermostat Cover Fasteners:
7 ft-lb (10 Nm)
8. Install the exhaust heat shield. Torque fasteners to
specification.
TORQUE
Heat Shield Fasteners:
8 ft-lb (11 Nm)
9. Fill the cooling system and properly bleed the engine
cooling system. See Cooling System Bleeding, page
2.38.
Torque fasteners to
3
3.35
