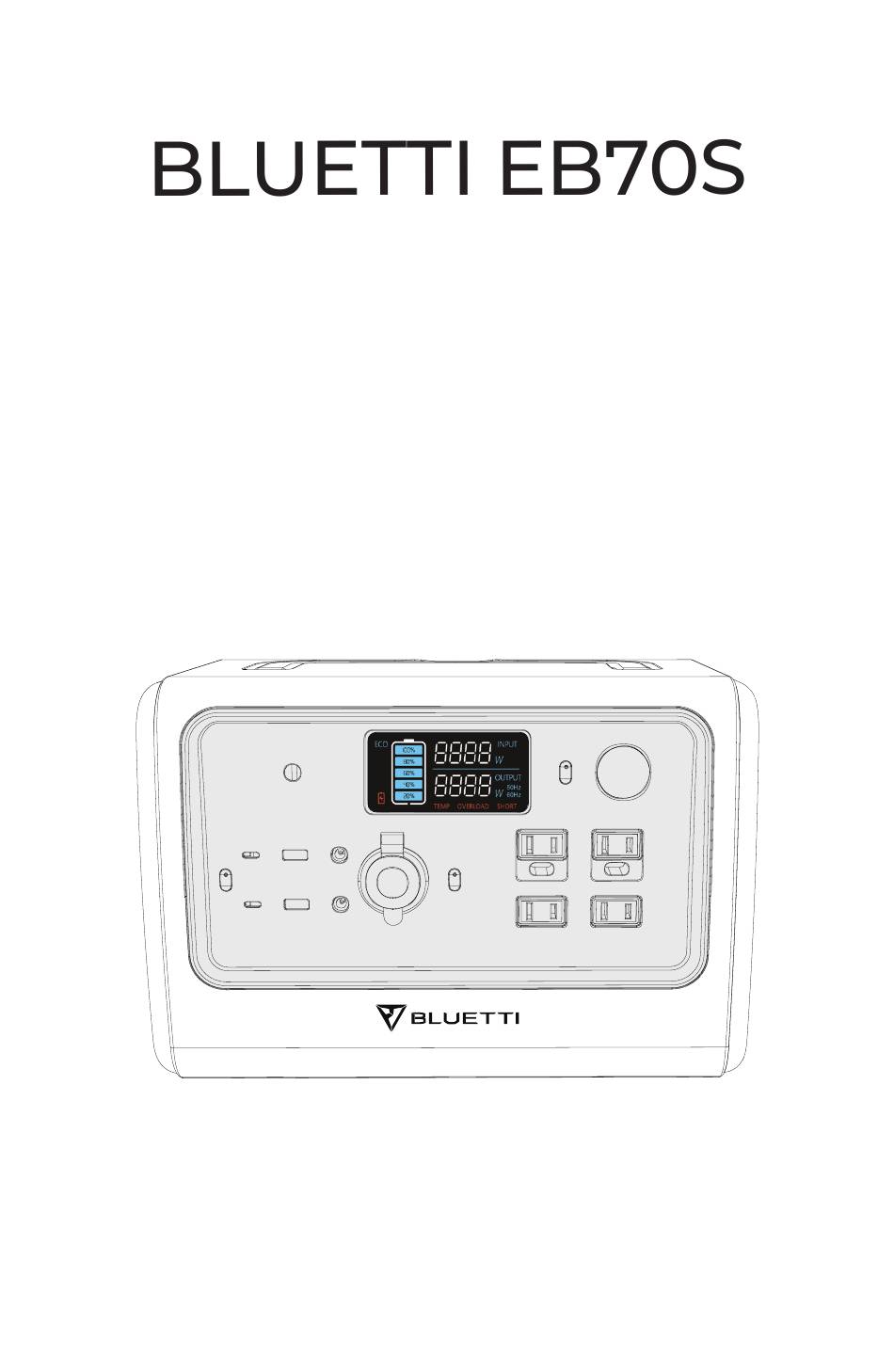

- Page 1 User Manual...
- Page 2 Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions for both indoor and outdoor use while delivering an exceptional eco-friendly experience for our homes and our world.
-
Page 3: Table Of Contents
CONTENTS Before You Begin Instructions General Safety Maintenance Handling & Storage What's In The Box Standard Packaging Product Overview Diagram Specifications Operation LCD Screen Powering On/Off Mode Setting Charging Discharging Appendix FAQs (Frequently Asked Questions) Technical Support... -
Page 4: Before You Begin
The user manual contains instructions and notes on the operation and use of this unit. BLUETTI recommends that you use genuine accessories from BLUETTI. BLUETTI shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the BLUETTI. -
Page 5: Instructions
Instructions General Safety BLUETTI products are developed to be safe and reliable. Please read this guide for important safety information about your device. The guide is intended to help you be more comfortable and productive while using this device. Failure to follow these guidelines for proper set up, use, and care for your device may cause damage to this unit and injury to yourself or others. -
Page 6: Maintenance
Use approved battery and accessories ONLY. Improper use, or use of unapproved or incompatible batteries or components may result in a risk of fire, explosion, or other hazards, and may invalidate any approval or warranty. Turn off the unit IMMEDIATELY in case of malfunction. Use dry powder fire extinguisher in case of fire. -
Page 7: What's In The Box
What's In The Box Standard Packaging Power Station AC Adapter Car Charging Cable Solar Charging Cable User Manual Warranty Card * AC Adapter: 94.5in/240cm. Car Charging Cable: 28in/72cm. Cigarette lighter port to DC7909. Solar Charging Cable: 59in/150cm. MC4 to DC7909. Note: All measurements are for reference only. -
Page 8: Product Overview
Product Overview Diagram 1. Charging Port 7. USB-C Port 2. LCD Screen 8. USB-A Port 3. Wireless Charging Pad 9. DC5521 Port 4. LED Lamp Button 10. Cigarette Lighter Port 5. LED Lamp 11. AC Power Button 6. DC Power Button 12. -
Page 9: Specifications
Specifications EB70S General Battery Capacity 716Wh Cell Type LiFePO4 Dimensions (L*W*H) 12.6*8.5*8.7IN/320*216*221MM Weight 21.4LB/9.7KG Discharging Temperature -4-104°F/-20-40°C Charging Temperature 32-104°F/0-40°C Working Humidity 10-90% AC Output 120V 800W Power 220-240V 1000W Surge 1400W Frequency 50-60Hz DC Output Voltage 12VDC Cigarette Lighter Port *1... -
Page 10: Operation
Operation LCD Screen a: ECO Mode e: Temperature Anomaly Alert b: Battery Capacity f: Output Power c: Input Power g: Overload Alert d: Low-battery Alert h: Short-circuit Alert Powering On/Off Powering on: Press the AC/DC Power Button to start up corresponding output. Green light(on the button) LCD Display * The LCD screen is on for about 30-60 seconds. -
Page 11: Mode
: Under 'Setting Mode', press the AC power button to switch. Charging AC Charging Simply plug the EB70S into a standard wall outlet and start charging. Wall Outlet AC Adapter When on this mode, the AC output will automatically turn off after 4-hour low (≤10W) or no load to save power. - Page 12 Solar Charging Cable Car Charging Connect the EB70S directly to the vehicle plug-in cigarette lighter port via the car charging cable. Car Charging Cable OCV: Open circuit voltage, also for Voc. The maximum voltage that the solar panel can produce with no load on it.
-
Page 13: Discharging
Generator Charging Connect the AC adapter input plug to the generator while the output plug goes to the charging port of EB70S. Discharging Smart Phone LED Light 50-60 Times 20-30 Hrs 7-8 Hrs 10Wh Power Tools Refrigerator Slow Cooker 7-8 Hrs... -
Page 14: Appendix
A: Yes. Press the DC Power Button to enable the wireless charging. Q: Can it charge and discharge at the same time? A: Yes. It supports pass-through charging. EB70S comes with the premium LiFePO4 battery and proprietary Battery Management System to ensure that it can charge and discharge at the same time. -
Page 15: Technical Support
Technical Support Should you require any further assistance, please do not hesitate to contact BLUETTI service team. BLUETTI POWER INC Web: https://www.bluettipower.com/ Tel: 833-988-3663 / 702-463-4792 Mail: service@bluettipower.com Add: 6185 S Valley View Blvd Ste D. Las Vegas, NV 89118.
