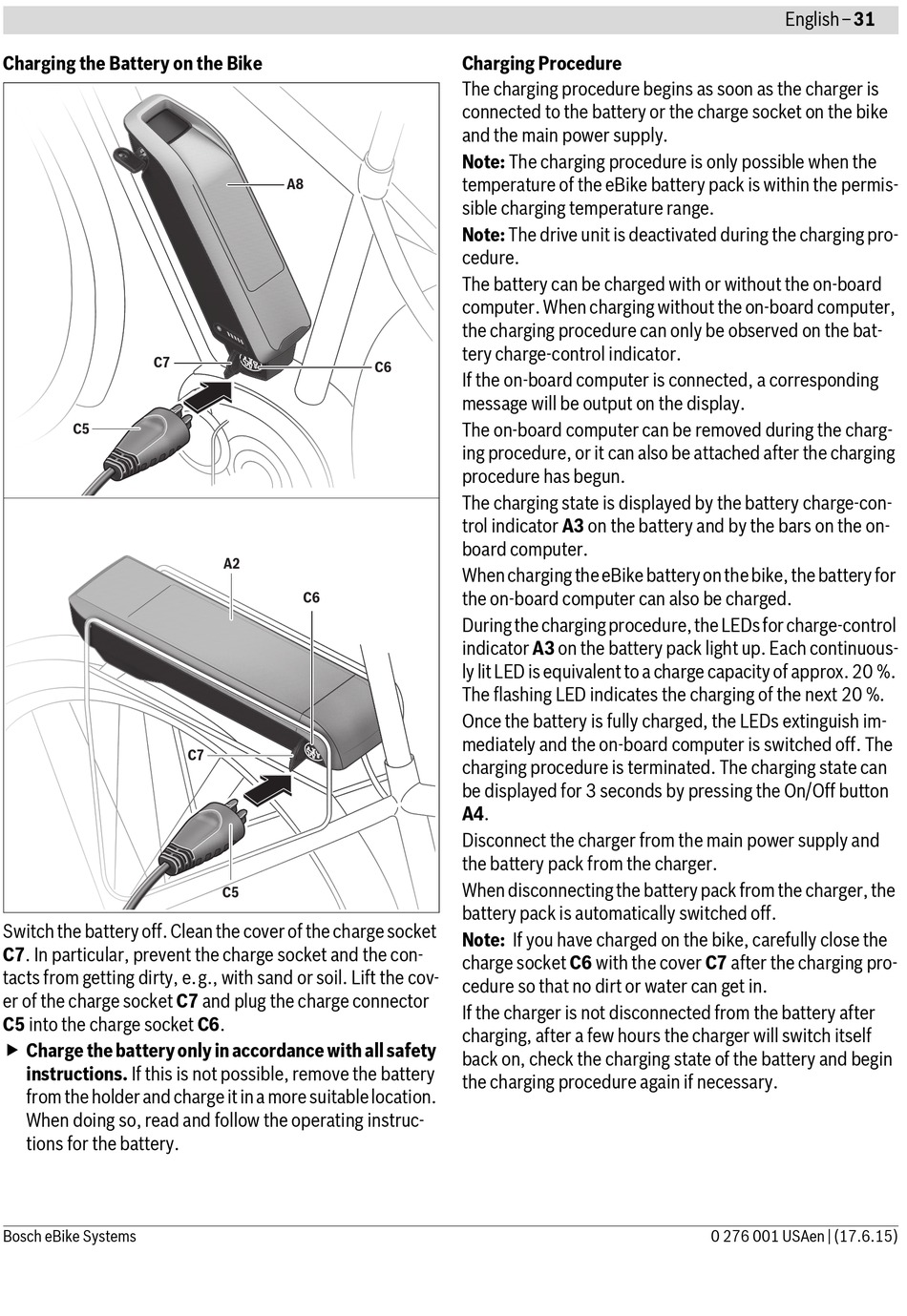

Charging the Battery on the Bike
C7
C5
Switch the battery off. Clean the cover of the charge socket
C7. In particular, prevent the charge socket and the con-
tacts from getting dirty, e.g., with sand or soil. Lift the cov-
er of the charge socket C7 and plug the charge connector
C5 into the charge socket C6.
 Charge the battery only in accordance with all safety
instructions. If this is not possible, remove the battery
from the holder and charge it in a more suitable location.
When doing so, read and follow the operating instruc-
tions for the battery.
Bosch eBike Systems
A8
A2
C6
C7
C5
Charging Procedure
The charging procedure begins as soon as the charger is
connected to the battery or the charge socket on the bike
and the main power supply.
Note: The charging procedure is only possible when the
temperature of the eBike battery pack is within the permis-
sible charging temperature range.
Note: The drive unit is deactivated during the charging pro-
cedure.
The battery can be charged with or without the on-board
computer. When charging without the on-board computer,
the charging procedure can only be observed on the bat-
tery charge-control indicator.
C6
If the on-board computer is connected, a corresponding
message will be output on the display.
The on-board computer can be removed during the charg-
ing procedure, or it can also be attached after the charging
procedure has begun.
The charging state is displayed by the battery charge-con-
trol indicator A3 on the battery and by the bars on the on-
board computer.
When charging the eBike battery on the bike, the battery for
the on-board computer can also be charged.
During the charging procedure, the LEDs for charge-control
indicator A3 on the battery pack light up. Each continuous-
ly lit LED is equivalent to a charge capacity of approx. 20 %.
The flashing LED indicates the charging of the next 20 %.
Once the battery is fully charged, the LEDs extinguish im-
mediately and the on-board computer is switched off. The
charging procedure is terminated. The charging state can
be displayed for 3 seconds by pressing the On/Off button
A4.
Disconnect the charger from the main power supply and
the battery pack from the charger.
When disconnecting the battery pack from the charger, the
battery pack is automatically switched off.
Note: If you have charged on the bike, carefully close the
charge socket C6 with the cover C7 after the charging pro-
cedure so that no dirt or water can get in.
If the charger is not disconnected from the battery after
charging, after a few hours the charger will switch itself
back on, check the charging state of the battery and begin
the charging procedure again if necessary.
