Sealey Professional TOOLS Auto Service VS7023 Instructions

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT:
REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE
PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY
AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1 GENERAL SAFETY
 WARNING! Ensure Health & Safety, local authority, and general
workshop practice regulations are adhered to when using this
tool.
 WARNING! Familiarise yourself with the specific applications
and limitations of the kit, as well as any potential hazards.
 This kit should be used in conjunction with inspection
maintenance procedures recommended in the vehicle
manufacturer's manual.
 Ensure that the kit is correct for the task.
 Wear the appropriate personal protective equipment for the
task. A full range is available from your Sealey dealer.
 DO NOT use the kit for any purpose other than that for which it
is designed.
 Ensure that the vehicle is properly supported with axle stands
before working under the vehicle.
 Ensure there is adequate lighting prior to using the kit. A range
of inspection lamps are available from your Sealey dealer.
 Keep children and unauthorised persons away from the working
area.
 DO NOT use the kit if any parts are damaged or missing, as this
may cause failure and/or personal injury.
 DO NOT use the kit when you are tired, or under the influence of
alcohol, drugs or intoxicating medication.
 After use, store in a safe, dry childproof area.
2. INTRODUCTION

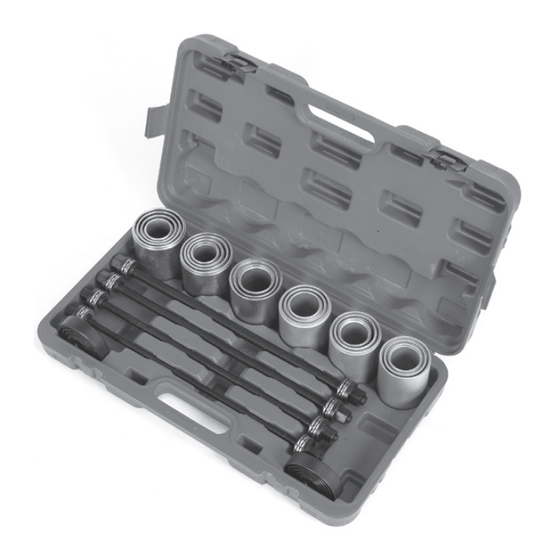

Comprehensive kit for fast and effective in-situ removal/installation of wheel bearings/suspension bushes and seals.
Reduces the possibility of damaging the bearing/suspension housings. Supplied with 4 stepped end plates and 4 force
screws in carry case. Plates and sleeves can also be used in a standard workshop press when in-situ access isn't
possible.
3. CONTENTS
3.1 End Plates (Fig.1)
Two plates with each one having a stepped side
marked 'A' and a stepped side marked 'B'
3.2 Force Screws (Fig.2)
Four different diameter force screws, each 450mm
in length. Each force screw is supplied with two nuts
and two thrust washers.
3.3 'A' Sleeves (Fig.3)
Eleven different diameter gold coloured sleeves, with
a stepped end for use with side-A of the end plates
and a force end with U-shaped inspection slot.
3.4 'b' Sleeves (Fig.4)
Nine different diameter silver coloured sleeves, with
a stepped end for use with side-B of the end plates
and a force end with U-shaped inspection slot.
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL
INSTRUCTIONS FOR:
bEARING & bUSH REMOVAL/
INSTALLATION KIT 26pcs
MODEL No:
ALWAYS KEEP FORCE SCREW
WELL LUbRICATED.
DO NOT USE AIR TOOLS
The force screws maximum load is 150Nm. Exceeding this load will
shorten the life of the force screws The force screws are considered
to be consumable items and are NOT covered under warranty.
Fig.1
Original Language Version
VS7023
VS7023

Issue No.1 - 02/12/11
