Sealey Auto Service VS787 Instructions

Thankyou for purchasing this Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
Important: Read these instRuctions caRefully. note the safe oPeRational ReQuiReMents, WaRninGs and cautions.
use this Jack coRRectly and With caRe foR the PuRPose foR Which it is intended. failuRe to do so May cause daMaGe
oR PeRsonal inJuRy and Will invalidate the WaRRanty. Retain these instRuctions foR futuRe use.
1. safety instRuctions
 WaRninG! Ensure Health and Safety, local authority
and general workshop practice regulations are
adhered to when using tools.

observe standard workshop safety procedures.
 WaRninG! Take extreme caution when using these
tools, ensuring fingers are not trapped between the
belt and pulley, as the pulley is rotated.

Maintain correct balance and footing. Do not over
reach, ensure the floor is not slippery, wear non-slip
shoes.

remove loose fitting clothing, ties, watches, rings,
loose jewellery, and contain or tie back long hair.

Wear approved eye protection. A full range of
personal safety equipment is available from your
Sealey dealer.

do not use these tools for any purpose other than
those for which they have been designed.

do not use tools if damaged.

Maintain tools in good and clean condition for best
and safest performance.

Ensure that a vehicle which has been jacked up is
adequately supported with axle stands.

do not attempt to start engine or move vehicle
whilst in gear with tools fitted.

Account for all tools and parts being used and do not
leave them in or near the engine.

only turn a pulley in the direction of engine rotation.
 iMPoRtant: These instructions are provided as a
guide only. Always refer to the vehicle manufacturer's
service instructions, or a proprietary manual, to
establish the current procedure and data.

When not in use, store the tools in their case in a
safe, dry, childproof location.
INSTrUcTIoNS for:
auXiliaRy stRetch Belt
ReMoval / installation tool
o
MoDEL N
2. sPecification
Designed for the recommended removal and installation of
elasticated or stretch drive belts fitted to modern auxiliary drive
systems such as the alternator or power steering. Prevents
damage to the pulley and prolongs the life of the belt. Two
tools included, one for installation and one for removal. fits
most crankshaft pulleys.
3. oPeRation
3.1. Removal of belt.
3.1.1. Position the removal tool at the top of the pulley,
adjust it to fit onto the pulley by loosening the
wing nut, sliding the adjuster to grip inside the
pulley and then retighten the wing nut (fig.1.A).
3.1.2. Using a spanner or socket to turn the pulley in the
direction of engine rotation, slowly turn it so that the
removal tool fits under the belt (Fig.1.B) and as the
pulley is turned further, the angle of the tool pushes
the belt forwards and away from the pulley.
3.1.3. remove the belt from the engine and remove the
removal tool from the pulley.
3.2. installation of belt.
3.2.1. Position the installation tool at the top of the pulley,
adjust it to fit onto the pulley by loosening the wing
nut, sliding the adjuster to grip inside the pulley and
then retighten the wing nut (fig.2.A).
3.2.2. Position the belt so that it starts to feed over the
installation tool and onto the pulley. Using a spanner
or socket to turn the pulley in the direction of engine
rotation, slowly turn the pulley and ensure that the
belt feeds onto the pulley. You may need to help it
sit correctly on the pulley. continue to turn the pulley
(Fig.2.B) until the tool clears the belt on the other
side of the pulley. Ensure that the belt is correctly
positioned on the pulley.
3.2.3.
remove the installation tool from the pulley and
return tools to their case.
Original Language Version

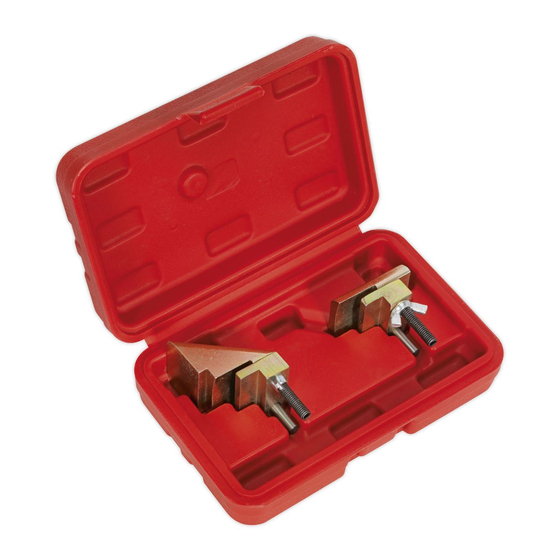

vs787
:
removal Tool
Installation
Tool
VS787 ISSUE No:1 26/10/10
