8. OPERATIONS

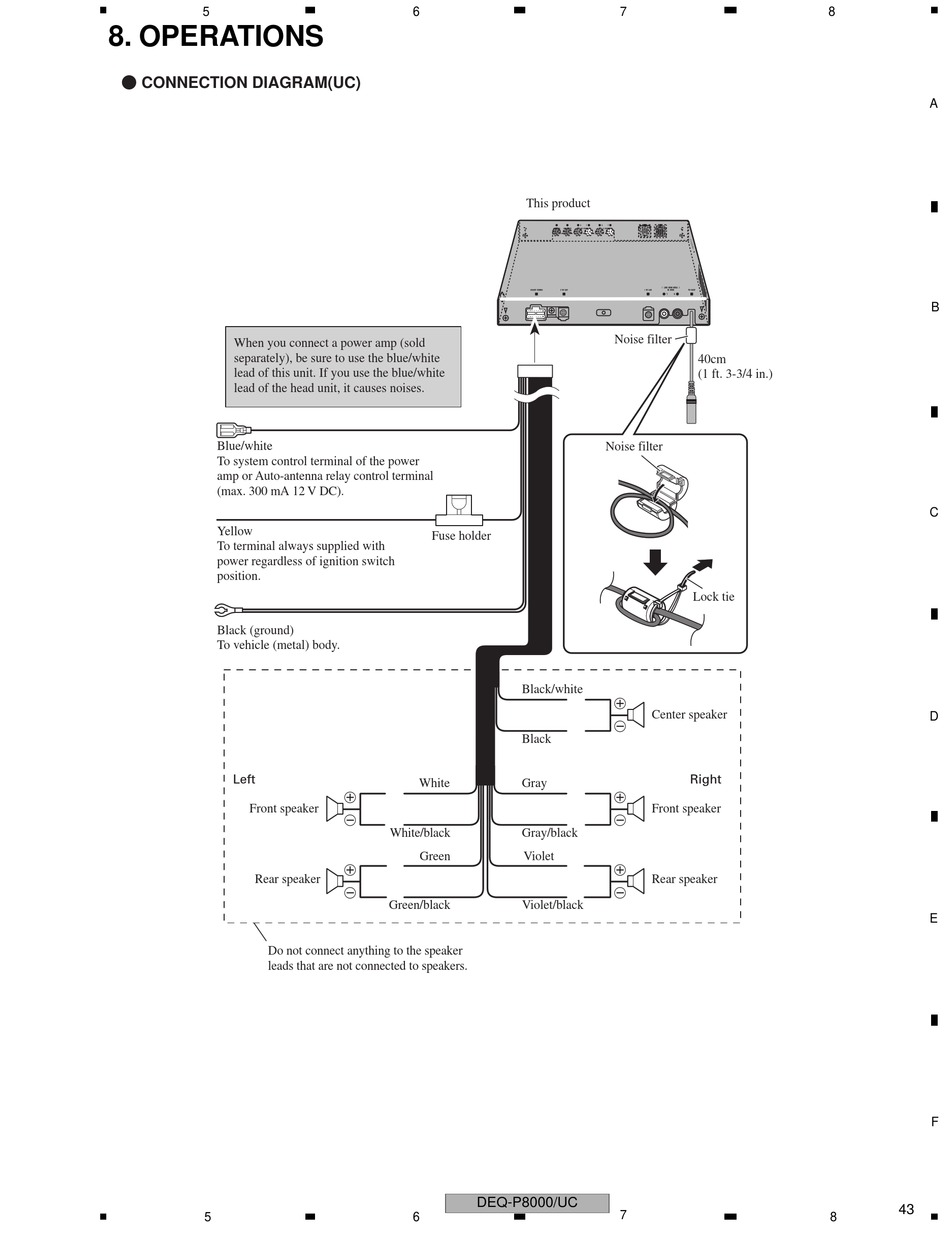

- CONNECTION DIAGRAM(UC)
When you connect a power amp (sold
separately), be sure to use the blue/white
lead of this unit. If you use the blue/white
lead of the head unit, it causes noises.
Blue/white
To system control terminal of the power
amp or Auto-antenna relay control terminal
(max. 300 mA 12 V DC).
Yellow
To terminal always supplied with
power regardless of ignition switch
position.
Black (ground)
To vehicle (metal) body.
Left
Front speaker
Rear speaker
Do not connect anything to the speaker
leads that are not connected to speakers.
5
6
Fuse holder
Black/white
Black
White Gray
+
≠
White/black Gray/black
Green
+
≠
Green/black Violet/black
DEQ-P8000/UC
6
7
This product
Noise filter
40cm
(1 ft. 3-3/4 in.)
Noise filter
Lock tie
+
Center speaker
≠
Right
+
Front speaker
≠
Violet
+
Rear speaker
≠
7
8
A
B
C
D
E
F
