Chapter 3. Installation and Mounting

Installing a RX3i CEE Expansion Carrier

➢ To install a RX3i CEE Expansion Carrier
1. Open the connector cap on the RX3i CEP Carrier.
2. Slide and install the CEE Expansion Carrier along the guide slots on the CEP Carrier.
3. When the Expansion Carrier is aligned with the CEP Carrier, engage the expansion connectors.
4. Close the connector cap.
5. Secure the Expansion Carrier to the DIN-rail or panel. Refer to the procedure, Installing an RX3i
CEP Carrier on a DIN-rail, or Panel Mounting.
6. Connect the grounding hole on the CEE001 to the panel or enclosure. Refer to the section,
Grounding.

Removing a RX3i CEE Expansion Carrier

➢ To remove a RX3i CEE Expansion Carrier
1. Remove the RX3i I/O module from the RX3i CEE Expansion Carrier to be removed.
2. Open and gently pull out the connector vertically to disengage the expansion connectors.
3. Release the DIN-rail latch from the DIN-rail and/or remove the panel mount screws.
4. Slide the Expansion Carrier along the guide slot of the RX3i CEP Carrier and remove the Expansion
Carrier
28

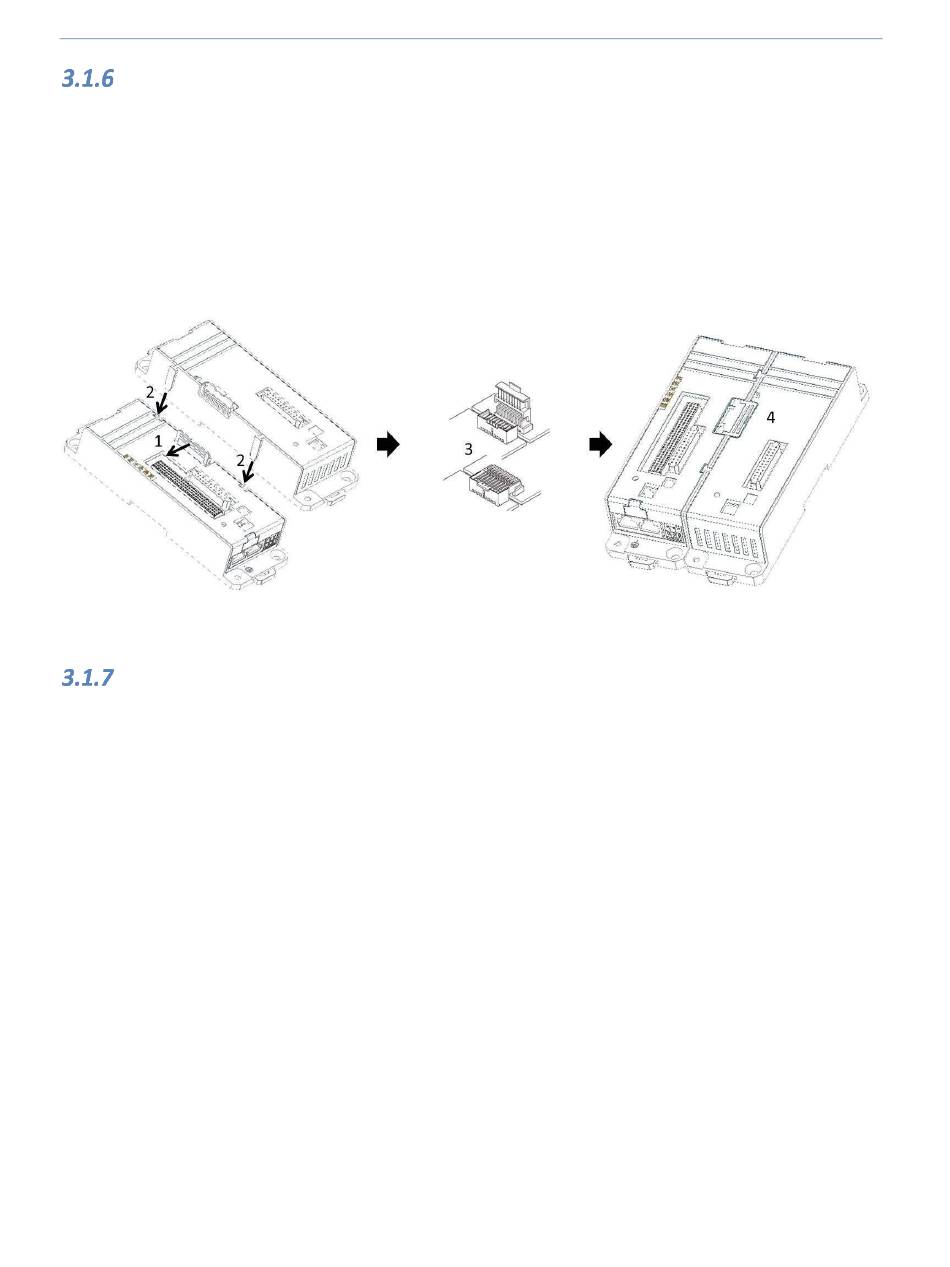

Figure 10: Interconnecting CEP001 & CEE001
