Code Description
531 Configuration error
540 Temperature error
The pedelec is outside
the permitted temper-
ature range
550 An inadmissible
electrical load has
been detected
Software version error 1
580
591 Authentication error
592 Incompatible
component
593 Configuration error
595, Communication error
596
602 Internal error during
charging
603 Internal fault

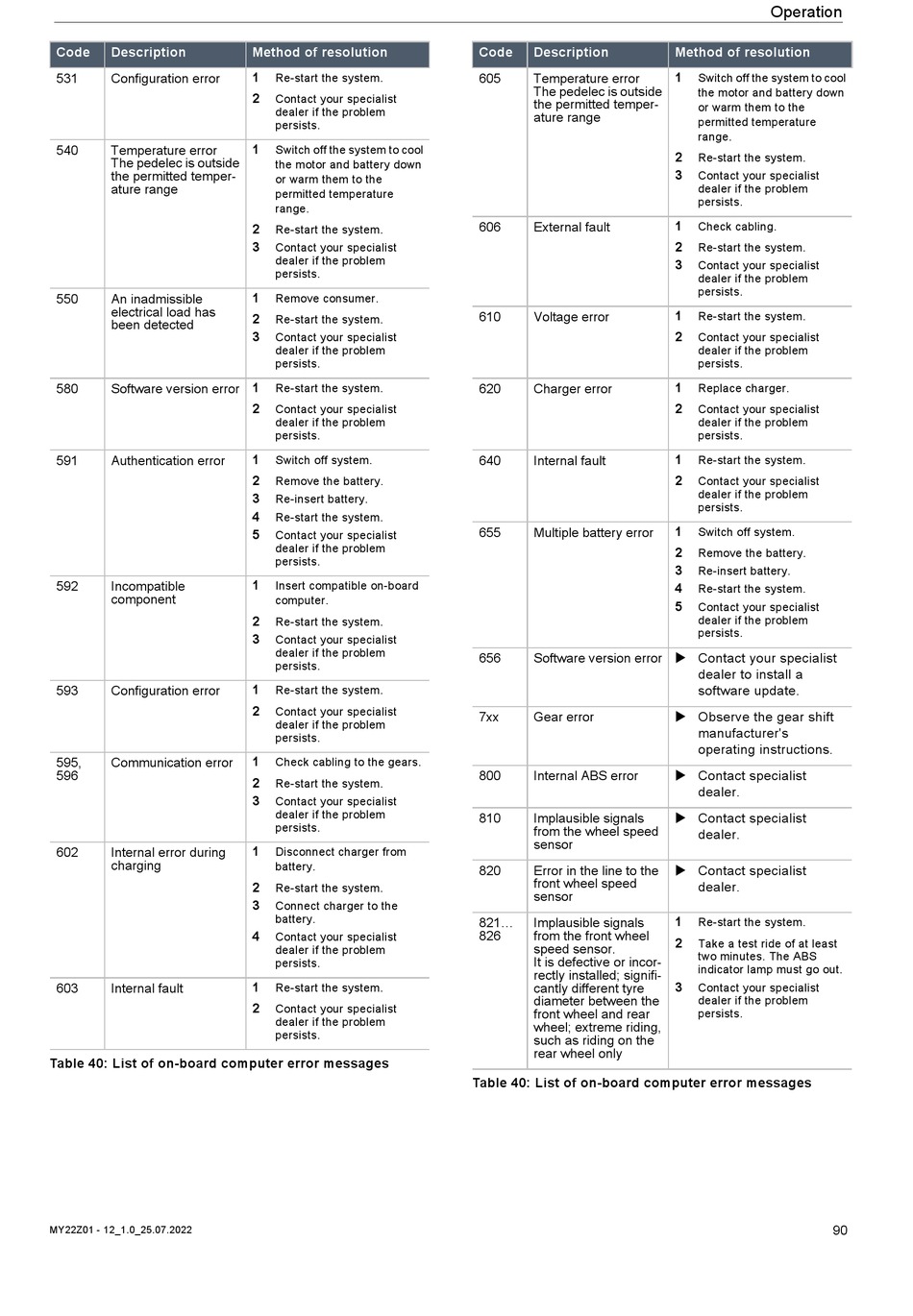

Table 40: List of on-board computer error messages
MY22Z01 - 12_1.0_25.07.2022
Method of resolution
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
1
Switch off the system to cool
the motor and battery down
or warm them to the
permitted temperature
range.
2
Re-start the system.
3
Contact your specialist
dealer if the problem
persists.
1
Remove consumer.
2
Re-start the system.
3
Contact your specialist
dealer if the problem
persists.
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
1
Switch off system.
2
Remove the battery.
3
Re-insert battery.
4
Re-start the system.
5
Contact your specialist
dealer if the problem
persists.
1
Insert compatible on-board
computer.
2
Re-start the system.
3
Contact your specialist
dealer if the problem
persists.
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
1
Check cabling to the gears.
2
Re-start the system.
3
Contact your specialist
dealer if the problem
persists.
1
Disconnect charger from
battery.
2
Re-start the system.
3
Connect charger to the
battery.
4
Contact your specialist
dealer if the problem
persists.
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
Code Description
605 Temperature error
The pedelec is outside
the permitted temper-
ature range
606 External fault
610 Voltage error
620 Charger error
640 Internal fault
655 Multiple battery error
Software version error  Contact your specialist
656
7xx Gear error
800 Internal ABS error
810 Implausible signals
from the wheel speed
sensor
820 Error in the line to the
front wheel speed
sensor
821... Implausible signals
826 from the front wheel
speed sensor.
It is defective or incor-
rectly installed; signifi-
cantly different tyre
diameter between the
front wheel and rear
wheel; extreme riding,
such as riding on the
rear wheel only
Table 40: List of on-board computer error messages
Operation
Method of resolution
1
Switch off the system to cool
the motor and battery down
or warm them to the
permitted temperature
range.
2
Re-start the system.
3
Contact your specialist
dealer if the problem
persists.
1
Check cabling.
2
Re-start the system.
3
Contact your specialist
dealer if the problem
persists.
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
1
Replace charger.
2
Contact your specialist
dealer if the problem
persists.
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
1
Switch off system.
2
Remove the battery.
3
Re-insert battery.
4
Re-start the system.
5
Contact your specialist
dealer if the problem
persists.
dealer to install a
software update.
 Observe the gear shift
manufacturer's
operating instructions.
 Contact specialist
dealer.
 Contact specialist
dealer.
 Contact specialist
dealer.
1
Re-start the system.
2
Take a test ride of at least
two minutes. The ABS
indicator lamp must go out.
3
Contact your specialist
dealer if the problem
persists.
90
