Sliding Rack Mount Kit Installation
This document describes how to install the sliding rack mount kit on an HP xw6200 Workstation and how
to install the workstation into a rack.

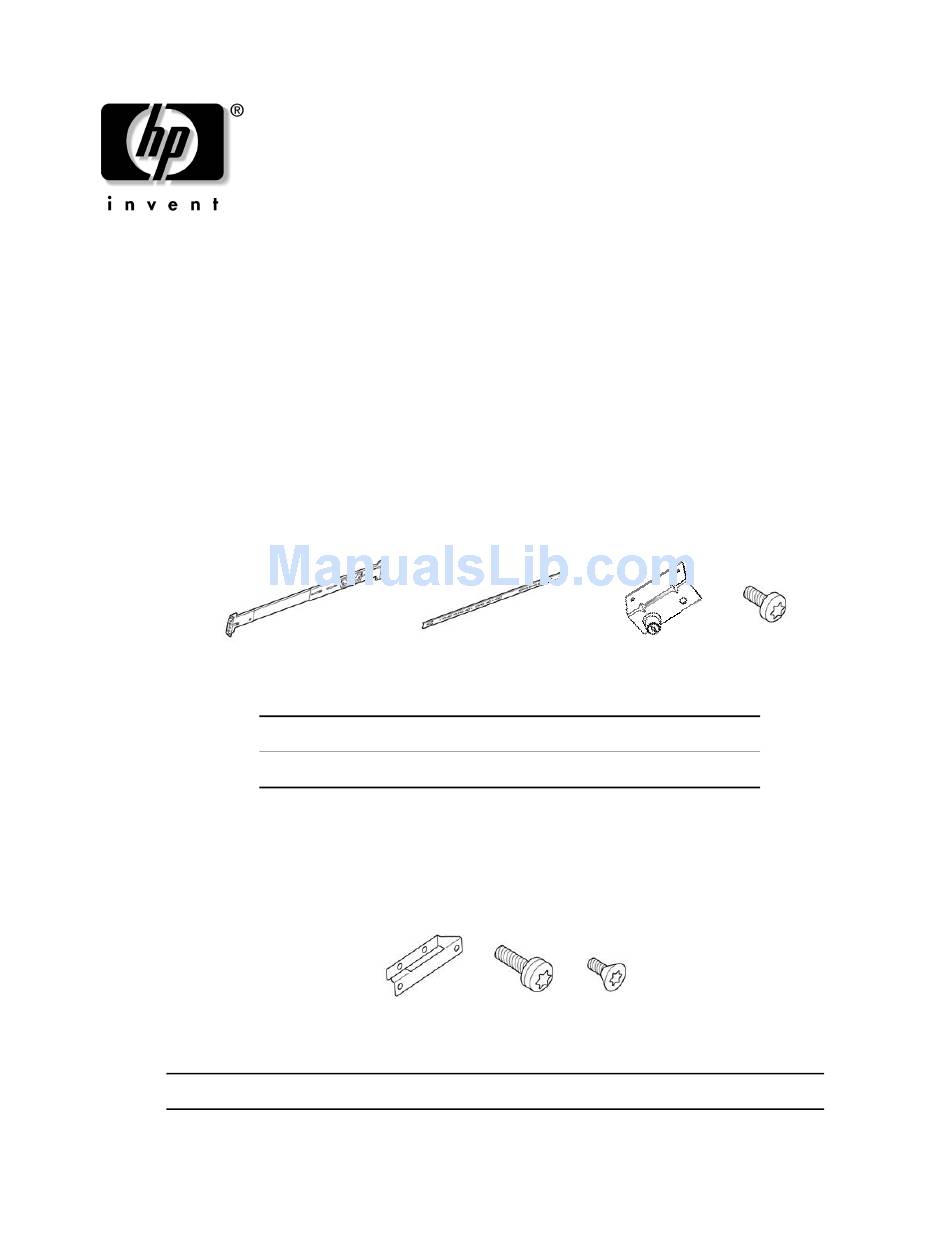

Kit Contents

This product is shipped with the necessary supplies for installing the sliding rack kit on an HP xw6200
Workstation in HP round hole and square hole racks, earlier HP racks, and some third-party racks
including some with threaded holes. The following list describes all of the included parts. Not all parts are
used with every application.
A
B
Earlier HP Racks
Parts for installing the sliding rack mount in HP legacy racks are sold separately in adapter kit part number
5064-9677. This adapter includes these parts:
AA
Front bracket (x2)
Sliding Rack Mount Kit Installation
HP xw6200 Workstation
A.
Outer slide assembly (x2)
Inner slide assembly (x2)
AA.
BB
M5x16mm screw (x4)
Page 1 of 10
B.
C.
C
Flanges (x2)
D
M4 screws (x8)
BB.
CC.
CC
M6 flat head screw (x2)
D.

Advertisement

loading

Related Manuals for HP xw6200

Summary of Contents for HP xw6200

  • Page 1: Kit Contents

    Sliding Rack Mount Kit Installation Sliding Rack Mount Kit Installation This document describes how to install the sliding rack mount kit on an HP xw6200 Workstation and how to install the workstation into a rack. Kit Contents This product is shipped with the necessary supplies for installing the sliding rack kit on an HP xw6200 Workstation in HP round hole and square hole racks, earlier HP racks, and some third-party racks including some with threaded holes.

  • Page 2: Tools Required

    For information on these tasks, refer to the Service and Technical Reference Guide for your HP Workstation at: http://www.hp.com/support/workstation_manuals. For product-specific information, refer to the Service and Technical Reference Guide for your HP Workstation at http://www.hp.com/support/workstation_manuals. Page 2 of 10...
  • Page 3 Sliding Rack Mount Kit Installation Install the Rails and Flanges 1. Align the left bracket with the screw holes on the left side (bottom) of the chassis 1. 2. Use a Torx driver and two screws to attach the flange 2. 3.
  • Page 4 Sliding Rack Mount Kit Installation Install the Rails to the Rack To adjust slides (only necessary to fit shallower or deeper non-HP racks) 1. Remove the slide adjustment attachment 1. 2. Adjust the rail to the desired length 2. 3. Insert the slide adjustment attachment 3.
  • Page 5 Sliding Rack Mount Kit Installation Installing on Round Hole and Square Hole Racks NOTE: This product must be mounted in the middle of a 4U space. Use the mounting aid at the end of this document to determine a 4U space and mark the center. 1.
  • Page 6 Sliding Rack Mount Kit Installation Installing on Threaded Hole Racks NOTE: This product must be mounted in the middle of a 4U space. Use the mounting aid at the end of this document to determine a 4U space and mark the center. 1.
  • Page 7 Sliding Rack Mount Kit Installation Installing on Earlier HP Racks NOTE: The parts for this procedure are available separately in adapter kit number 5064-9677. 1. Remove the rear mounting brackets from the outer slides 1. 2. Remove the front mounting brackets from the outer slides 2. Save the nuts for use in steps 5 and 6 below.

  • Page 8: Mounting Aid

    Sliding Rack Mount Kit Installation Mount into Rack 1. Insert the inner rails into the outer rails. 2. Push the workstation to slide it all the way into the rack. 3. Secure the workstation in the rack by tightening the thumb screws on the mounting flanges. Mounting Aid 1.
