OWNER'S MANUAL
GAS RANGE
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times. The
complete owner's manual can be found on the LG website at:
http://gscs-manual.lge.com/CVZ/MFL68920531/main.html or by
scanning the QR code.
ENGLISH
LSGL6337* / LSGL6335*
www.lg.com
MFL68920531
Copyright © 2021 LG Electronics Inc. All Rights Reserved.
Rev.08_111921

Advertisement

Table of Contents
loading

Related Manuals for LG LSGL6335F

Summary of Contents for LG LSGL6335F

  • Page 1 GAS RANGE Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. The complete owner’s manual can be found on the LG website at: http://gscs-manual.lge.com/CVZ/MFL68920531/main.html or by scanning the QR code. ENGLISH LSGL6337* / LSGL6335* www.lg.com...
  • Page 2 Safety for a Gas Range WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. Do not store or use gasoline or other flammable vapors and liquids in •...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY Surface Burners INSTRUCTIONS 18 Assembling the Surface Burners 19 Checking Ignition of the Surface Burners READ ALL INSTRUCTIONS BEFORE USE 19 Adjusting the Surface Burner to the Low Flame (Simmer) Setting 5 Safety Messages 5 Anti-Tip Device Optional Rear Filler 19 Installing the Rear Filler WARNING...
  • Page 4 50 Wireless LAN Module Specifications 50 FCC Notice 51 FCC RF Radiation Exposure Statement 51 Open Source Software Notice Information Smart Diagnosis™ Feature 51 Using LG ThinQ to Diagnose Issues 51 Using Audible Diagnosis to Diagnose Issues 52 MAINTENANCE Cleaning...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Download this owner's manual at http://www.lg.com Safety Messages Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

  • Page 6: Installation

    IMPORTANT SAFETY INSTRUCTIONS WARNING • Do not step or sit on the oven door. The range could be tipped and injury might result from spilled hot liquid, food, or the range itself. • Never remove the oven legs. The range will not be secured to the anti-tip bracket if the legs are removed.

  • Page 7: Operation

    IMPORTANT SAFETY INSTRUCTIONS • This product should not be installed below ventilation type hood systems that direct air in a downward direction. - Doing so may cause ignition and combustion problems with the gas burners resulting in personal injury and may affect the cooking performance of the unit. •...

  • Page 8: Maintenance

    IMPORTANT SAFETY INSTRUCTIONS • Do not line oven walls or bottom with aluminum foil or allow them to contact exposed heating elements in the oven. Doing so could create a fire hazard or cause damage to the range. • During oven operation, the upper surface of the drawer cavity becomes hot and may cause burns. Never allow children to remain unsupervised near the oven or cooktop.

  • Page 9: Caution

    IMPORTANT SAFETY INSTRUCTIONS CAUTION CAUTION • To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: Installation • After using your range for an extended period of time high floor temperatures may result. Many floor coverings will not withstand this kind of use.

  • Page 10: Product Overview

    10 PRODUCT OVERVIEW PRODUCT OVERVIEW Product Features Exterior & Interior Cooktop Cooktop controller Oven door Storage drawer (LSGL6337* : handle , LSGL6335* : no handle) Oven mode knob Gasket Broil burner Convection burner Model & serial number plate Product Specifications The appearance and specifications listed in this manual may vary due to constant product improvements.

  • Page 11: Accessories

    Grid Anchors (6ea) Broiler pan Template (1ea) NOTE • Contact LG Customer Service at 1-800-243-0000 LP Nozzle Conversion Kit (1-888-542-2623 in Canada) if any accessories are missing. • For your safety and for extended product life, only use authorized components.

  • Page 12: Installation

    12 INSTALLATION INSTALLATION Before Installing Unpacking and Moving the Range WARNING Tools Needed • You should use two or more people to move and install the range. (Excessive Weight Hazard) Failure to do so can result in back or other injury. •...

  • Page 13: Choosing The Proper Location

    INSTALLATION tape or glue. These products can damage the surface of your range. Choosing the Proper Location Ventilation • Do not locate your range where it may be subject to strong drafts. Any openings in the floor or wall behind the range should be sealed. Make sure the openings around the base of the range that supply fresh air for combustion and ventilation are not blocked by carpeting or...

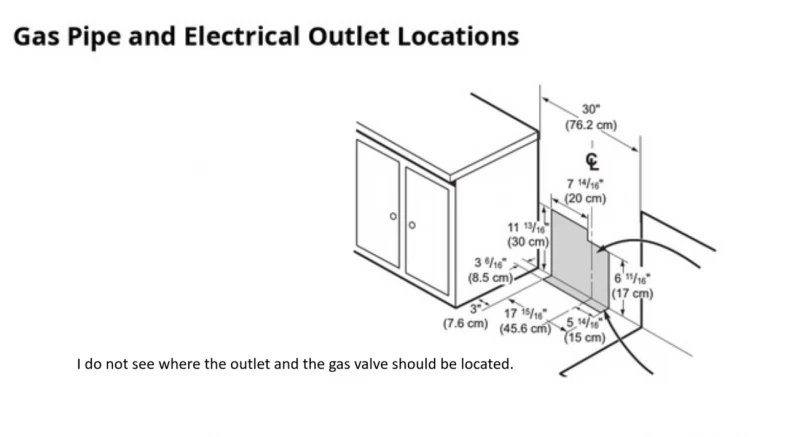

  • Page 14: Dimensions And Clearances

    14 INSTALLATION Dimensions and Clearances • Provide proper clearance between the range and adjacent combustible surfaces. • These dimensions must be met for safe use of your range. • The location of the electrical outlet and pipe opening (see "Gas Pipe and Electrical Outlet Locations" below) may be adjusted to meet specific requirements.

  • Page 15: Leveling

    INSTALLATION Clearances Minimum Minimum clearance to left/right wall Maximum depth for cabinets above countertops Front edge of the range side panel forward from cabinet To cabinets below cooktop and at the range back Gas Pipe and Electrical Outlet Locations 30" (76.2 cm) "...

  • Page 16: Connecting Gas

    16 INSTALLATION Connecting the Range to Gas Checking Adjustments Place the level diagonally on the oven rack, WARNING and check each direction for level. • Isolate the range from the gas supply system by • First check direction . Then check closing its individual shut-off valve during any direction pressure testing of the gas supply system at test...

  • Page 17: Adjusting Air Shutters (For Lp Conversions)

    INSTALLATION 1/2" Adapter NOTE Gas Flow into Range • The gas pressure regulator valve is open when shipped. If the range does not work properly Flex connector (6 ft. max.) after installation, make sure the regulator valve is still open. Gas shut-off valve 1/2"...

  • Page 18: Surface Burners

    18 INSTALLATION Surface Burners WARNING • Do not, under any circumstances, cut or remove Assembling the Surface Burners the third (ground) prong from the power cord. • The customer should have the wall receptacle CAUTION and circuit checked by a qualified electrician to •...

  • Page 19: Checking Ignition Of The Surface Burners

    INSTALLATION Checking Ignition of the Surface Insert a small, flat-blade screwdriver into the opening marked below. Burners Electric Ignition Select a surface burner knob and simultaneously push in and turn to the Lite position. You will hear a clicking sound indicating proper operation of the spark module.

  • Page 20: Anti-Tip Device

    20 INSTALLATION • Engage the range to the anti-tip device by NOTE following the guide on the anti-tip bracket template. Ensure the anti-tip device is re- • If the countertop depth is less than 24 3/4 ", the engaged when the range is moved by following control panel will not sit flush with the the guide on the anti-tip bracket template.

  • Page 21: Test Run

    INSTALLATION Turn oven mode knob to select Broil. Hi Anti-tip bracket appears in the display. Leveling leg • Make sure the door is closed. Slide the range against the wall, making sure the back leg slides into and engages the anti- Press START.

  • Page 22: Operation

    22 OPERATION OPERATION Control Panel Control Panel Features Model: LSGL6337* Model: LSGL6335* Smart Diagnosis Use during the Smart Diagnosis feature. Control Lock Press and hold the button for 3 seconds to lock the control panel. Cook Time Press the button to set the desired amount of time for food to cook. The oven shuts off when the set cooking time runs out.

  • Page 23: Knob/Display Lighting (Model Lsgl6337*)

    OPERATION Settings Press button to select and adjust oven settings. Clock Press button to set the time of day. Light Press the button to turn oven light on or off. START Press the button to start all oven features. Oven Mode Knob Turn the knob to select oven operating mode.

  • Page 24: Changing Oven Settings

    24 OPERATION NOTE • If the knob lighting does not match the actual operation of the heating elements, it may indicate a problem with the product. Changing Oven Settings The Timer On/Off feature can be used during any of the other oven control functions. Clock For example, to set 5 minutes: The clock must be set to the correct time of day in...

  • Page 25: Settings (Hour Mode, Convection Auto Conversion, Oven Thermostat, Preheat Alarm Light, Beeper Volume, Fahrenheit Or Celsius)

    OPERATION The power on chime sounds, SEt appears in Convection Auto Conversion is enabled by default. the display, and the Wi-Fi icon ( ) blinks. To change the setting, follow these instructions. Press Settings repeatedly until Auto appears Connect the appliance to the Wi-Fi network in the display.

  • Page 26: Control Lock

    26 OPERATION Turning the Preheat Alarm Light On/Off unlock melody sounds and the controls unlock. When the oven reaches its set-temperature, the preheating alarm light flashes 5 times or until the oven door is opened. Start Time (Delayed Timed Cook) You can activate or deactivate the preheating alarm light.

  • Page 27: Cook Time (Timed Cook)

    OPERATION • If the oven clock is set as a 12-hour clock, you Press Cook Time. can delay the cook time for 12 hours. If the oven clock is set as a 24-hour clock, you can delay the Change the baking time: press 1, 3, 0. cook time for 24 hours.

  • Page 28: Gas Surface Burners

    28 OPERATION Min. Max. WARNING Temp. Temp. • Even if the top burner flame goes out, gas is still Feature Default flowing to the burner until the knob is turned to the OFF position. If you smell gas, immediately Time Time open a window and ventilate the area for five Hi /...

  • Page 29: Burner Locations

    OPERATION flames when lifting cookware. Do not use towels • Do not lift the cooktop. Lifting the cooktop can or other bulky cloth items. Use a pot holder. cause damage and improper operation of the range. • If using glass cookware, make sure the cookware is designed for range-top cooking.

  • Page 30: Using The Gas Surface Burners

    30 OPERATION Turn the control knob to control the flame Medium and large burners size. The medium and large burners are the primary burners for most cooking. These general CAUTION purpose burners can be turned down from Hi • Do not attempt to disassemble or clean around to Lo to suit a wide range of cooking needs.

  • Page 31: Using A Wok

    OPERATION • Cast-Iron monoxide levels above allowable standards. This can be hazardous to your health. - If heated slowly, most skillets will give satisfactory results. • Stainless Steel - This metal alone has poor heating properties and is usually combined with copper, aluminum or other metals for improved heat distribution.

  • Page 32: Using Stove-Top Grills

    32 OPERATION • Do not place or store items on the griddle. Front NOTE • Make sure the wok grate is stable and the wok rests firmly on the wok grate. • Do not use a wok that is the wrong size to fit securely in the wok grate.

  • Page 33: In Case Of Power Failure

    OPERATION - Cook Setting: HI - Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s • Type of Food : Bacon instructions. - Preheat Conditions: HI 5 min. - If you cannot reach your gas supplier, call the - Cook Setting: HI fire department.

  • Page 34: Oven Vent

    34 OPERATION Using Oven Racks proper air flow. Do not touch vent openings or nearby surfaces during any cooking operation. The racks have a turned-up back edge that prevents them from being pulled out of the oven cavity. CAUTION • Replace oven racks before turning the oven on to prevent burns.

  • Page 35: Bake

    OPERATION NOTE NOTE • Knocking twice on the glass panel turns the • It is normal for the convection fan to operate interior light on or off. periodically throughout a normal bake cycle in the oven. This is to ensure even baking results. •...

  • Page 36: Recommended Baking And Roasting Guide

    36 OPERATION display shows the auto-converted oven Grid (sold separately) temperature, 350 °F and the fan icon. When cooking has finished or to cancel, turn the oven mode knob to the OFF position. Broiler pan (sold separately) NOTE CAUTION • The oven fan runs while convection baking. The •...

  • Page 37: Broil

    OPERATION Broil Baking Rack Guide The Broil function uses intense heat from the Rack upper heating element to cook food. Broiling Food position works best for tender cuts of meat, fish, and thinly cut vegetables. Layer cakes Cakes Bundt cakes Some models may feature a hybrid broiler Angel food cake consisting of an inner broiler that utilizes a carbon...
  • Page 38 38 OPERATION Turn the oven mode knob to the OFF position to cancel at any time or when cooking is complete. Tips for Reducing Smoke Due to the intense heat associated with broiling, it is normal to experience smoke during the cooking process.

  • Page 39: Recommended Broiling Guide

    OPERATION Recommended Broiling Guide The size, weight, thickness, starting temperature, and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature. For best results when broiling, use a pan designed for broiling. Grid (sold separately) Broiler pan (sold separately) * : This feature is for the offset rack use.
  • Page 40 40 OPERATION First Second Quantity and/or Rack Food Side Side Comments Thickness Position (min.) (min.) 2 (1" thick) Medium 5 (6*) about 10 to 12 Well done 5 (6*) Lamb Chops Medium 5 (6*) 2 (1 " thick) about 1lb. Well done 5 (6*) 12-14...

  • Page 41: Proof

    OPERATION Proof has finished using a Timed Cook or a Delayed Timed Cook. This feature maintains a warm oven for rising yeast-leavened products before baking. (Set Setting the Warm Function temperature: 92 °F) Turn the oven mode knob to select Proof/ Setting the Proof Function Warm until Proof appears in the display.

  • Page 42: Air Fry

    • Use either the optional air fry tray available from The Air Fry function is specially designed for oil- LG or a dark baking tray with no sides or short free frying. sides that does not cover the entire rack. This allows for better air circulation.
  • Page 43 OPERATION as aluminum foil. Doing so blocks airflow • Keep the oven free from grease buildup. Wipe through the oven and can result in carbon down the interior of the oven before and after monoxide poisoning. Aluminum foil can also air frying (once the oven has cooled).

  • Page 44: Air Sous-Vide (Model Lsgl6337*)

    44 OPERATION Quantity Rack Recommended Items Temp. (°F) Time Guide (oz) Position Frozen Hot Wings, Bone- 25-35 CHICKEN-Fresh, Skin on 30-35 Brush or lightly spray with † Fresh Chicken Wings 1 tbsp. of oil. Add salt and Fresh Chicken 30-40 pepper to taste.

  • Page 45: Recommended Air Sous-Vide Guide

    OPERATION ice bath and stored in the freezer or Turn the oven mode knob to select Air Sous- refrigerator after cooking. Vide mode. • Crisp and Moist Results - The fine temperature control of Air Sous-Vide Set the desired oven temperature. (Range: cooking is an excellent way to achieve the 100 °F ~ 205 °F) perfect texture when cooking meat and...

  • Page 46: Remote Start

    46 OPERATION Setting the Slow Cook Function NOTE Turn the oven mode knob to select Slow • Do not place food in the oven before or during Cook. Hi appears in the display. the Remote Start run time. • Remote Start is disconnected in the following situations: Select the desired option by pressing either 1 or 2.

  • Page 47: Using The Sabbath Mode

    OPERATION Method • Do not pull the wire to remove the probe. Hold the probe head, not the wire, when inserting or removing the probe. Select cook mode. Turn the oven mode knob to select Conv. Roast. Set the oven temperature: touch 3, 7 and 5 until 375 °F appears in the display.
  • Page 48 48 OPERATION NOTE • If a cook time is set, the oven turns off automatically at the end of the cook time, without chiming. The oven remains in Sabbath mode, but is turned off. • If no cook time is set, the oven will not automatically turn off.

  • Page 49: Smart Functions

    LG ThinQ • LG ThinQ is not responsible for any network application and connect it again. connection problems or any faults, malfunctions, • This information is current at the time of or errors caused by network connection.

  • Page 50: Installing The Lg Thinq Application

    Connecting to Wi-Fi connected. • Consult the dealer or an experienced radio/TV The Wi-Fi button, when used with the LG ThinQ technician for help. application, allows the appliance to connect to a This device complies with part 15 of the FCC Rules.

  • Page 51: Fcc Rf Radiation Exposure Statement

    LG ThinQ application. Statement • Launch the LG ThinQ application and select the This equipment complies with FCC radiation Smart Diagnosis feature in the menu. Follow exposure limits set forth for an uncontrolled the instructions provided in the LG ThinQ environment.

  • Page 52: Maintenance

    52 MAINTENANCE MAINTENANCE Cleaning • To clean the knobs, make sure that they are in the OFF position and pull them straight off the stems. CAUTION • To replace the knobs, make sure the knob has • Do not clean this appliance with bleach. the OFF position centered at the top, and slide the knob directly onto the stem.

  • Page 53: Gas Surface Burners

    MAINTENANCE Oven Door • Both the broiler pan and grid may be cleaned with a commercial oven cleaner or in the dishwasher. CAUTION • Do not use harsh cleaners or harsh abrasive Oven Racks cleaning materials on the outside of the oven Remove the oven racks before operating the Self door.
  • Page 54 54 MAINTENANCE Grates and burner heads/caps can be removed for cause injury. Hitting an electrode with a hard care and cleaning. object may damage it. • To remove burnt-on food, soak the burner heads in a solution of mild liquid detergent and hot water for 20–30 minutes.

  • Page 55: Easyclean

    Compared to the more intense Self Clean process, your LG oven gives you the option of cleaning with LESS HEAT, Scrape off and remove any burned-on debris LESS TIME, and virtually NO SMOKE OR FUMES.
  • Page 56 56 MAINTENANCE • For hard to reach areas such as the back surface cavity is above 150 °F (65 °C), Hot will appear in of the oven, it is better to use the Self Clean the display, and the EasyClean cycle will not be cycle.

  • Page 57: Self Clean

    MAINTENANCE Spray or pour the remaining water (8 oz or NOTE 240 ml) onto the bottom center of the oven cavity. The indentation on the oven bottom • Do not use any steel scouring pads, abrasive should be fully covered to submerge all soils. pads or cleaners as these materials can Add water if necessary.
  • Page 58 58 MAINTENANCE the oven is heavily soiled. During Self Clean, the • Do not leave small children unattended near the kitchen should be well ventilated to minimize the appliance. During the Self Clean cycle, the odors from cleaning. outside of the range can become very hot to the touch.
  • Page 59 MAINTENANCE Setting Self Clean and cooling. This is normal and will not affect performance. The Self Clean function has cycle times of 3, 4, or 5 • The Self Clean cycle cannot be started if the hours. Control Lock / Lockout feature is active. Self Clean Soil Guide •...

  • Page 60: Removing/Assembling Lift-Off Oven Doors

    60 MAINTENANCE Turn the oven mode knob to select Self Clean. The oven defaults to the recommended four- hour self clean for a moderately soiled oven. Press buttons as below to select a self clean time from 3 to 5 hours. •...

  • Page 61: Removing/Assembling Drawers

    MAINTENANCE further cleaning is needed. Use warm water to thoroughly clean. Fully open the drawer. Unscrew the screw on the back of the drawer. Hinge arm Bottom edge of slot Indentation Locate the glide lever on each side of the drawer.

  • Page 62: Removing/Assembling The Vent Trim

    62 MAINTENANCE Periodic Maintenance Removing/Assembling the Vent Trim Changing the Oven Light Removing the Vent Trim The oven light is a standard 40-watt appliance halogen. It turns on when the oven door is open. Using a screwdriver, remove the two screws When the oven door is closed, press Light to turn holding the vent trim in place.

  • Page 63: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING FAQs Frequently Asked Questions What types of cookware are recommended for use with the cooktop? • The pans must have a flat bottom and straight sides. • Only use heavy-gauge pans. • The pan size must match the amount of food to be prepared and the size of the surface element.
  • Page 64 64 TROUBLESHOOTING What should I do if my racks are sticky and have become hard to slide in and out? Over time, the racks may become hard to slide in and out. Apply a small amount of olive oil to the sides of the racks.

  • Page 65: Before Calling For Service

    TROUBLESHOOTING Yes. It is highly recommended that 1 cup (8 oz or 240 ml) of water be sprayed or poured on the bottom and an additional ¼ cup (2 oz or 60 ml) of water be sprayed on walls and other soiled areas to fully saturate the soils for better cleaning performance.
  • Page 66 66 TROUBLESHOOTING Problem Possible Cause & Solution Burner flames are It may be due to improper installation or setting. very large or yellow. • If the range is connected to LP gas, contact the technician who installed your range or made the conversion.

  • Page 67: Parts & Features

    TROUBLESHOOTING Problem Possible Cause & Solution Oven will not work Plug on range is not completely inserted in the electrical outlet. • Make sure electrical plug is plugged into a live, properly grounded outlet. A fuse in your home may be blown or the circuit breaker tripped. •...
  • Page 68 68 TROUBLESHOOTING Problem Possible Cause & Solution Oven light does not It is time to replace the lamp or the lamp is loose. work. • Replace or tighten lamp. See "Changing the Oven Light" section in this Owner’s Manual. The plug on the range is not completely inserted in the electrical outlet. •...

  • Page 69: Noises

    TROUBLESHOOTING Problem Possible Cause & Solution Range is not level. Poor installation. • Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of range until the oven rack is level. •...

  • Page 70: Wi-Fi

    70 TROUBLESHOOTING Wi-Fi Problem Possible Cause & Solution Trouble connecting The password for the Wi-Fi network was entered incorrectly. appliance and • Delete your home Wi-Fi network and begin the registration process again. smartphone to Wi-Fi network Mobile data for your smartphone is turned on. •...

  • Page 71: Limited Warranty

    PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Should your LG Gas Range ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics (“LG”) will, at its option, repair or replace the Product.
  • Page 72 • Increases in utility costs and additional utility expenses. • Any noises associated with normal operation. • Use of accessories, components, or consumable cleaning products that are not authorized by LG. • Replacement of light lamps, filters, fuses or any other consumable parts.
  • Page 73 LIMITED WARRANTY Problem Possible Cause & Prevention Uneven flame Improper burner cap installation Burner cap is properly seated. Burner cap is NOT properly seated. • Check installation of burner head and cap. Burner ports clogged by food residue Ports blocked by dirt Flames uneven •...
  • Page 74 74 LIMITED WARRANTY Problem Possible Cause & Prevention Oven or racks are Aluminum foil has melted in the oven stained after using aluminum foil • Never cover the oven bottom or cover an entire rack with materials such as aluminum foil. •...
  • Page 75 LIMITED WARRANTY Problem Possible Cause & Prevention Oven shows error The gas pressure regulator valve is closed. code (F9, F19) but cooktop burners are working. Lever’s closed position • Check that the regulator valve is in the open position. • If the regulator valve is closed, rotate the lever to open the valve. Lever’s closed position Lever’s open position Flames too big on...

  • Page 76: Procedure For Resolving Disputes

    Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632 USA.
  • Page 77 LIMITED WARRANTY subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration.
  • Page 78 78 LIMITED WARRANTY You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty.
  • Page 79 Memo...
  • Page 80 80 Memo...
  • Page 81 Memo...
  • Page 82 LG Customer Information Center For inquiries or comments, visit www.lg.com or call: U.S.A. 1-800-243-0000 1-888-542-2623 CANADA Register your product Online! www.lg.com...
