Page 1

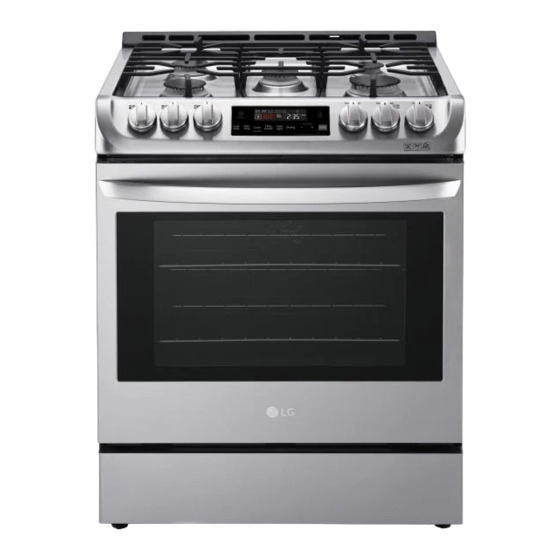

- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions. - If you cannot reach your gas supplier, call the fire department. • Installation and service must be performed by a qualified installer, service agency, or the gas supplier. LSG4513** LSG4511** www.lg.com MFL68920504_05...
TABLE OF CONTENTS TABLE OF COnTEnTS PrODUCT FEATUrES Lockout Start Time (Delayed Timed Cook) Cook Time (Timed Cook) IMPOrTAnT SAFETY Recommended Baking and Roasting Guide InSTrUCTIOnS Bake Convection Bake Convection Roast PrODUCT OVErVIEW Broil Favorite (For model : LSG4511) Parts Pizza Accessories Warm...
PRODUCT FEATURES PrODUCT FEATUrES Multiple Gas Burner Sizes Choose a burner to fit the size of your cookware. Cooking multiple items at once is possible by using different burners at the same time. Safe and Convenient Gas range Provides safety and convenience for cooking. Self Clean &...
Always contact your service agent or manufacturer about problems that you do not understand. Download this owner's manual at: http://www.lg.com This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and/or serious bodily harm or death.
Page 5
IMPORTANT SAFETY INSTRUCTIONS IMPOrTAnT SAFETY nOTICE The Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances. Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the imperfect combustion of natural or LP gas.
Page 6
IMPORTANT SAFETY INSTRUCTIONS WArnInG • Gas leaks may occur in the system and result in a serious hazard. Gas leaks may not be detected by smell alone. Gas suppliers recommend you purchase and install a UL approved gas detector. Install and use in accordance with the gas detector manufacturer’s instructions.
Page 7
IMPORTANT SAFETY INSTRUCTIONS WArnInG • Disconnect the electrical supply before servicing the appliance. • Never use the appliance door as a step stool or seat, as this may result in possible tipping of the appliance and serious injuries. • This product should not be installed below ventilation type hood systems that direct air in a downward direction.
Page 8
IMPORTANT SAFETY INSTRUCTIONS SUrFACE BUrnErS WArnInG • Even if the top burner flame goes out, gas is still flowing to the burner until the knob is turned to the Off position. If you smell gas, immediately open a window and ventilate the area for five minutes prior to using the burner.
Page 9
IMPORTANT SAFETY INSTRUCTIONS CAUTIOn • To prevent burns, always be sure that the controls for all burners are in the Off position and all grates are cool before attempting to remove them. • If you smell gas, turn off the gas to the range and call a qualified service technician. Never use an open flame to locate a leak.
Page 10
10 IMPORTANT SAFETY INSTRUCTIONS OVEn When opening the door of a hot oven, stand away from the range. The hot air and steam that escape can cause burns to hands, face and eyes. WArnInG • Never block any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil.
Page 11
IMPORTANT SAFETY INSTRUCTIONS EnErGY SAVInG TIPS • Multiple-rack cooking saves time and energy. Whenever possible, cook foods requiring the same cooking temperature together in one oven. • For optimal performance and energy savings, follow the guides on page 31 for proper rack and pan placements.
Spray bottle (1ea) Non-scratch scouring pad (1ea) nOTE • Contact LG Customer Service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are missing. • For your safety and for extended product life, only use authorized components. • The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased, unauthorized components or parts.
INSTALLATION InSTALLATIOn Before Installing the range Make sure your range is properly installed and grounded by a qualified installer, according to the installation instructions. Any adjustment and service should be performed only by qualified gas range installers or service technicians. In the Commonwealth of Massachusetts •...
14 INSTALLATION Installing the range Choosing the Proper Location Do not locate your range where it may be subject to Unpacking and Moving the range strong drafts. Any openings in the floor or wall behind the range should be sealed. Make sure the openings CAUTIOn around the base of the range that supply fresh air •...
INSTALLATION Dimensions and Clearances Provide proper clearance between the range and adjacent combustible surfaces. These dimensions must be met for safe use of your range. The location of the electrical outlet and pipe opening (see Gas Pipe and Electrical Outlet Locations, page 14) may be adjusted to meet specific requirements. The range may be placed with 0" clearance (flush) at the back wall.
16 INSTALLATION Installing the Anti-tip Device Tighten the two lower screws on the rear bracket. Insert one of the screws removed in Anti-tip step 1 in the slot at each end of the rear filler. Wall plate bracket Store the remaining two screws with these Screw must enter wood or instructions for future use.
INSTALLATION Connecting the range to Gas When all connections have been made, be sure all range controls are in the OFF position and the Shut off the range gas supply valve before removing pressure regulator valve is open before turning the old range and leave it off until the new hook-up on the main gas supply valve.
18 INSTALLATION Electrical Connections Do not use an adapter plug. Disconnecting of the power cord places undue strain on the adapter and leads to eventual failure of the adapter ground Electrical requirements terminal. 120 Volt, 60 Hz, properly grounded dedicated circuit Installation must conform with local codes or, in the protected by a 15 or 20 Amp circuit breaker, or slow absence of local codes, with the National Fuel Gas...
INSTALLATION Assembling the Surface Quality of Flames Burners The combustion quality of the burner flames needs to be confirmed visually. A Yellow flames - Call for service. CAUTIOn Do not operate the burners without all parts in B Yellow tips on outer cones - This place.
20 INSTALLATION Leveling the range Checking Operation of Bake / Broil Burners Level the range by adjusting the leveling legs. Extending the legs slightly may also make it easier to To check ignition of the Bake burner, follow the steps below: insert the rear leg into the anti-tip bracket.
OPERATION OPErATIOn CAUTIOn WHAT TO DO IF YOU SMELL GAS Gas Surface Burners • Open windows. • Do not try to light any appliance. Before Use • Do not touch any electrical switch. Read all instructions before using. • Do not use any phone in your building. Make sure that all burners are properly placed.
22 OPERATION Burner Locations Using the Gas Surface Burners Your gas range cooktop has four or five sealed gas Be sure that all of the surface burners and grates burners, depending on the model. These can be are placed in the correct positions. assembled and separated.
Page 23
OPERATION In Case of Power Failure Using a Wok In case of a power failure, you can light the gas If using a wok, use a 14-inch or smaller flat-bottomed surface burners on your range with a match. piece of wok. Make sure that the wok bottom sits flat on the grate.
24 OPERATION Using the Griddle Preheat the griddle according to the guide below and adjust for the desired setting. (For Model : LSG4513) Preheat Cook Type of Food Conditions Setting Warming Tortillas 5 (MED) Pancakes HI 5 min. Hamburgers HI 5 min. Fried Eggs HI 5 min.
OPERATION The Oven Do not block, touch or place items around the oven vent during cooking. Before Use Your oven is vented through ducts at the center above the burner grate. Do not block the oven vent when Read all instructions before using. cooking to allow for proper air flow.
26 OPERATION Control Panel Overview For Model : LSG4513 For Model : LSG4511 1 Smart Diagnosis 7 Oven Light Use during the Smart Diagnosis feature. Press the button to turn oven light on or off. 8 Setting 2 Smart Features Press button to select and adjust oven settings.
OPERATION Changing Oven Settings Minimum & Maximum Default Settings Clock All of the features listed have a minimum and a The clock must be set to the correct time of day in maximum time or temperature setting that can be order for the automatic oven timing functions to work entered into the control.
28 OPERATION Timer On/Off Settings Set the oven mode knob to the Off position. The Timer On/Off serves as an extra timer in the kitchen that beeps when the set time has run out. It Press Setting key repeatedly to toggle through and does not start or stop cooking.
OPERATION Adjusting the Oven Thermostat Adjusting the Beeper Volume Your new oven may cook differently from the one Set the oven mode knob to the Off position. it replaced. Use your new oven for a few weeks to become more familiar with it before changing the Press Setting repeatedly until Beep appears in temperature settings.
30 OPERATION Start Time (Delayed Timed Cook) Cook Time (Timed Cook) The automatic timer of the Delayed Timed Cook Set the oven to cook for a specific length of time function turns the oven on and off at the time you using the Timed Cook feature.
OPERATION removing and replacing the Oven recommended Baking and roasting racks Guide • Center pans on racks for best baking results. If CAUTIOn baking with more than one pan, place the pans so • Replace the oven racks before turning the oven that each one has at least 1"...
32 OPERATION Bake Baking Chart This chart is only for reference and can be used for Bake is used to prepare foods such as pastries, oven. Adjust the cook time according to your recipe. breads and casseroles. The oven can be programmed to bake at any temperature from 170 °F (80 °C) to Food Oven Temperature...
OPERATION Convection Mode Convection Baking Chart If auto conversion is disabled, reduce standard The convection system uses a fan to circulate heat recipe temperature by 25 °F (14 °C) for Convection evenly within the oven. This improves heat distribution Bake. Temperatures have been adjusted in this and allows for even cooking and excellent results, chart.
34 OPERATION Cookware for Convection Cooking Convection roast Any cookware safe for use in a conventional oven will The Convection Roast feature is designed to give work in a convection oven. But for best results, keep optimum roasting performance. Convection Roast the following in mind.
OPERATION Broil Setting the oven to Broil Turn the oven mode knob to select Broil High or Your oven is designed for closed-door broiling. Broil uses an intense heat radiation from the upper gas Broil Low. burner. Press Start. The Broil function works best when broiling thin, tender cuts of meat (1"...
Page 36
36 OPERATION recommended Broiling Guide The size, weight, thickness, starting temperature, and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature. For best results when broiling, use a pan designed for broiling. Second rack First Side...
OPERATION Favorite (For model : LSG4511) Pizza Use the Favorite feature to record and recall favorite This function automatically sets the oven temperature recipe settings. Favorite can store and recall up to to cook either frozen pizza with regular or rising crust, three settings.
38 OPERATION Warm Proof This function will maintain an oven temperature of This feature maintains a warm oven for rising yeast 170 °F. The Warm function will keep cooked food leavened products before baking. warm for serving up to three hours after cooking has finished.
SMArT FEATUrES Check Use read and Write/P2P receive. Before Using Tag On The Tag On function allows you to conveniently use LG Smart Diagnosis™, set the cook mode and ® EasyClean features, and communicate with your appliance using a smart phone. To use the Tag On...
NFC antenna inside the back of the smart phone matches the position of the Tag On icon Press an LG appliance's Tag On logo with an on the appliance. NFC-equipped smart phone to use the LG Smart ThinQ application's LG Smart Diagnosis™, Oven...
MAINTENANCE MAInTEnAnCE Cleaning Burner Heads/Caps For even and unhampered flame, the slits in the CAUTIOn burner heads must be kept clean at all times.The burner heads and caps (and the oval burner head • Do not clean this appliance with bleach. and cap assembly) can be lifted off.
Page 42
42 MAINTENANCE Burner Grates Cleaning the Cooktop Surface The range consists of three separate professional- CAUTIOn style grates. For maximum stability, these grates • To avoid burns, do not clean the cooktop should only be used when in their proper position. The surface until it has cooled.
1-800-243-0000 (USA), 1-888-542-2623(CANADA) or visit our website at: www.lg.com Oven Door • Use soapy water to thoroughly clean the oven door. Rinse well. Do not immerse the door in water.
Compared to the more intense Self Clean process, your LG oven gives you the option of cleaning with LESS HEAT, LESS TIME, and virtually NO SMOKE OR FUMES.
Page 45
MAINTENANCE When to Use EasyClean ® Suggested Types of Common Food Items Example of Oven Soiling Soil Pattern Cleaning Method Soils That Can Soil Your Oven Cheese Small drops or or other Pizza spots ingredients Steaks, broiled ® EasyClean Fish, broiled Light splatter Fat/grease Meat roasted at low...
Page 46
46 MAINTENANCE Spray or pour the remaining 1 cup (8 oz or 250 Once the oven cavity is cleaned, wipe any ml) of water onto the bottom center of the oven excess water with a clean dry towel. Replace cavity. The indentation on the oven bottom racks and any other accessories.
MAINTENANCE Self Clean During the Self Clean cycle, the cooktop elements and warming drawer cannot be used. (For Model : LSG4513) nOTE The Self Clean cycle uses extremely hot temperatures • Remove oven racks and accessories before to clean the oven cavity. While running the Self Clean starting the Self Clean cycle.
Page 48
48 MAINTENANCE After the Self Clean Cycle CAUTIOn • The oven door remains locked until the oven Do not force the oven door open when the lock temperature has cooled. icon is displayed. The oven door remains locked until the oven temperature has cooled. Forcing •...
MAINTENANCE Changing the Oven Light removing and replacing the Lift-Off Oven Doors and The oven light is a standard 40-watt appliance bulb. It turns on when the oven door is open. When the oven Drawer door is closed, press Light to turn it on or off. WArnInG CAUTIOn •...
Page 50
50 MAINTENANCE replacing the Door removing the Drawer Firmly grasp both sides of the door at the top. CAUTIOn Disconnect the electrical power to the range at With the door at the same angle as the removal the main fuse or circuit breaker panel. Failure to position, seat the indentation of the hinge arms do so can result in severe personal injury, death, into the bottom edge of the hinge slots.
TROUBLESHOOTING TrOUBLESHOOTInG Can I use aluminum foil to catch drippings in my oven cavity? Never use aluminum foil to line the bottom or sides of FAQs the oven or the warming drawer. The foil will melt and stick to the bottom surface of the oven and will not be What types of cookware are recommended for removable.
Page 52
52 TROUBLESHOOTING My range is still dirty after running the Is it safe for my convection fan, broil burner or EasyClean ® cycle. What else should I do? heater element to get wet during EasyClean ® The EasyClean ® cycle only helps to loosen light soils Yes.
TROUBLESHOOTING Before Calling for Service Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Symptoms Possible Cause / Solutions •...
Page 54
54 TROUBLESHOOTING Symptoms Possible Cause / Solutions Too much soil in the oven. Open the windows to get rid of the smoke from the Too much smoke room. Turn the oven mode knob to select Self Clean. Wait until the light goes off during the Self Clean before trying to open the oven door.
SMART DIAGNOSIS™ SMART DIAGNOSIS™ Smart Diagnosis™ Through the Call Center Call the LG call center at: (LG U.S.) 1-800-243- 0000 (LG Canada) 1-888-542-2623. When instructed to do so by the call center Should you experience any problems with your range,...
WArrAnTY (USA) Should your LG Gas Range fail due to a defect in materials or workmanship under normal home use, during the warranty period set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the product and applies only when purchased and used within the United States including U.S.
Page 57
• The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including LG’s owner’s and installation manuals. • Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use of parts not approved or specified by LG.
Page 58
58 WARRANTY Problem Cause Prevention • Knobs melt Improper usage • Do not leave door at stop position during Broil/Bake mode or right after cooking. • Oven or racks are Aluminum foil has melted in the oven • Never cover the oven bottom stained after using or cover an entire rack with aluminum foil...
Page 59
WARRANTY Problem Cause Prevention • Flames too bigon The installer missed part of the conversion. • Check with installer first converted cooktop (Check 3 parts: regulator, cooktop valve, broil/ • Refer to installation manual (NP LP) bake valve.) regulator cooktop valve broil/bake valve 17K / 18.5K burner needs choke.
Page 60
LG Electronics at the number below. For assistance or service, call 1-800-243-0000. If you need further assistance, you can write to LG with any questions or concerns at the address below: LG Electronics, 201 James Record Road, Huntsville, Alabama 35813...
Page 61
LG Customer Information Center 1-800-243-0000 1-888-542-2623 CANADA Register your product Online! www.lg.com Printed in Korea...
